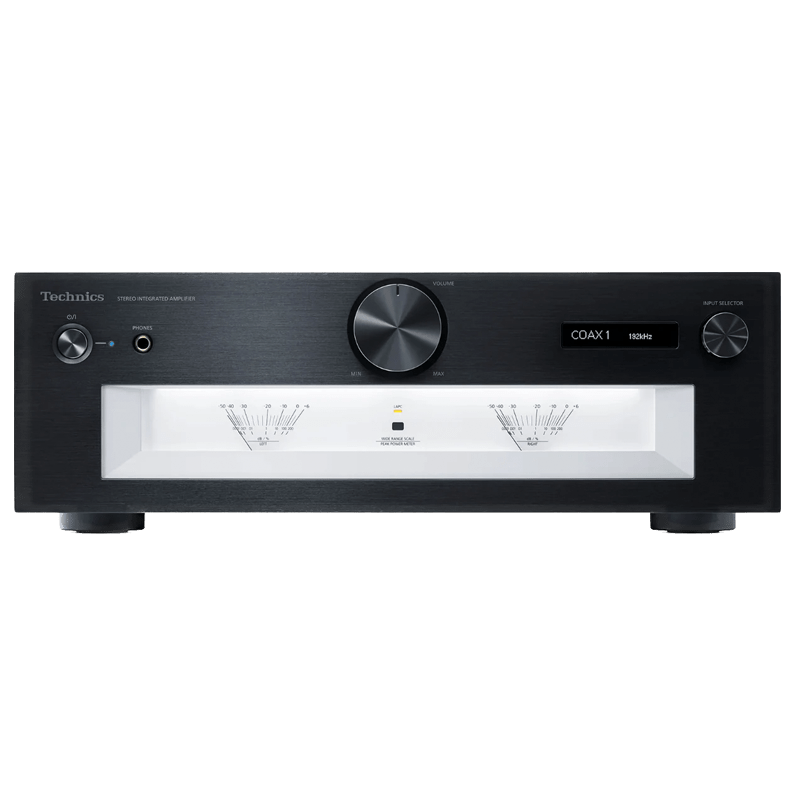

Technics SU - G700M2 Stereo Integrated AmplifierIntegrated AmplifiersTechnicsVinyl Revival

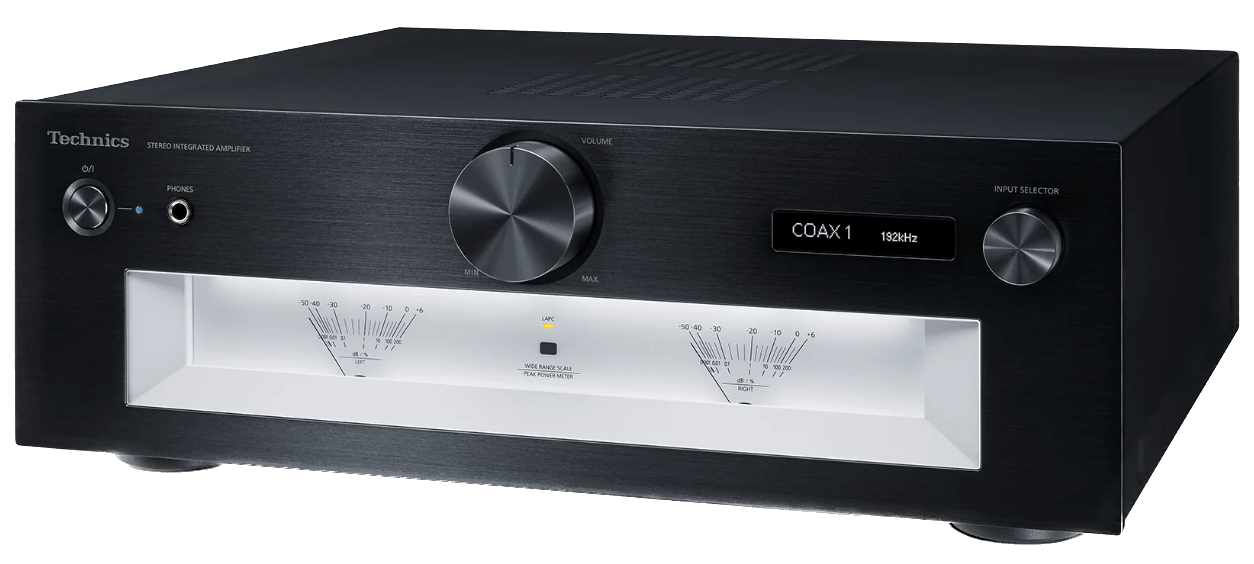

Technics SU-G700M2 Stereo Integrated Amplifier, black angled

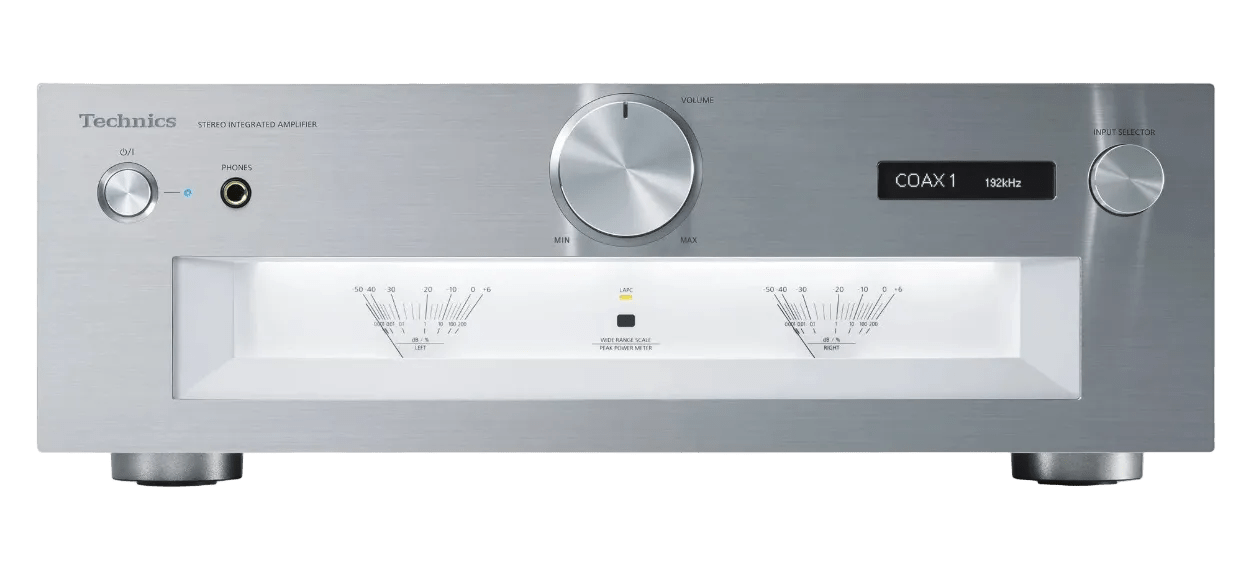

Technics SU-G700M2 Stereo Integrated Amplifier, Silver front

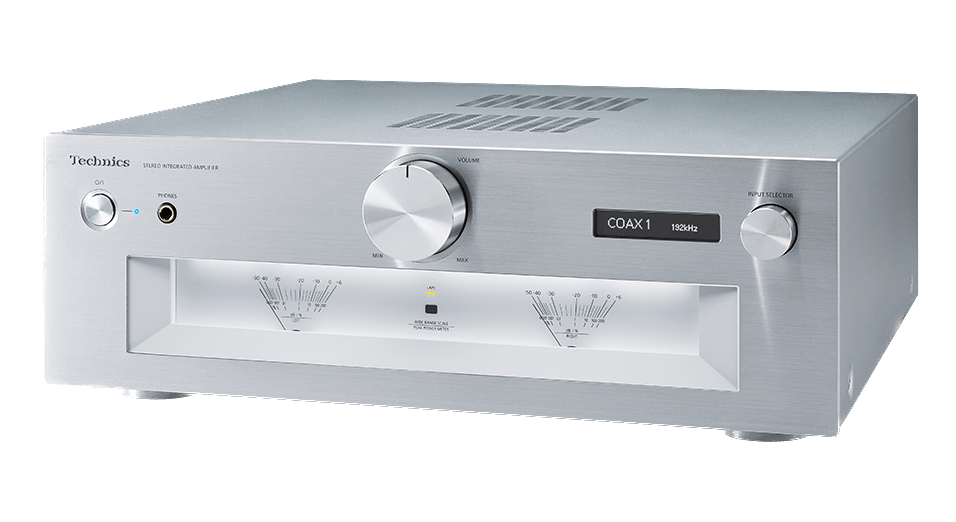

Technics SU-G700M2 Stereo Integrated Amplifier, Silver angled

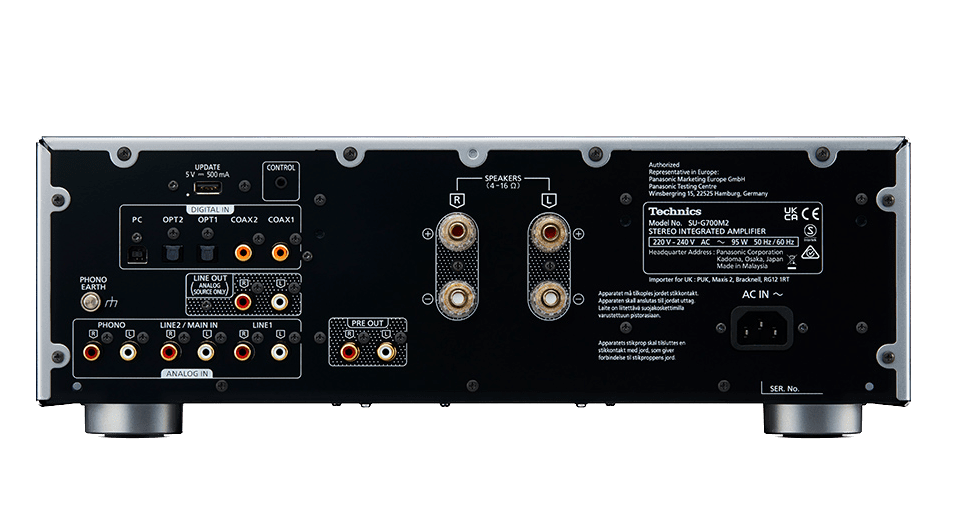

Technics SU-G700M2 Stereo Integrated Amplifier, Silver back

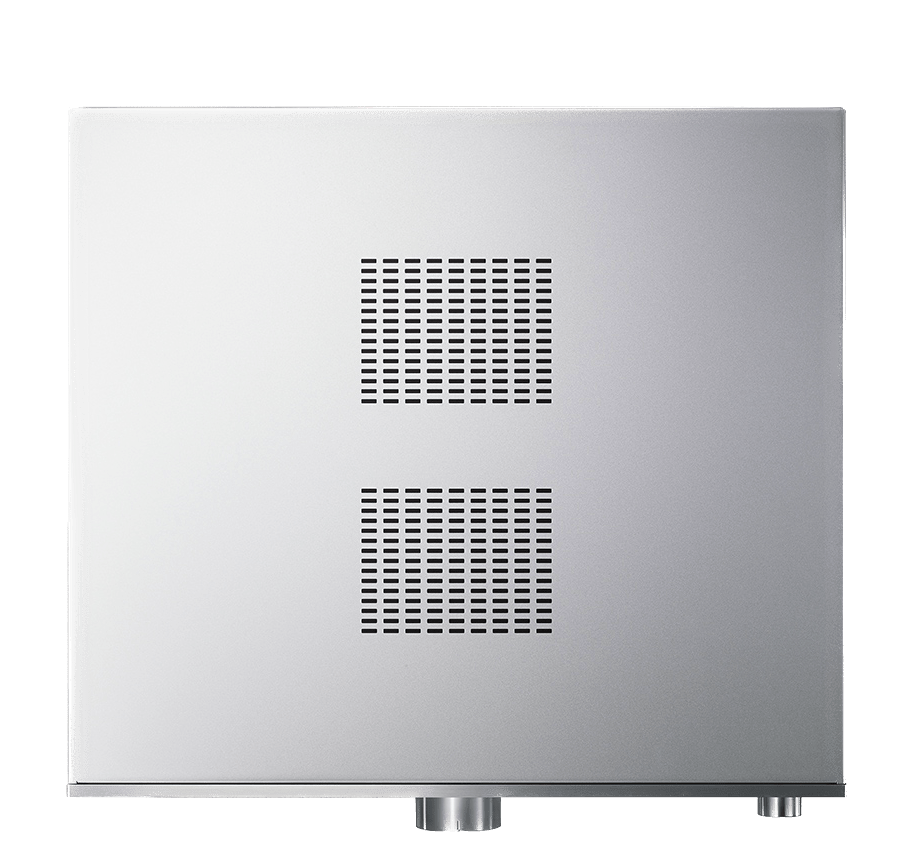

Technics SU-G700M2 Stereo Integrated Amplifier, Silver top

chevron_left

chevron_right

Technics SU-G700M2 Stereo Integrated Amplifier

Name: Technics SU-G700M2 Stereo Integrated Amplifier
Brand: Technics
SKU: TEC-SU- G700M2E-K
Price: 4599.0 AUD
Availability: InStock

Technics

$4,599.00

Speak with our team to confirm in-store availability.

Color

Black Silver

Product variants

Free Pick Up at Vinyl Revival Carlton North — (753-755 Nicholson Street, Carlton North)

Usually ready in 2-4 days —

Free delivery (Conditions may apply) — on orders over $500!

Secure checkout with

Technics SU-G700M2 Stereo Integrated Amplifier

$4,599.00

Color

Product variants

Introducing the SU-G700M2

Stereo Integrated Amplifier featuring the JENO Engine

In order to faithfully transmit the massive amount of audio data sent to the speakers without loss, the SU-G700M2 power amp section uses full digital amplification employing the JENO Engine, based on the design concept of reference systems.

To resolve the concern of sound quality degradation due to jitter (which poses problems for conventional digital amplifiers), Technics's SU-G700M2 has an original jitter reduction circuit that eliminates jitter over the entire audible frequency range.

It also has a unique, high-precision PWM (Pulse Width Modulation) conversion circuit, important for sound quality.

By optimising items such as the noise-shaping speed, degree, and quantisation number through our unique expertise, data even in the wide dynamic range contained in high-resolution sound sources is converted to PWM signals without loss. These technologies provide reproduction of natural and finely detailed sound, enabling perception even of delicate musical nuances.

LAPC (Load Adaptive Phase Calibration)

The SU-G700M2 amplifier includes a speaker impedance adaptive optimisation algorithm that sends the ideal impulse response through digital signal processing by measuring the frequency amplitude-phase characteristics of the amplifier with the speakers connected.

This new technique enables a flattening of the frequency characteristics of the amplitude and phase, which had previously not been achieved by amplifiers, as well as delivering a sound with rich spatial expression.

Advanced Speed Silent Power Supply

The power supply technology incorporated in the reference-class model SU-R1000 has been employed for improved speaker drive power and a greater feel of energy with the switching frequency increased from the conventional 100 kHz band to the 400 kHz band. This ensures a stable supply of voltage and current and reduces adverse effects of modulation noise on the audio quality.

The SU-g700M2 is equipped with the same GaN FET and SiC SBD as those mounted in the SU-R1000 to deliver maximum performance from the high-speed switching power supply system. What’s more, a super low-noise regulator is provided in the later stage.

This prevents the decrease of regulation due to fixed switching frequency and impedes the mixing of noise components into high frequencies. The result is a low-noise and high-response power supply that maximises the performance of the digital amplifier.

Three-section Configuration

In integrated amplifiers there are a variety of circuits, including circuits that handle the micro-signals of inputs and those that handle a large current, such as output circuits and power-supply circuits. The SU-G700M2 uses a three-section construction with partitions installed between the circuit blocks according to the signal level handled. This eliminates interference between circuit blocks, thus achieving clear sound quality.

In addition to the three-section construction, the SU-G700M2 comes with a bottom chassis featuring a two-layer construction with 1.2-mm-thick and 2-mm-thick steel plates, a top panel made of a 1.6-mm-thick steel plate and a 7-mm-thick aluminium front panel for improved vibration damping.

Low-noise PHONO Input

PHONO MC input is now supported. The PHONO input achieves low noise by using a differential parallel connection configuration of a first-stage, low-noise FET. In addition, four-level gain adjustment enables selection of the best gain according to the cartridge output, enabling optimal playback of high-grade analogue recorded sound sources tailored to the user’s environment.

Class AA Headphone Amplifier

The SU-G700M2 uses a Class AA headphone amplifier with separate circuits for voltage and current amplification of the audio signal. The voltage is amplified by a high-grade operational amplifier, the current is amplified by an operational amplifier with high current-supply capability, and the high-grade PWM signal output from the JENO Engine is converted to analogue with high precision, thus enabling headphones to be ideally driven.

This makes it possible to reproduce music with low distortion and a wide frequency range no matter what the load impedance of the headphones is.

Product Features

JENO Engine (Jitter Elimination and Noise-shaping Optimisation)
APC (Load Adaptive Phase Calibration)
Advanced Speed Silent Power Supply
Three-section Configuration
Low-noise PHONO Input
Class AA Headphone Amplifier

Technical Specifications

Output Power
70W + 70W (1 kHz, T.H.D. 0.5 %, 8Ω, kHz LPF)
140W + 140W (1kHz, T.H.D. 0.5 %, 4Ω, 20kHz LPF )

Load Impedance
4Ω-16Ω

Frequency Response

PHONO (MM)
20Hz - 20kHz (RIAA DEVIATION ±1dB, 8Ω )

PHONO (MC)
20Hz - 20kHz (RIAA DEVIATION ±1dB, 8Ω )

LINE
5 Hz - 80 kHz (-3 dB, 8 Ω)

DIGITAL
5 Hz - 80 kHz (-3 dB, 8 Ω)

Input Sensitivity / Input Impedance

PHONO (MM)
2.5 mV / 47 kΩ

PHONO (MC)
300 µV / 100 Ω

LINE
200 mV / 22 kΩ

Analogue Input Terminal
LINE x 2 (LINE1, LINE2 / MAIN IN)
PHONO (MM/MC) x1

Digital Input Terminal
Optical digital x2 (OPT 1, OPT 2)
Coaxial digital x 2 (COAX 1, COAX 2)
USB-B x1 (PC)

Analogue Output Terminal
LINE OUT x1　(LINE OUT)
PRE OUT x1 (PRE OUT)

Headphone Output
Yes, Stereo Φ6.3 mm

PC (USB-B)
USB 2.0 high-speed
USB Audio Class 2.0, Asynchronous mode

Support Codec
PCM: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
DSD Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)

DSD Control Mode
ASIO Native Mode, DoP mode

Power Supply
AC 220-240 V, 50 Hz / 60 Hz

PEAK Power Consumption
95 W

Dimensions (W x H x D)
430 x 148 x 428 mm

Weight
Approx. 12.6 kg

What's in the Box

Technics SU-G700M2 Stereo Integrated Amplifier
Remote Control
Batteries for Remote Control
AC Cord
Owner's Manual
