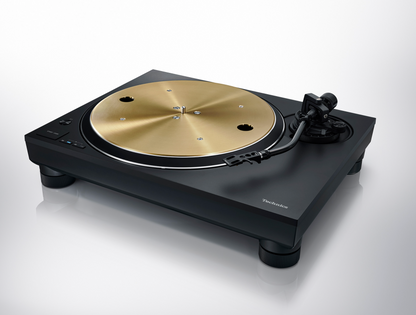

Technics SL-1300G Grand Class Turntable in black
Technics SL-1300G Grand Class Turntable in silver

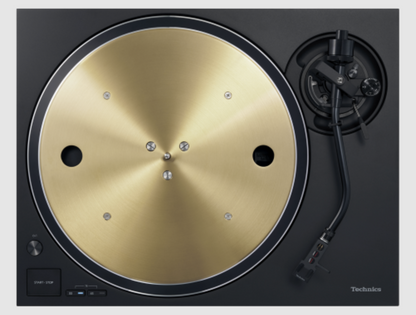

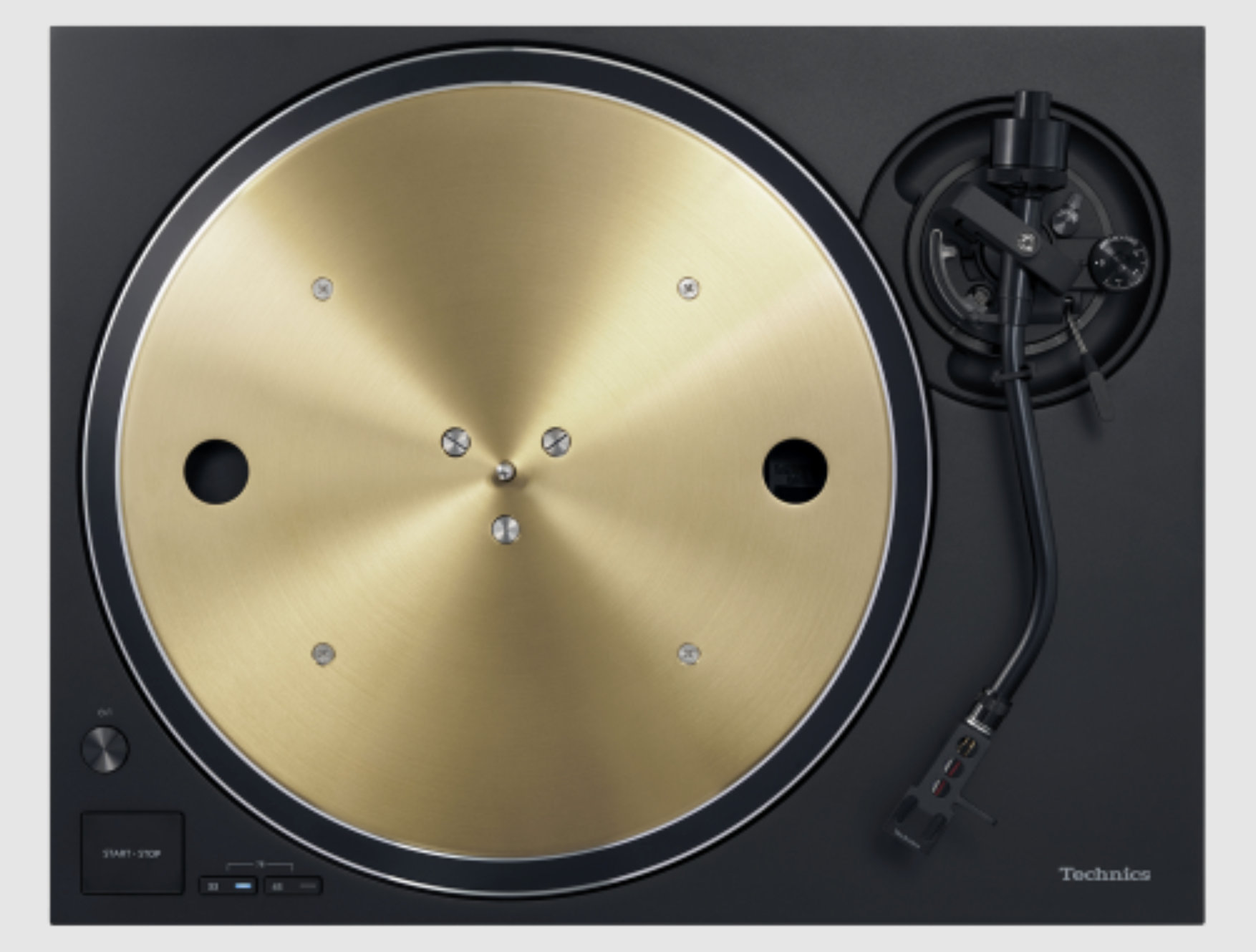

Technics SL-1300G Grand Class Turntable in black overhead view

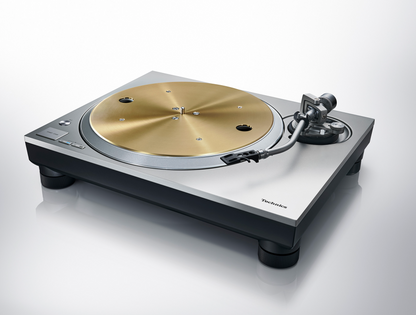

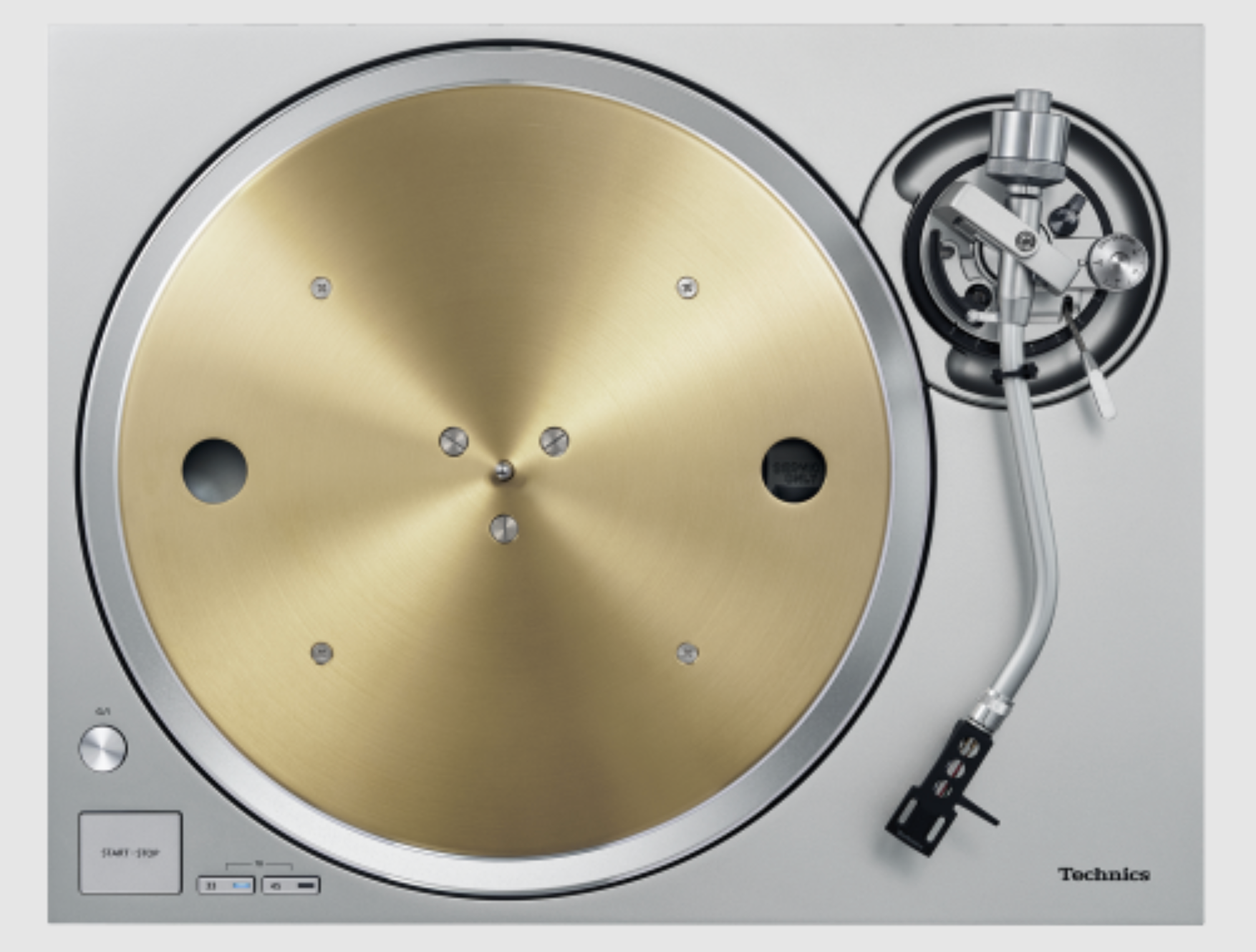

Technics SL-1300G Grand Class Turntable in silver, overhead view

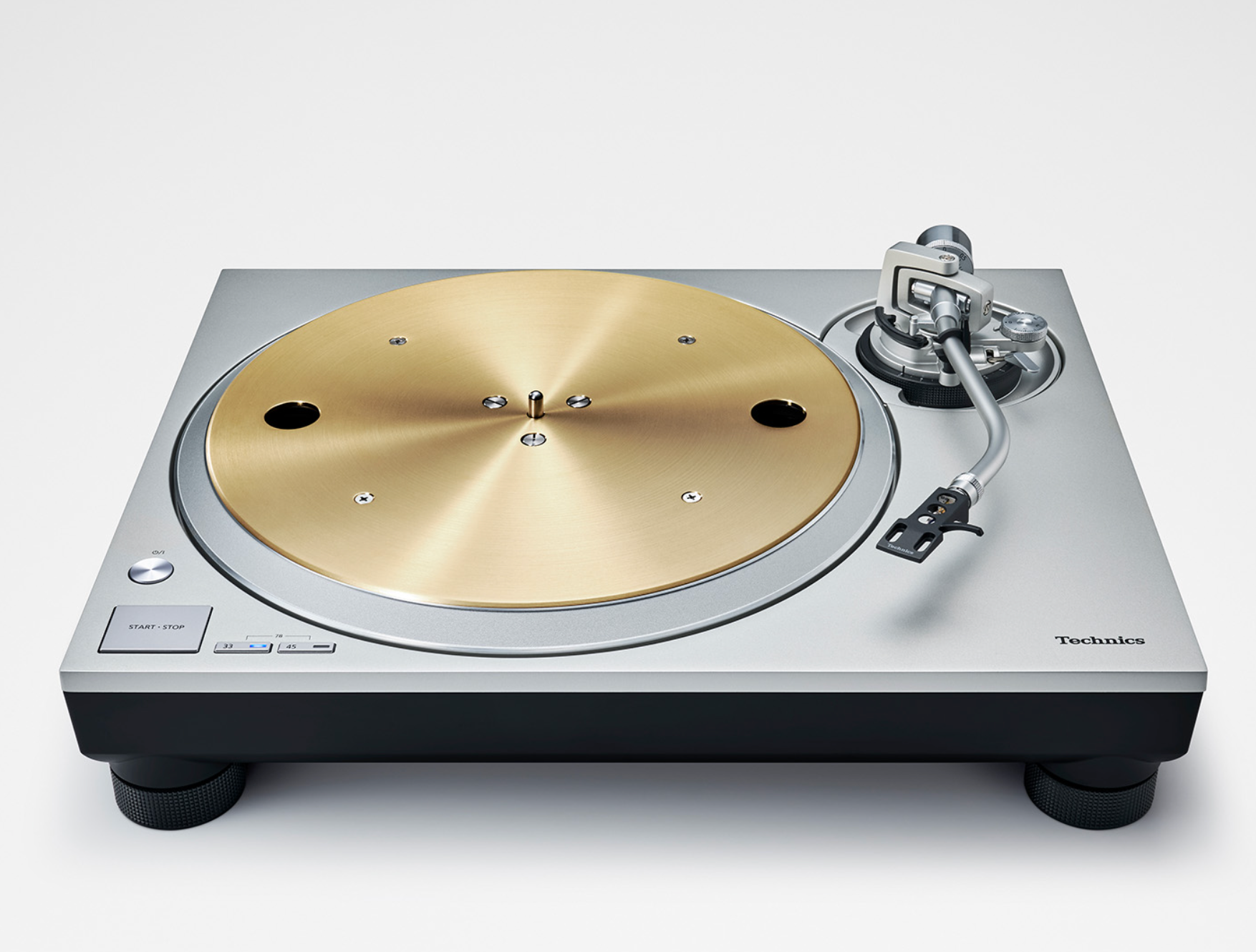

Technics SL-1300G Grand Class Turntable in silver, front on

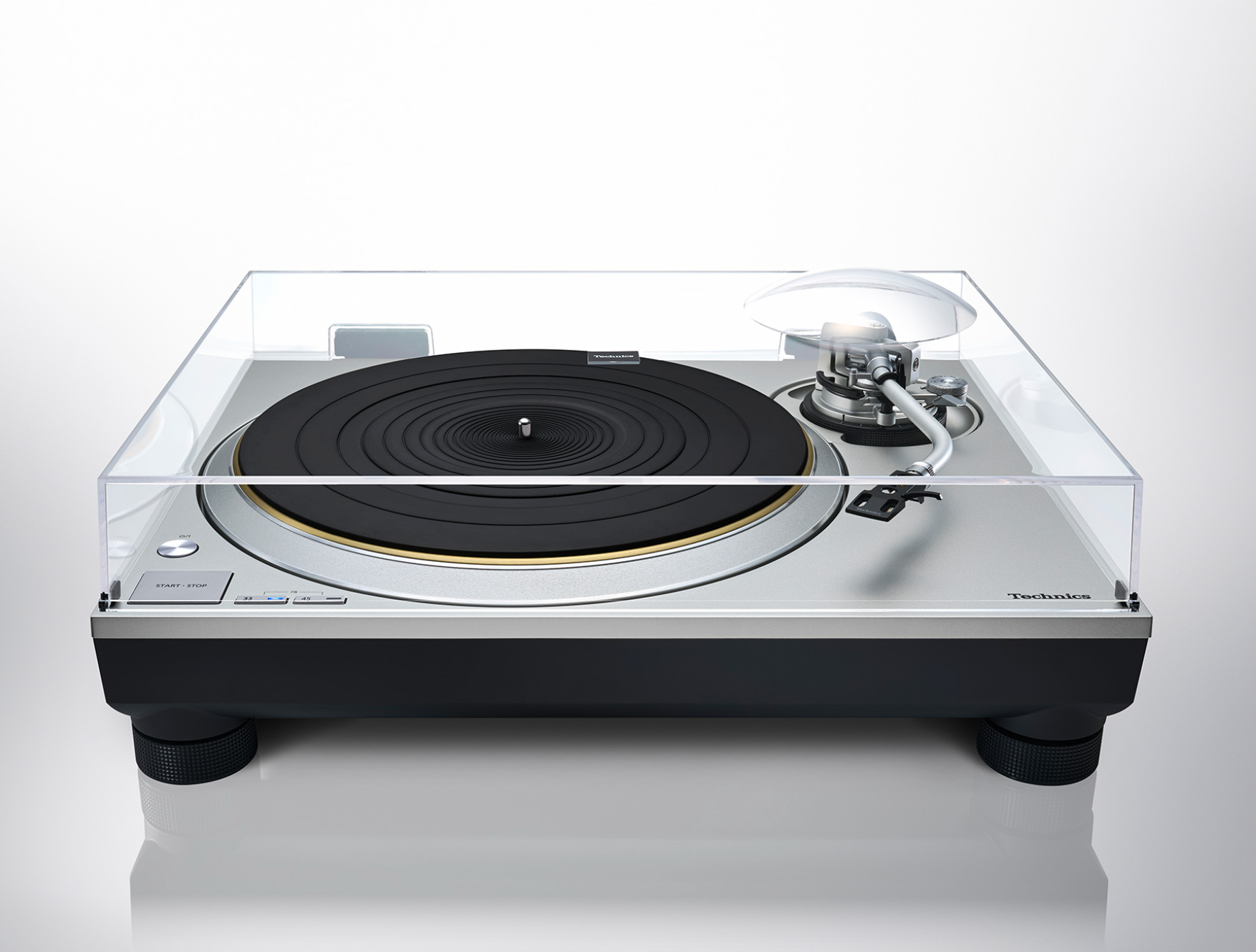

Technics SL-1300G Grand Class Turntable in silver with dust cover
Technics
Technics

Technics SL-1300G Grand Class Turntable

$4,999.00 AUD
Colour
Colour: Black
Vinyl Revival Upgrades & Accessories Vinyl Revival Slip Mat

"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."

Meet  the new SL-1300G

Hurry, Limited time only offer - FREE Ortofon Blue Cartridge valued at $329!

Direct Drive, Grand Class Turntable from Technics

This stunning turntable features a Hi-Fi design featuring ΔΣ-Delta Sigma Drive and new motor drive technology that delivers high rotational accuracy and low vibration.

The turntable’s new motor, three-layer platter, and high-rigidity chassis ensure even higher sound quality.

Product Features

  • ΔΣ-Drive suppresses vibrations from the motor for smoother, more accurate rotation
  • Anti-vibration structure with a three-layer platter and a two-layer chassis
  • Low-noise, low-voltage power circuit and a switching power supply
  • Tonearm achieving high Initial-motion sensitivity
  • High-rigidity body and high-damping silicon insulators for smooth sound and isolation from various vibrations

Coreless Direct Drive Motor Achieving Stable Rotation

The use of a coreless direct-drive motor with no iron core eliminates uneven rotation of the turntable known as cogging. Also, the twin-rotor construction reduces the bearing load while maintaining high torque and reduces minute vibrations during rotation. Furthermore, the SL-1300G’s motor was redesigned to eliminate subtle vibrations that could affect sound quality. To improve rigidity, the same reinforcement pattern as the Reference Class SL-1000R/SP-10R was used for the coil mounting base.


Motor-Drive System, ΔΣ-Drive (Delta Sigma Drive)

Unlock a realm of audio precision with the ΔΣ-Drive – a state-of-the-art system harnessing Technics’ expertise in PWM signal processing. In addition to reducing harmonics, the drive suppresses vibrations from the motor for smoother, more accurate rotation, ensuring a rich reproduction of the music.


Vibration Resistance Design - Three-layered Turntable Platter

The turntable has a three-layered construction with a rigidly combined brass and aluminium die-cast platter. With a deadening rubber covering its entire rear surface to eliminate unnecessary resonance, thereby achieving high rigidity and vibration damping. This delivers smooth rotational stability and inertial mass surpassing the SP-10MK2, the direct-drive turntable standard used by broadcast stations worldwide, as well as having more than twice the inertial mass of the SL-1200MK5.

Two-layered Cabinet Construction

The SL-1300G ensures high rigidity by using a body with a two-layered construction that solidly unifies the BMC and the aluminium die-cast chassis. Reinforcing ribs have been added between the motor/tone arm on the top panel. This improves rigidity and vibration damping characteristics.

High-level Balance Adjustment

When the weight distribution of the turntable is uneven, excess vibration or noise occurs during rotation, which causes degradation in sound quality. Therefore, the balance of the turntable is adjusted at the factory by using specialized high-precision balance adjustment equipment for each and every item after the turntable is assembled. Turntables that have undergone adjustment are labelled with a sticker reading “BALANCED” to indicate that adjustment has been done.

Multi-Stage Silent Power Supply

Low-Noise Switching Circuit

The use of a high-speed switching power supply ensures a stable supply capacity and less ripple and humming. Applying a switching power supply to a turntable eliminates the need for a large transformer and countermeasures for the ensuing mechanical vibrations. A switching frequency of above 100 kHz limits the impact of noise on the music playback bandwidth.

Current Injection Active Noise Cancelling

This technology combines a noise detection device with an error amplifier. It detects residual noise in the power supply and applies an inverse phase current to remove noise components. It removes low frequency noise more effectively than a regulator to ensure a more ideal power supply.

Tonearm Achieving High Initial-Motion Sensitivity

The tonearm, a crucial component for precise reading, tracks the record's rotation. Inherited from Technics, it employs a lightweight, rigid aluminium pipe in the traditional static-balance universal shape. Featuring a gimbal suspension and high-precision bearing, it achieves high initial-motion sensitivity through manual assembly by skilled artisans. This meticulous construction ensures accurate tracing of record grooves. Plus, it includes an auxiliary weight, providing flexibility for a variety of pickup cartridges.

Technical Specifications

Turntable section

Drive Method
Direct Drive

Motor
Brushless DC motor

Turntable Speeds
33 1/3, 45, *78 rpm
 * The turntable speed will be 78.26 rpm when set to 78 rpm.

Starting Torque
0.32 N・m (3.3kgf・cm) (2.86 lbf-in)

Build-up Characteristics
0.7 s. from standstill to 33-1/3 rpm

Braking System
Electronic Brake

Wow And Flutter
0.025 % W.R.M.S.

Turntable Platter
Aluminium diecast, Brass and Rubber
Diameter : 332 mm
Weight : Approx. 3.6 kg (including turntable mat)

Tonearm Section

Type
Static Balance

Effective Length
230 mm

Overhang
15 mm

Tracking Error Angle
Within 2° 32' (at the outer groove of 30 cm (12") record)
Within 0° 32' (at the inner groove of 30 cm (12") record)

Offset Angle
22°

Arm Height Adjustment Range
0 - 6 mm

Stylus Pressure Adjustment Range
0 - 4 g (Direct Reading)

Headshell Weight
Approximately 7.6 g

Applicable Cartridge Weight Range (including Headshell)
Without auxiliary weight: 5.6 - 12.0g (14.3 - 20.7g including head shell)
With small auxiliary weight: 10.0 - 16.4g (18.7 - 25.1g including head shell)
With big auxiliary weight: 14.3 - 19.8g (23.0 - 28.5g including head shell)

  • Cartridge Mounting Dimension
    12.7 mm (1/2") interval

Head Shell Terminal Lug
1.2mmφ 4-pin terminal lug

Terminals

Audio Output
PHONO (Pin Jack) x 1

EARTH TERMINAL
x 1

General

Power Supply
AC 220 - 240 V, 50 / 60 Hz

Power Consumption
10 W (on)
Approx. 0.03 W (off)

Dimensions (W x H x D)
453 x 173 x 372 mm

Weight
Approx. 13 kg

Operating Temperature Range
0° to + 40°

Operating Humidity Range
35 % to 80 % RH (no condensation)

Whats in the Box

  • Turntable
  • Turntable sheet
  • Dust cover
  • EP record adaptor
  • Balance weight
  • Auxiliary weight
  • Headshell
  • Overhang gauge
  • Screw set for cartridge
  • PHONO cable
  • PHONO earth lead
  • AC main leads
  • Screw set for turntable
  • Owner's manual
