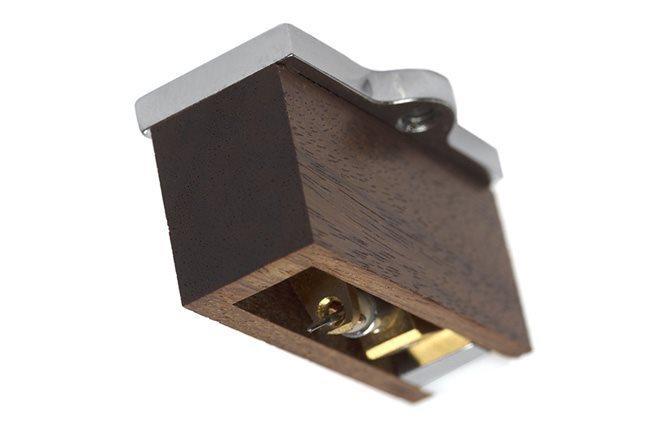

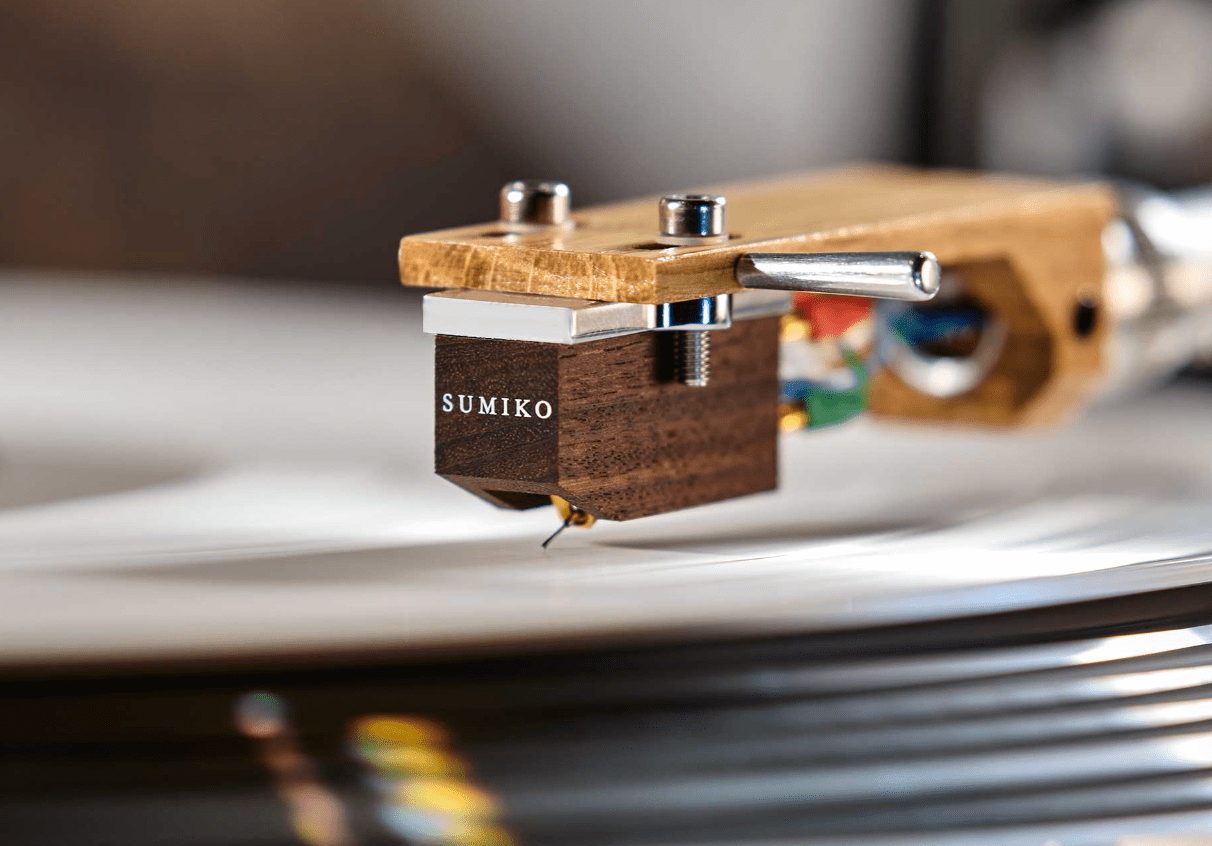

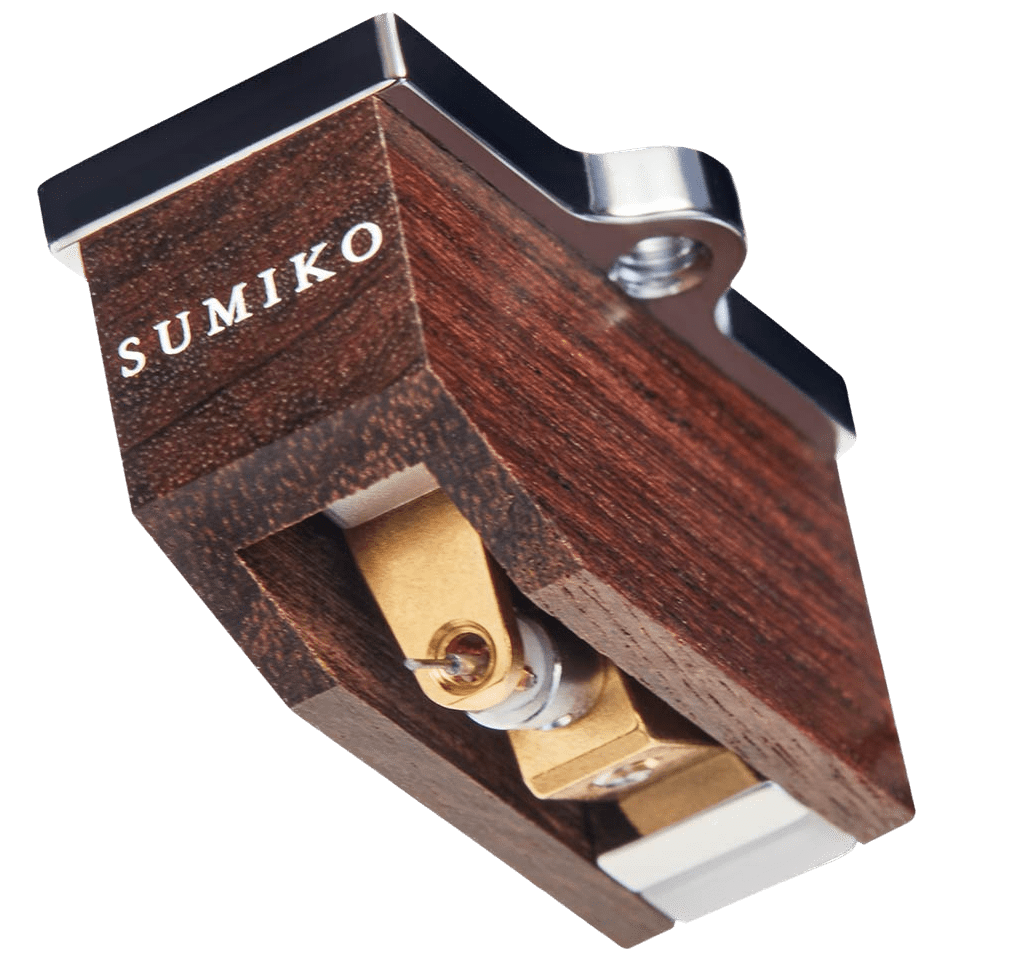

Sumiko Palo Santos Presentation Low Output MC Cartridge
Low Output MC Cartridge
For over thirty-five years, SUMIKO has provided a comprehensive range of phono cartridges to music lovers seeking the finest musical experience at a variety of price points. In fact, the great market success of SUMIKO phono cartridges has hinged on their phenomenal cost-to-performance ratio.
The Palo Santos Presentation is no exception. New design requirements incorporating advances in material technology and construction techniques have resulted in a significantly improved product which delivers a highly refined and resolved, yet musically satisfying sound quality previously unavailable at or even near its price.
Improvements grace virtually every facet of the product to differentiate it from its smaller sibling the Pearwood Celebration II. Most significant is the new generator anchoring system, which has substantially improved rigidity and reduced resonance and background noise to previously unheard of levels.

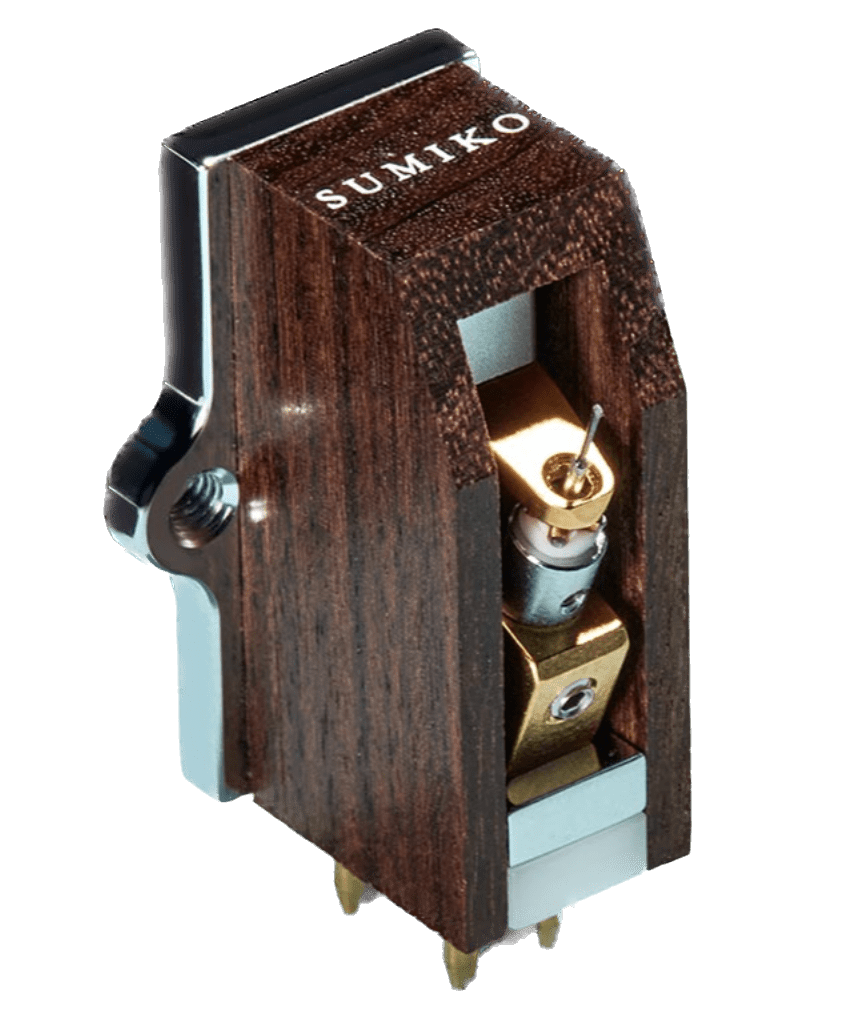

From the new handcrafted Palo Santos (Brazilian Rosewood) body, which is shorter in height to add vision when mounting and aligning this cartridge, to the Long Grain Boron cantilever and new Line Contact stylus, which significantly improves resolution, the Palo Santos Presentation truly deserves the title as our flagship offering.
Each Sumiko phono cartridge is hand assembled by the world-class cartridge makers at Excel Sound in Yokohama, Japan, a relationship they’ve proudly maintained for nearly forty years, using only the finest materials that combine to deliver performance that has enlightened generations of listeners.
Each design is thoroughly auditioned until it meets Sumiko's stringent standards for sound. Production is then executed by expert craftsmen with a collective eye for precision and quality.
The result is a family of premium cartridges that render emotion through tonally balanced, refined and fatigueless analog reproduction.
Cartridge Type
Moving Coil
Suspension
synthetic rubber
Frequency Response
10Hz - 40khz (+/- 1.5dB)
Output Voltage/Channel
0.5mV (3.54cm/s @ 1kHz)
Channel Separation
>30dB @ 1kHz
Channel Balance
<0.5dB @ 1kHz
Optimum Tracking Force
2.0g
Tracking Force Range
1.8g - 2.2g
Dynamic Compliance
8x10-6 cm/dyn
Internal Impedance
12Ω
Load Impedance
100Ω - 1kΩ
Capacitance Range
100pF - 300pF
Cantilever
long-grain boron
Stylus
75 x 4 micron ultra low-mass Line-Contact

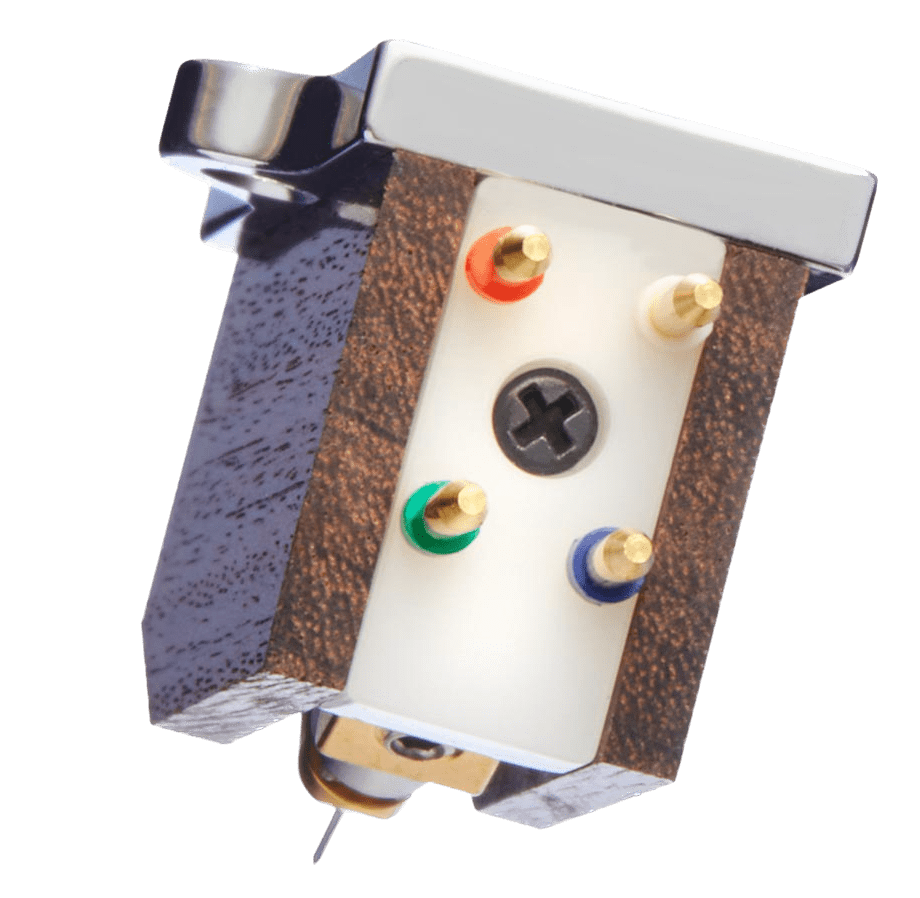

Output Terminals
unique gold-plated tapered brass pins
Cartridge Weight
8.3g
Mounting System
standard 0.5” hole spacing (M2.5 threaded)
Supplied Hardware
2x M2.5 (6mm) stainless steel mounting screws
2x M2.5 (8mm) stainless steel mounting screws
4x M2.5 stainless steel washers,
1x 2.0mm allen wrench
*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change without notice.
E&OE
