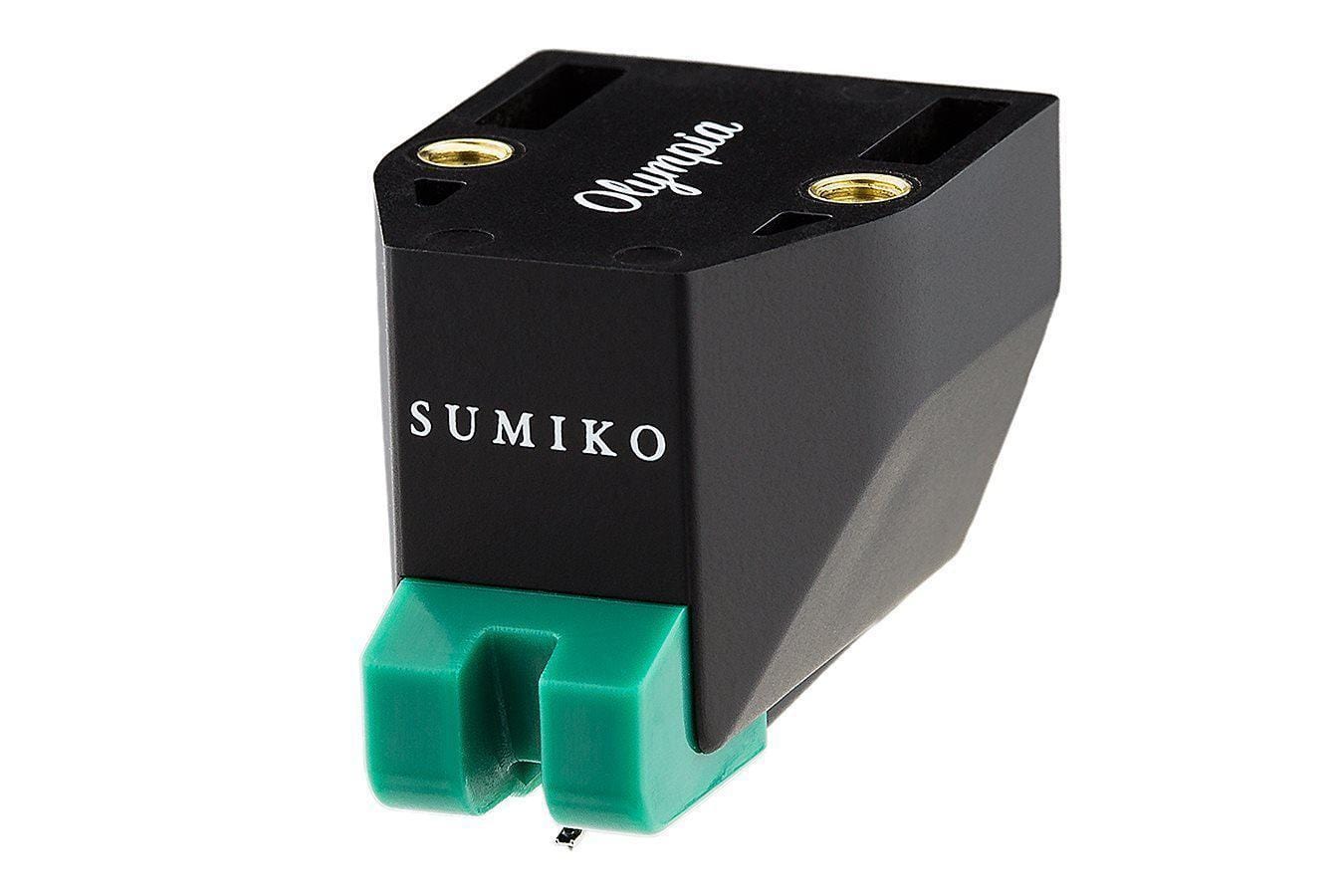

Sumiko Olympia High Output MM Cartridge

Sumiko Olympia High Output MM Cartridge

The Olympia brings another level of acoustic refinement to the mix with an upgraded stylus and cantilever assembly, allowing for more dynamic punch and improved frequency response during playback.

Due to its improved tracking capabilities, the Olympia is an excellent return on investment when upgrading from the Rainier cartridge, and can even be upgraded to the capable Moonstone stylus further on down the line.

TECHNICAL SPECIFICATIONS

Cartridge Type
Moving Magnet

Stylus
0.3 x 0.7 micron Elliptical

Cantilever Material
aluminium

Wire Material
copper

Internal Impedance
1,130Ω

Load Impedance
47kΩ

Frequency Response
12Hz - 30kHz

Output Voltage
4mV @ 1kHz

Channel Separation
30dB @ 1kHz

Channel Balance
1.5dB @ 1kHz

Compliance
12x10-6 cm/dyn @ 100Hz

Recommended Load Capacitance
100pF - 200pF

Vertical Tracking Angle
20°

Tracking Force
1.8g - 2.2g

Recommended Force
2.0g

Cartridge Weight
6.5g

Replacement Stylus Unit
RS Olympia
RS Moonstone
RS Rainier
