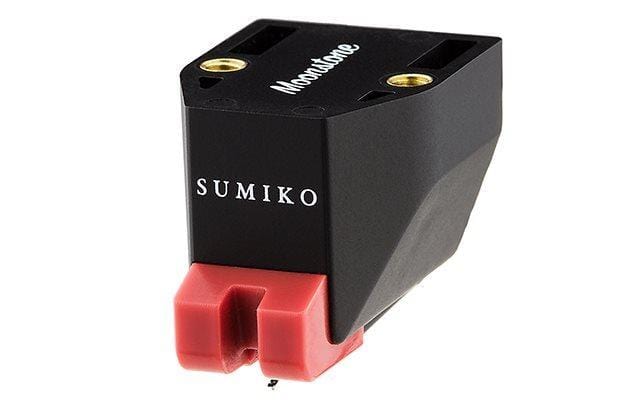

Sumiko Moonstone High Output MM Cartridge

Sumiko Moonstone High Output MM Cartridge

The Moonstone is an affordable high-performance moving magnet cartridge that utilises the powerful mechanically-generated electromotive forces of the moving magnet to help give your playback extra punch and convincing realism.

Exceptionally well-balanced and dimensionally dense, the breathtaking dynamics of the Moonstone outperform many comparably priced moving coil cartridges without requiring the huge investment in preampfification.

TECHNICAL SPECIFICATIONS

Cartridge Type:
Moving Magnet

Stylus:
0.3µM x 0.7µM Elliptical

Cantilever Material:
⌀0.5mm aluminum

Wire Material:
copper

Internal Impedance:
1,130Ω

Load Impedance:
47KΩ

Frequency Response:
12Hz - 33kHz

Output Voltage:
3mV @ 1kHz

Channel Separation:
30dB @ 1kHz

Channel Balance:
0.5dB @ 1kHz

Compliance:
12x10-6 cm/dyn @ 100hZ

Recommended Load Capacitance:
100pF - 200pF

Vertical Tracking Angle:
20°

Tracking Force:
1.8g - 2.2g

Recommended Force:
2.0g

Cartridge Weight:
6.5g

Replacement Stylus Unit:
RS Moonstone
RS Rainier
RS Olympia
