Sugden A21SE Stage Two MM/MC Phono Amplifier

Sugden A21SE Special Edition Stage Two

Moving Magnet & Moving Coil Phono Amplifier

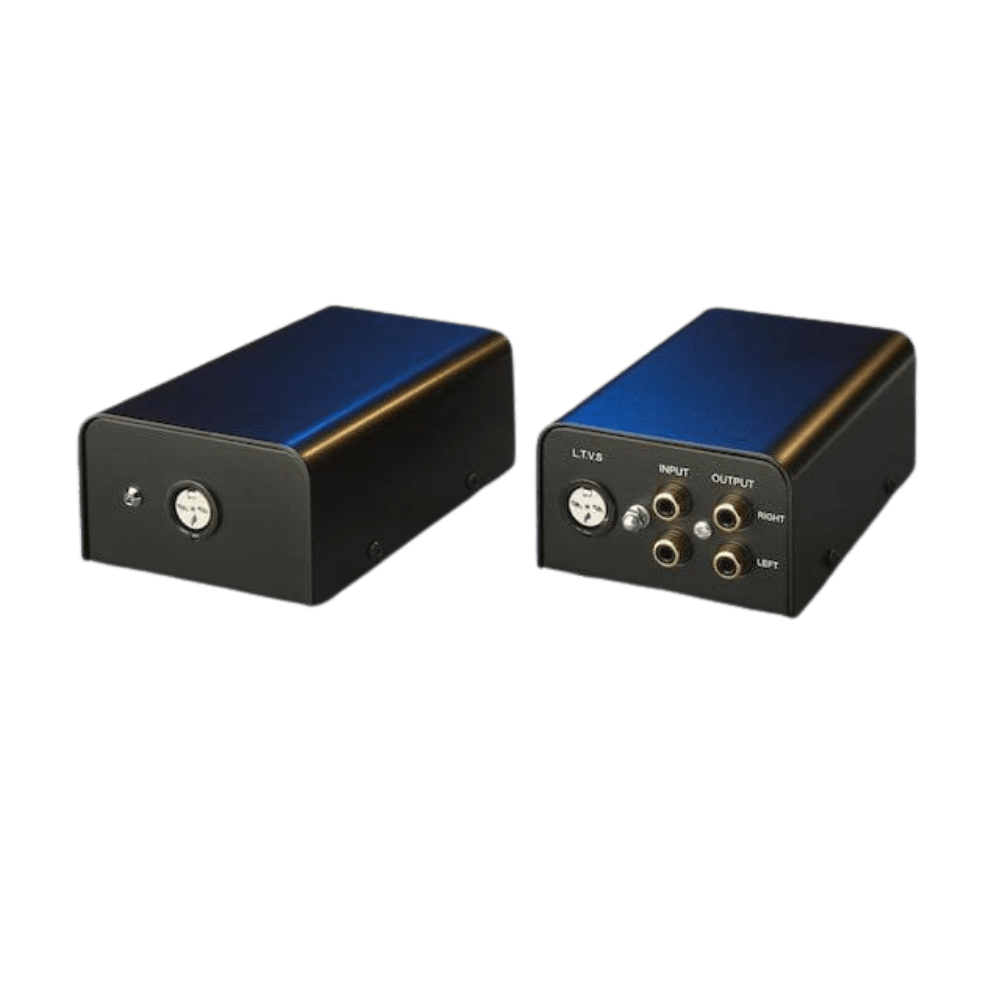

The Stage Two offers true high-end phono amplification in a compact, heavyweight, minimalist two-box design.  Separating the amplification from the power supply helps reduce interference and increase resistance to pick-up noise.

The single input accepts both moving magnet cartridges and moving coil cartridges.  Input selection is internal, together with adjustments for 47K, 100, and 470 ohm impedance settings.  The input of Stage Two is a low-noise, low-distortion instrumentation amplifier.  Current feedback circuitry achieves wide bandwidth and an excellent dynamic response.

The circuit is paired with a dual FET-input operational amplifier that has great dynamic response and low noise. The amplifier is mains operated.

Product Features & Specifications:

Inputs
Moving Magnet
Moving Coil
LTVS power in

Outputs
Fixed line level output

Gain adjustment

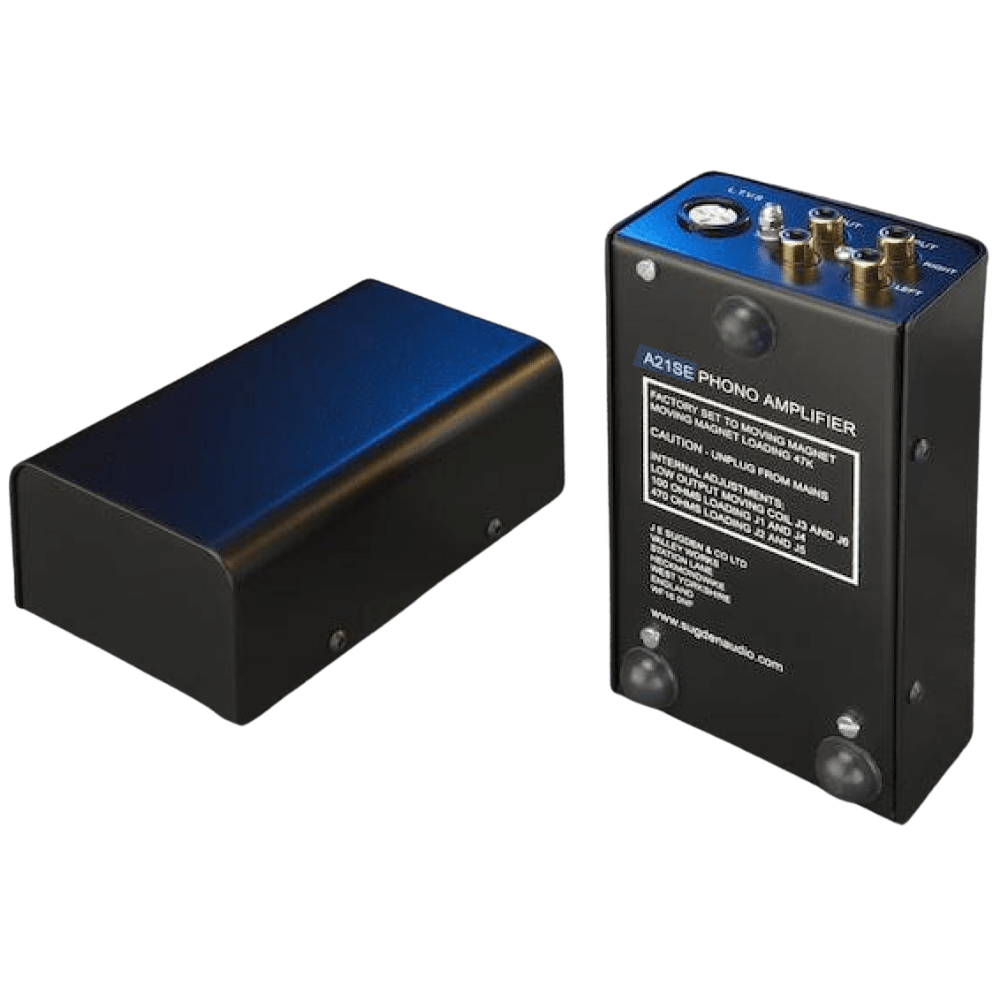

Internal selection for Moving Magnet or Moving Coil

Load Adjustment
Internal for Moving Coil 100 and 470 Ohms
Moving Magnet fixed load 47k

Earth terminal
Screw type

External power supply
Mains powered

Input sensitivity
Moving Magnet 3.0mV
Moving Coil 0.15mV

Output
350mV

Frequency response
20Hz to 20kHz +/-1.5dB

Signal to noise
>64dB

Gross Weight (packed)
2kg

Dimensions (H x D x W)
Phono amplifier 60 x 140 x 77 mm
Power supply 60 x 140 x 77 mm

Please note that the A21SE Stage Two has a mains power supply and cannot be operated by the A21SE LTVS.
