Sugden A21 Class A Integrated Amplifier with Phono

Sugden Audio

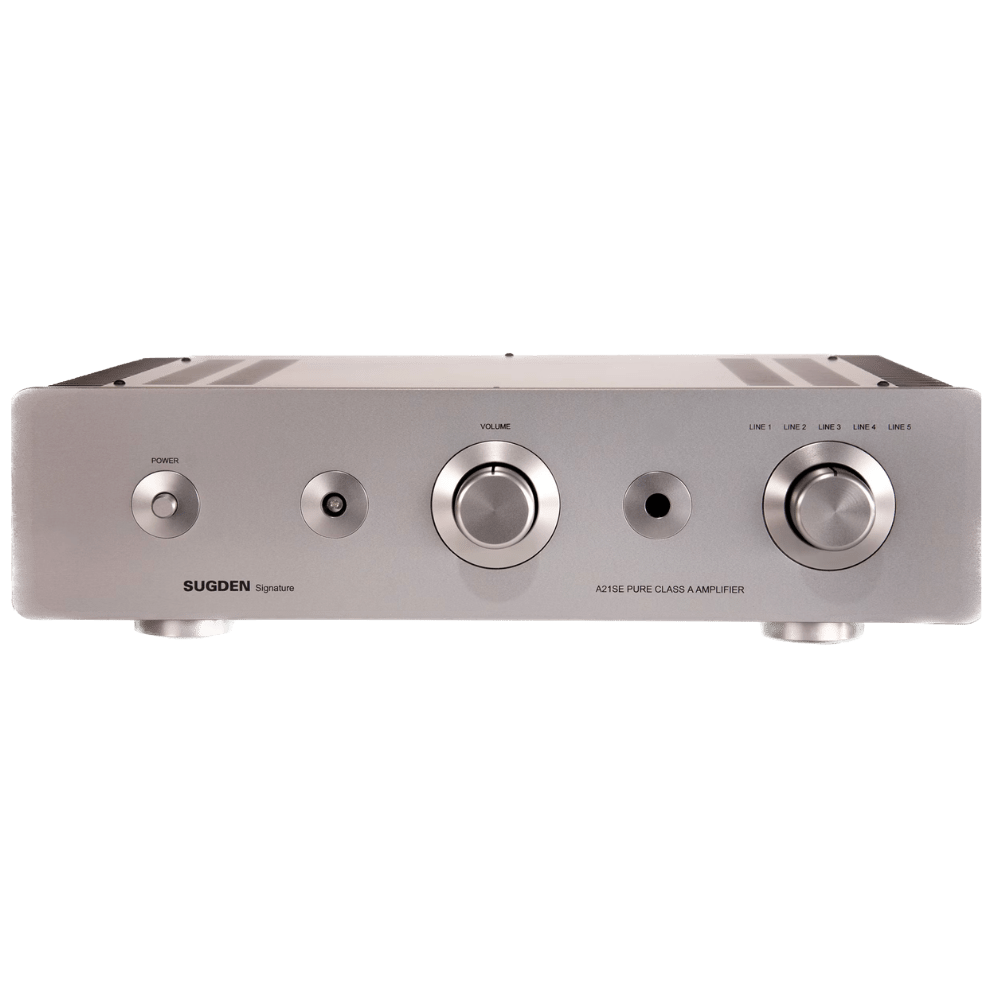

Sugden A21 Signature Integrated Amplifier

The Sugden pure class A design provides affordable high-end performance from a beautifully engineered single box integrated amplifier.  Compact in size with a simple but stylish design, the A21 is possibly the only amplifier you will ever need. With many of the original A21’s still in daily use after fifty years, it could also last a life time. Providing a large soundstage and depth to all types of music, the A21 is an amplifier you can listen to for hours without fatigue.  The single ended circuit provides impressive dynamics and incredible bass.



Facilities:

Inputs – Five line level or four line level with optional MM/MC phono board.

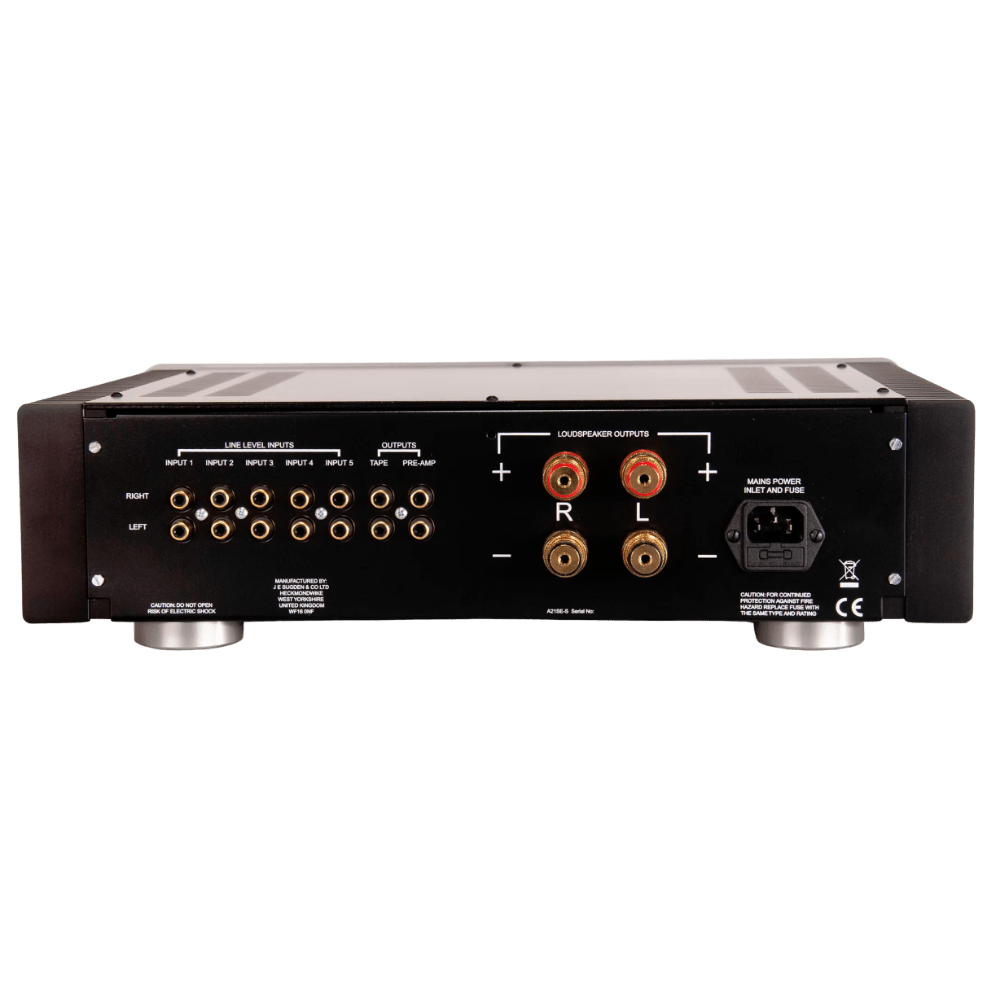

Outputs – Pre-Amplifier Out (Variable), tape out (fixed) and one pair stereo multi-way binding posts.

Remote Control – Volume up/down.

Earth terminal.



Specifications:

Line Level Sensitivity – 170mV for maximum output.

Phono Input Sensitivity – 3mV/Moving Magnet, 0.2V/Moving Coil for maximum output.

Phono Loading – Moving Magnet 47K, Moving Coil 100 ohm.

Power Output – 23 watts per channel into 8 ohms both channels working.

Frequency Response – 10Hz to 20kHz +/- 0.5dB.

Bandwidth – 6Hz to 200kHz +/- 3db.

Signal to Noise – >83db.

Nett Weight – 11kg.

Dimensions – 92mm x 430mm x 350mm (HWD).



*Reprint from Manufacturers Website.
