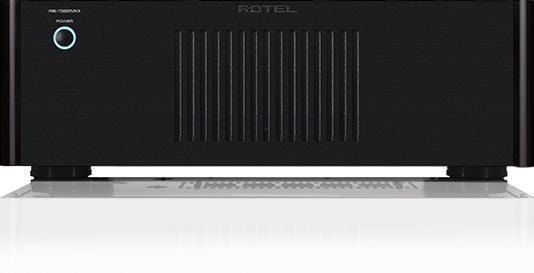

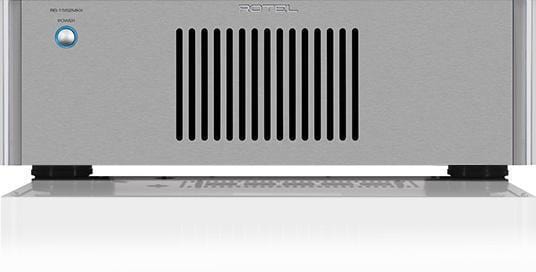

Rotel RB-1582 MKII Stereo Power Amplifier

Rotel RB-1582 MKII Stereo Power Amplifier

Regular price $2,495.00 AUD
Regular price $2,699.00 AUD Sale price $2,495.00 AUD
Sale Call For Availability
Tax included. Shipping calculated at checkout.
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 405 Brunswick St Fitzroy
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500
Rotel RB-1582 MKII Stereo Power Amplifier

Rotel RB-1582 MKII Stereo Power Amplifier

At 2 x 200 Watts per channel and utilising Rotel's Balanced Design Concept for superior performance, the RB-1582 MkII is a compelling stereo amplifier.

  •  2 x 200 Watts of robust power
  • Class AB amplifier design

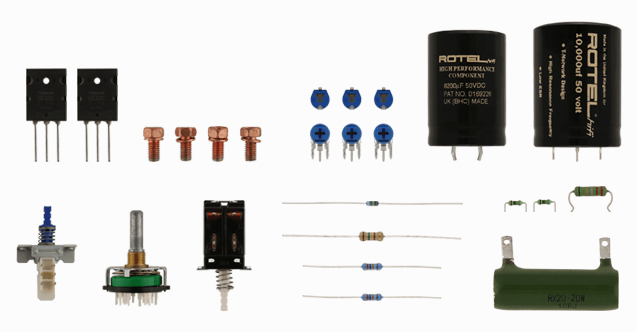

  • High quality slit foil capacitors made in Britain

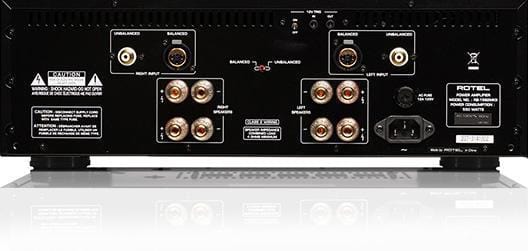

  • Balanced XLR inputs
  • Rack ears included
DIMENSIONS (W × H × D)
431 × 144 × 407mm
17" × 5.7" × 16"

FRONT PANEL HEIGHT
3U / 132.6mm (5.25")

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
550W

STANDBY POWER CONSUMPTION
0.5W

NET WEIGHT
17.6kg (39lbs.)

BTU RATING (4Ω, 1/8th power)
1104 BTU/h
CONTINUOUS POWER OUTPUT
200W/Ch (All channels driven, 8Ω)

TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.03%

FREQUENCY RESPONSE
10Hz - 100kHz ±0.5dB

S/N RATIO (IHF "A" Weighted)
116dB

GAIN
RCA: 26.5dB
XLR: 22.5dB



Rotel’s next largest stereo amplifier at 200 Watts per channel provides the massive current to drive the very largest Hi-Fi systems effortlessly. And like its smaller brother, the RB-1582 MkII has been designed to excel at resolving the subtle details in music as well as supplying the brawn required for extremely dynamic passages. It is able to achieve this difficult dual requirement because of the meticulous attention paid to circuit design and parts selection.

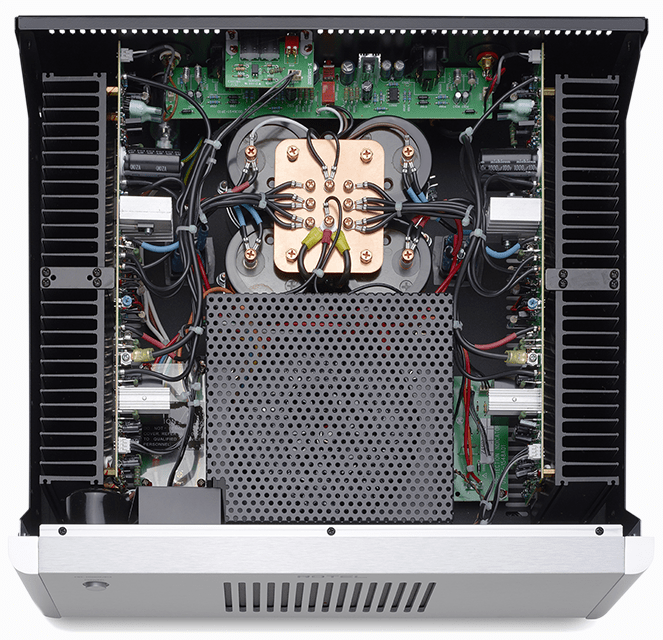

The RB-1582 MkII's high-end performance begins with an extremely large toroidal transformer combined with a total of 60,000µF storage capacity in special “slit foil” capacitors to provide completely stable power to the output stage. Slit foil capacitors have the ability to charge and discharge extremely quickly, thereby ensuring signal fidelity during orchestral crescendos or repetitive kick-drum impacts, for example. Both left and right channel construction are laid out in a mono block design (after the toroidal transformer) and all grounding is terminated in a star pattern on a copper grounding plate to ensure low signal to noise. The output stage is a discrete design that consists of 10 high current bipolar transistors per channel. Input options consist of both balanced XLR and unbalanced RCA connectors.

The RB-1582 MkII stereo power amplifier is yet another outstanding example of Rotel’s Balanced Design Concept and will form the heart of a very impressive stereo or home theatre system for years to come.
