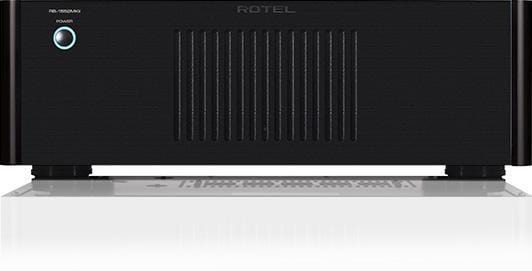

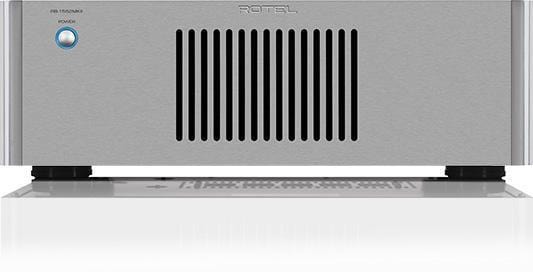

Rotel RB-1552 MKII Stereo Power Amplifier

Rotel




The RB-1552 MKII stereo amplifier has been engineered to provide high-resolution audio performance, yet it is very affordable, as has been the tradition with Rotel electronics for over 50 years.

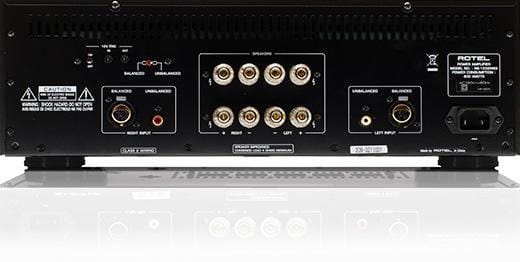

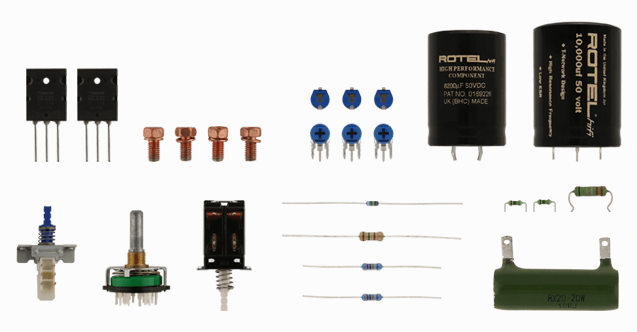

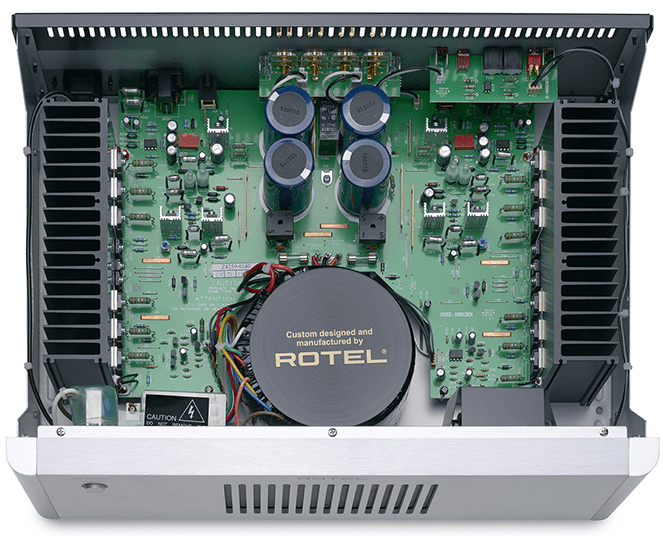

Rotel engineering's fanatical attention to detail means the sum is greater than the parts; this is what we call our Balanced Design Concept. Each aspect of design is carefully considered holistically to result in maximum audio performance, from the selection of an over-sized power supply featuring a highly efficient, low magnetic field toroidal transformer to multiple, high-current bipolar output transistors. Circuit topology is planned, implemented, evaluated, and adjusted to achieve optimum results. The RB-1552 MKII 120 watt Class A/B amplifier features independent left and right power rectification stages and decoupling, and is essentially a mono block design. Further evidence of design over-spec is in the selection of premium capacitors, which provide plenty of reserve energy for extremely dynamic audio passages and are able to quickly replenish themselves due to the nature of their unique design. Input options are balanced XLR or unbalanced RCA connectors.



Power Configurations: 2 x 120 watts (20Hz-20kHz,

Watts/Channel: 120 watts, all channels driven, 8 ohm load, 20-20kHz

THD (20-20,000Hz) 8 Ohms, all channels driven:

IM Distortion:

Damping Factor (8 Ohms): 500



Input Impedance / Sensitivity

Unbalanced: 12k Ohms/1.5 volt

Balanced: 50k Ohms/2.5 volt



Frequency Response (+/-1dB): 4 - 100kHz (+0.5dB, -3dB)

S/N Ratio (IHF A): 120dB

Power Consumption: 400 watts

Dimensions (W x H x D): 431 x 144 x 340 mm

Front Panel Height: 3 U (5.25‰۝)

Shipping Weight: 14.3 Kg

*Reprint from manufacturers website
