Rotel RA-1592 Integrated Amplifier

Rotel




Rotel RA-1592 Integrated Amplifier

There has never been a better time to be a music lover. Today’s source options provide limitless audiophile quality music. CD-or-better quality streaming, high resolution download sites, inexpensive mass storage devices, the still resilient CD and the resurgence of classic vinyl are all providing a wealth of content at impressively high fidelity. To hear all this music as the artist intended requires an extraordinarily flexible, sonically capable component.

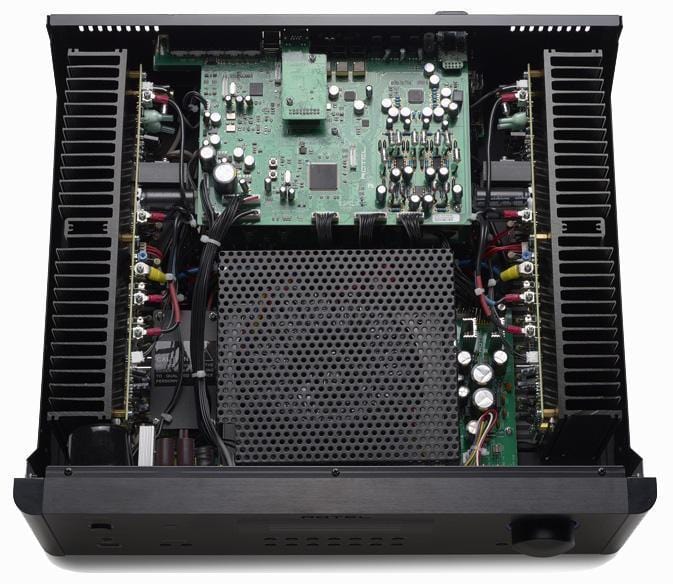

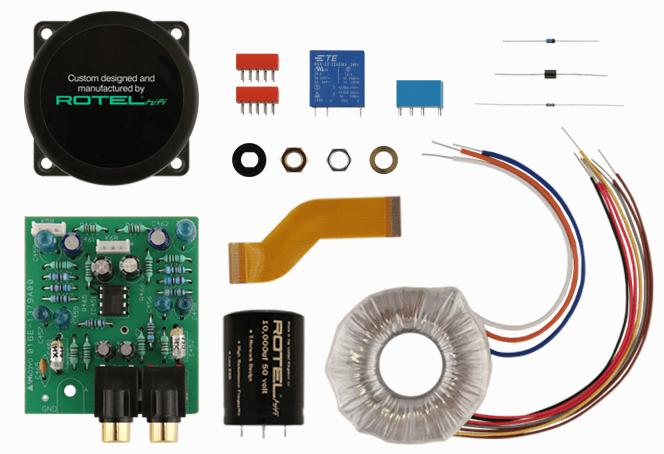

The RA-1592 Integrated Amplifier is exactly that component. It leverages the strengths of our award winning RC-1590 preamplifier and RB-1582 MKII power amplifier in a sleek single chassis design. With a powerful 200 Watt per channel Class AB amplifier using high performance audio grade components, the RA-1592 can effortlessly drive large speaker systems. The impressive Rotel manufactured toroidal transformer is a key element in the power supply design which also includes custom slit-foil storage capacitors and a dual-monoblock topology. All of this helps to ensure the amplifier performance stands up to even the most complex music and real world playback conditions.

To complement the amplifier section, the RA-1592’s preamplifier incorporates the superb 32-bit/768kHz AKM digital-to-analogue converter (DAC) and analogue stages of the highest quality. The DAC and surrounding circuitry supports a vast array of source inputs including DSD capable PC-USB (24-bit/192kHz), 3 coaxial, 3 optical, integrated aptX® Bluetooth and front mounted USB iPod input. In recognition of the faithful analogue music lovers, there is a phono stage input (MM), XLR balanced input and 3 analogue RCA source inputs.

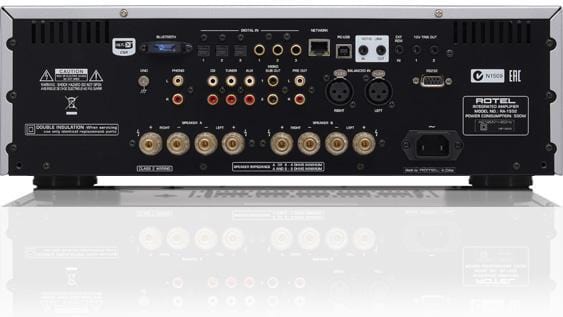

User selectable A-B speaker outputs with 5-way binding posts, RCA pre-output and dual subwoofer outputs provide the ultimate flexibility in installation. The amplifier protection circuits monitor DC offset, overcurrent, short circuit and temperature to protect both the electronics and attached speakers.

Custom integration features include RS232 and Ethernet IP control, 2 trigger outputs, remote IR input and automated digital signal sense power control for easy integration with streaming sources and control systems.

The RA-1592 is the finest integrated amplifier yet in Rotel’s 55 year history of producing high performance audio components.



SPECIFICATIONS

CONTINUOUS POWER OUTPUT
200W/Ch (All channels driven, 8Ω)

 TOTAL HARMONIC DISTORTION (THD)

(20Hz–20kHz) 0.03%

 FREQUENCY RESPONSE

Line Level Inputs: 10Hz - 100kHz ±0.5dB
Digital Inputs: 10Hz - 90kHz ±2dB
Phono Input: 20Hz - 20kHz ±0.5dB

 S/N RATIO (IHF "A" Weighted)

Line Level Inputs: 103dB
Digital Inputs: 102dB
Phono Input: 80dB

 DAMPING FACTOR

600

 SPEAKER IMPEDANCE

4Ω minimum

 INPUT SENSITIVITY

Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Phono Input (MM): 5.2mV

 INPUT IMPEDANCE

Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ

 INPUT OVERLOAD

Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 5.5V
Phono Input: 52mV

 PREOUT LEVEL

1.9V

 OUTPUT IMPEDANCE

100Ω

 TONE CONTROLS

±12dB at 100Hz / 10kHz

 COAX/OPTICAL DIGITALINPUT SIGNALS

LPCM (Up to 24-bit/192kHz)

PC-USB

USB Audio Class 1 (up to 24/96)

USB Audio Class 2 (up to 32/384)
DSD and DoP support

 DIMENSIONS (W × H × D)

431 × 144 × 425mm
17" × 5.7" × 16"

 FRONT PANEL HEIGHT

3U / 132.6mm (5.25")

 POWER REQUIREMENTS

230V, 50Hz

 POWER CONSUMPTION

500W

 STANDBY POWER CONSUMPTION

<0.5W

 NET WEIGHT

16.8kg (37lbs.)

 BTU RATING

1239 BTU/h
*Reprint from Manufacturers Website.
