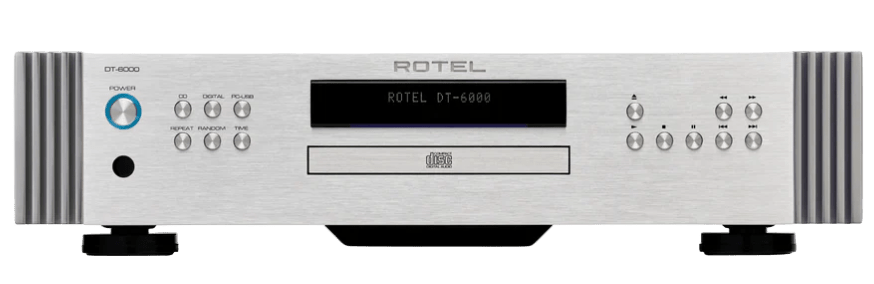

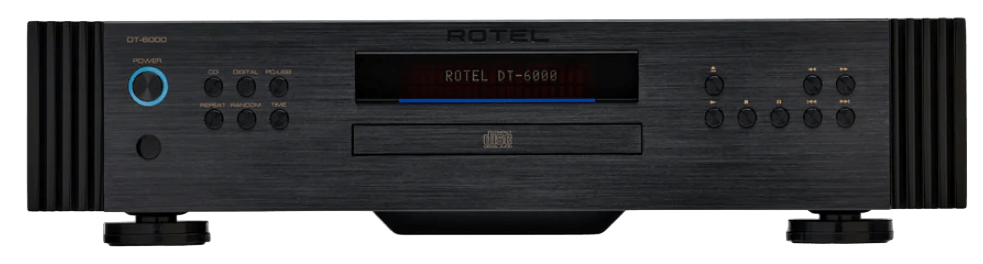

Rotel Diamond Series DT-6000 DAC Transport

Rotel Diamond Series DT-6000 DAC Transport

Regular price $3,499.00 AUD
Regular price Sale price $3,499.00 AUD
Sale Call For Availability
Tax included. Shipping calculated at checkout.
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 405 Brunswick St Fitzroy
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500
Colour

Rotel Diamond Series DT-6000 DAC Transport

The Rotel DT-6000 DAC Transport boasts six decades of Rotel's excellence in delivering top-notch performance, passion, and value, characteristics inseparable from the brand's Japanese roots. With Coaxial, Optical, and PC-USB inputs, as well as an integrated CD Player, the DT-6000 offers unparalleled flexibility for playing your preferred sources, delivering dynamic precision and authentic accuracy in digital audio.


The DT-6000’s critical Digital to Analog circuits utilises an ESS Sabre 8-Channel ES9028PRO DAC dedicating 4 channels each to the Left and Right stereo outputs. The DACs multi-channel processing delivers unprecedented details with an ultra-low noise floor through fully differential circuits resulting in an immersive, expansive sound stage.

Featuring dedicated power supplies that provide constant power to all critical circuits. These circuits are powered by our in-house manufactured low-emission shielded toroidal transformer, which utilises high efficiency, low ESR slit-foil smoothing capacitors to deliver ripple-free current. The physical circuit board isolation techniques and electronic decoupling design methods used result in reduced residual noise and distortion in the sensitive analog stages, including the external DAC output filters.

The Coaxial and Optical inputs support PCM audio up to 24-bit/192kHz with the asynchronous PC-USB input rendering up to 32-bit/384kHz high resolution music files. The PC-USB also supports MQA and DSD 4X and is certified Roon Tested for the highest compatibility with Roon software.

The smooth action tray loading CD player utilises Rotel’s formidable 30 years of experience engineering and manufacturing award winning disc spinners. The industrial design includes a spring-floating CD mechanism with damping materials to reduce mechanical noise and vibrations during playback. Precision motor controls and the optical laser pick-up extract every nuance and detail from CD collections both large and small.

Front panel controls and a back-lit IR remote provide intuitive operation of the unit with playback status, music file stream details and CD metadata shown on the two-line display.

The RS232, 12V trigger and external remote input ensure simplified integration with all popular control systems. The DT-6000 is available in black and silver.

Technical Specifications:


DIMENSIONS (W × H × D)
431 × 104 × 320mm
17" × 4" × 12.6"

FRONT PANEL HEIGHT
2U / 88.1mm (3.5")

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
25W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
8.11kg (17.88lbs.)

TOTAL HARMONIC DISTORTION (THD)
Optical/Coaxical Input: < 0.0007%
CD/PC-USB Input: < 0.0012%

FREQUENCY RESPONSE
20Hz - 20kHz, +0, -0.15dB
10 Hz - 70kHz, +0, -3dB

S/N RATIO ("A" Weighted)
>115dB

DYNAMIC RANGE
>99dB

DIGITAL TO ANALOG CONVERTERS
ESS 32-Bit/768kHz DAC

CHANNEL BALANCE
± 0.5dB

CHANNEL SEPARATION
>115dB @ 10kHz

NTERMODULATION DISTORTION
<0.0012%

ANALOG OUTPUT LEVEL
Unbalanced (RCA): 2.1V
Balanced (XLR): 4.3V
ANALOG OUTPUT IMPEDANCE
Unbalanced (RCA): 10Ω
Balanced (XLR): 20Ω

INPUT SENSITIVITY
0dBfs / 75 Ohms
COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
Support native DSD (up to 11.2M) and DoP
Supoort MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
