Rotel Amora 5 Bookshelf Speakers

Meet the Amora 5 Bookshelf Speakers

For Stunning Clarity and Expression

Drawing on Rotel’s decades-long commitment, the Amora 5 is a loudspeaker built to deliver clarity, energy and natural expression.

Inspired by Rotel’s amplifier and audio component design heritage and built from the same foundation of disciplined engineering expertise, it presents music with a natural, engaging character that feels effortless to listen to.

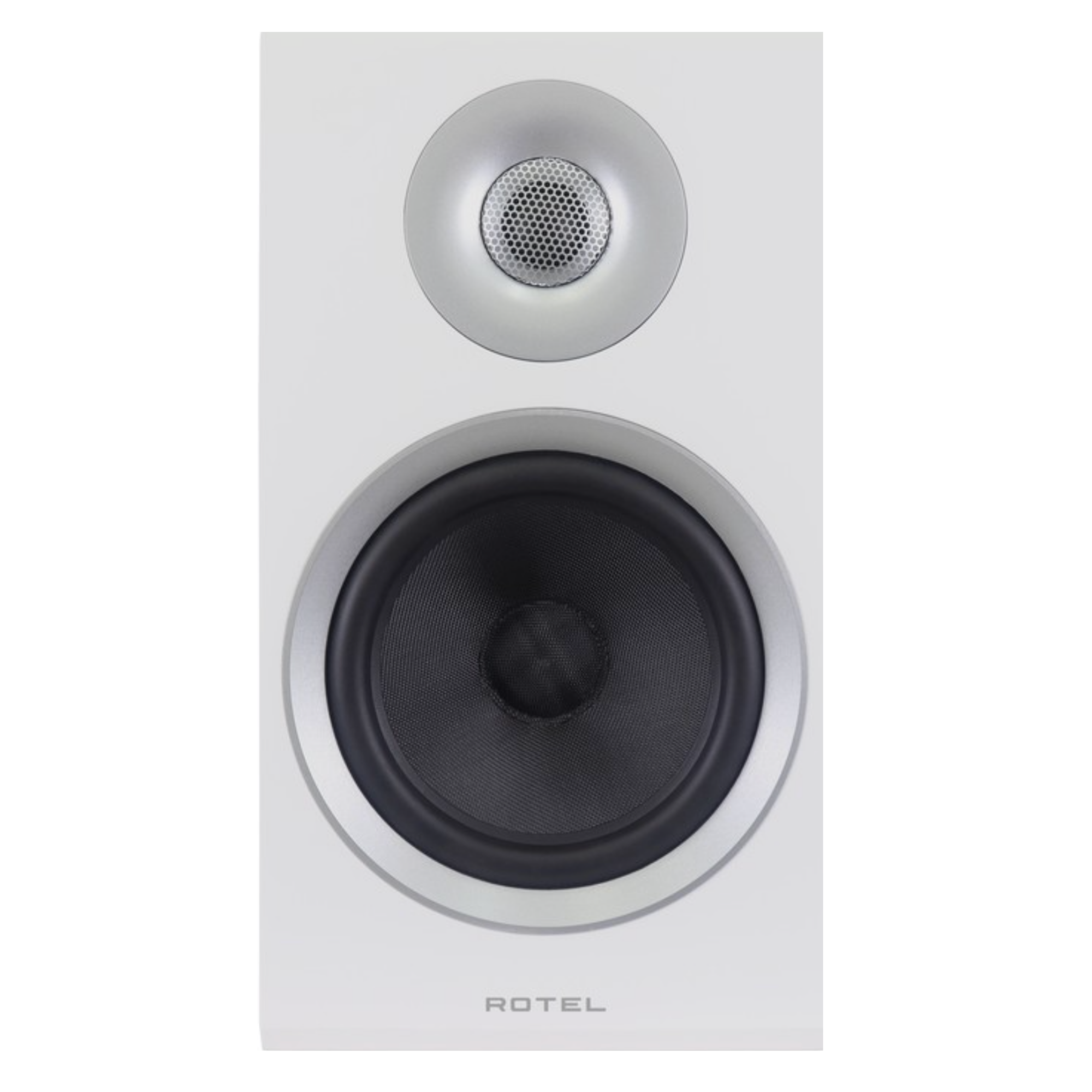

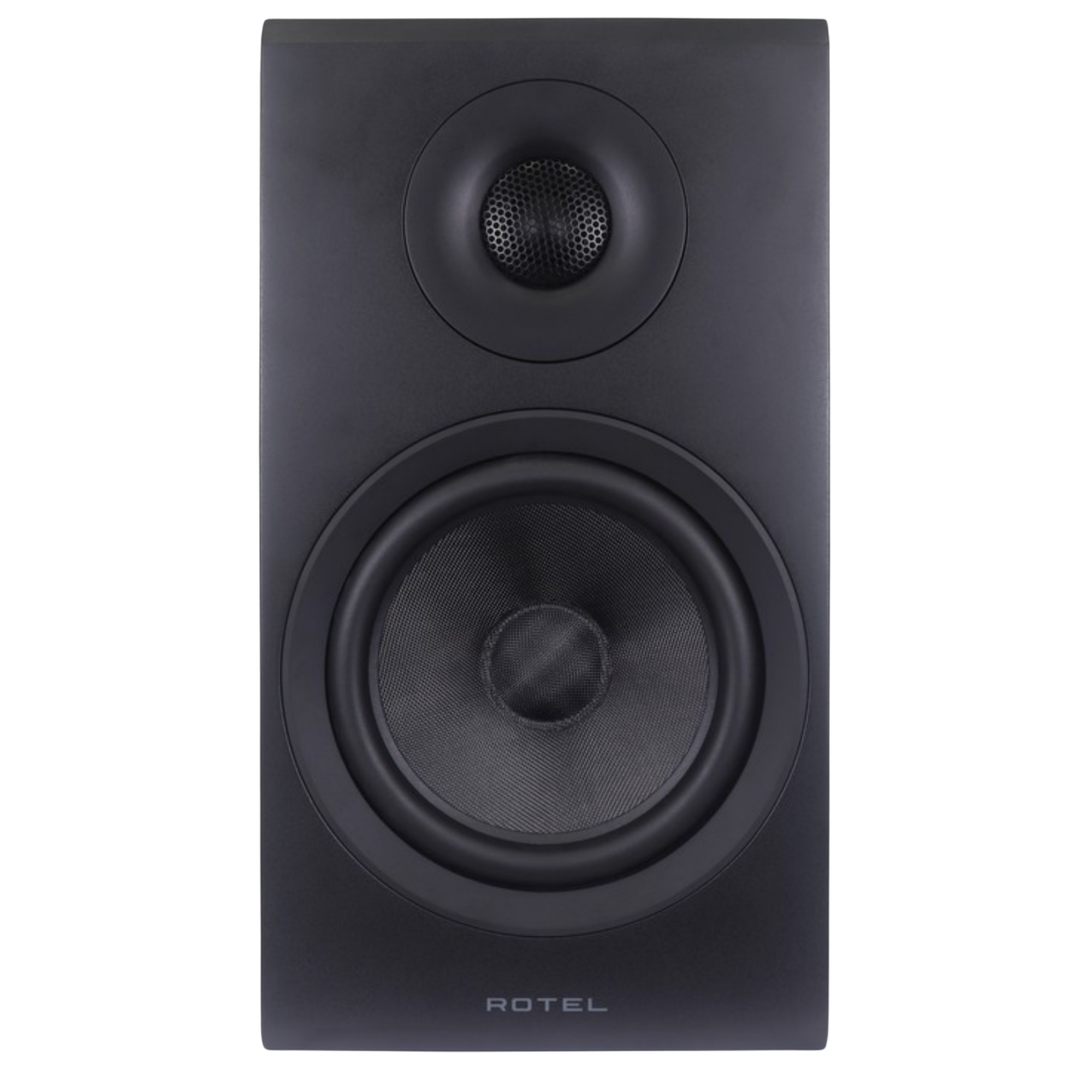

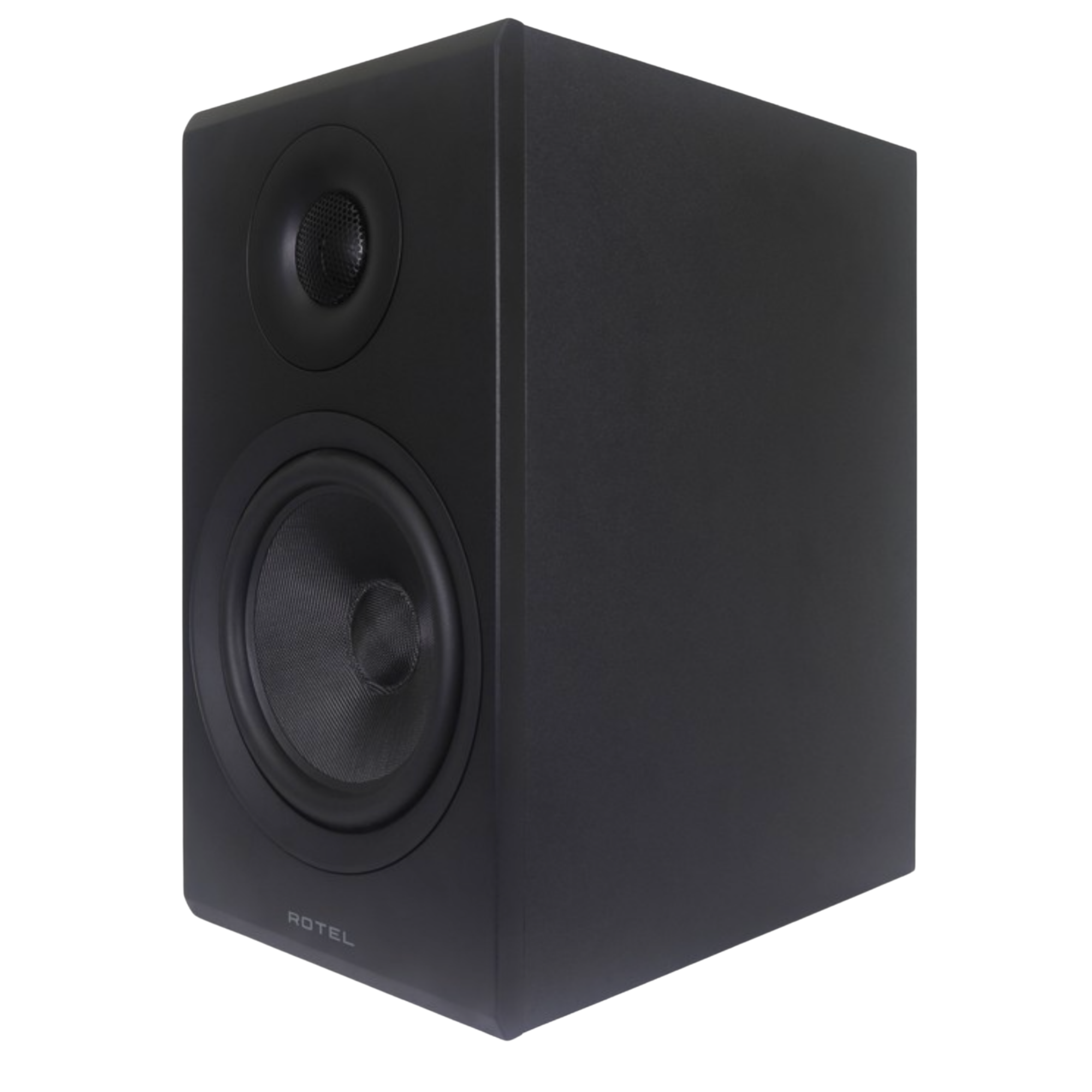

The Amora 5 driver system combines a 1-inch (25 mm) silk dome tweeter, extending to 28 kHz, with a 6.5-inch (165 mm) woven fibre composite midrange/bass driver chosen for effective damping and balanced musical response.

A precision-tuned 2.5 kHz crossover integrates both drivers with carefully considered component choices, supporting a smooth transition, coherent imaging and a wide, stable soundstage.

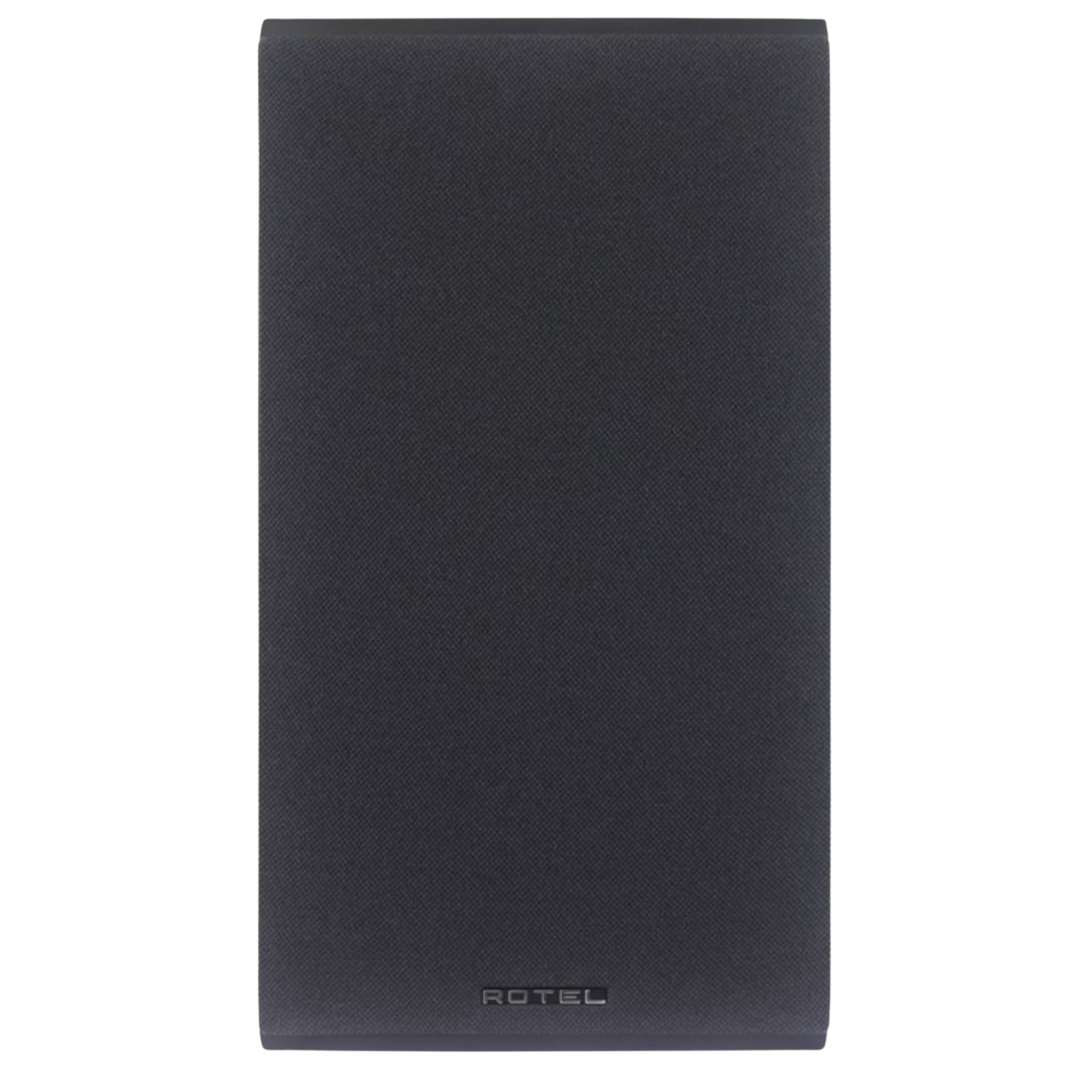

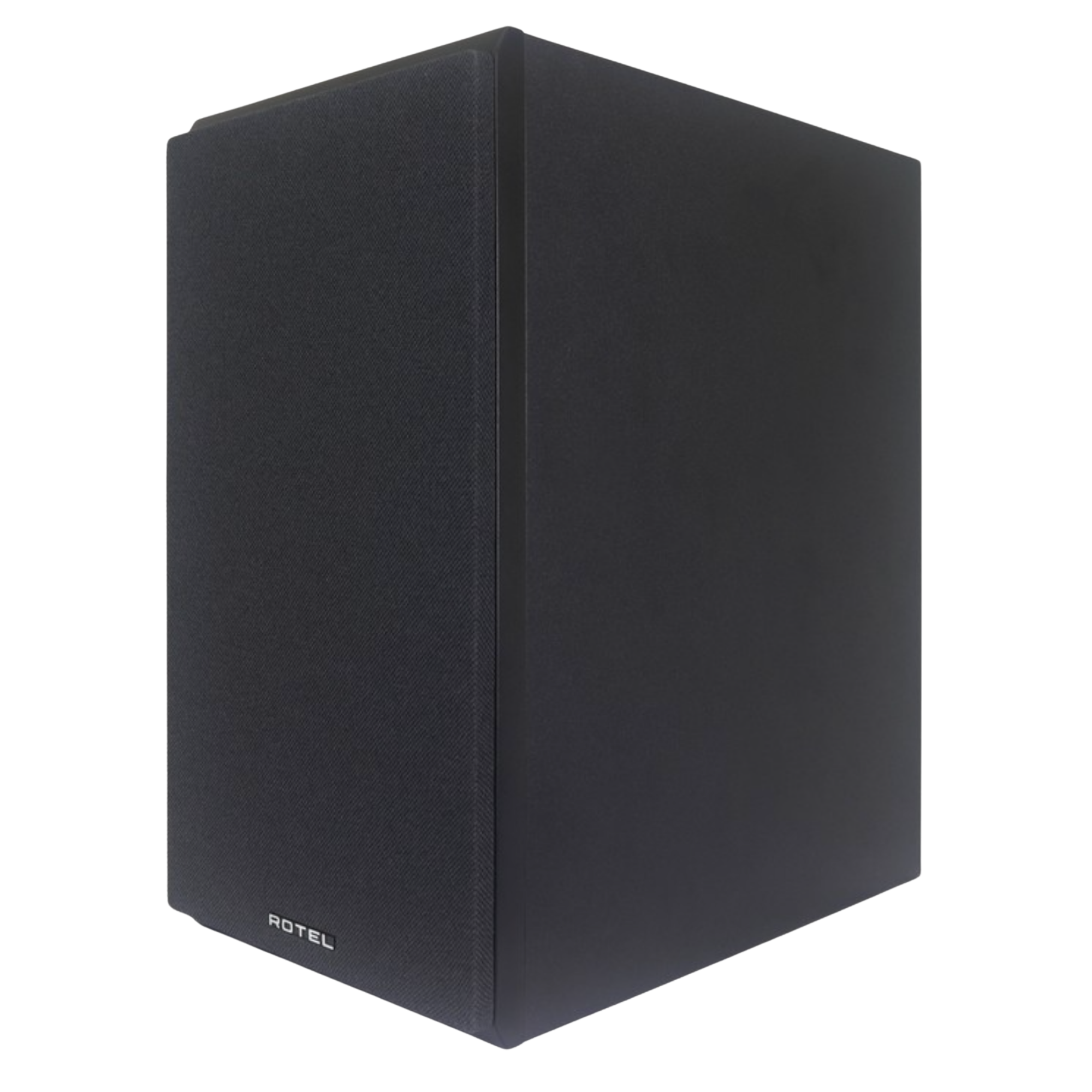

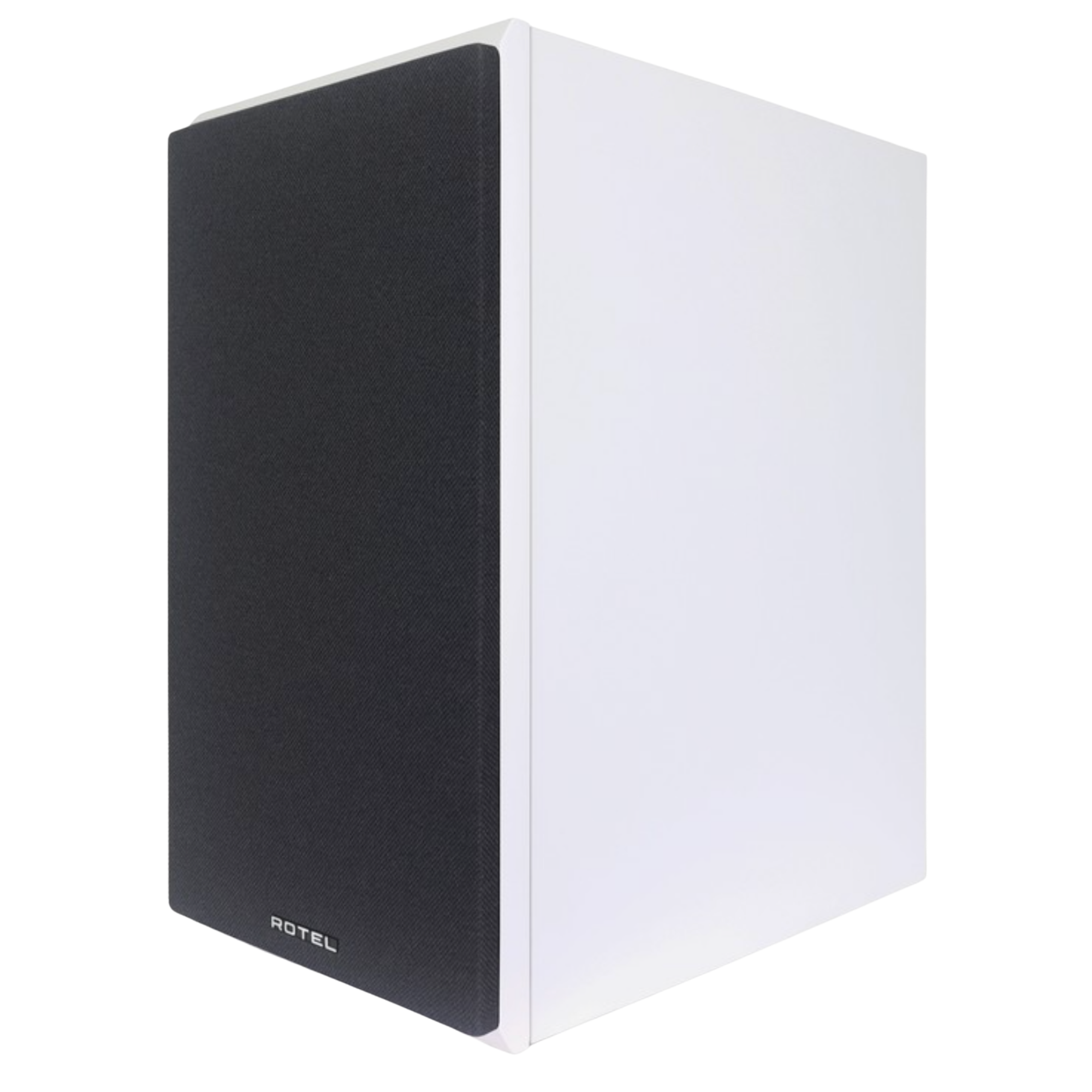

Every detail of the cabinet contributes to performance and presentation. The resonance-controlled MDF enclosure is engineered to reduce unwanted coloration, while the rear-mounted reflex port supports low-frequency extension to 48 Hz. Laminate finishes, a screwless front assembly, and a removable acoustic fabric front grille give the Amora 5 a refined appearance suited to modern listening spaces.

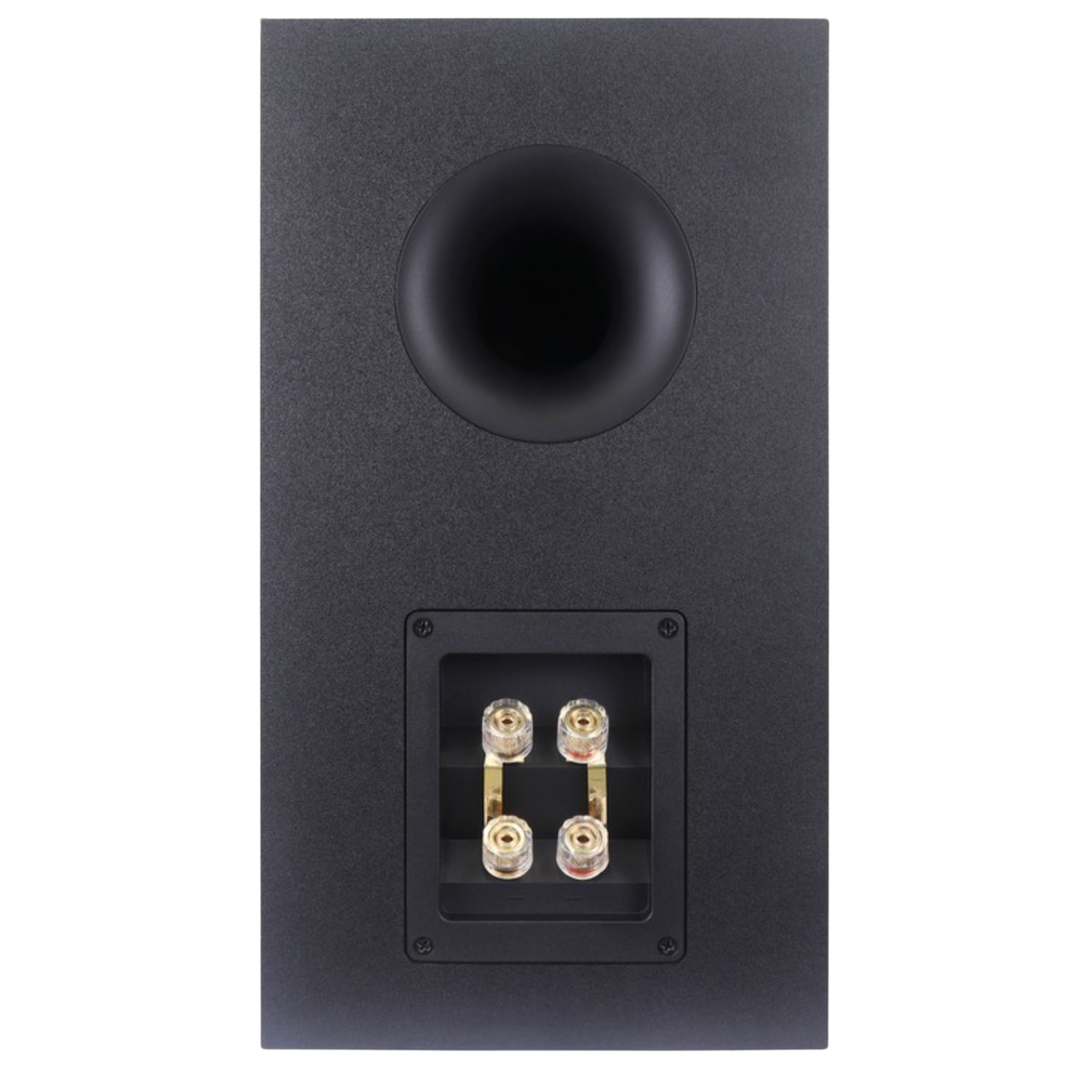

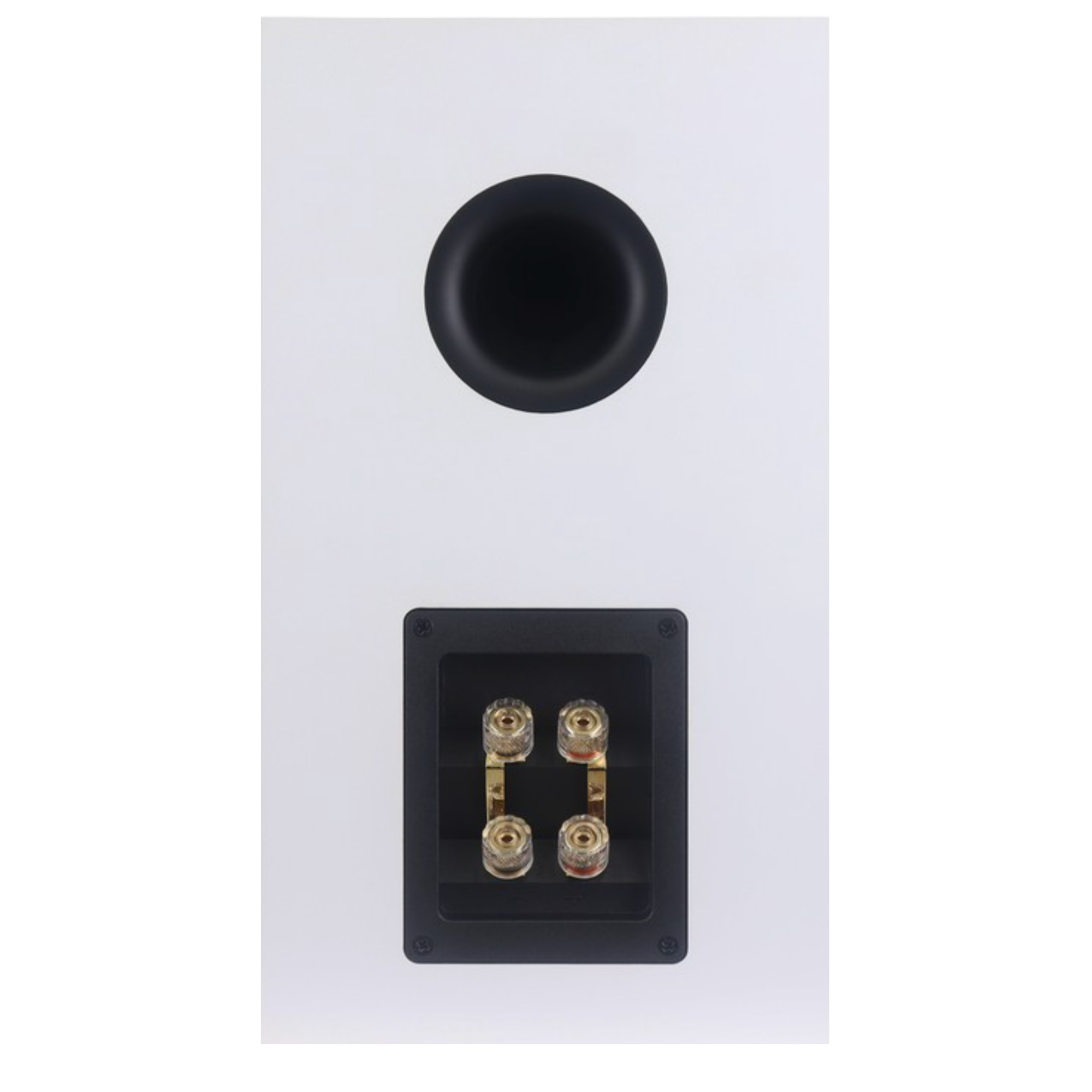

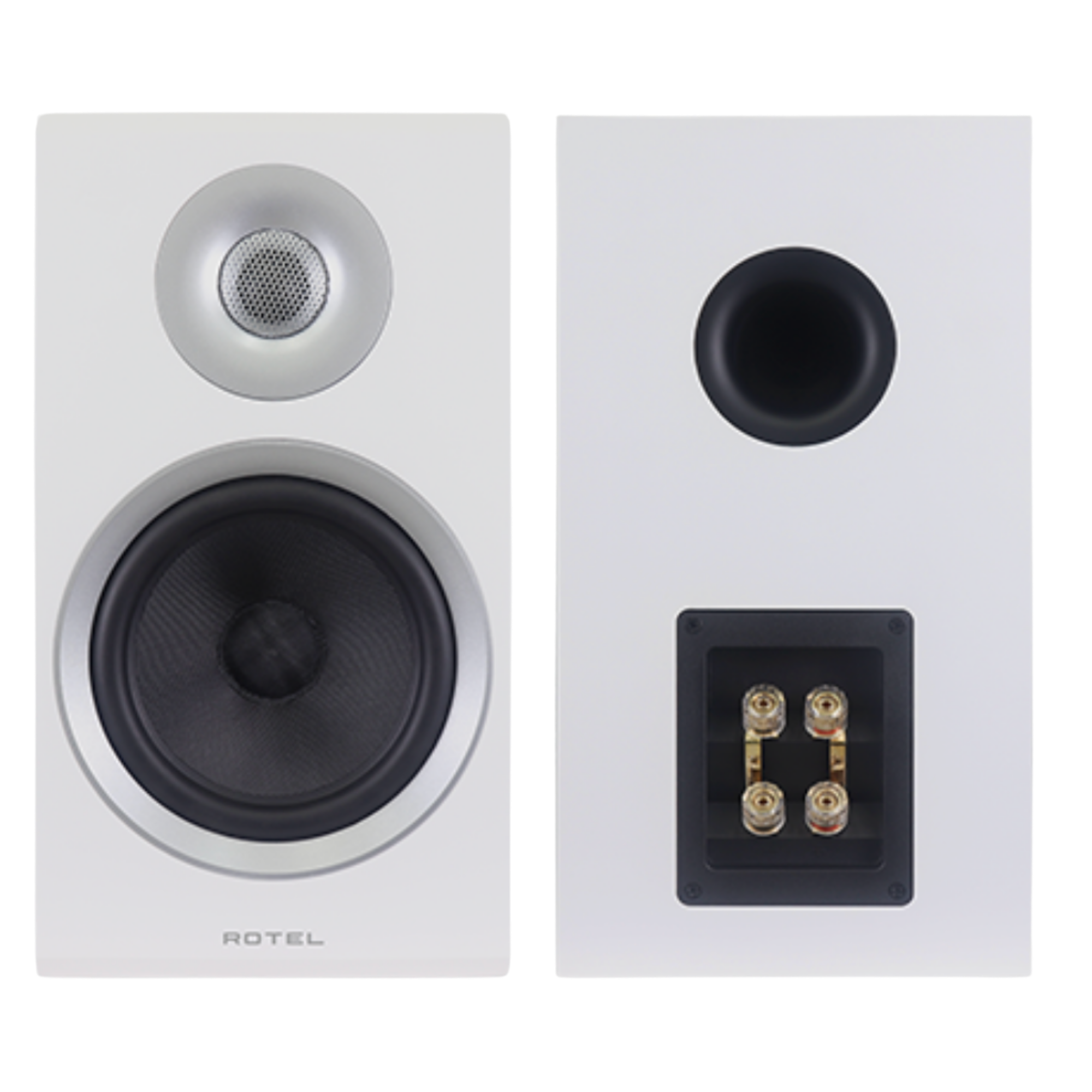

Dual sets of gold-plated speaker terminals support standard single-wire or bi-wire connections, allowing flexible system setup. Measuring 13.8 inches (350 mm) high, 7.5 inches (190 mm) wide, and 11.8 inches (300 mm) deep, and weighing 17 lb (7.7 kg), the Amora 5 balances efficient placement with meaningful cabinet volume and material substance.

The result is an engaging loudspeaker that pairs beautifully with Rotel systems while standing confidently in any quality audio setup.

TECHNICAL SPECIFICATIONS

Design
2-way bass-reflex loudspeaker

Drive units
1 x ø 25 mm (1 in) silk dome tweeter
1 x ø 165 mm (6.5 in) woven fibre composite midrange/bass driver

Crossover Frequency
2.5 kHz

Frequency Response
48 Hz - 28 kHz

Sensitivity
(2.83Vrms / 1m) 87 dB

Nominal impedance
8 Ω

Recommended amplifier power
30 - 120 Watts

Dimensions (H x W x D)
350 x 190 x 300 mm

Net weight
7.7 kg

Cabinet Structure
MDF

Cabinet finishes
Matte Black
Matte White

Grille finish
Black

Speaker Terminals
Dual gold-plated
