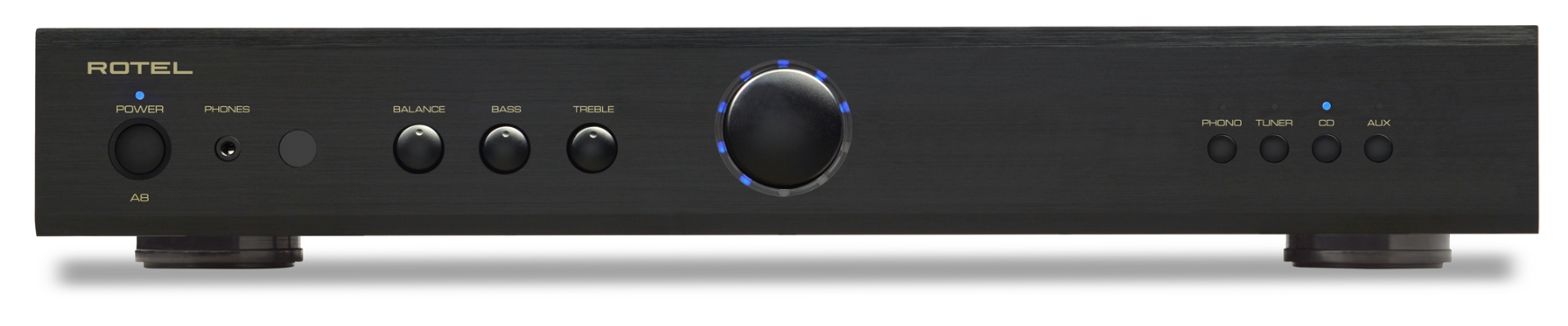

Rotel A8 Integrated Amplifier in black

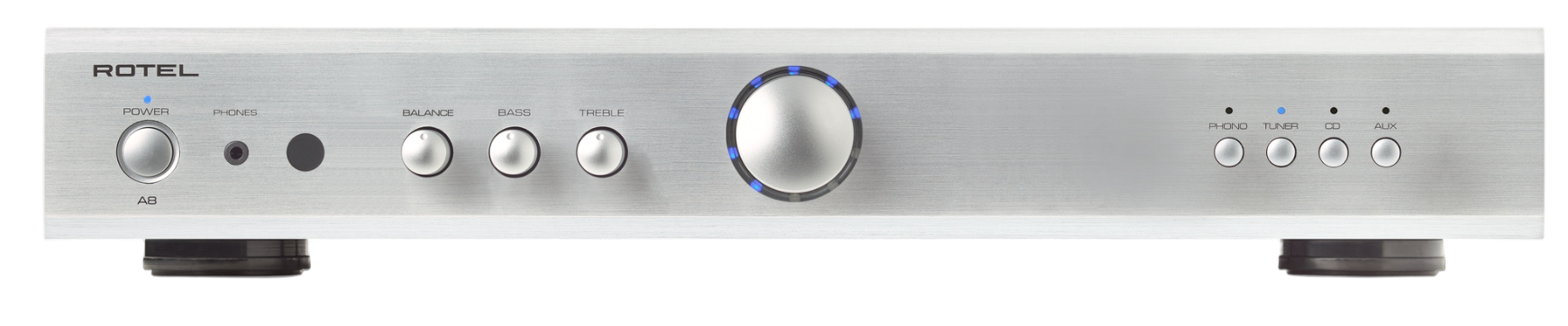

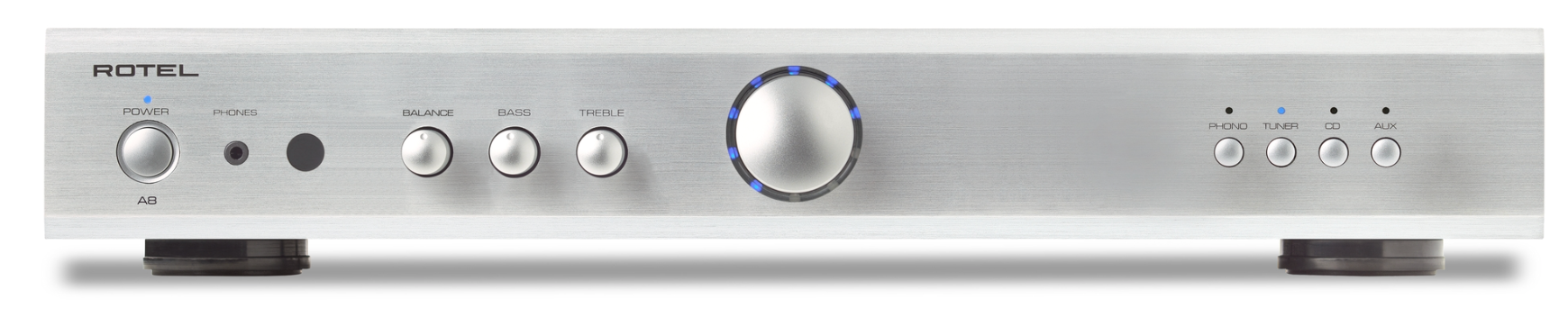

Rotel A8 Integrated Amplifier in silver

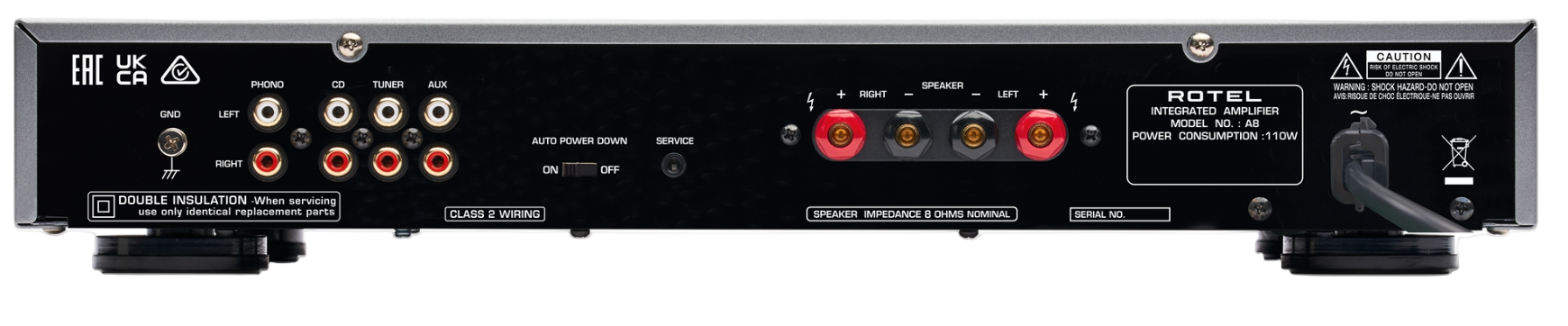

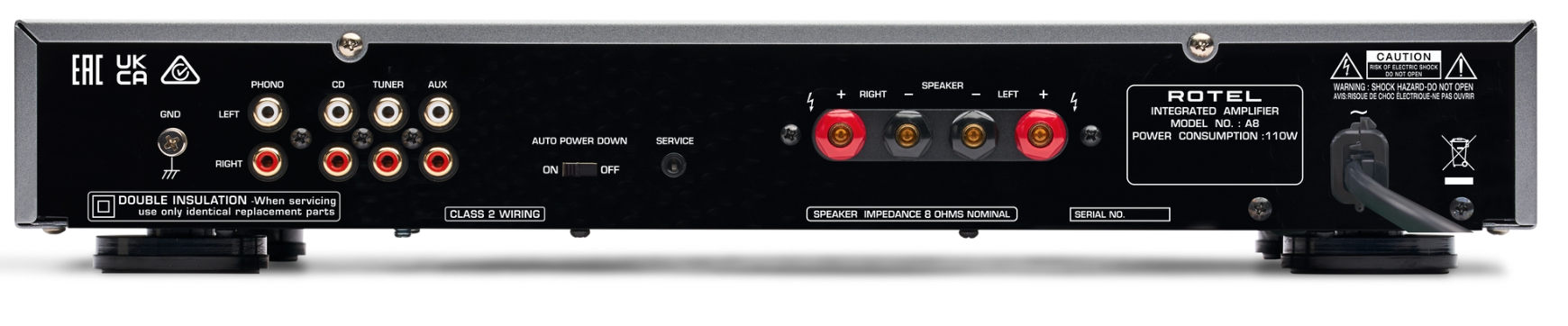

Rotel A8 Integrated Amplifier, rear of unit

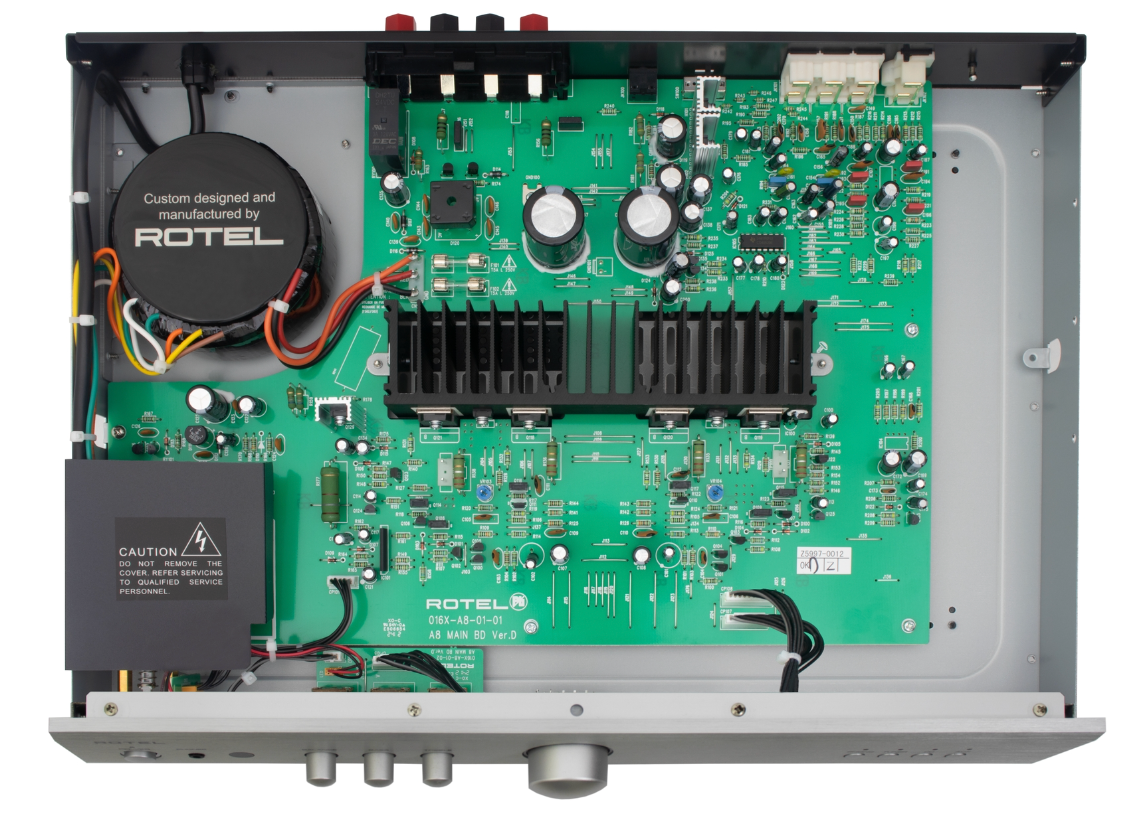

Rotel A8 Integrated Amplifier, inside view
Rotel
Rotel

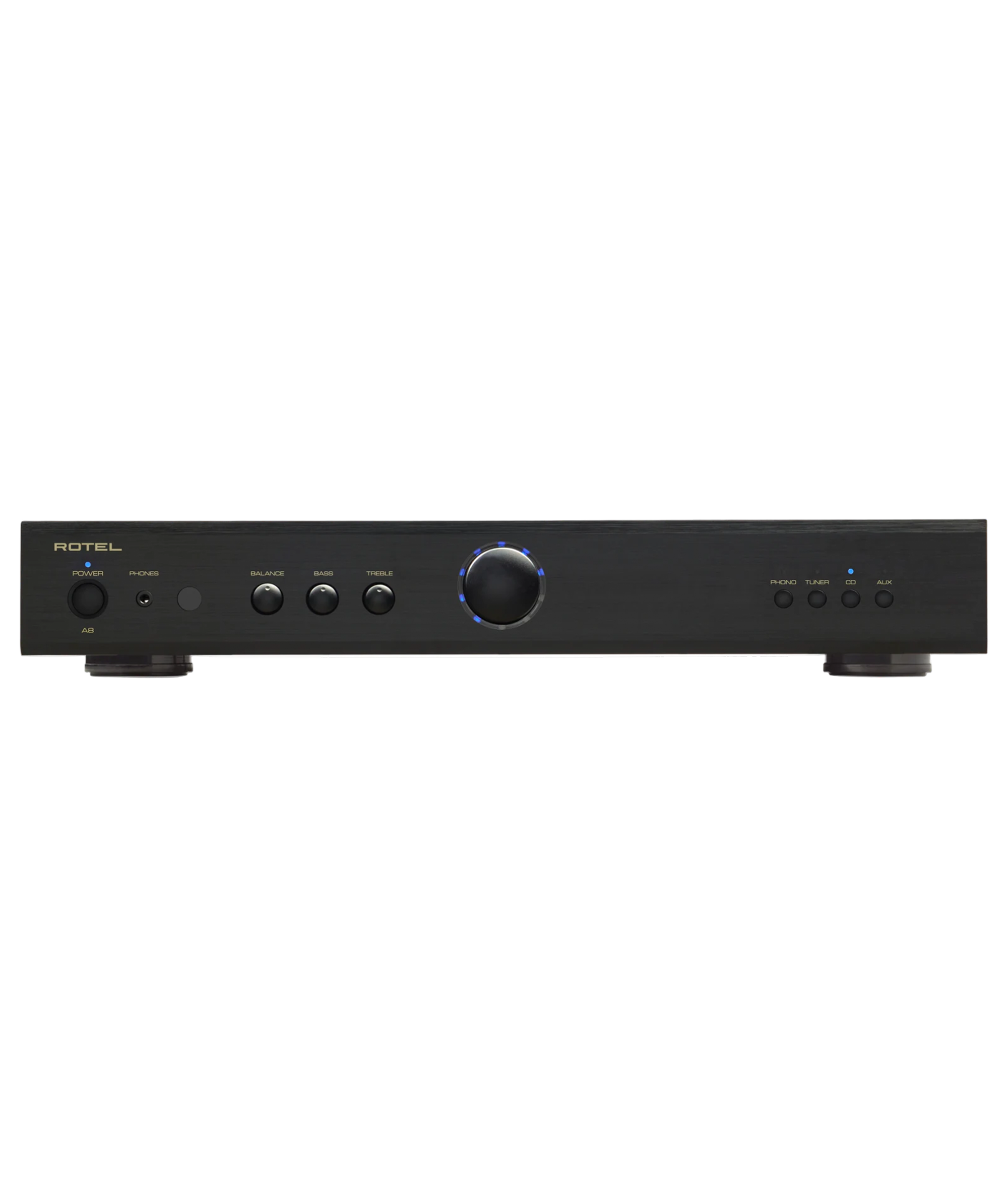

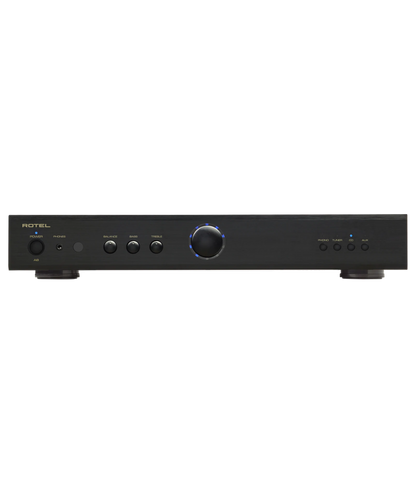

Rotel A8 Integrated Amplifier

Sale price$595.00 AUDRegular price $649.00 AUD
Colour
Colour: Black
Vinyl Revival Upgrades & Accessories Vinyl Revival Slip Mat

"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."

We'd like you to meet the remarkable A8

Integrated Amplifier from Rotel

The A8 Integrated Amplifier is the perfect fusion of power, size, efficiency and value tailored for music enthusiasts.

Built around an in-house manufactured, high current, Rotel-crafted toroidal power transformer, the A8 delivers a commanding 40 Watts per channel of Class A/B power into 4 ohms. The high efficiency output drive transistors ensure deep bass energy is controlled with ultimate precision while comfortably maintaining composure at all listening levels.

The A8 features three line-level RCA inputs connecting your favourite analogue sources complemented by a Moving Magnet compatible Phono Stage to spin classic vinyl albums.

For private listening, a front panel 1/8” headphone jack is also included.

The included IR remote ensures precise and seamless operation of the volume level and selection of the desired source input all from your favourite listening position. The remote also conveniently includes CD transport control functions supporting Rotel CD players.

Personal selection of LED volume indicator colour allows the A8 to be tailored to both mood and environment. Choose from Red, Green, Blue, or Purple LED colours fitting comfortably into any environment. Get hands-on with the front panel Bass, Treble and Balance controls to personalise the listening experience with your music.

Rear panel 5-way speaker binding posts provide the ultimate installation flexibility and connection to your loudspeakers.

Available in both stylish black and sophisticated silver variants, the A8 integrates the power, versatility, and elegance of your audio experience.

Product Features

  • 2 x 40 Watts of robust Class AB power, 4 Ohms
  • Moving Magnet Phono Stage input for turntable connection
  • High current power supply
  • Includes Remote Control

Technical Specifications

Design
Stereo Integrated Amplifier

Total Harmonic Distortion
< 0.03%

Intermodulation Distortion
< 0.03% (60 Hz : 7kHz, 4:1)

Frequency Response

Phono Input
20Hz - 20kHz,  -0.5 dB, +0 dB

Line Level Inputs
10Hz - 100kHz, -0.5 dB, +0 dB

Damping Factor
80

Input Sensitivity

Phono Input
2.5 mV

Line Level Inputs
180 mV

Input Impedance

Phono Input (MM)
40 kΩ

Line Level Inputs
60 kΩ

Input Overload

Phono Input
50 mV

Line Level Inputs
4 V

Tone Controls

Bass
±6 dB at 100 Hz

Treble
±6 dB at 10kHz

Signal to Noise Ratio (IHF “A” weighting)

Phono Input
90 dB

Line Level Inputs
100 dB

General

Power Requirements
230V
50Hz

Power Consumption
110W PEAK
<0.5W Standby

Finishes
Black or Silver

Dimensions (WxHxD)
430 x 73 x 347 mm

Front Panel Height
60 mm

Weight
5.8 kg

Manufacturer’s Warranty
2 Years



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
