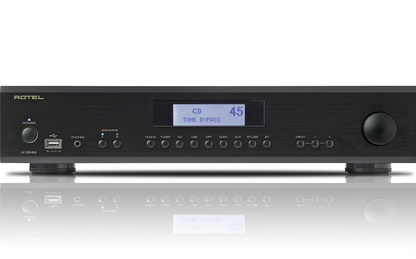

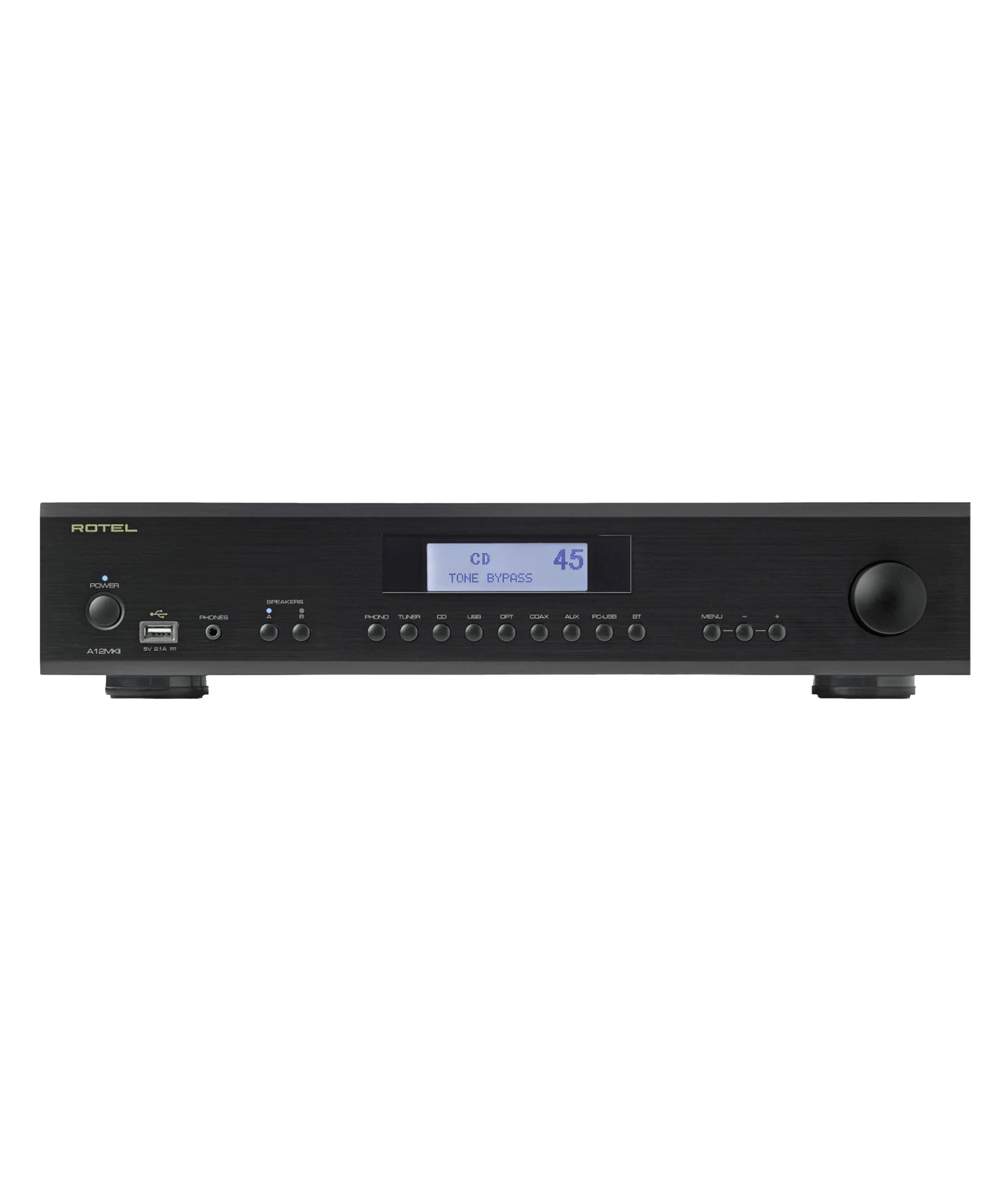

Rotel A12MKII Integrated Amplifier

Product Features

• Fully Featured Integrated Amplifier, High Current Power Supply, Great Sound
• 60 Watts per Channel, Bass & Treble Controls, A & B Speaker Outputs
• MM Phono Input For Turntables plus Four Line Level Inputs & Preamp/Subwoofer Outputs
• Premium Texas Instruments DAC with Coaxial, Optical, USB-A, USB-B & Bluetooth aptX

Technical Specifications

Design
60 Watt Stereo Integrated Amplifier

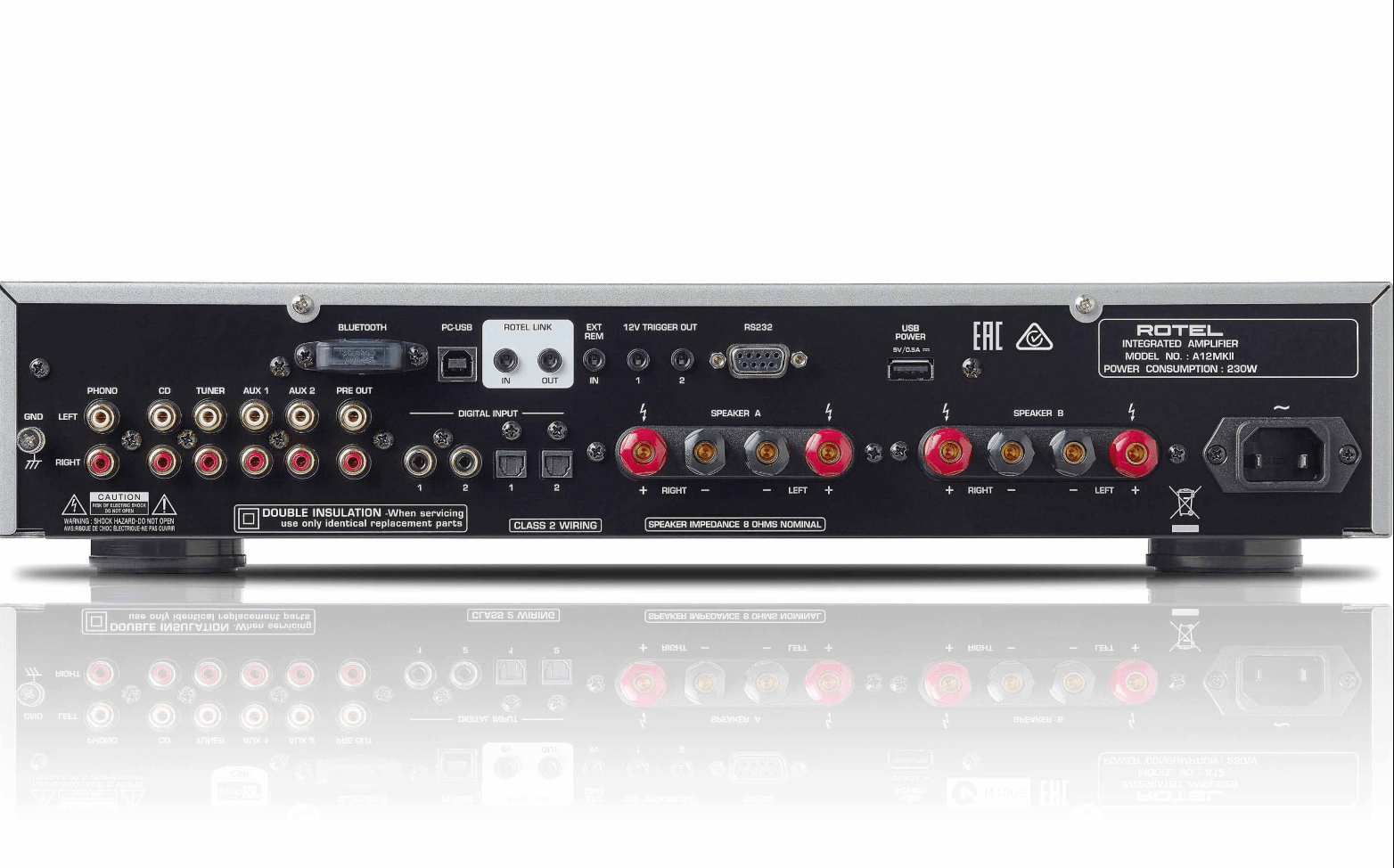

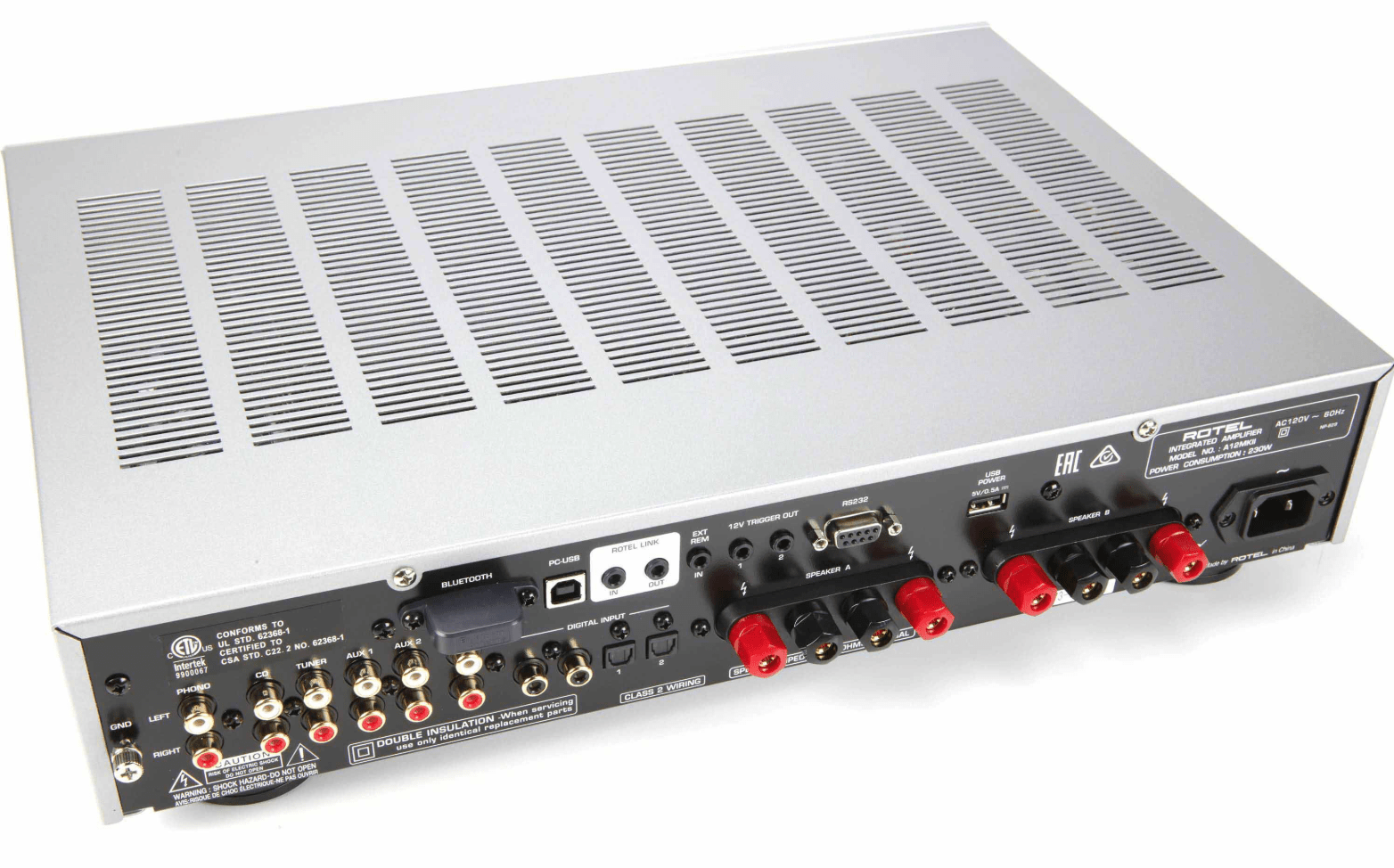

Connections

Audio Inputs
MM Phono, CD, Tuner, Aux 1, Aux 2, Coaxial digital x 2, Optical digital x 2, USB-B for computer audio, Bluetooth aptX dongle for audio streaming, front panel USB-A compatible with Apple iOS products

Audio Outputs
A & B Speakers, Headphones, Preamp/Subwoofer

General Inputs/Outputs
Rotel Link (for controlling other Rotel products), External Remote, 12V Trigger In/Out, RS232

Continuous Power Output
60 Watts per channel (20 - 20 kHz, < 0.03%, 8 ohms)

Total Harmonic Distortion
< 0.03% (20 Hz - 20 kHz at rated power)

Intermodulation Distortion
< 0.03% (60 Hz : 7 kHz, 4:1)

Frequency Response

Phono Input
20 Hz - 20 kHz, ± 0.5 dB

Line-Level Inputs
10 Hz - 100 kHz, ± 0.5 dB

Damping Factor
220 (20 - 20,000 Hz, 8 ohms)

Input Sensitivity / Impedance

Phono Input
3.4 mV / 47 kOhms

Line-Level Inputs
230 mV / 24 kOhms

Input Overload

Phono Input
50 mV

Line-Level Inputs
4 V

Preamp Output / Impedance
1.2 V / 470 Ohms

Tone Controls - Bass / Treble
± 10 dB at Hz / 10 kHz

Signal-to-Noise Ratio (IHF “A” weighting)

Phono Input
90 dB

Line-Level Inputs
100 dB

Digital Section

Frequency Response
10Hz - 90kHz (± 2.0dB, max)

Signal-to-Noise Ratio
103 dB (IHF ”A” weighted)

Input Sensitivity/Impedance
0 dBfs / 75 Ohms

Preamplifier Output Level
1.4 V (at -20 dB)

Coaxial/Optical Inputs
S/PDIF LPCM (up to bit / 192 kHz)

PC USB-B Input
USB Audio Class 1.0 (up to bit / 96 kHz)
USB Audio Class 2.0 (up to bit / 384 kHz – driver installation required)
Certified Roon Tested

General

Power Consumption
230 watts

Standby Power Consumption
< 0.5 watts

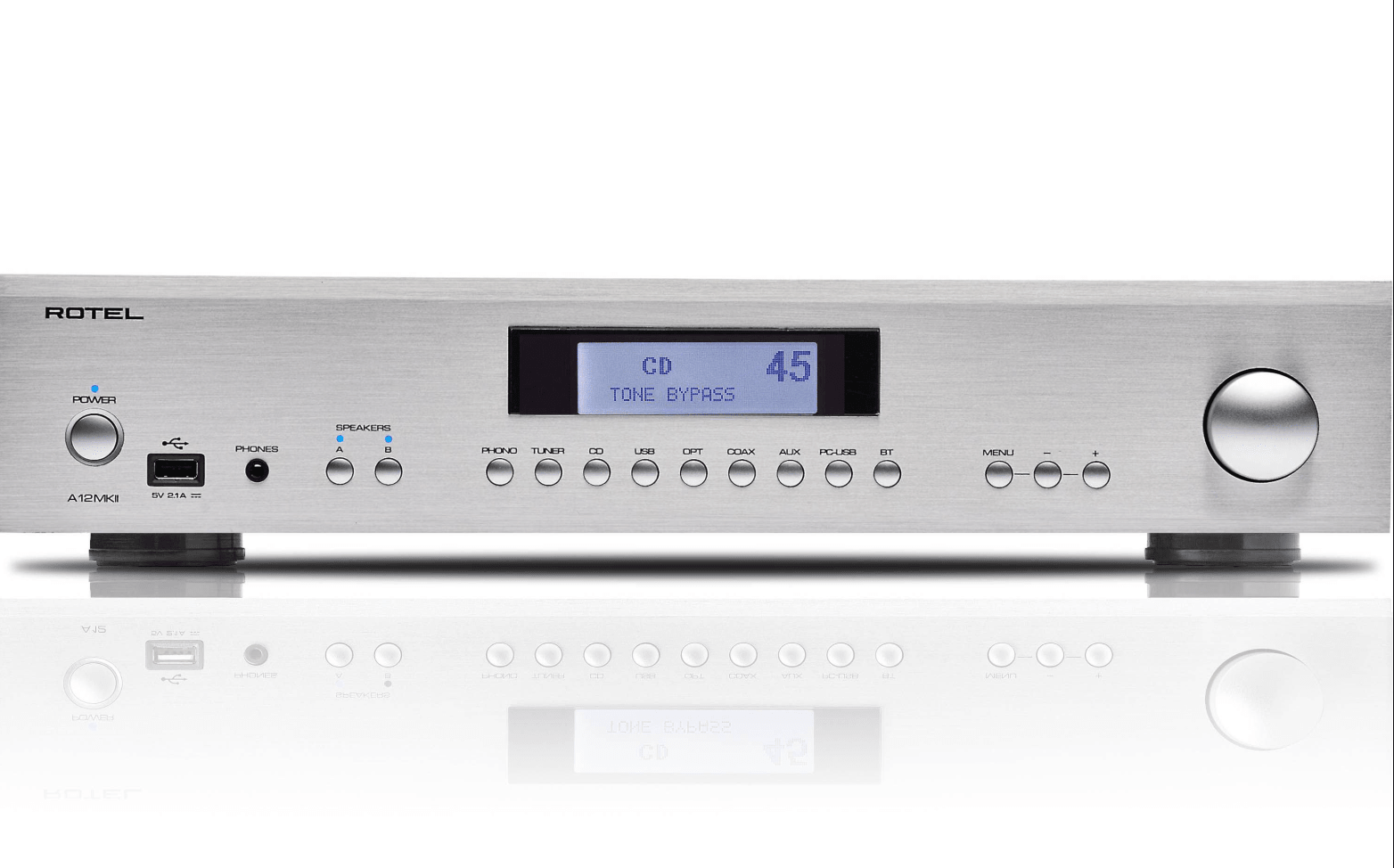

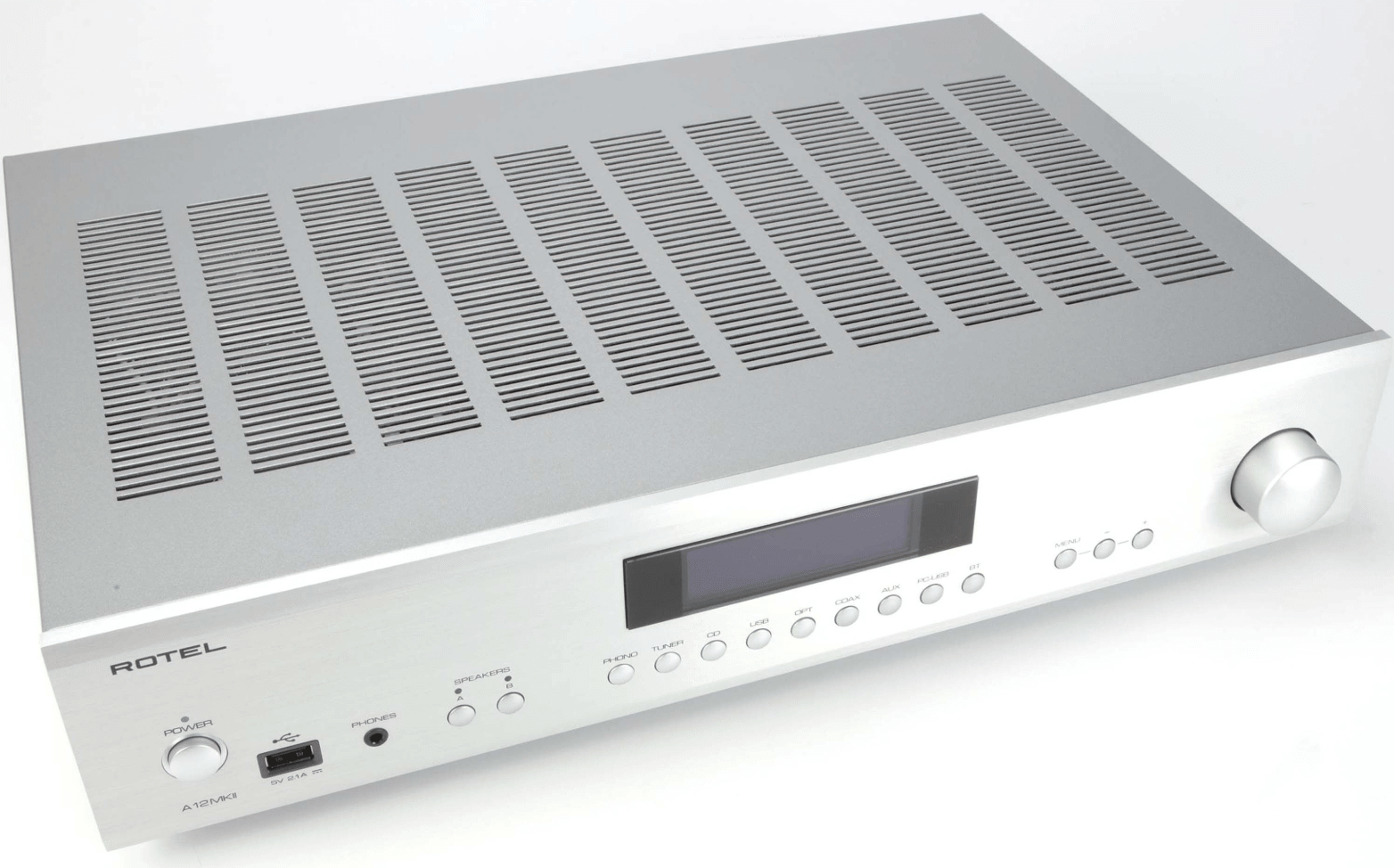

Finish
Black or Silver

Dimensions (WxHxD)
430 x 93 x 345mm

Weight
8.76 kg

Manufacturer’s Warranty
2 Years

*This information has been obtained from the manufacturer's website. We advise that features, specifications & price are subject to change without notice.

E&OE
