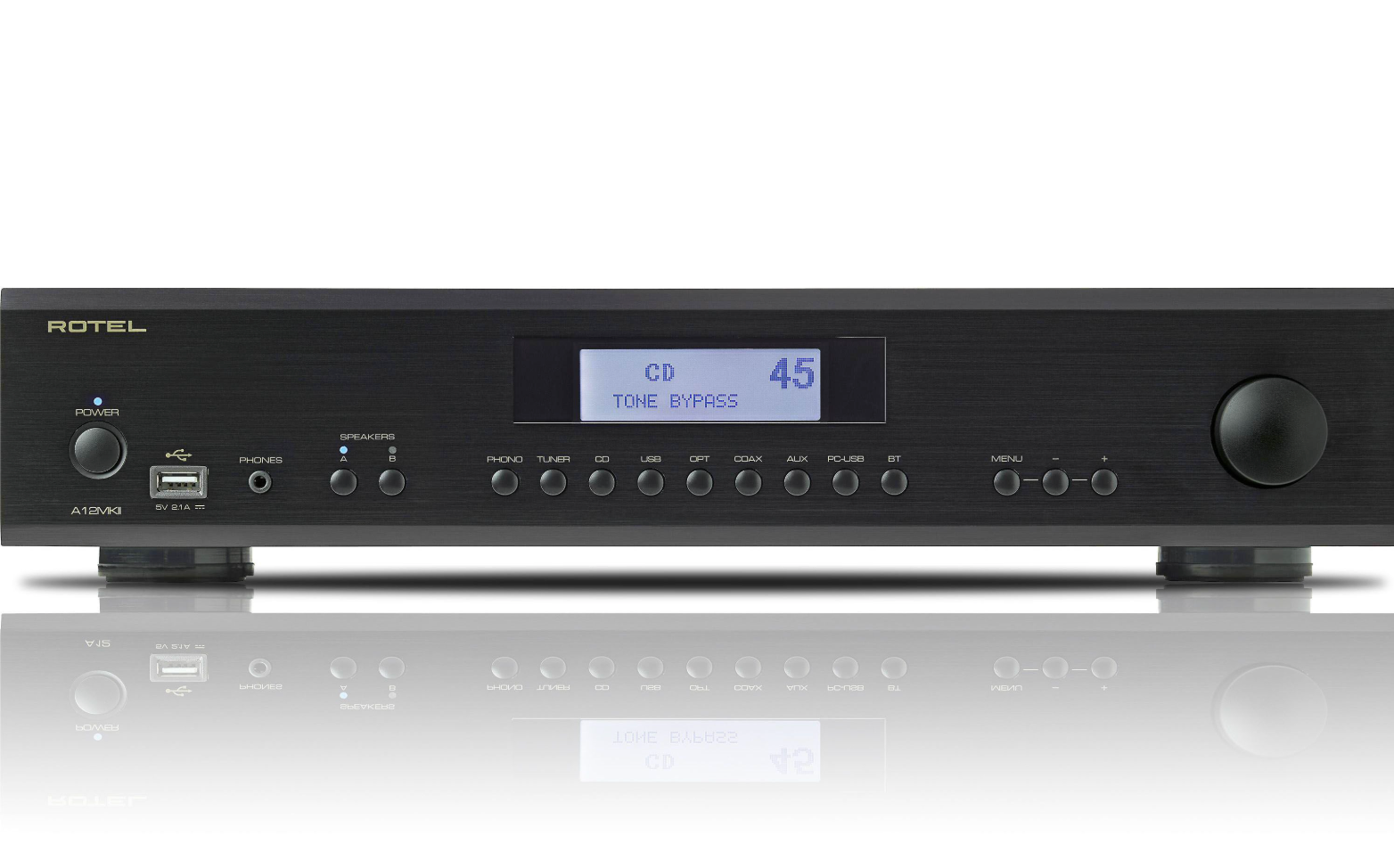

Rotel A12MKII Integrated Amplifier
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."
We'd like to introduce the remarkable A12MKII
Integrated Amplifier from Rotel

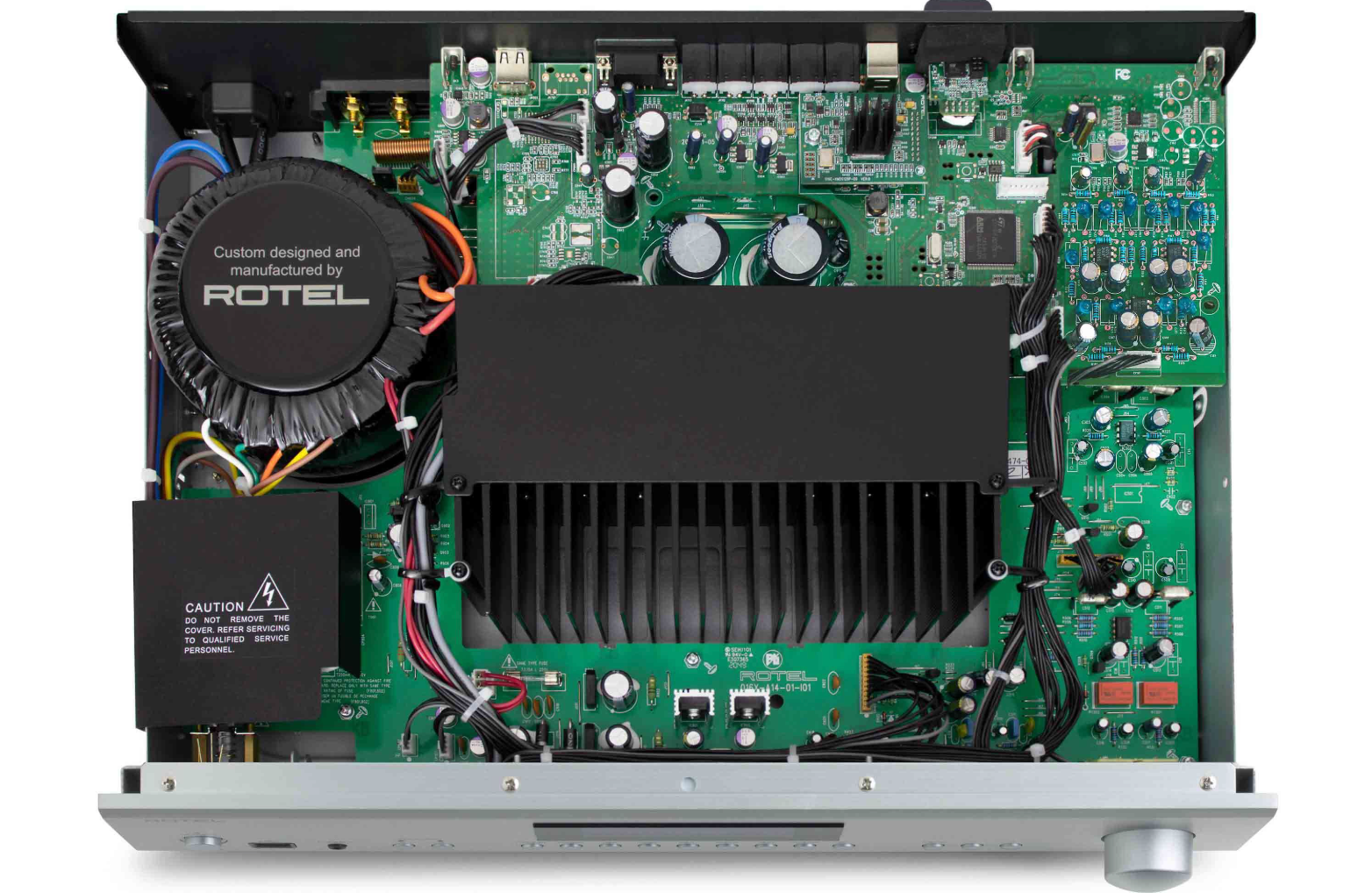

The A12MKII Integrated Amplifier stands well above its slim, sleek design profile designed and engineered for music lovers. Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms.
A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptXTM Bluetooth input ensures connection to your favourite sources, while the premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimised circuits preserving the integrity of the audio stream.
Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.
Product Features
- Fully Featured Integrated Amplifier, High Current Power Supply, Great Sound
- 60 Watts per Channel, Bass & Treble Controls, A & B Speaker Outputs
- MM Phono Input For Turntables plus Four Line Level Inputs & Preamp/Subwoofer Outputs
- Premium Texas Instruments DAC with Coaxial, Optical, USB-A, USB-B & Bluetooth aptX
Technical Specifications
Design
60 Watt Stereo Integrated Amplifier

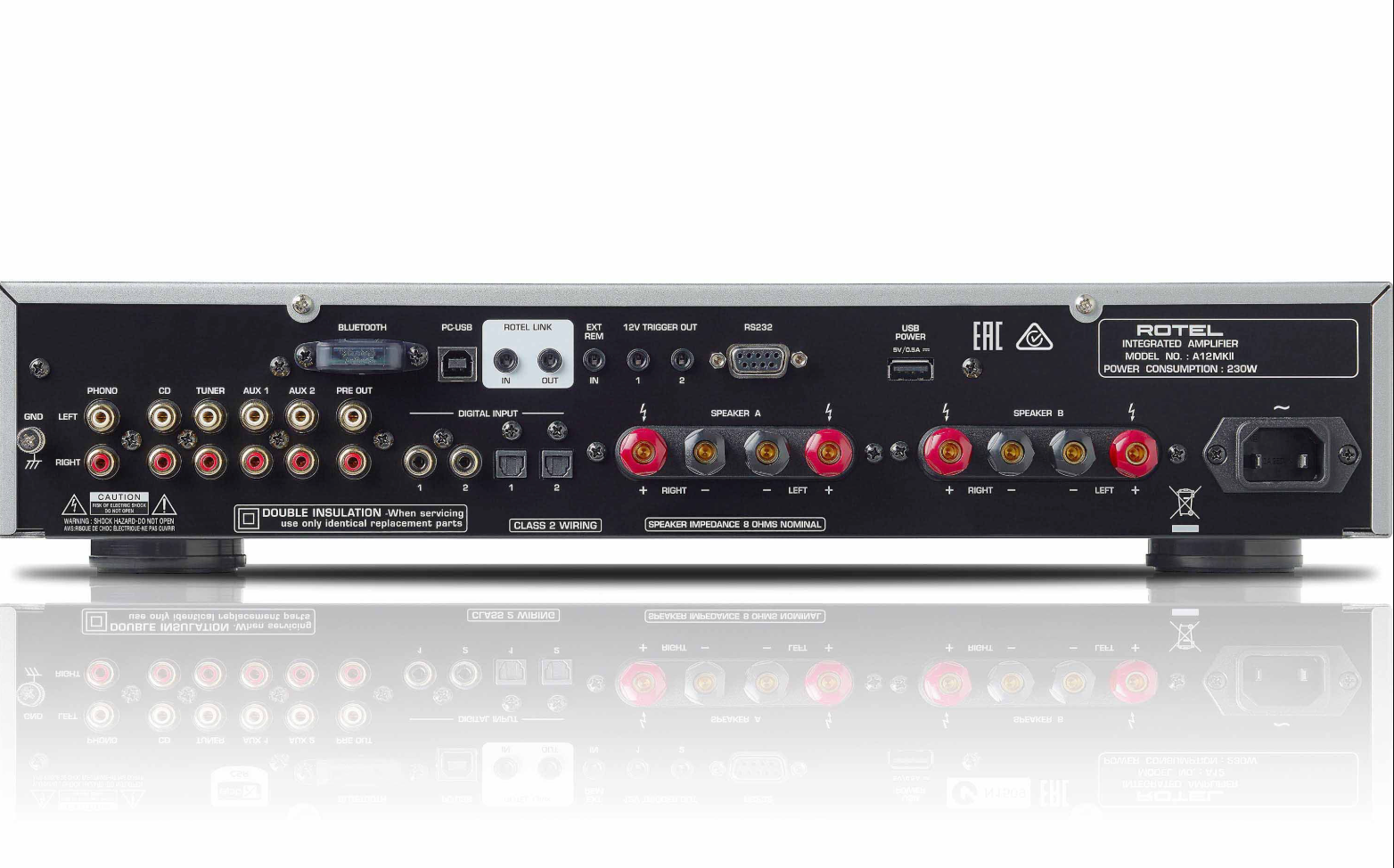

Connections
Audio Inputs
MM Phono, CD, Tuner, Aux 1, Aux 2, Coaxial digital x 2, Optical digital x 2, USB-B for computer audio, Bluetooth aptX dongle for audio streaming, front panel USB-A compatible with Apple iOS products
Audio Outputs
A & B Speakers, Headphone, Preamp/Subwoofer
General Inputs/Outputs
Rotel Link (for controlling other Rotel products), External Remote, 12V Trigger In/Out, RS232
Continuous Power Output
60 Watts per channel (20 - 20kHz, < 0.03%, 8 ohms)
Total Harmonic Distortion
< 0.03% (20 Hz - 20 kHz at rated power)
Intermodulation Distortion
< 0.03% (60 Hz : 7kHz, 4:1)
Frequency Response
Phono Input
20Hz - 20kHz, ± 0.5dB
Line Level Inputs
10Hz - 100kHz, ± 0.5dB
Damping Factor
220 (20 - 20,000 Hz, 8 ohms)
Input Sensitivity / Impedance
Phono Input
3.4 mV / 47k Ohms
Line Level Inputs
230 mV / 24k Ohms
Input Overload
Phono Input
50 mV
Line Level Inputs
4 V
Preamp Output / Impedance
1.2 V / 470 Ohms
Tone Controls - Bass / Treble
± 10 dB at 100Hz / 10kHz
Signal to Noise Ratio (IHF “A” weighting)
Phono Input
90 dB
Line Level Inputs
100 dB
Digital Section
Frequency Response
10Hz - 90kHz (± 2.0dB, max)
Signal to Noise Ratio
103 dB (IHF ”A” weighted)
Input Sensitivity/Impedance
0 dBfs / 75 Ohms
Preamplifier Output Level
1.4 V (at - 20dB)
Coaxial/ Optical Inputs
SPDIF LPCM (up to 24bit / 192kHz)
PC USB-B Input
USB Audio Class 1.0 (up to 24bit / 96kHz)
USB Audio Class 2.0 (up to 32bit / 384kHz - Driver installation required)
Certified Roon Tested
General
Power Consumption
230 watts
Standby Power Consumption
< 0.5 watts
Finish
Black or Silver
Dimensions (WxHxD)
430 x 93 x 345mm
Weight
8.76 kg
Manufacturer’s Warranty
2 Years
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.
E&OE
