Rotel A11 Tribute Integrated Amplifier

Meet the A11 Tribute

The Stunning Integrated Amplifier, from Rotel

The A11 Tribute is a Class AB 50W integrated amplifier developed in cooperation with the audio engineering legend Ken Ishiwata as a tribute to his legacy.

The A11 Tribute is a Class AB 50W (8 ohms) integrated amplifier developed in cooperation with the audio engineering legend Ken Ishiwata as a tribute to his legacy spanning over 40 years in the industry.

The collaboration between Ken and Rotel’s own engineering design teams delivered on the promise of an even higher level of performance for the extremely successful and popular award-winning A11. Upgraded components and meticulous tuning of all critical circuits deliver a richer, more expressive, and true-to-life experience from all of the support source inputs, including aptX and AAC wireless Bluetooth, an array of 4 RCA analogue inputs, and a moving magnet phono stage for vinyl fans.

Specially selected improved components were chosen to offer higher performance throughout the signal path. In the amplifier stage, all 10 capacitors and two resistors in the signal path were changed.

For the pre-amp, six capacitors were upgraded, representing over 50% of the components in the signal path. All six capacitors in the volume stage were also upgraded.

Custom damping materials were added to the A11’s mechanical chassis to reduce ringing and further isolate/insulate and dampen any vibrations within the product.

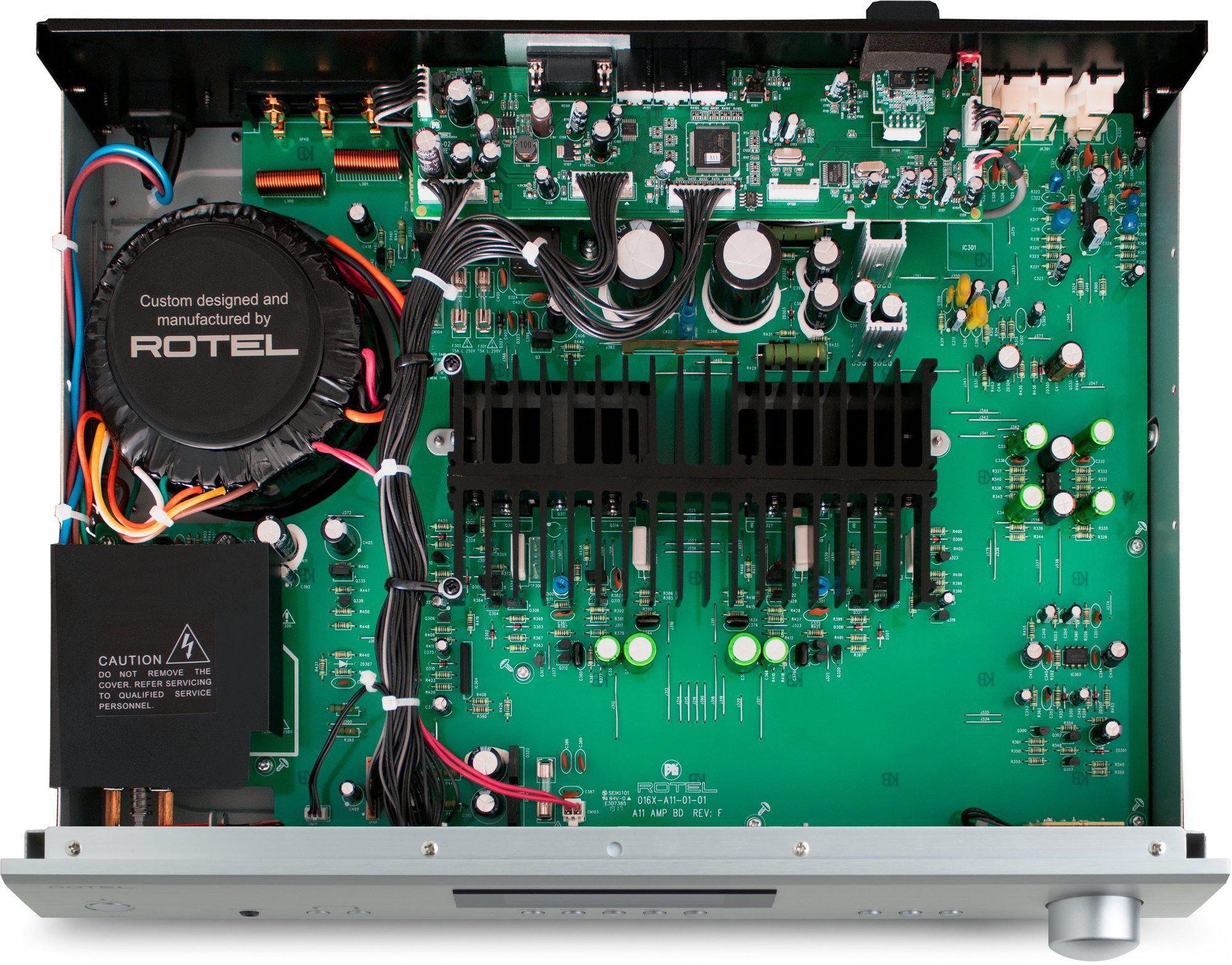

The front panel graphic display and IR remote ensure effortless control of the audio driven by a Rotel in-house manufactured oversized toroidal transformer. The resulting acoustic performance speaks for itself under all loading conditions with even the most difficult speaker loads.

Product Features

• Class AB 50-watt-per-channel stereo amplifier (8 Ohms)
• Moving Magnet Phono Stage Input
• 4 RCA analog inputs
• Bluetooth receiver (apt-X and ACC streaming)
• Dedicated RCA pre-output
• Dual A-B selectable speaker outputs
• RS232 and dual 12V trigger outputs

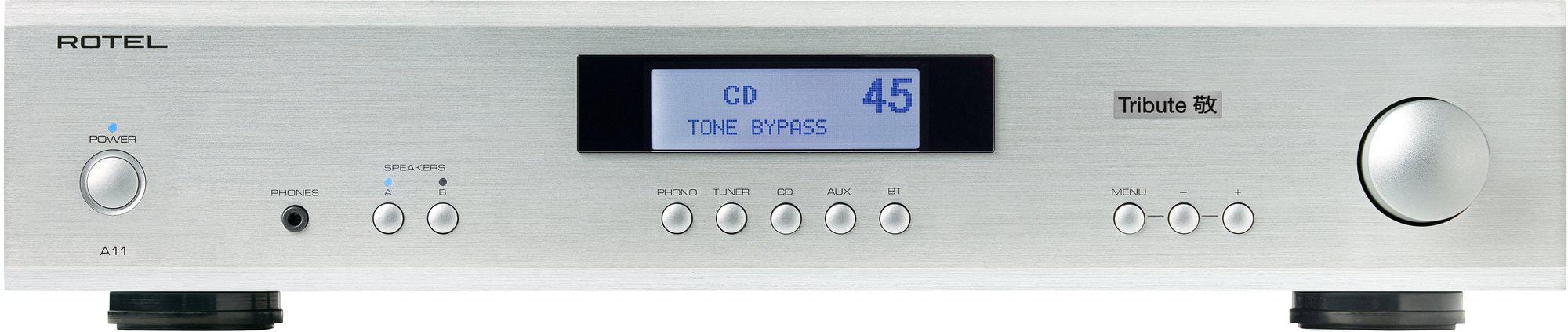

• Front panel display and IR Remote

Technical Specifications

Design
50 Watt Stereo Integrated Amplifier upgraded by Ken Ishiwata

Audio Inputs
MM Phono, CD, Tuner, Aux 1, Aux 2, Bluetooth aptX dongle for audio streaming

Audio Outputs
A & B Speakers, Headphones, Preamp/Subwoofer

General Inputs/Outputs
External Remote, 12V Trigger In/Out, RS232

Continuous Power Output
50 Watts per channel (20 - 20 kHz, < 0.03%, 8 ohms)

Total Harmonic Distortion
< 0.03% (20 Hz - 20 kHz at rated power)

Intermodulation Distortion
< 0.03% (60 Hz : 7 kHz, 4:1)

Frequency Response
Phono Input: 20Hz - 15kHz, ± 0.5dB
Line Level Inputs: 10 Hz - 100 kHz, ± 0.5 dB

Damping Factor
140 (20 - 20,000 Hz, 8 ohms)

Input Sensitivity / Impedance
Phono Input: 2.3 mV / 47k Ohms
Line Level Inputs: 180 mV / 24k Ohms

Input Overload
Phono Input: 50 mV
Line Level Inputs: 4 V

Preamp Output / Impedance
1 V / 470 Ohms

Tone Controls - Bass / Treble
± 10 dB at Hz / 10 kHz

Signal-to-Noise Ratio (“A” weighting)
Phono Input: 85 dB
Line Level Inputs: 100 dB

Power Consumption
160 watts

Standby Power Consumption
< 0.5 watts

Available Finishes
Black & Silver

Dimensions (WxHxD)
430 x 93 x 345 mm

Weight
6.85 kg

Manufacturer's Warranty
2 Years

*This information has been obtained from the manufacturer's website. We advise that features & specifications are subject to change without notice.

E&OE
