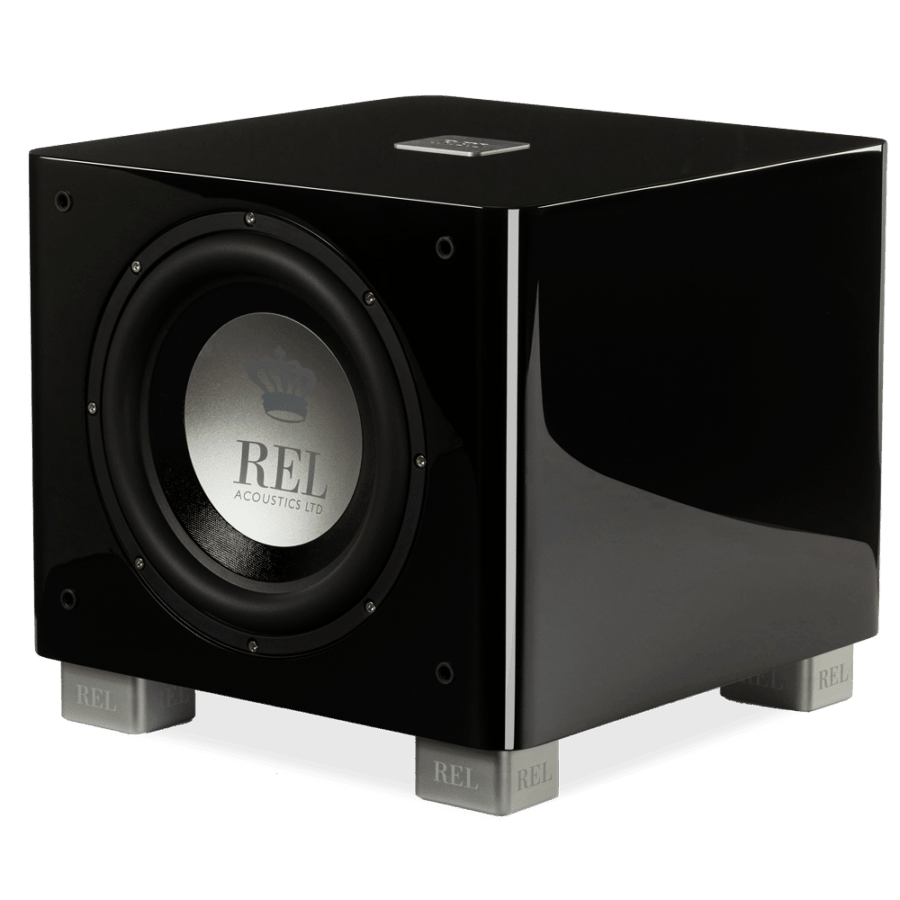

REL T/9x Subwoofer in High Gloss Black
Series T/9x: Bigger AND Better
The job of any range topper for REL is to deliver more of everything, particularly output and dynamics. The 9x is no different in this regard, as it delivers the goods in both music and theatre applications. 9x, however, delivers a level of intimacy, clarity and speed that means there are no longer trade-offs between the sonic balance of smaller models weighed against the power and scale of a model 9.
The all new 9x has even greater output than before, but the headline news is the way it sacrifices nothing in clarity and transparency to achieve this. At this price it opens the pathway for owners of high performance European floor and stand mounted monitors and smaller panel speakers to enjoy truly full range sound.
Many don’t realise the intense linkage between performance and design at REL. Performance is everything so it drives physical design revisions. Their engineers, recognising the need for greater acoustic volume to achieve the goals of greater fluidity and power, turn to the designer who works dimensions to fool the eye into seeing a smaller, more compact footprint even though cabinet volume increases. Using gently rounded corner radii that allows the eye to flow over and see less visual mass.
The result is both modern and familiar with no unnecessary adornment.
To achieve higher output with better control requires a complete overhaul of the suspension components. Much like the suspension on a sports car, these items are responsible for the tuning and feel of our designs. By increasing the cabinet volume, efficiency is improved yielding higher output for no more amplifier power. Less back pressure inside the cabinet means we can tune for a stiffer, better controlled driver suspension.
REL retained the best aspects of their previous design, such as the aluminium centre cap responsible for stiffening the lightweight 10” (250mm) cone while adding almost no mass. The updated combination produces considerably better attack and dynamics with greater transparency.
Also retained is their signature Class A/B amplifiers used in every generation of Serie T since 2006. Reliability is the key to happy ownership and with some 200,000 and counting of this range leading long happy lives, Serie T/x owners can feel certain of REL’s standard setting reliability. The powerful 300 watt mosfet amplifier used in the T/9x remains an icon with huge reserves of current, massive power supplies but small upgrades are found everywhere. New driver mosfets that open up performance and transparency and new methods for securing the toroidal transformers mean better performance and superior strength.

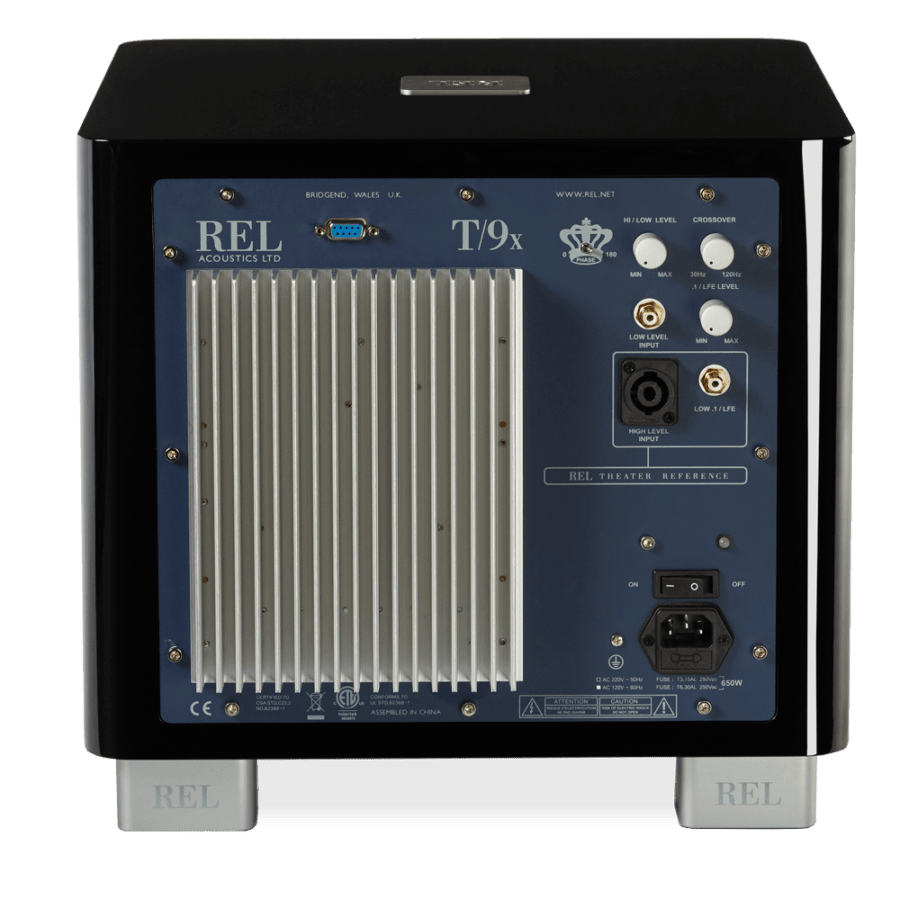

REL’s legendary High Level Input connection and fast filters are a significant part of the REL story. Connecting via the speaker outputs of your amplifier without drawing any power from it may seem like magic, but the real magic lies in the way the sound takes on a natural character. Unique tuning and special limiters means the T/x range sounds fresher, faster and more dynamic than before.
Standby Mode switch is only included on 220V units.
REL have developed a sterling reputation for building the finest sounding, fastest wireless systems available in the industry. They never rely upon digital compression as it results in dull, lifeless sound. Instead, they have perfected an (optional) Arrow™ wireless system so fast and dynamic we’re comfortable encouraging the use of wireless on one channel of a pair of RELs while the other channel may be connected conventionally with cable.
TYPE

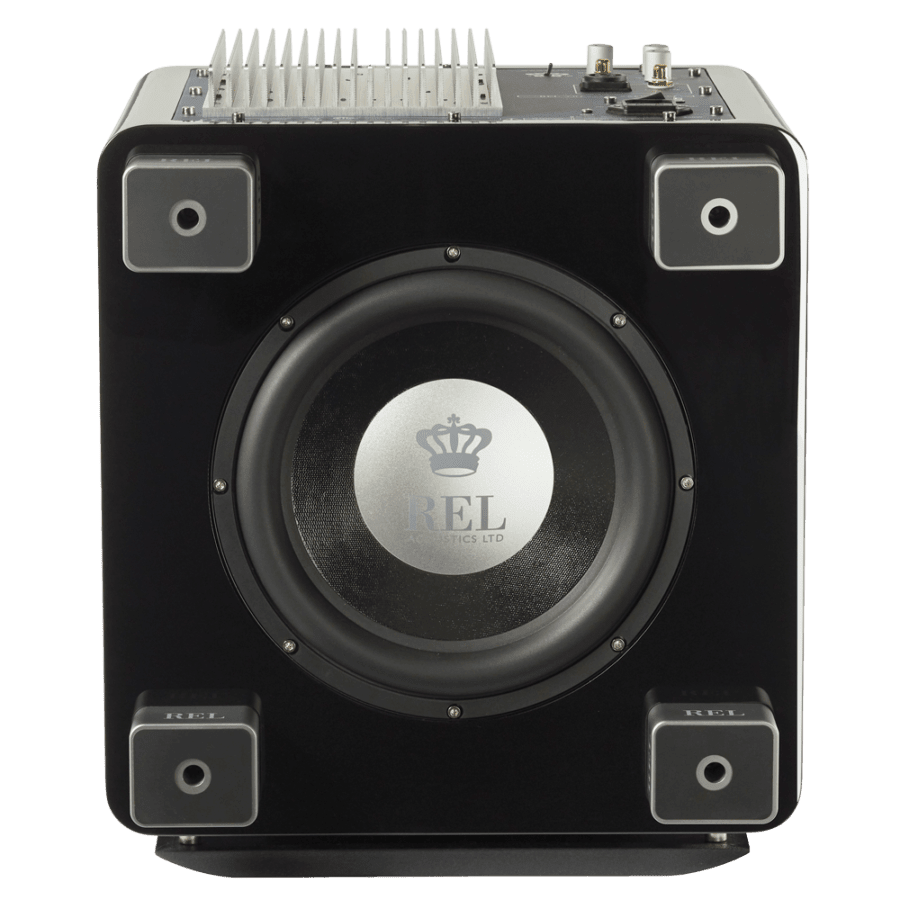

Front-firing active driver, down-firing passive
ACTIVE DRIVER SIZE & MATERIAL
10 in. FibreAlloy™, 254mm long-throw, inverted alloy dust cap, steel chassis
PASSIVE RADIATOR SIZE & MATERIAL
10 in., 254mm long throw, inverted dust cap
LOW FREQUENCY EXTENSION
-6dB at 27 Hz
INPUT CONNECTORS
High Level Neutrik Speakon, Low Level single RCA, LFE RCA
POWER OUTPUT
300 watts (RMS)
AMPLIFIER TYPE
Class A/B
WIRELESS CAPABILITY
Arrow (Optional), Zero Compression Single Large Scale Integrated Chip
FINISHES
High Gloss Black
High Gloss White
Grey
Limited Edition Italian Racing Red, Yellow or Tangerine
FULLY ELECTRONIC SET SAFE
Yes
D.C. FAULT
Yes
OUTPUT SHORT
Yes
MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets
FUSES
3.15 Amp semi delay 230 volts operation, 6.3 Amp semi delay 115 volts operation
Dimensions (W x H x D)
14.5 x 13.4 x 15.5 in., (370 x 340 x 393 mm)
NET WEIGHT
45.5 lbs. (20.6 kg)
FINISH
High Gloss Black, 5 coats
3 Year Warranty & Lifetime Warranty on Manufacturers Defects
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.
