REL T/9x Subwoofer (High Gloss Black)

Original price $2,399.00 - Original price $2,399.00
Original price
$2,399.00
$2,399.00 - $2,399.00
Current price $2,399.00

Serie T/9x: Bigger AND Better

THE SERIES FLAGSHIP

The job of any range topper for REL is to deliver more of everything, particularly output and dynamics. The 9x is no different in this regard, as it delivers the goods in both music and theatre applications. 9x, however, delivers a level of intimacy, clarity and speed that means there are no longer trade-offs between the sonic balance of smaller models weighed against the power and scale of a model 9.

The all new 9x has even greater output than before, but the headline news is the way it sacrifices nothing in clarity and transparency to achieve this. At this price it opens the pathway for owners of high performance European floor and stand mounted monitors and smaller panel speakers to enjoy truly full range sound.

Reimagined, Then Reengineered

A COMPLETELY REDESIGNED FLAGSHIP

Many don’t realize the intense linkage between performance and design here at REL. Performance is everything to us and so it drives physical design revisions. Our engineers, recognizing the need for greater acoustic volume to achieve the goals of greater fluidity and power, turn to the designer who works dimensions to fool the eye into seeing a smaller, more compact footprint even though cabinet volume increases. Using gently rounded corner radii that allows the eye to flow over and see less visual mass. The result is both modern and familiar with no unnecessary adornment.

Outsized Performance

INNOVATIVE ALLOY/FIBRE BASS ENGINES

To achieve higher output with better control requires a complete overhaul of the suspension components. Much like the suspension on a sports car, these items are responsible for the tuning and feel of our designs. By increasing the cabinet volume, efficiency is improved yielding higher output for no more amplifier power. Less back pressure inside the cabinet means we can tune for a stiffer, better controlled driver suspension. We retained the best aspects of our previous design, such as the aluminum center cap responsible for stiffening the lightweight 10” (250mm) cone while adding almost no mass. The updated combination produces considerably better attack and dynamics with greater transparency.

Tried and True Amplifiers

THE BRAINS BEHIND THE BRAWN

We have retained our signature Class A/B amplifiers used in every generation of Serie T since 2006. Reliability is the key to happy ownership and with some 200,000 and counting of this range leading long happy lives, Serie T/x owners can feel certain of REL’s standard setting reliability. The powerful 300 watt mosfet amplifier used in the T/9x remains an icon with huge reserves of current, massive power supplies but small upgrades are found everywhere. New driver mosfets that open up performance and transparency and new methods for securing the toroidal transformers mean better performance and superior strength.

REL’s legendary High Level Input connection and fast filters are a significant part of the REL story. Connecting via the speaker outputs of your amplifier without drawing any power from it may seem like magic, but the real magic lies in the way the sound takes on a natural character. Unique tuning and special limiters means the T/x range sounds fresher, faster and more dynamic than before.

Standby Mode switch is only included on 220V units.

Specifications

TYPE

Front-firing active driver, down-firing passive

ACTIVE DRIVER SIZE & MATERIAL

10 in. FibreAlloy™, 254mm long-throw, inverted alloy dust cap, steel chassis

PASSIVE RADIATOR SIZE & MATERIAL

10 in., 254mm long throw, inverted dust cap

LOW FREQUENCY EXTENTION

-6dB at 27 Hz

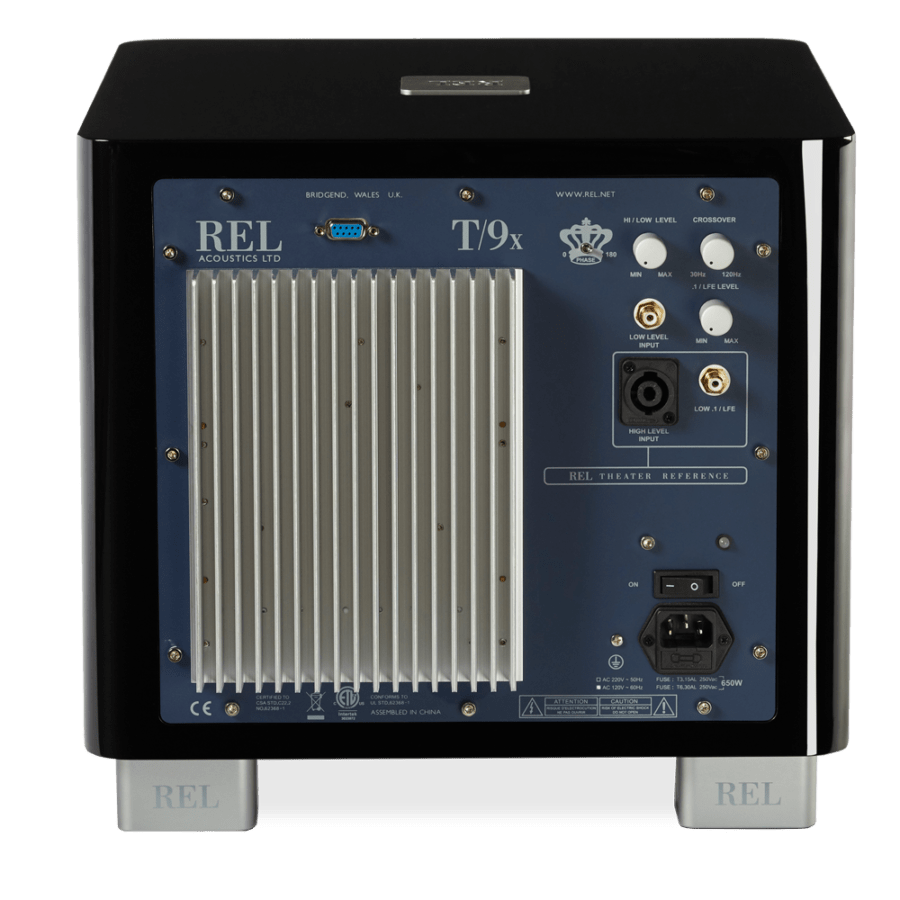

INPUT CONNECTORS

High Level Neutrik Speakon, Low Level single RCA, LFE RCA

OUTPUT CONNECTORS

N/A

POWER OUTPUT

300 watts (RMS)

AMPLIFIER TYPE

Class A/B

WIRELESS CAPABILITY

Arrow (Optional), Zero Compression Single Large Scale Integrated Chip

Protection System

FULLY ELECTRONIC SET SAFE

Yes

D.C. FAULT

Yes

OUTPUT SHORT

Yes

MAINS INPUT VOLTAGE

220-240 volts, 110-120 volts for certain markets

FUSES

3.15 Amp semi delay 230 volts operation, 6.3 Amp semi delay 115 volts operation

Dimensions

W X H X D

14.5 x 13.4 x 15.5 in., (370 x 340 x 393 mm)

NET WEIGHT

45.5 lbs. (20.6 kg)

FINISH

High Gloss Black, High Gloss White, 5 coats

Supplied Accessories

MAINS LEAD

Yes

NEUTRIK SPEAKON INTERCONNECT

Yes (10 Meters Nominal)

USERS MANUAL

Yes

*Reprint from manufacturer's website
