REL T/5x Subwoofer
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH FULL LOCAL WARRANTY"
REL T/5x Subwoofer
Designed for Elegance
...STUNNINGLY SIMPLE
Perfect for small and medium rooms, T/5x seats perfectly into any décor. Floor-firing is part of its secret; bass energy strikes the floor and spreads uniformly throughout the space making it perform like a larger model.
For those picky about style, the hidden bonus is this design eliminates even the grill, rendering it the purest of forms.

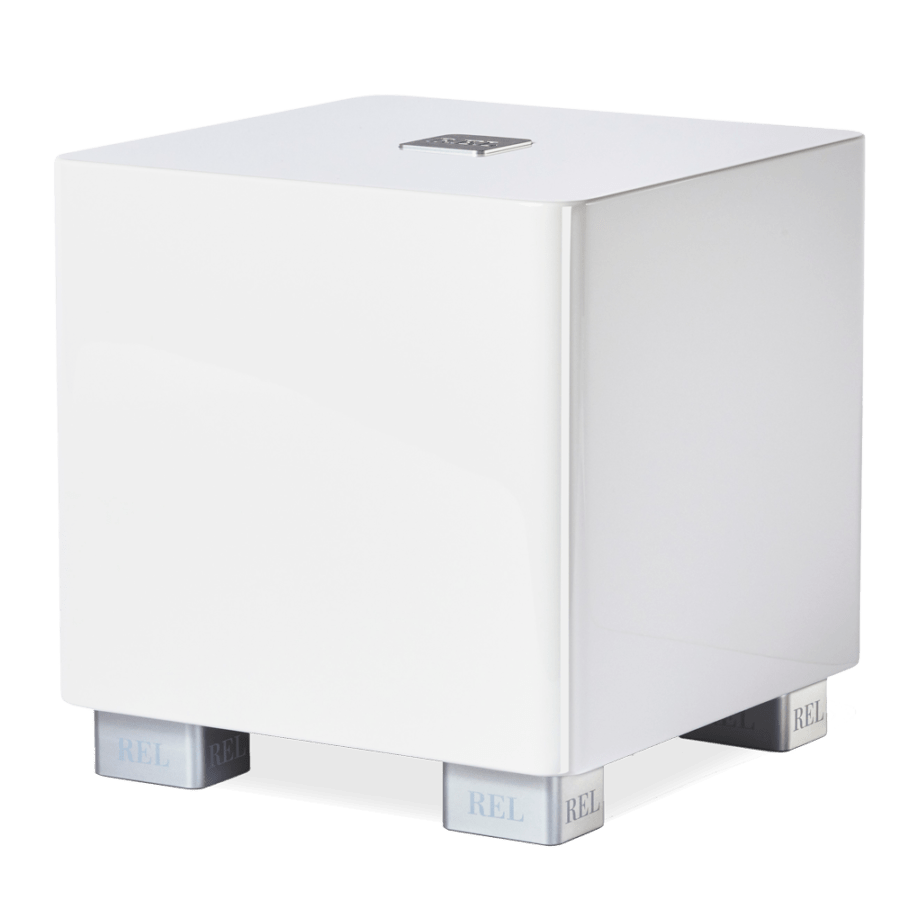

By utilising subtle design changes to minimise its visual impact, the REL T/5x Subwoofer offers a slightly larger volume than its predecessor while appearing to be smaller. Additionally, five hand polished coats of lacquer in either High Gloss White or Piano Black provide a glossy finish to its softly rounded cabinet.
A 360-DEGREE UPGRADE
Many don’t realise the intense linkage between performance and design here at REL. Performance is everything and so this drives physical design revisions. REL's engineers, recognising the need for greater acoustic volume to achieve the goals of greater fluidity and power, turn to the designer who works dimensions to fool the eye into seeing a smaller, more compact footprint even though cabinet volume increases.
Using gently rounded corner radii that allows the eye to flow over and see less visual mass. The result is both modern and familiar with no unnecessary adornment.
Faster & Deeper
SWIFT

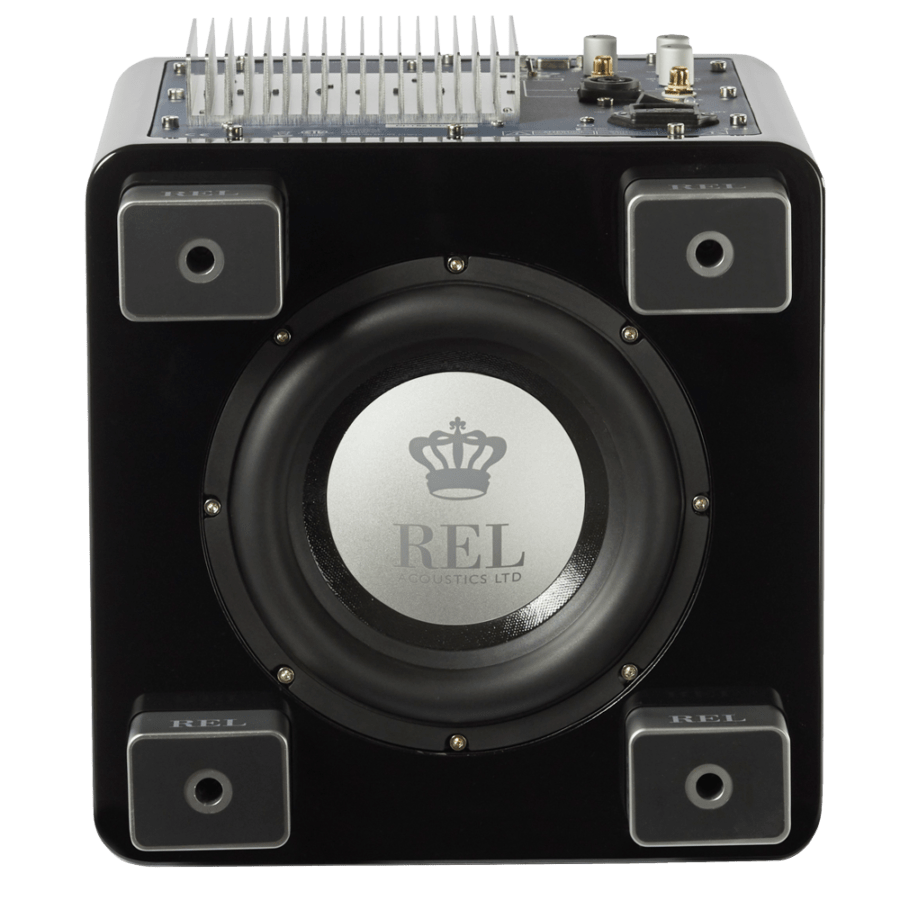

T/5x borrows a single longthrow 8” (200mm) bass engine from its elder sibling, T/7x. Developed using a composite of aluminium and light paper, this cone captures details that will amaze, while supplying sufficient energy to plumb deeper than one would expect for its size. In T/5x, its throw–the ability to play louder–has been increased. Internally, the suspension received numerous upgrades akin to transforming the handling of a car from a family sedan to a true sports car.
More power, greater finesse.
Amplified Power
REL'S RELIABLE BRAINS AND BRAWN

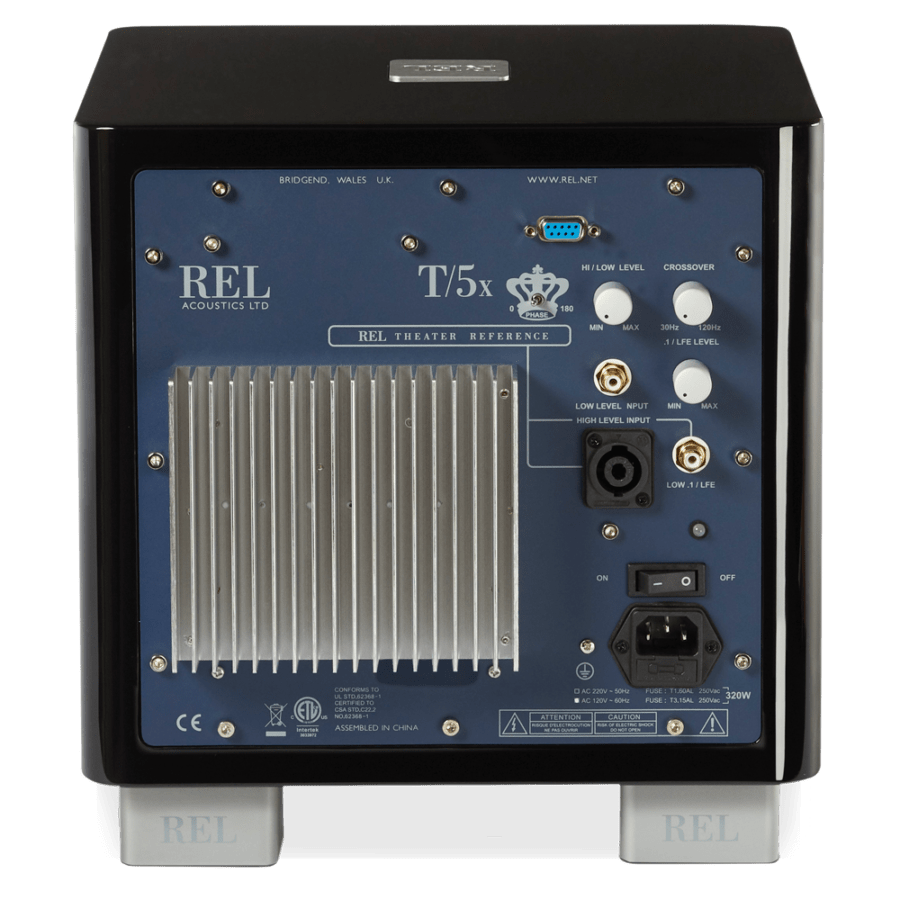

T/5x builds on its predecessor’s reliable, expensive 125 W Class A/B amplifiers. Internally, key items significant to upgrading transparency and speed have been upgraded at no cost to REL’s legendary reliability. Separate inputs for High Level Inputs, Low Level Input (necessary for the increasing number of powered active speakers emerging on the market) allow for a natural, perfect transition from speaker to subwoofer. And in theatre a separate, dedicated .1/LFE Input for Theatre performance permits automatic transition between music in high end 2-channel applications and home theatre without needing to change a single setting. Magic? No, superior engineering.
Standby Mode switch is only included on 220V units.
Technical Specifications
TYPE
Closed Box, down-firing driver
ACTIVE DRIVER SIZE & MATERIAL
8 in. FibreAlloy™, 200mm long-throw, inverted alloy dust cap, steel chassis
PASSIVE RADIATOR SIZE & MATERIAL
N/A
LOW FREQUENCY EXTENSION
-6dB at 32 Hz
INPUT CONNECTORS
High Level Neutrik Speakon, Low Level single RCA, LFE RCA
OUTPUT CONNECTORS
N/A
POWER OUTPUT
125 watts (RMS)
AMPLIFIER TYPE
Class A/B
WIRELESS CAPABILITY
Arrow (Optional), Zero Compression, Single Large Scale Integrated Chip
Protection System
FULLY ELECTRONIC SET SAFE
Yes
D.C. FAULT
Yes
OUTPUT SHORT
Yes
MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets
FUSES
1.6 Amp semi delay 230 volts operation, 3.15 Amp semi delay 115 volts operation
Dimensions
W X H X D
11.8 x 12 x 12.3 in., (300 x 307 x 313 mm)
NET WEIGHT
31.5 lbs. (14.3 kg)
FINISH
High Gloss Black, High Gloss White, 5 coats
Supplied Accessories
MAINS LEAD
Yes
NEUTRIK SPEAKON INTERCONNECT
Yes (10 Meters Nominal)
USERS MANUAL
Yes
WARRANTY
3 Year Warranty & Lifetime Warranty on Manufacturers Defects
