Rega Planar 6 Turntable with Ania Pro MC Cartridge

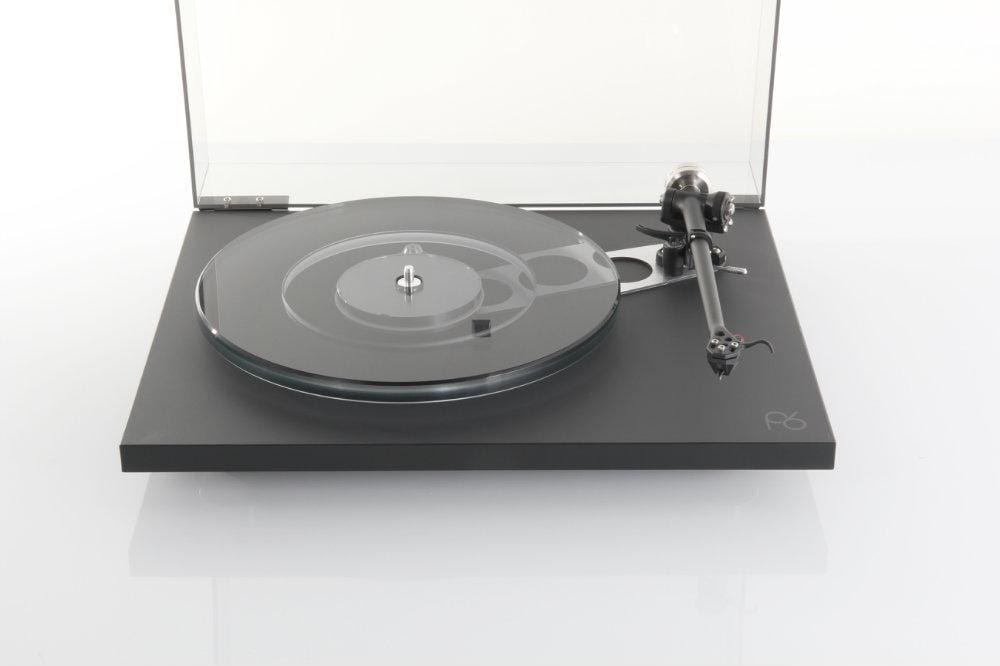

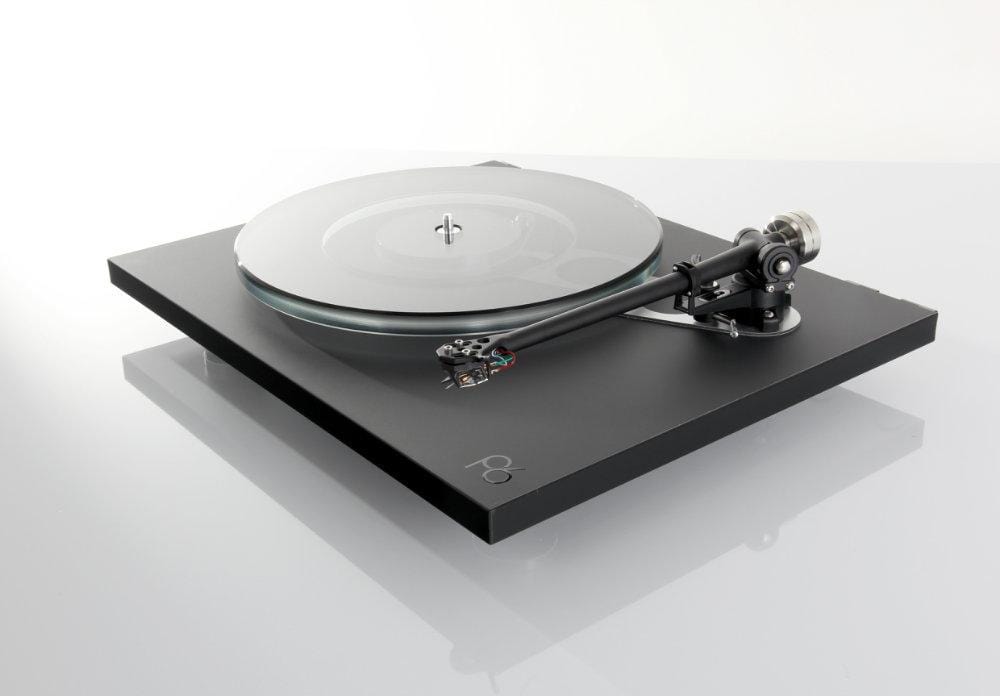

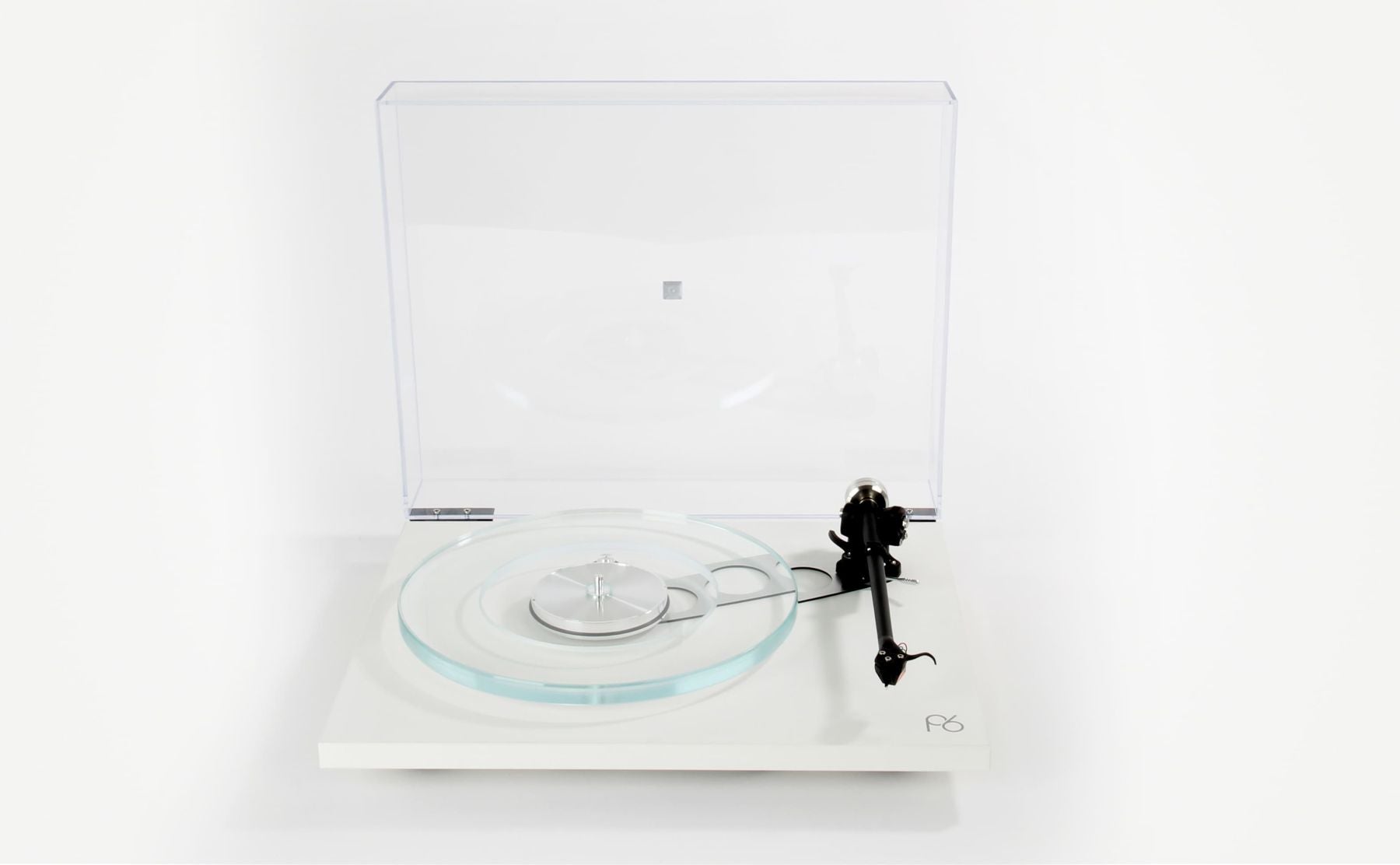

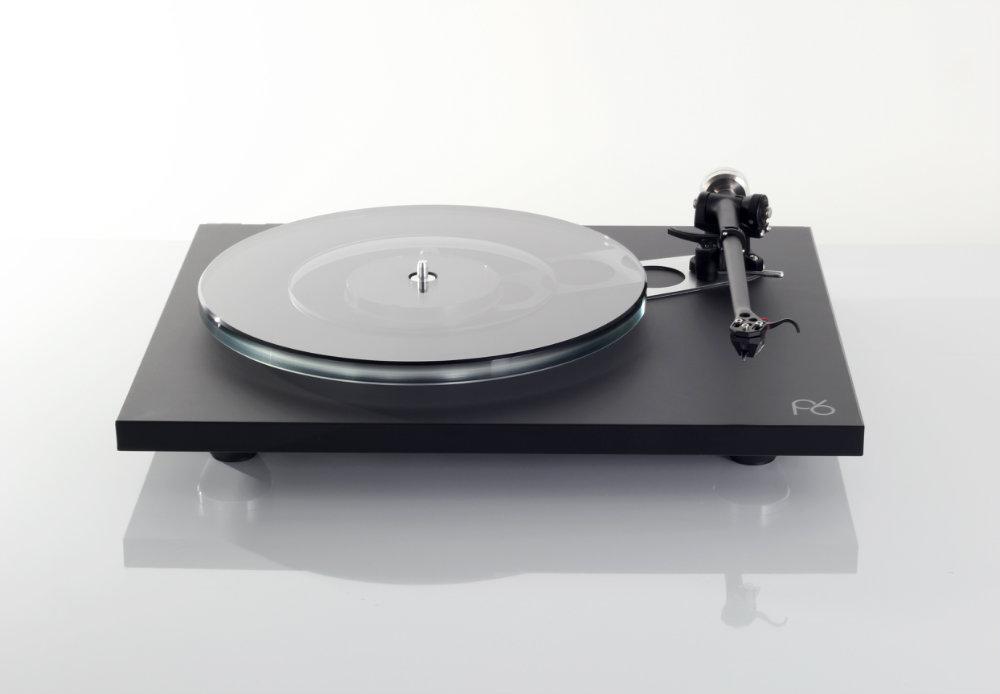

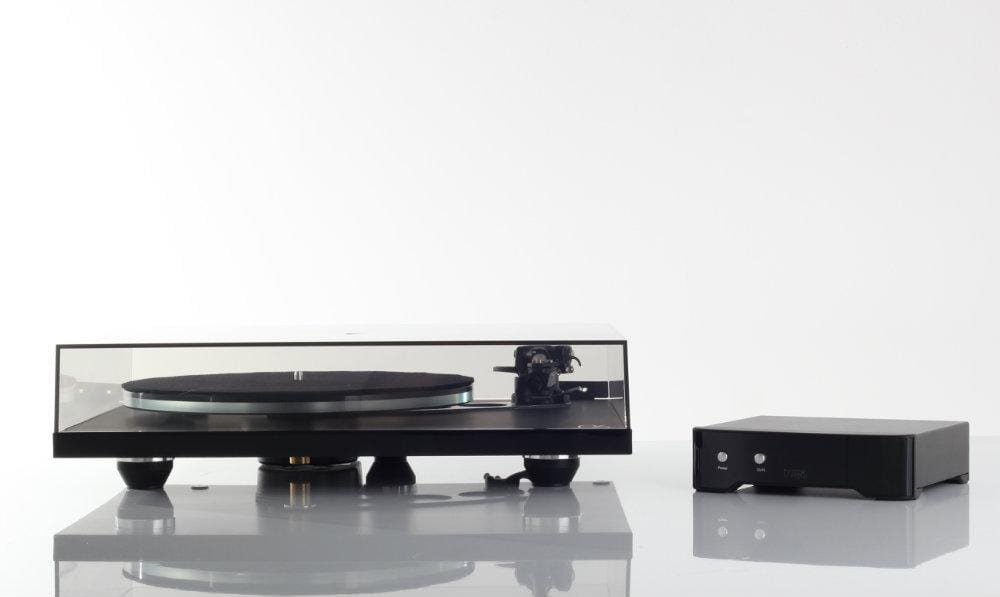

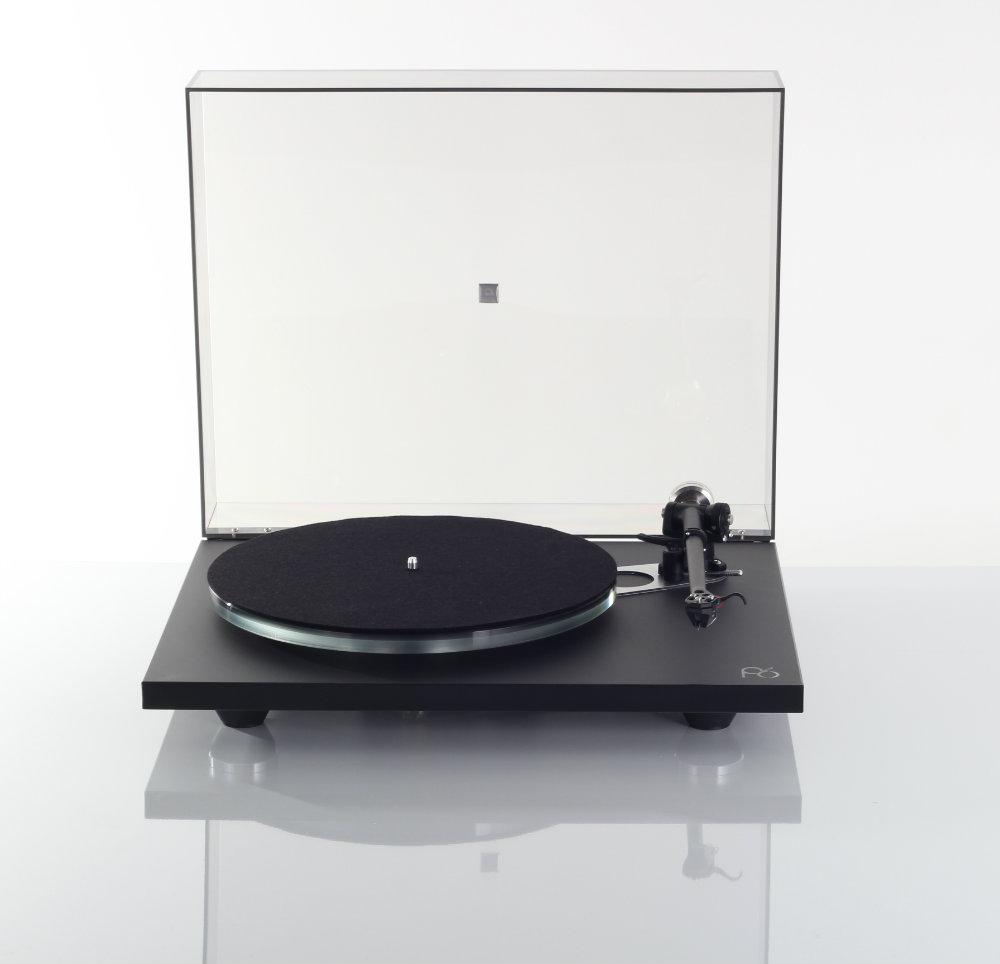

The Planar 6 Turntable
The Planar 6 is built around the huge success of the RP8 and RP10 turntables. It is the first new Rega turntable to be constructed with an ultra lightweight Tancast 8 polyurethane foam core plinth (a material developed for the aerospace industry). This material is sandwiched between a new HPL (high pressure laminate). HPL is exceptionally thin whilst extremely rigid and is presented in a stunning Polaris matt grey finished with high gloss polymer black edge trim.
The Planar 6 now benefits from a single piece, machined aluminum sub-platter, a new 24v motor hand tuned and matched to its own NEO power supply and custom drive pulley fitted with our upgrade drive belt as standard.

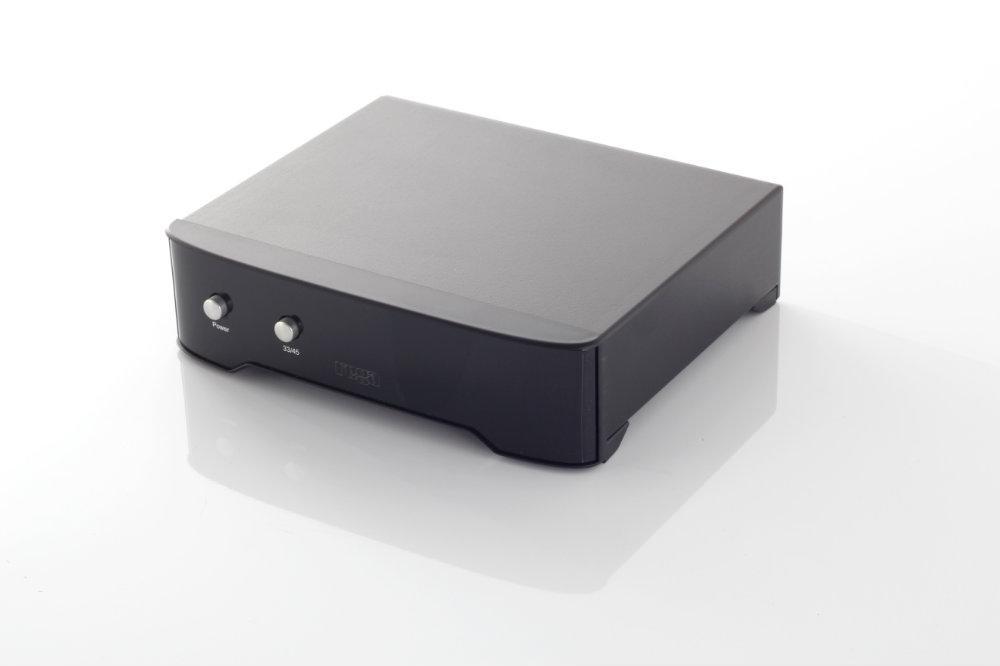

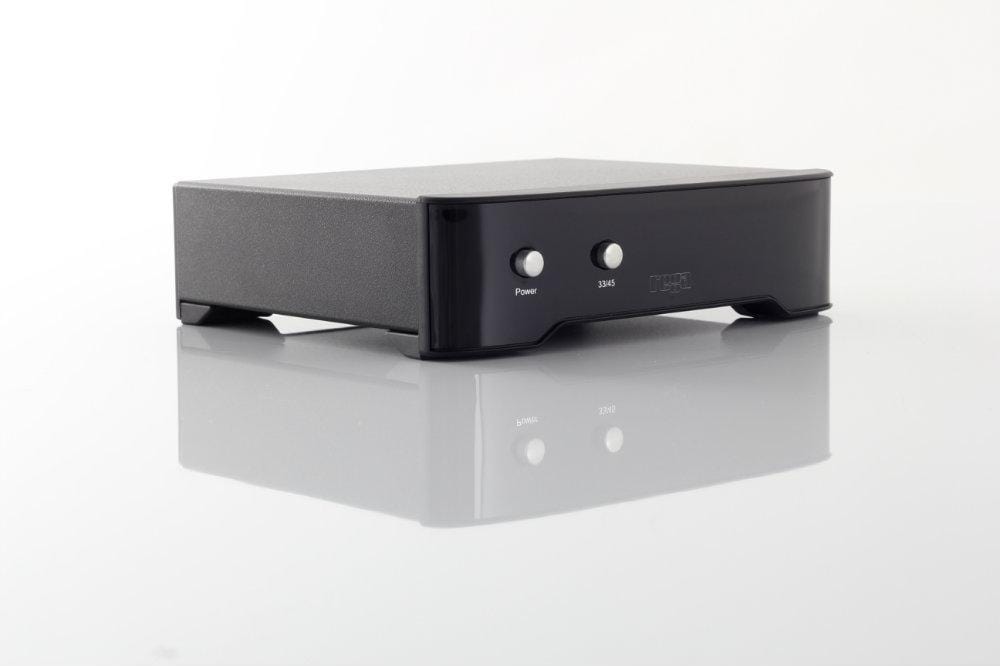

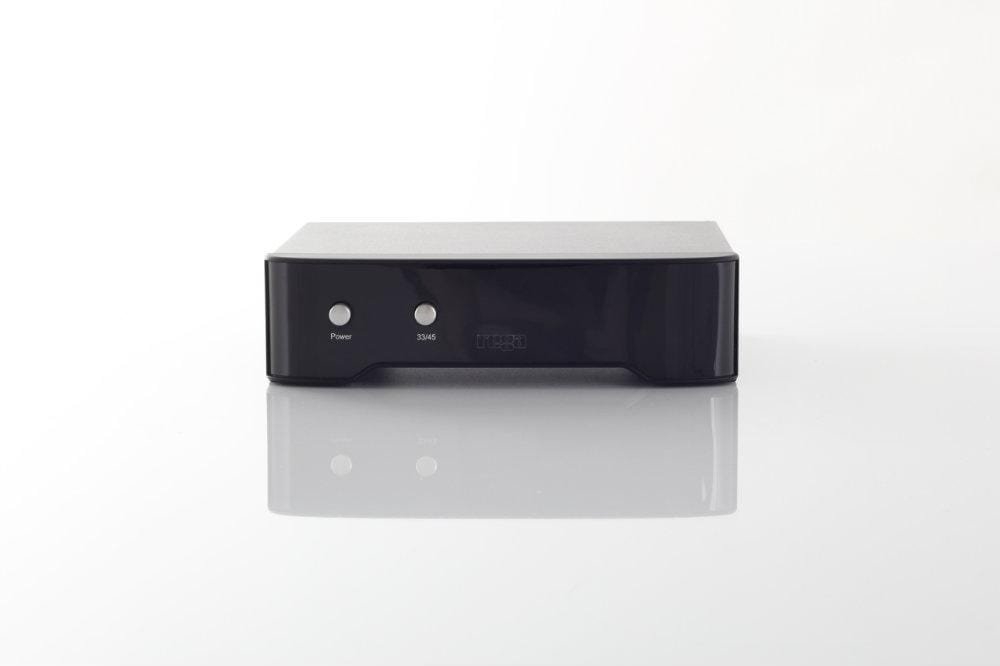

The Neo PSU uses the Planar 10 DSP (digital signal processing) generator built upon a high stability crystal. The DSP generator will divide the accurate signal from the crystal to the exact frequency required to turn the platter at the selected speed. The DSP generator will also produce a near perfect sinusoidal waveform to drive the motor. This, along with an efficient drive amplifier, generates a 24V AC balanced signal of less than 0.15% distortion, which is completely un-affected by any changes in the mains/line voltage and conditions. This then drives the turntables anti-vibration circuit, which is situated beneath the turntable.
- NEO power supply.
- Super lightweight foam core plinth.
- Plinth laminate: New Polaris HPL (high pressure laminate). Non-marking matt finish scratch resistant high rigidity skin.
- Available in one finish ‘Polaris Grey’ matt finish with high gloss black polymer edge trim.
- Upgrade EBLT black drive belt fitted as standard - From 1st Feb 2020

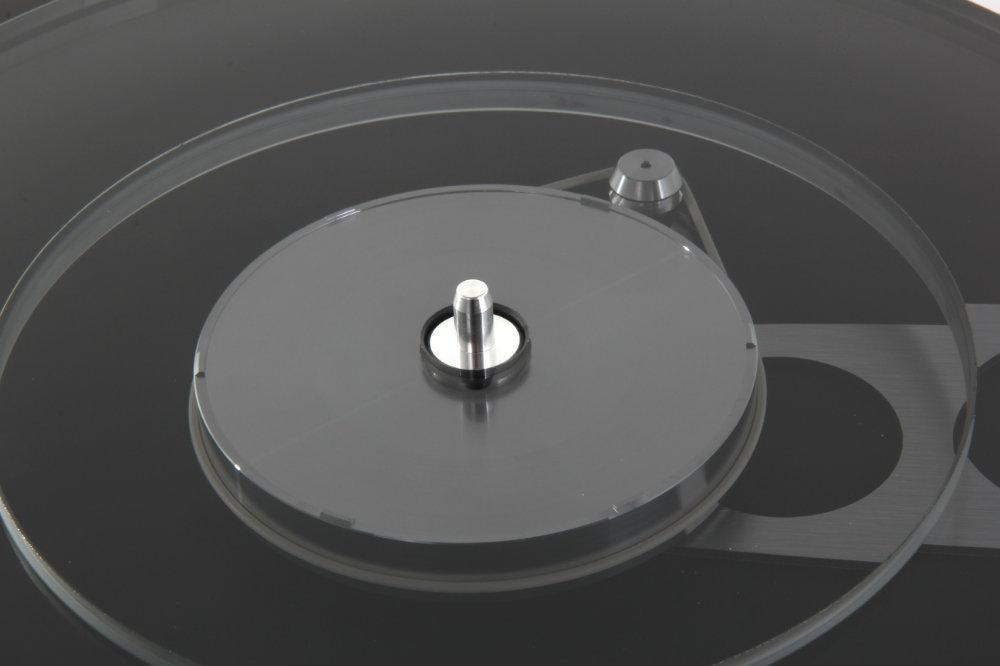

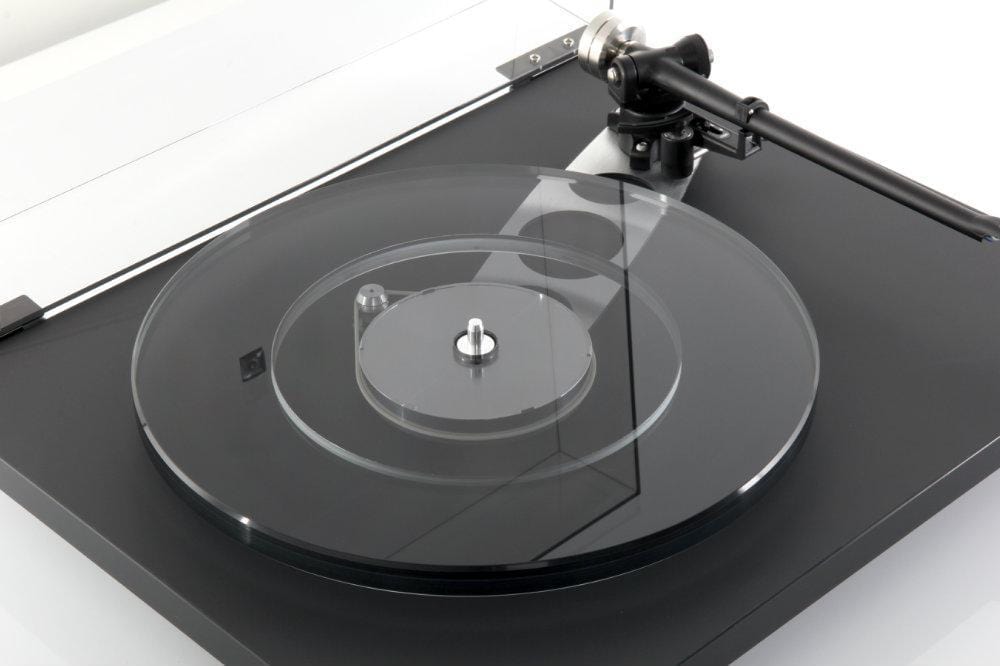

- Custom dual layer smoked / clear float glass platter.
- Single piece aluminium sub platter.
- Custom machined high precision drive pulley.
- Patent pending, ultra-low friction central brass hub.
- Rega’s double brace technology, with integral custom matched aluminium tonearm and hub pillars to ensure maximum rigidity and accuracy.
- RB330 handmade precision tonearm with custom stainless weight.
- New high spec Rega 24v low noise synchronous motor – each motor matched by hand to its own NEO PSU ensuring optimum anti-vibration control.

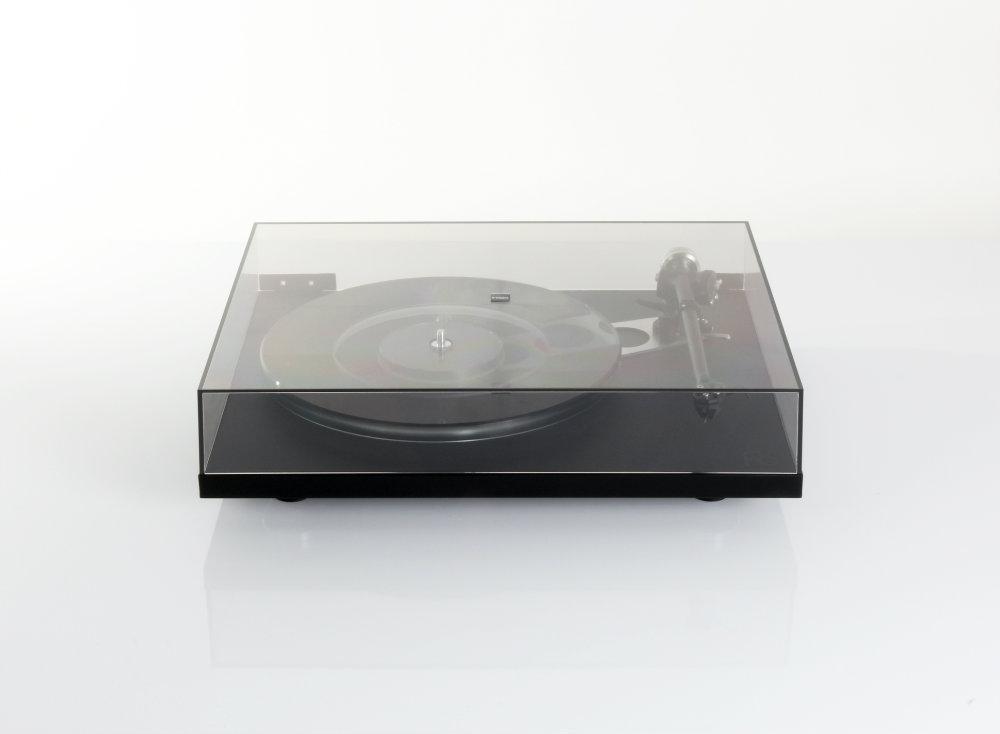

- New smoked dust cover.
- New aluminium foot trims and Planar style feet.

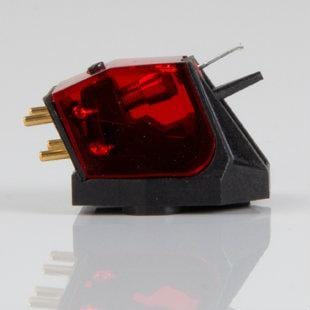

Rega Ania Pro MC Cartridge
The latest member of the Rega MC cartridge range the Ania Pro uses our advanced Vital profile nude diamond stylus. This profile is designed to extract as much detail from the vinyl surface as possible. The Ania Pro delivers tight bass warm midranges and accurate top end frequencies to offer a well balanced and detailed performance.
Using our unique hand-wound micro coil found in the rest of the MC range, the Ania Pro is housed in a unique PPS highly rigid body, ensuring accurate construction and Rega's three point fixing method which offers the optimum connection to the head-shell while automatically setting overhang. The new body is protected by a CAD designed, red rigid cover to protect the internal fine wires, making handling when fitting, safe and risk free.The Ania Pro features a super high-powered, neodymium magnet and a coil meticulously hand wound on to an iron micro cross. This miniature assembly allows us greater freedom to track the vinyl groove guaranteeing even more detail is extracted from the vinyl.
All of these features combine to deliver a balanced and dynamic performance that will engage you with your vinyl like never before.The Ania Pro is the perfect partner for the Planar 3, Planar 6 or Planar 8 turntable and a factory fitted option is available for both Planar 6 and Planar 8.
Tracking Pressure 1.75 - 2.00g
Input load impedance 100 ohms
Output impedance 10 ohms
Nominal output voltage 350μV
Channel Balance : ≥ 20μV
Separation : ≥ -29dB
Key Features :
Iron Micro cross & coil assembly
One of the world's smallest MC generators.
Cutting edge neodymium magnet.
Vital profile nude diamond stylus.
High specification fine wire.
Load settings for adjustable MC stages
Capacitance - 1000pF
Gain setting - High ('On' position for Rega phono stages)
Fono MC dip switches settings (factory set at Rega)
Aria MC dip switch settings for all Rega MC models
