Rega Nd7 Neodymium MM Cartridge

Rega Nd7 Neodymium MM Cartridge

Regular price $995.00 AUD
Regular price Sale price $995.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 755 NICHOLSON ST CARLTON NORTH
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500

Meet the all New Nd7

The Stunning Neodymium Moving Magnet Cartridge, from Rega

The all new Nd7 moving magnet cartridge was developed over 10 years and promises to deliver ‘next level’ performance from moving magnet technology.

The Nd range (patent pending) is a world first to use ultra-high powered Neodymium magnets in a moving magnet design which allows us to create this totally unique design.

Next level Moving Magnet

Each Nd7 is meticulously hand-made by our highly skilled technicians. The Nd7 uses our most advanced “fine line” nude diamond profile for the ultimate in detail retrieval. (The same profile is used on our high end MC models the Apheta 3 and Aphelion 2). This profile has an exceptionally small radii Monocrystalline manmade diamond with the minor radius being just 3µm (microns) as viewed from the top and 30µm in the vertical when viewed from the front.

This profile allows immediate adjustment to very small changes in the vinyl due to the small contact area of the diamond which results in exceptional levels of detail being retrieved. The design uses brand new generator geometry with perfect symmetry to achieve highly accurate channel balance.

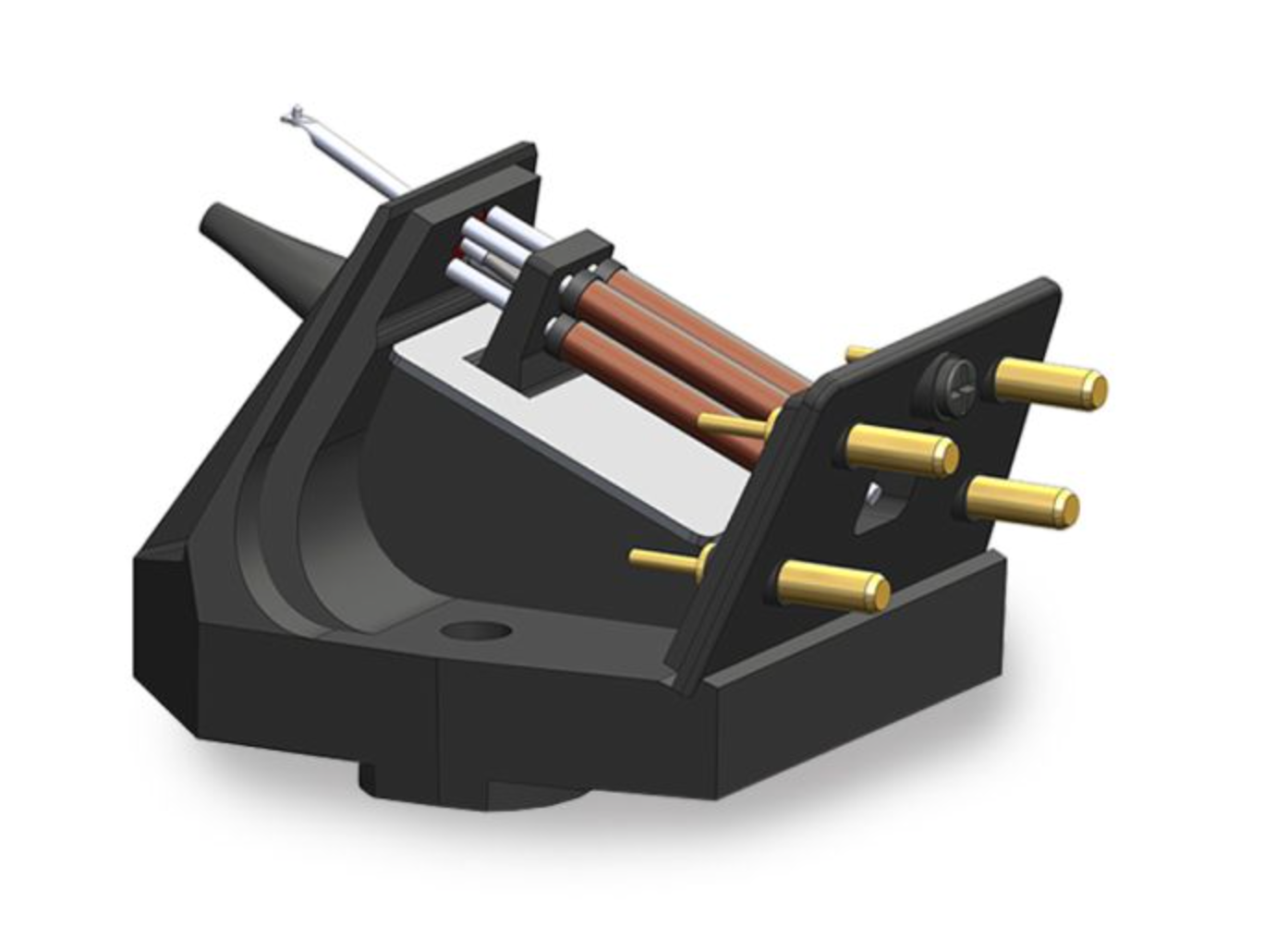

The Nd7 also has an optimised pole gap for superior linearity and cross talk characteristics, this provides a far wider soundstage than the previous models. This new cartridge is created with miniaturised parallel coils which are wound in house utilising 38-micron wire with just 1275 turns.

 This produces a low inductance, low impedance generator giving vastly improved high frequency response. In keeping with our commitment to sustainability, the Nd range is supplied in 100% recyclable packaging.

ND MAGNET TECHNOLOGY

Often used in Moving Coil designs the Nd7 is the first moving magnet to utilise a Neodymium (Nd) N55 magnet. This is the world’s most powerful commercially available magnet and is a crucial component that makes this unique design possible by delivering extra power than standard bar magnet designs.

GLASS FILLED PPS BODY

The complete assembly is housed in Rega's zero tolerance injection moulded glass filled polyphenylene sulphide body (PPS) which is a lightweight and highly rigid material.

A low mass body reduces stress on the tonearm bearings and aids free movement which is critical in accurate vinyl replay. This new body design was inspired by our hugely successful MC range.

CANTILEVER & STYLUS PROFILE

The Nd7 aluminium cantilever is fitted with a precision perfect elliptical nude diamond stylus.  This profile provides exceptional tracking accuracy and extracts greater levels of detail from the vinyl surface.

FACTORY FITTED OPTIONS

The Nd7 cartridge will be offered as a factory fitted option on the multi award winning Planar 6  and Planar 8 turntable models.

Designed specifically with these turntables in mind, the Nd7 promises to extract the very best from your vinyl collection. The factory fitted packages are offered at a discounted rate compared to when purchased separately, ask your Rega dealer for details.

REGA REBUILD SCHEME

The unique pivot pad design of Rega cartridges improves performance by eliminating the mechanical joint between the stylus housing and the main body. This vastly improves tracking ability and stability of the stylus. If you should damage or wear out your Rega cartridge, simply return it to you Rega dealer and they will supply you with a rebuild cartridge fitted with a new cantilever, stylus and pivot pad.

Each rebuild is fully tested as a new cartridge would be. The rebuild is sold at a reduced price once you trade in your worn or damaged cartridge that is equivalent to a replacement stylus offered by other manufacturers.

Product Features

  • Fine line nude diamond profile
  • Aluminium cantilever
  • Neodymium magnet
  • Unique generator
  • Rega 3 point mounting system
  • Highly rigid lightweight PPS body
  • Handmade stereo cartridge
  • 100% recyclable packaging
  • Available factory fitted on the Planar 6 and Planar 8 turntables
  • Lifetime warranty against manufacture defects

Technical Specifications

Tracking pressure
​1.75 g

Stylus

Fine Line Nude Diamond Profile

Fixing

3 point fixing

Nominal Output Voltage
5-6mV

Coils
Miniaturised parallel coils

Window Colour
Yellow

Warranty
Lifetime warranty against manufacture defects

Available factory fitted on
Planar 6 Turntable
Planar 8 Turntable



*This information has been obtained from Manufacturers website. We advice that Features & Specifications are subject change from Manufacturer without notice.
