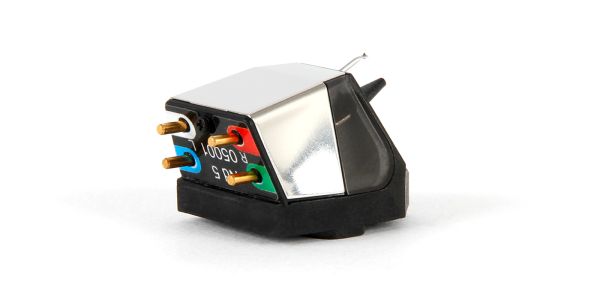

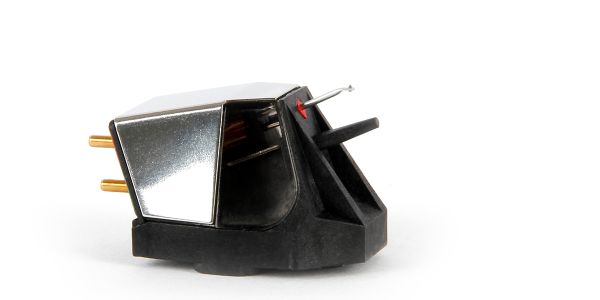

Rega Nd 5 Neodymium MM Cartridge

Rega Nd 5 Neodymium MM Cartridge

Regular price $650.00 AUD
Regular price Sale price $650.00 AUD
Sale Call For Availability
Taxes included. Shipping calculated at checkout.
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 755 NICHOLSON ST CARLTON NORTH
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500

Meet the New Nd 5

The Stunning Neodymium Moving Magnet Cartridge, from Rega

Each Nd5 is meticulously hand-made by our highly skilled technicians. The design uses brand new generator geometry with perfect symmetry to achieve accurate channel balance.

The Nd5 also has an optimised pole gap for superior linearity and cross talk characteristics. This provides a far wider soundstage than the previous models. This new cartridge is created with miniaturised parallel coils which are wound in house utilising 38-micron wire with just 1275 turns. This produces a low inductance, low impedance generator giving vastly improved high frequency response.

In keeping with Rega's commitment to sustainability, the Nd range is supplied in 100% recyclable packaging.

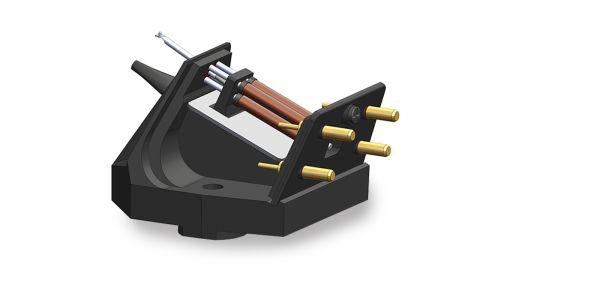

Rega Nd 5 MM Cartridge, image of inside of unit

ND MAGNET TECHNOLOGY

Often used in Moving Coil designs (including our own), we believe the Nd5 is the first moving magnet cartridge to utilise a Neodymium (Nd) N55 magnet. This is the world’s most powerful commercially available magnet and is a crucial component that makes this unique design possible by delivering more power than standard bar magnet design.

GLASS FILLED PPS BODY

The complete assembly is housed in our zero tolerance injection moulded glass filled polyphenylene sulphide body (PPS) which is a lightweight and highly rigid material.

A low mass body reduces stress on the tonearm bearings and aids free movement which is critical in accurate vinyl replay. This new body design was inspired by our hugely successful MC range.

CANTILEVER & STYLUS PROFILE

The Nd5 aluminium cantilever is fitted with a precision perfect elliptical nude diamond stylus. This profile provides exceptional tracking accuracy and extracts greater levels of detail from the vinyl surface.

FACTORY FITTED OPTIONS

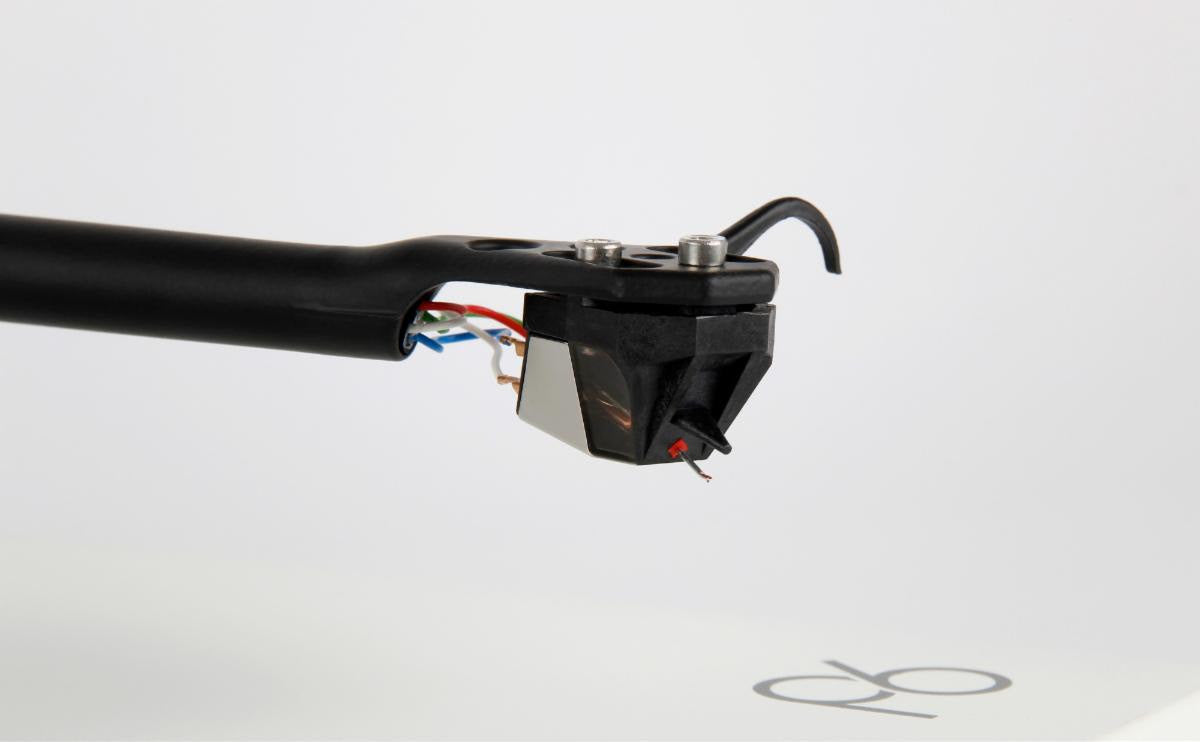

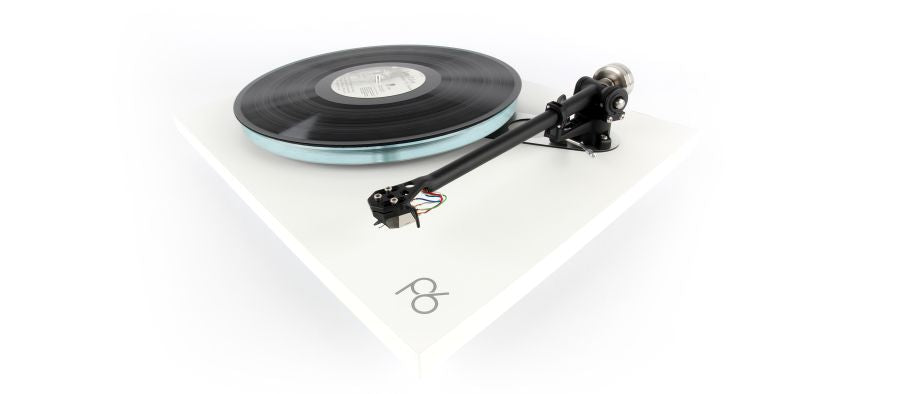

The Nd5 cartridge will be offered as a factory fitted option on the multi-award winning Planar 3 and Planar 6 turntable models. Designed specifically with these turntables in mind, the Nd5 promises to extract the very best from your vinyl collection.

REGA  REBUILD SCHEME

The unique pivot pad design of Rega cartridges improves performance by eliminating the mechanical joint between the stylus housing and the main body.

This vastly improves tracking ability and stability of the stylus. If you should damage or wear out your Rega cartridge, simply return it to you Rega dealer and they will supply you with a rebuild cartridge fitted with a new cantilever, stylus and pivot pad. Each rebuild is fully tested as a new cartridge would be. Product Features

A totally unique design, Rega believes the Nd range to be a world first in using ultra-high powered Neodymium magnets.

Product Features

  • Perfect elliptical nude diamond profile stylus
  • Aluminium cantilever
  • Neodymium magnet
  • Unique generator
  • Rega 3 point mounting system
  • Highly rigid lightweight PPS body
  • Handmade stereo cartridge
  • 100% recyclable packaging
  • Lifetime warranty against manufacture defects

Technical Specifications

Tracking pressure
​1.75 g

Stylus

Perfect Elliptical Nude Diamond

Fixing

3 point fixing

Nominal Output Voltage
5-6mV

Coils
Miniaturised parallel coils

Window Colour
Clar Smoked

*This information has been obtained from Manufacturers website. We advice that Features & Specifications are subject change from Manufacturer without notice.
