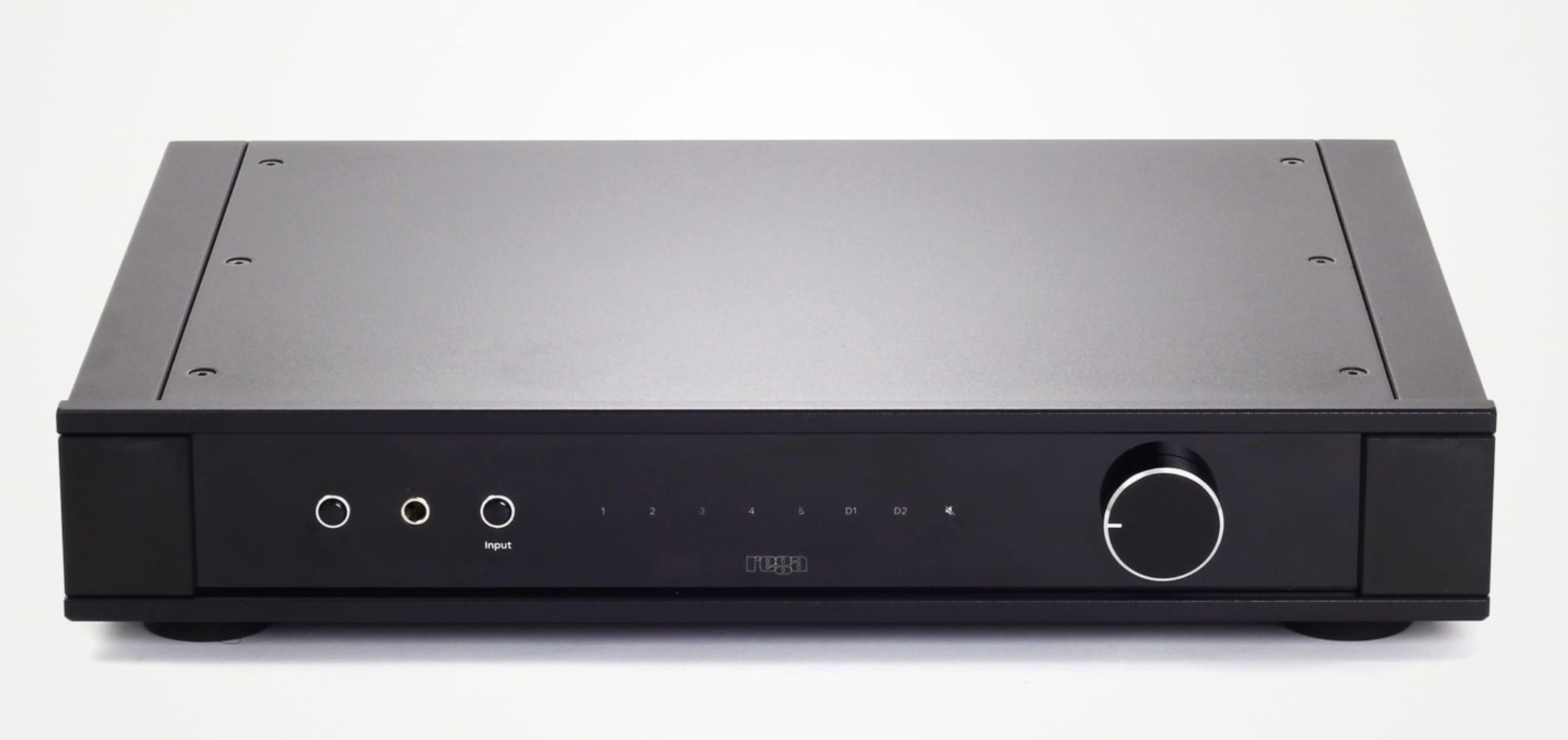

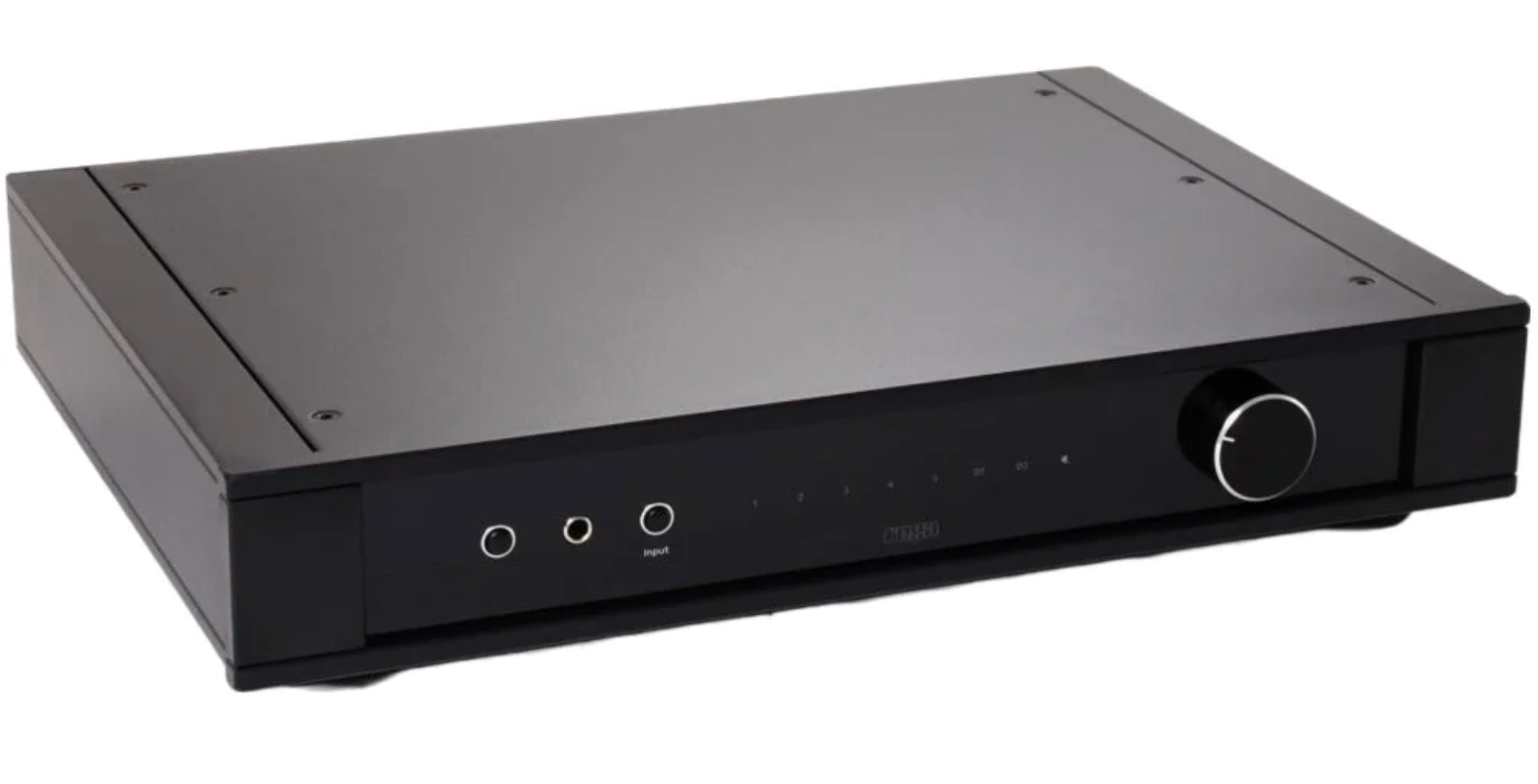

Rega Elex MK4 Integrated Amplifier



Meet the new Elex R MK4

The Elex MK4 is a high-performance stereo integrated amplifier designed to deliver the purest musical performance.

Housed in a brand new case to match the rest of the Rega range, the MK4 builds on previous Rega designs using their multi-award-winning class A/B power amplifier circuit, which delivers an impressive 72W per channel into 8Ω loads (90W into 6Ω).

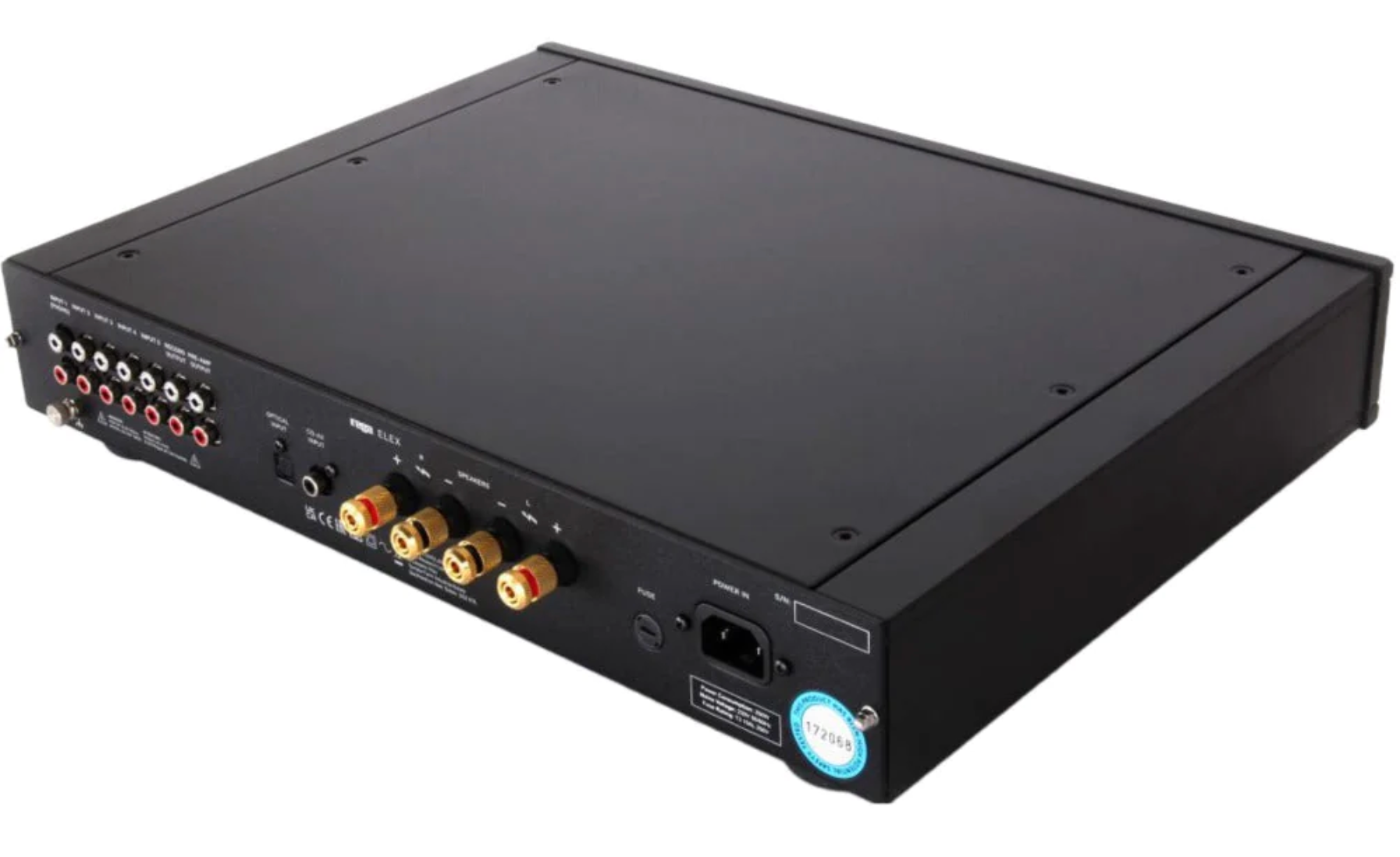

New rear connectivity options are also available with the Elex MK4, including a Rega DAC circuit with two digital inputs and an intelligently integrated high-quality headphone output conveniently located on the front panel.

BRINGING YOUR MUSIC TO LIFE

The Elex MK4 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wider range of connectivity options.

In addition to the line level, digital inputs and a high-quality moving magnet phono stage, you will also find Pre-out and record-out functionality alongside a headphone output. Special attention has been paid to the selection of key audio components. Discrete circuitry, high-quality relays, polypropylene capacitors and Sanken output transistors are used throughout the design.

AMPLIFICATION CIRCUIT

Rega has re-engineered the entire ELEX circuit board to optimise performance. MK4 builds on previous Rega designs by using their multi-award-winning Class A/B power amplifier circuit to deliver a powerful 72W per channel into 8Ω loads.

This power is provided by a quiet multi-stage linear supply, whilst supply rails for digital and analogue sections are galvanically isolated.

DIGITAL CIRCUIT / DAC

The DAC is based closely on the hugely successful Rega DAC-R circuit.

The galvanically/optically isolated digital inputs utilise a Wolfson S/PDIF receiver IC to provide exceptional detail and clarity from any connected source. Output is provided by a Wolfson DAC and Rega-designed discrete line-driver circuit.

Rega's engineering team have worked exceptionally hard to ensure that the analogue side of the circuit is not affected in any way by the introduction of digital inputs.

HEADPHONE OUTPUT

Great care has been taken to incorporate the headphone socket on the Elex MK4. This has been configured such that the speaker switching is performed by the output mute relay to avoid obstructing the signal path, ensuring no loss of performance when it is not in use.

CUSTOM CASE

The new custom case design and construction bring the Elex MK4 inline with the rest of the Rega range and provide improved heat dissipation by using the entire case as an ultra-efficient heat sink.

PROTECTION

The Elex MK4 includes Thermal Cut-Out, short circuit protection and DC protection to prevent the risk of damage from excess heat, excessive currents or short circuits.

PRODUCT FEATURES

• 72 W per channel into 8 °C / 90 W into 6 °C
• High-quality moving magnet phono stage
• High-performance Rega DAC circuit for digital inputs
• 2 x Digital inputs: 1 x optical and 1 x Co-Axial
• Headphone output
• 4 line-level inputs
• new custom design case
• Thermal Cut-Out

TECHNICAL SPECIFICATIONS

Power Amplifier Output (at rated 230/115 V Supply voltage)
72 W into 8 Ω
90 W into 6 Ω

Dimensions (W × H × D)
432 x 82 x 340 (D includes loudspeaker terminals.)

Weight
11 Kg

Supported Sampling Rates
32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz

Supported Bit Depths
16 to 24 bits

Power Consumption
250 W at 1dB below clip into 8Ω

Output Sensitivity (at-rated inputs)
Record Output: 164 mV
Pre-amplifier Output: 625 mV

Information from the manufacturer's website
