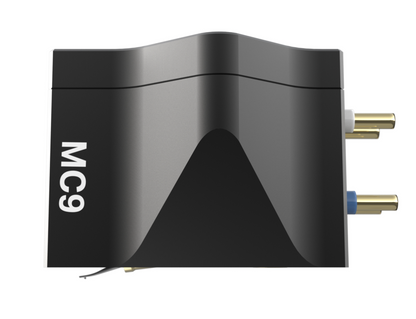

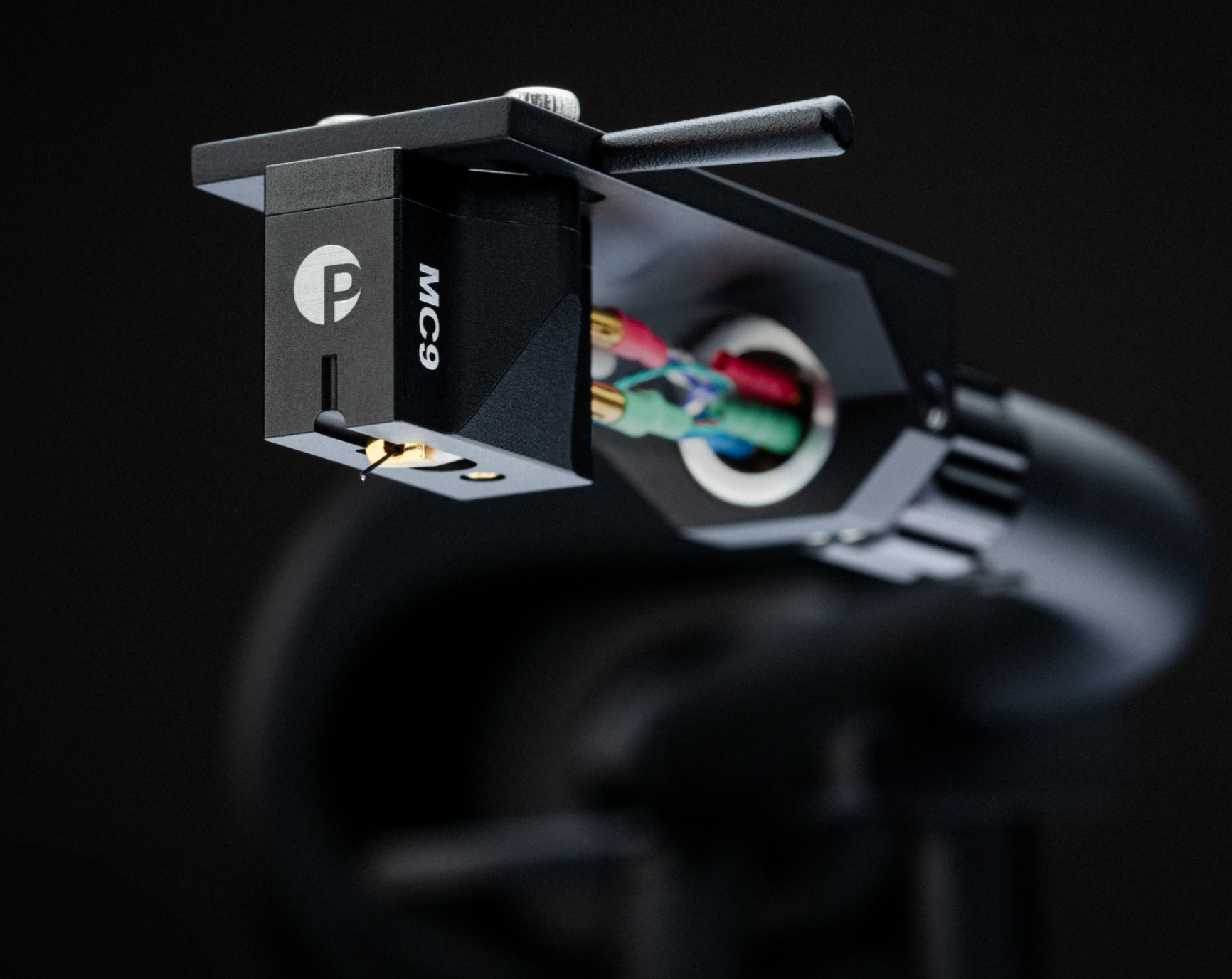

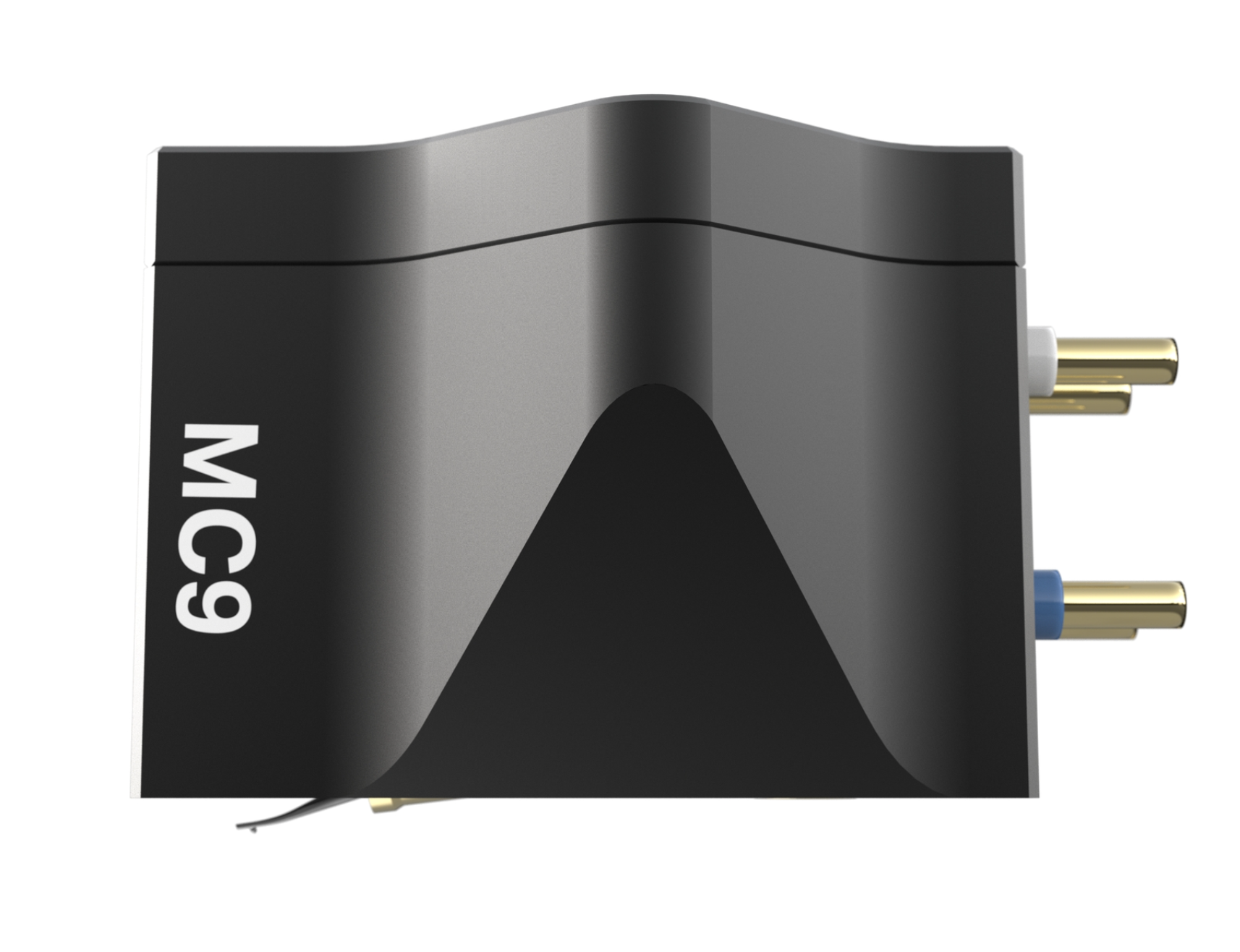

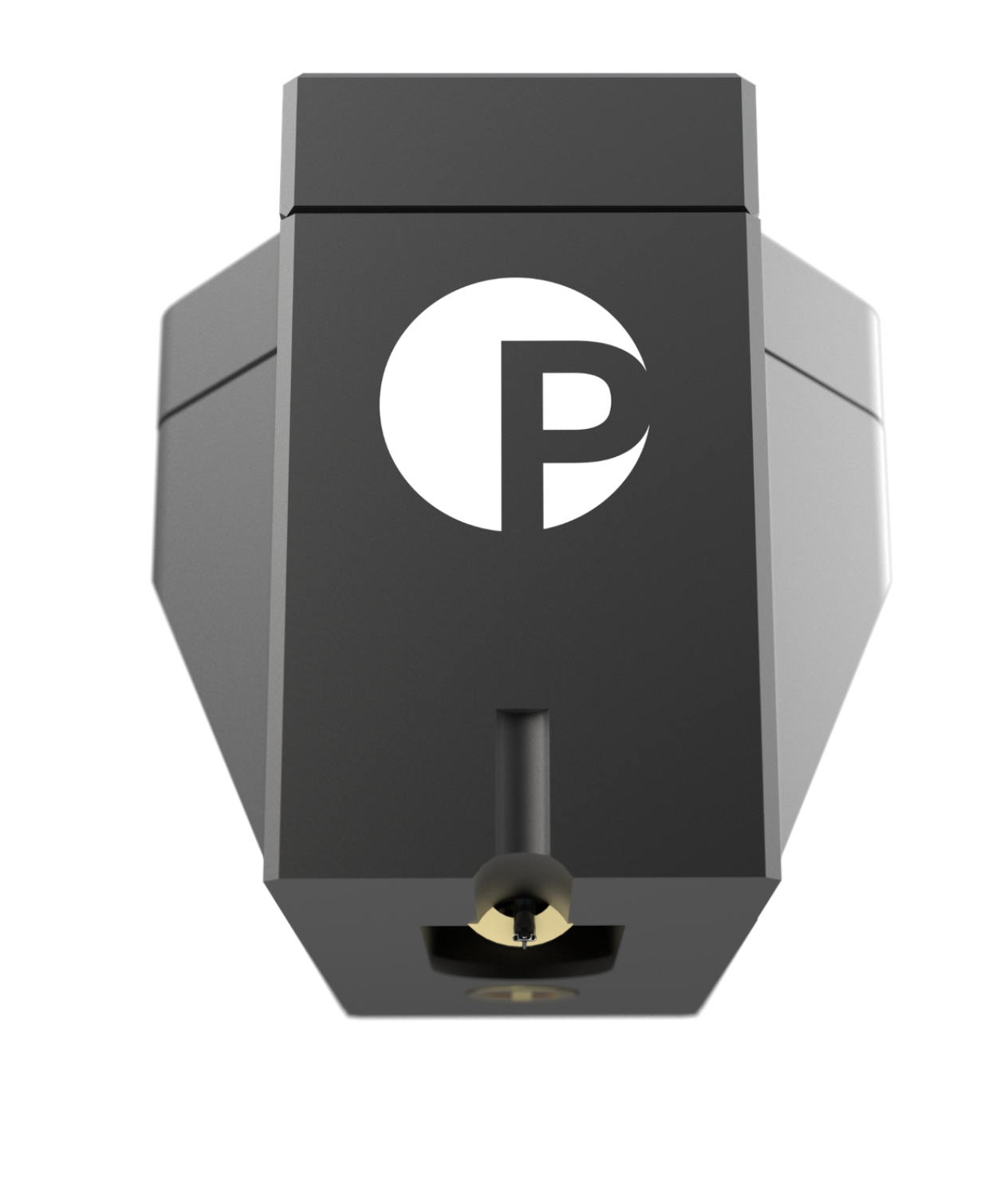

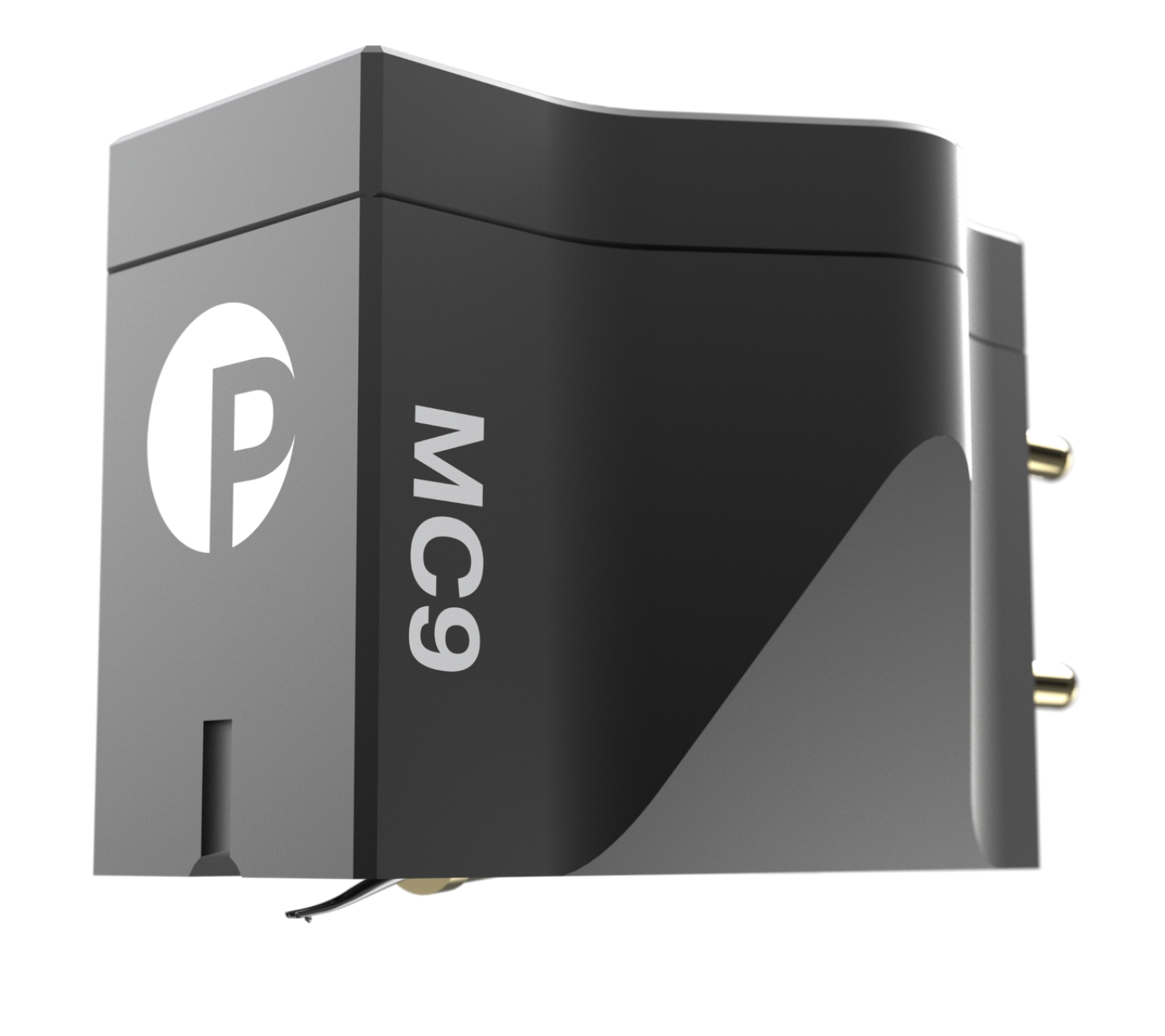

ProJect Pick It MC9 Moving Coil Cartridge

ProJect Pick It MC9 Moving Coil Cartridge

Regular price $2,299.00 AUD
Regular price Sale price $2,299.00 AUD
Sale Call For Availability
Taxes included. Shipping calculated at checkout.
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 755 NICHOLSON ST CARLTON NORTH
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500

Pick It MC9 Moving Coil Cartridge

The Top Notch Pick it MC...Perfection in black

ProJect has extended their ProJect Pick it lineup and are happy to announce the Pick it MC9 as part of the complete new MC cartridge range.

The goal was to create cartridges which technically match ProJect tonearms and reach their vision of sound. Each Pick it MC cartridge pursues a different sound character, but all follow the same focus - to preserve a precise and musical reproduction of vinyl records.

The Pick it MC9 delivers music in highest accuracy. A detailed sound stage, highly dynamic and rhythmic are just a few keywords to describe this cartridge. It is optimised for highly dynamic music like Jazz and Classic

Technical details

The Pick it MC9 uses a ProJect specific "Special-Elliptical" to capture all details of the groove. The cantilever is cryogenically treated, which realigns the crystal structure and allows a smoother signal transmission. The cross coil is made of Telar 57 pure iron with 6N linear crystal copper winding. It offers an output voltage of 0,35 mV and works best with a tracking force of 1.8 grams/mN.

Unique design

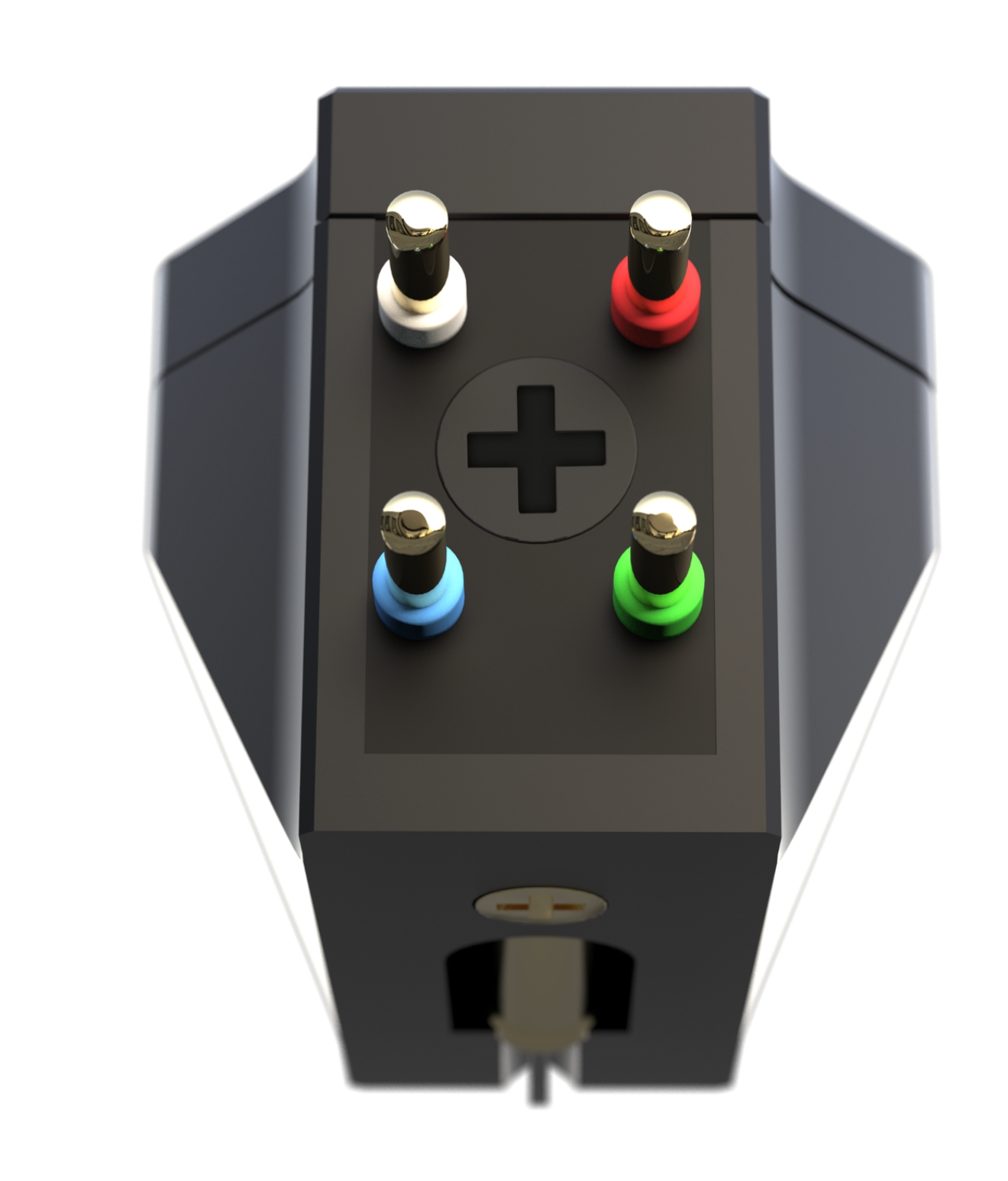

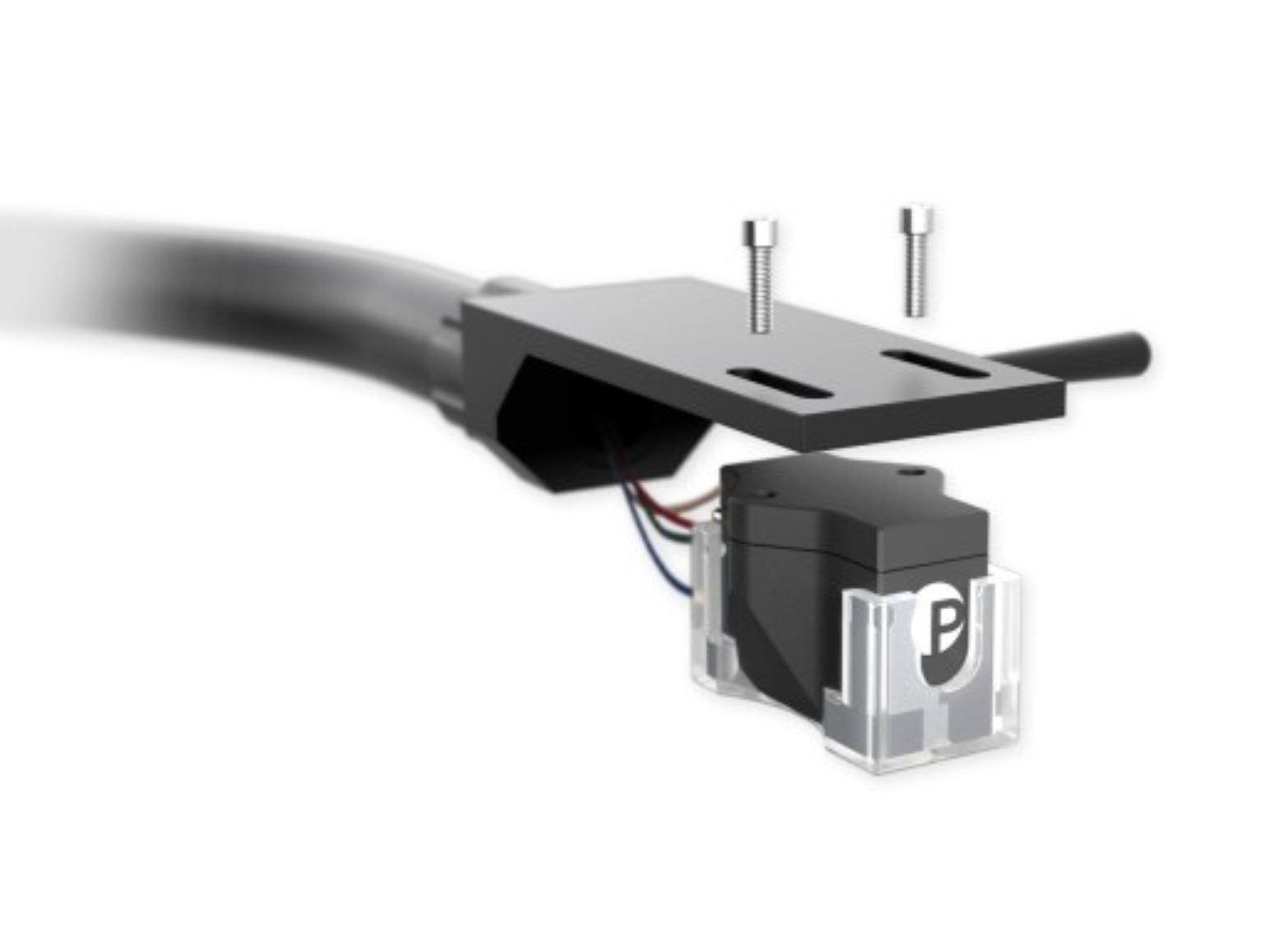

The body of the Pick it MC9 is made out of aluminium which is anodised in a beautiful black finish which ensures a superior built quality and longevity. The 1/2 inch mounting standard allows easy top-mounting with the threaded mounting holes. The included transparent stylus protector is easily slid onto the cartridge from the bottom to protect the needle when needed.

ProJect engineers were able to source high quality Japanese parts to design this outstanding cartridge. The assembly and quality control is done in Europe to ensure the highest possible sound quality.

You find all needed tools like screws and hex key in the box to mount the MC9. We recommend one of our "Measure it" tracking force gauge and an "Align it" to properly adjust the cartridge to reach the highest possible performance it is built for.

Product Specifications

Cartridge Principle MC (Moving Coil)
Output Voltage at 1 kHz 0.35 mV (3.54 cm/sec)
Channel Separation at 1 kHz 35 dB
Dynamic Compliance 12 µm/mN
Tracking Ability at 315 Hz 70 μm
Frequency Response 20 Hz - 20 kHz +/- 1 dB
Stylus Type Special Elliptical
Stylus Tip Radius 5 x 150 μm
Tracking Force, Range 1.6 - 1.9 g (mN)
Tracking Force, Recommended 1.8 g (mN)
Tracking Angle 20°
Recommended Load Resistance 100-470 Ω
Break-In Period 30 Hours
Cartridge Weight 9.6 g

Dimensions, Without Connection Pins & Stylus (W x H x D)

17 x 12.5 x 21 mm


*Reprint from Manufacturers website
