ProJect DAC Box S2 Plus
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH FULL LOCAL WARRANTY"
DAC Box S2 Plus
- High End DAC with 32bit and DSD256 support
- Miniature high quality digital to analogue converter!
DAC Box S2 + comes fully equipped for the highest demands of the modern audiophile. It supports playback for PCM files up to 32bit / 768kHz and DSD decoding up to quad DSD (DSD256). DAC Box S2 + also comes with five digital filters for sound shaping to the listeners preferences.

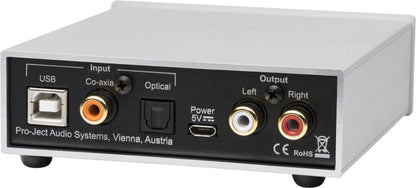

Three digital inputs ensure to connect to any source available, be it a personal computer via the asynchronous XMOS USB B input or a TV set via the optical input. The coaxial S/PDIF input takes all data from a digital transport such as the CD Box DS2 T. All inputs offer support for high resolution datas up to 24bit /192kHz. The USB input offers full high resolution support for all files up to PCM 32/768 and DSD256.
Unwanted noise coming in through USB is double filtered to suppress them to a level where it can’t affect audio. The new aluminium/metal casing ensures highest aesthetics and protects against vibration and interference!
DAC Box S2 + is available in black.
Technical Specifications
| Digital inputs | 1x USB (B), 1x Co-axial (RCA), 1x Optical (TOSLink) |
| D/A-converter | 1x ESS9038K2M 32-bit Playback formats |

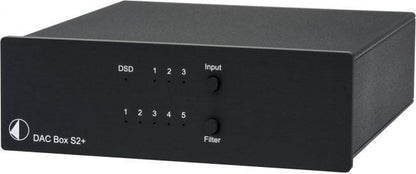

| Filter settings | 5 different selectable on front |
| USB | up to DSD256, PCM up to 32b/768kHz |
| Coaxial | PCM up to 24 b /192 kHz |
| Optical | PCM up to 24 b / 192 kHz |
| Frequency response | 20 Hz - 20 kHz |
| THD | 0,0007% bei 0dB, 2V RMS, 1kHz |
| Dynamic range | 120 dB |
| Output | 1 pair of RCA/Cinch-sockets |
| Outboard Power supply | 5V/1A DC (included) |
| Dimensions W x H x D | 103 x 37 x 122 mm 2 (including knob and connectors) |
| Weight | 355g without power supply |
