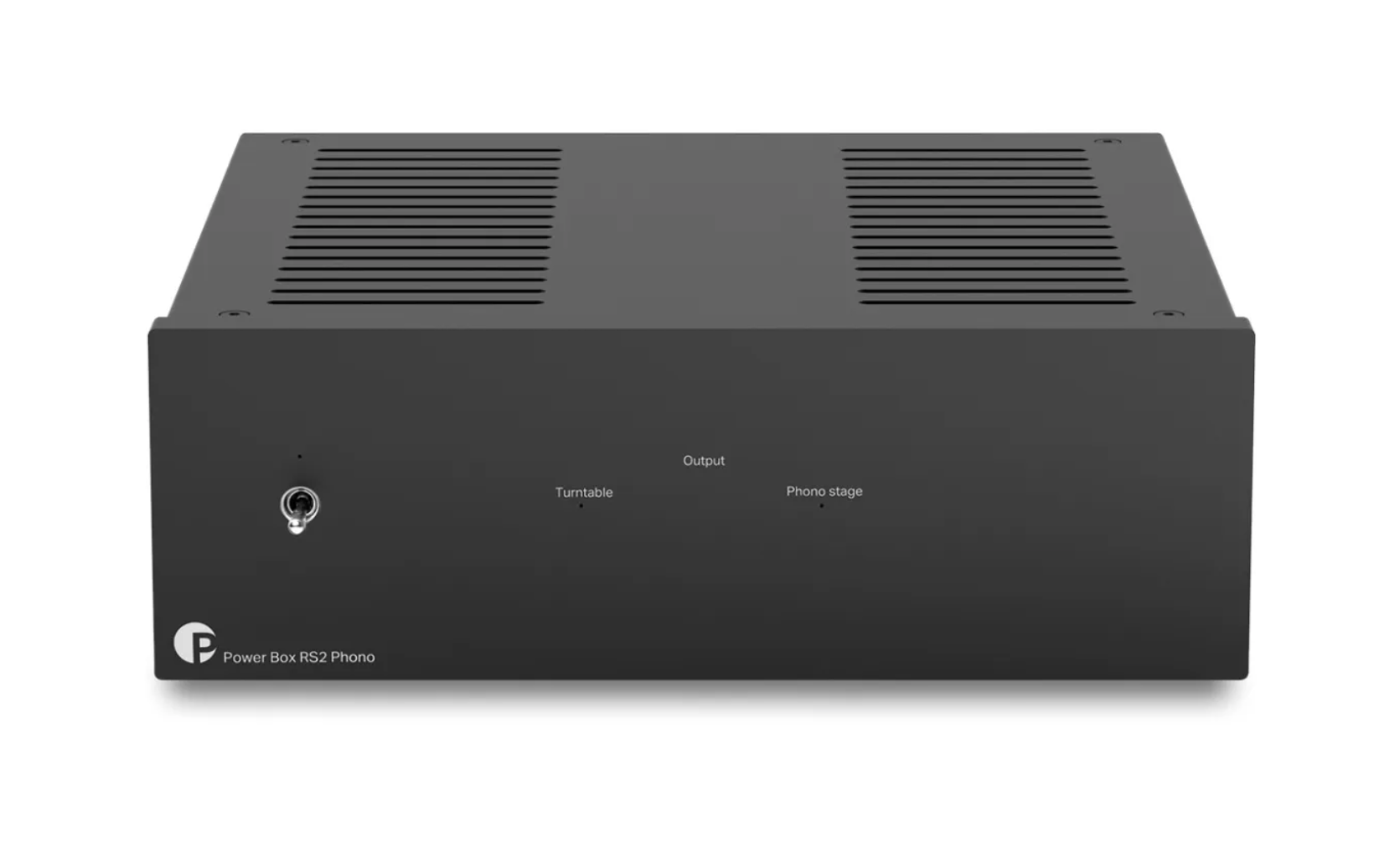

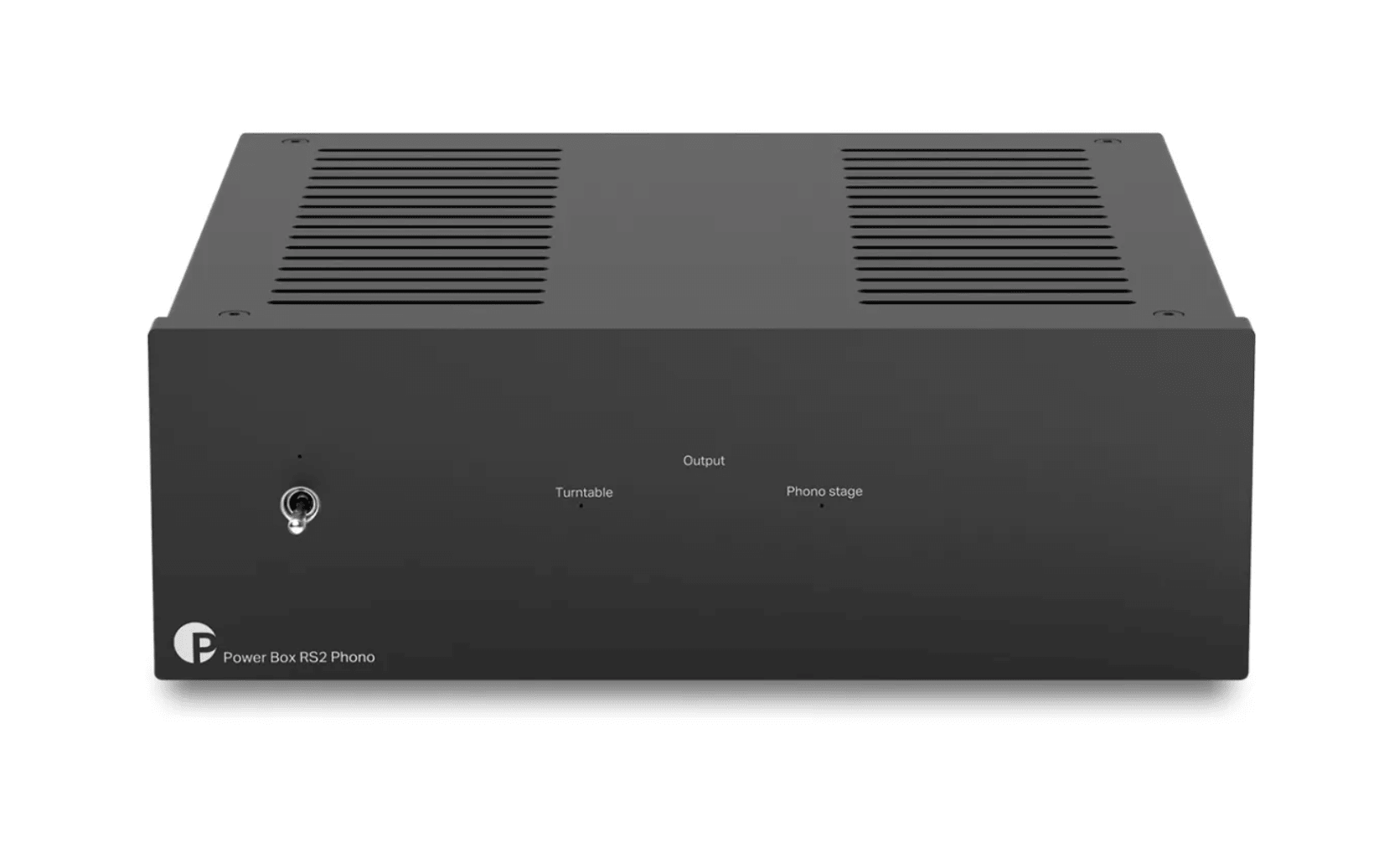

ProJect Power Box RS2 Phono Power Supply in Black, front of unit

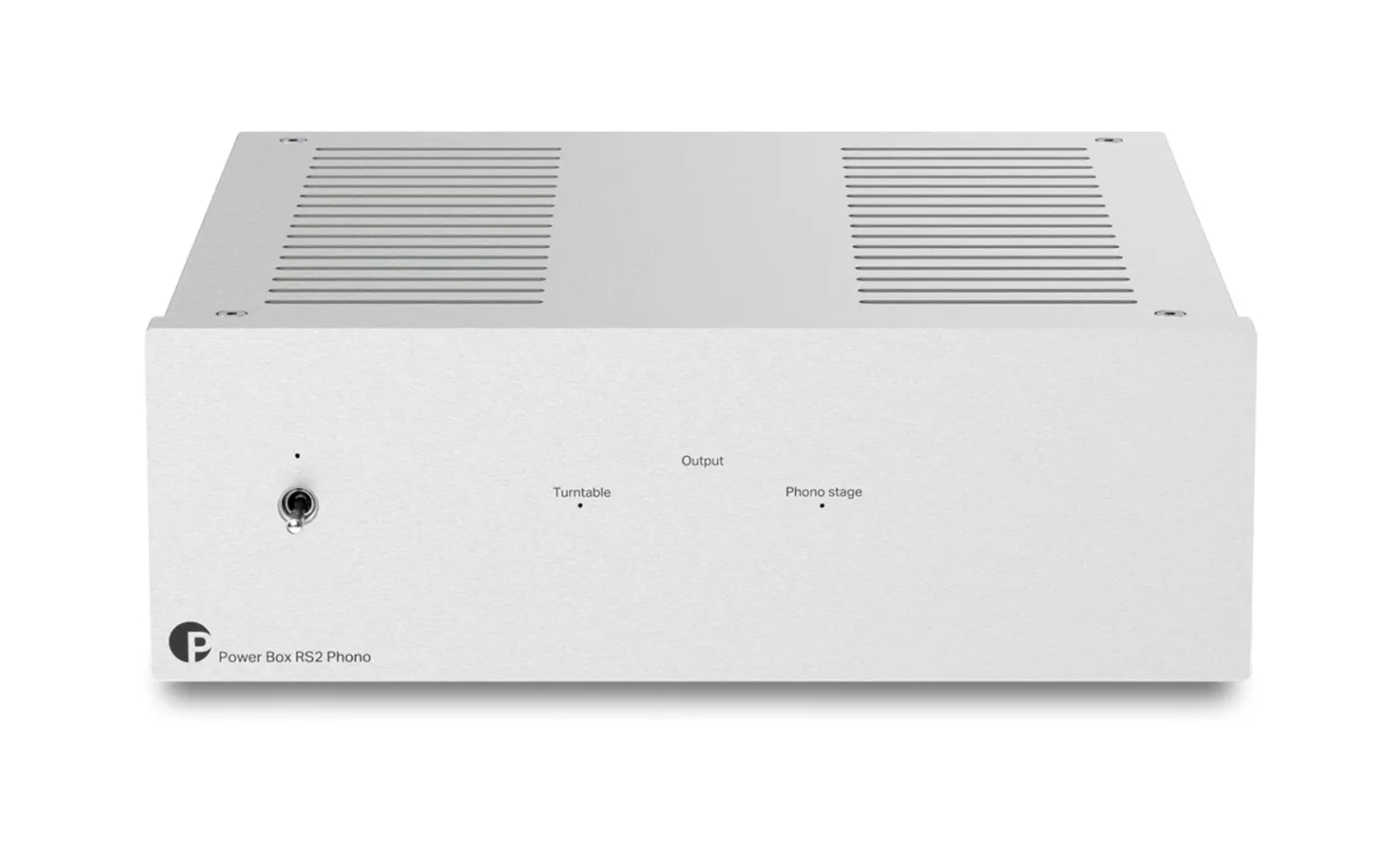

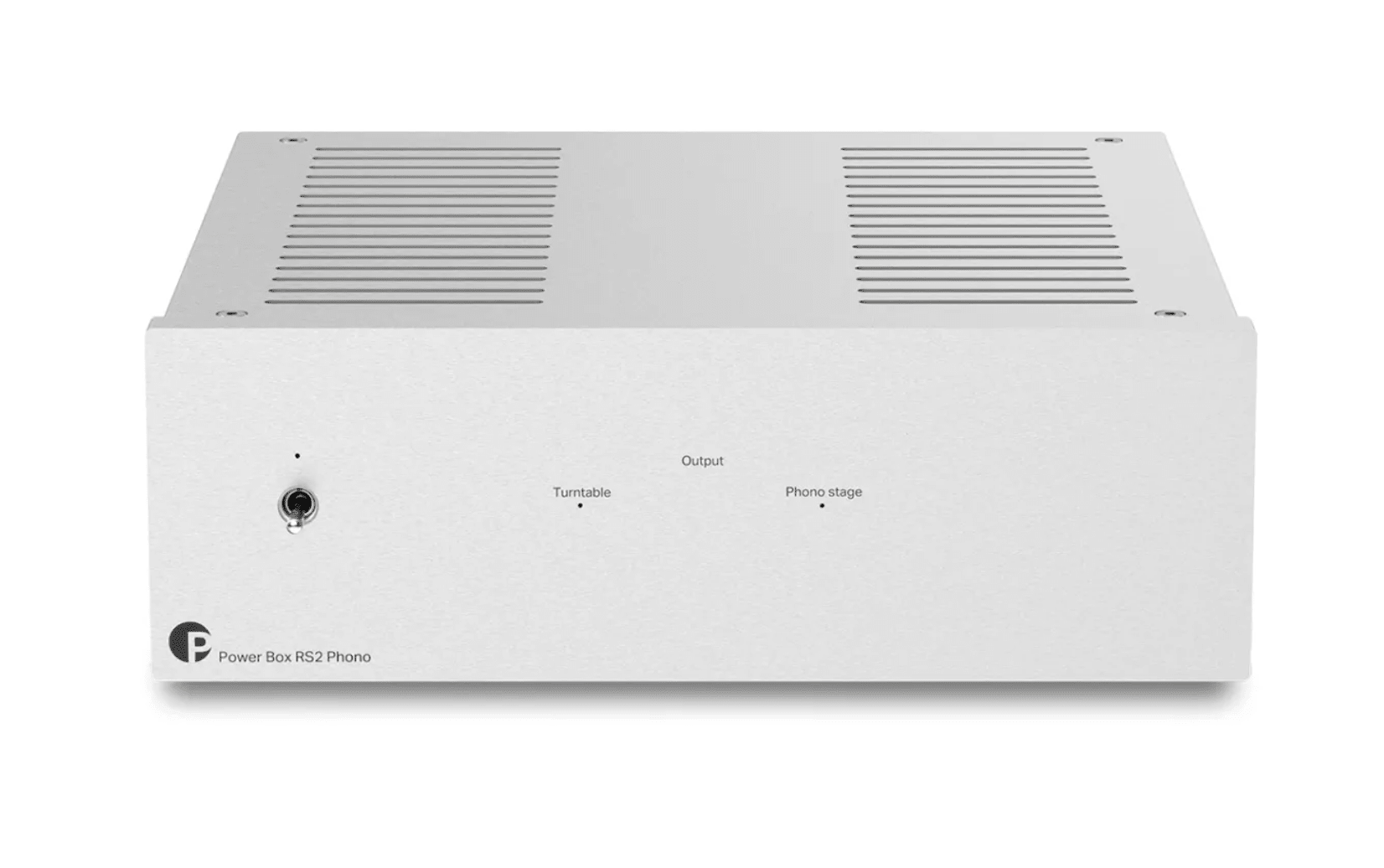

ProJect Power Box RS2 Phono Power Supply in Silver, front of unit
ProJect Power Box RS2 Phono Power Supply in Silver, back of unit
ProJect Power Box RS2 Phono Power Supply in Silver. Setup image
chevron_left
chevron_right

ProJect Power Box RS2 Phono Power Supply

ProJect Audio Systems
ProJect Audio Systems
$1,345.00
$1,499.00 $1,345.00
Color
Free Pick Up at Vinyl Revival Carlton North — (753-755 Nicholson Street, Carlton North)

Usually ready in 2-4 days —

Free delivery (Conditions may apply) — on orders over $500!
Secure checkout  with American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

ProJect Power Box RS2 Phono Power Supply

$1,345.00
$1,499.00 $1,345.00

Introducing the Power Box RS Phono Power Supply

Linear power supply for your turntable and phono preamp

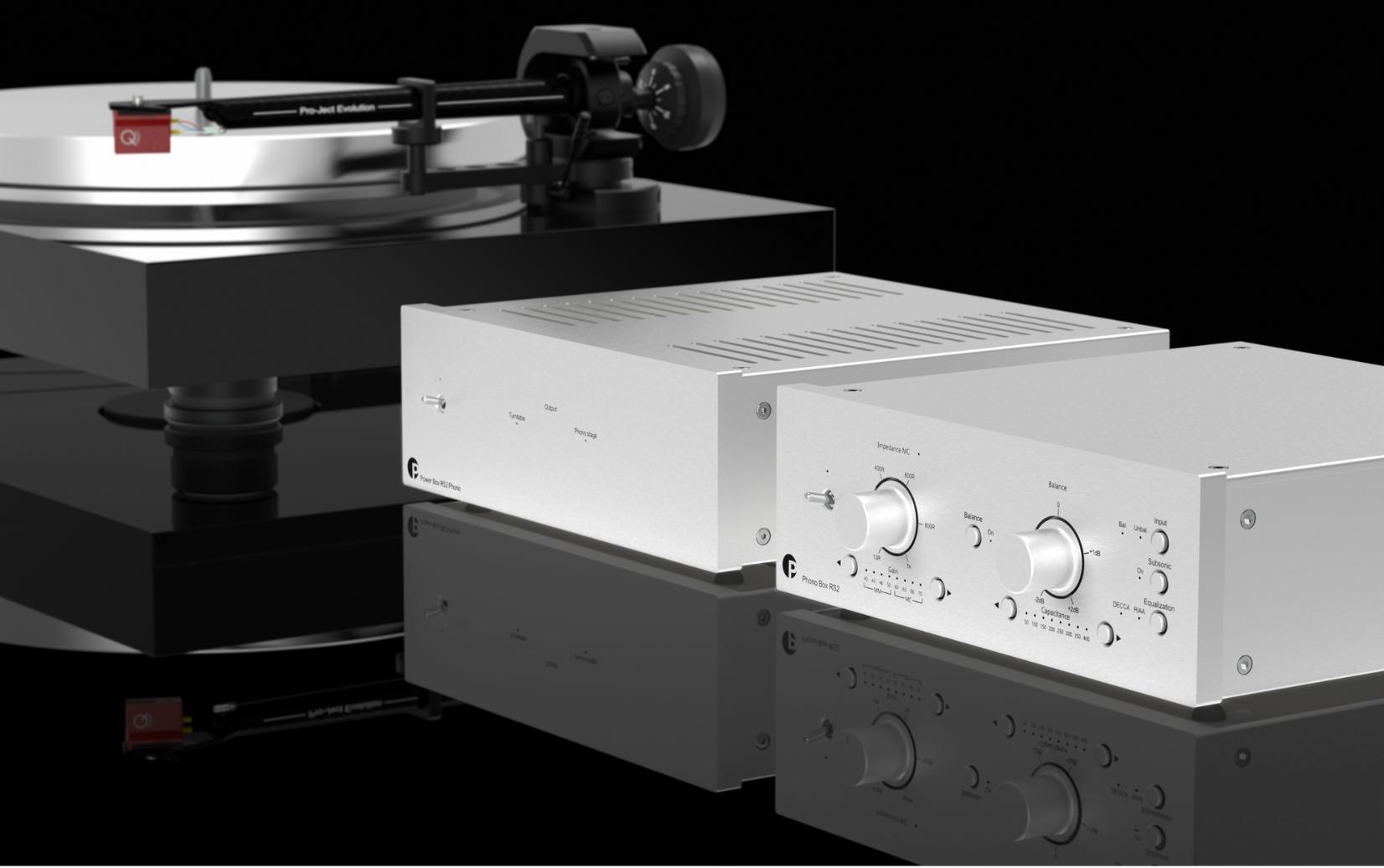

ProJect Power Box RS2 Phono Power Supply in Silver. Setup image

With the new Power Box RS2 Phono you can connect both your turntable and phono preamp, and benefit from the perfect power contribution. The new Power Box is compatible with all of our Phono Boxes and every 15V DC ProJect turntable.

A linear power supply consists of a massive toroidal transformer, which avoids interference from the mains affecting your audio components. The built-in transformer has a much higher power reserve compared to the standard power adapter. It has very low output impedance and in combination with large filtration capability it can easily manage all power needs.

Sound staging, darkness of silent backgrounds and small detail resolution will improve strongly and contribute to a far better overall performance of each component.

Product Features

  • All in one power supply for your phono setup
  • Powers any ProJect 15 V DC turntable
  • Powers any ProJect phono stage
  • Cleanest power using non-switching power supply
  • Soft start system avoids current inrush
  • Audio type toroidal transformer
  • Main isolating transformer with copper foil shielding
  • Secondary voltage rectification with precise regulation
  • High filtration capacity (10,000 μF)
  • Low ESR capacitors
  • Low noise components with surge protection
  • Available in Black and Silver
  • Made in Europe

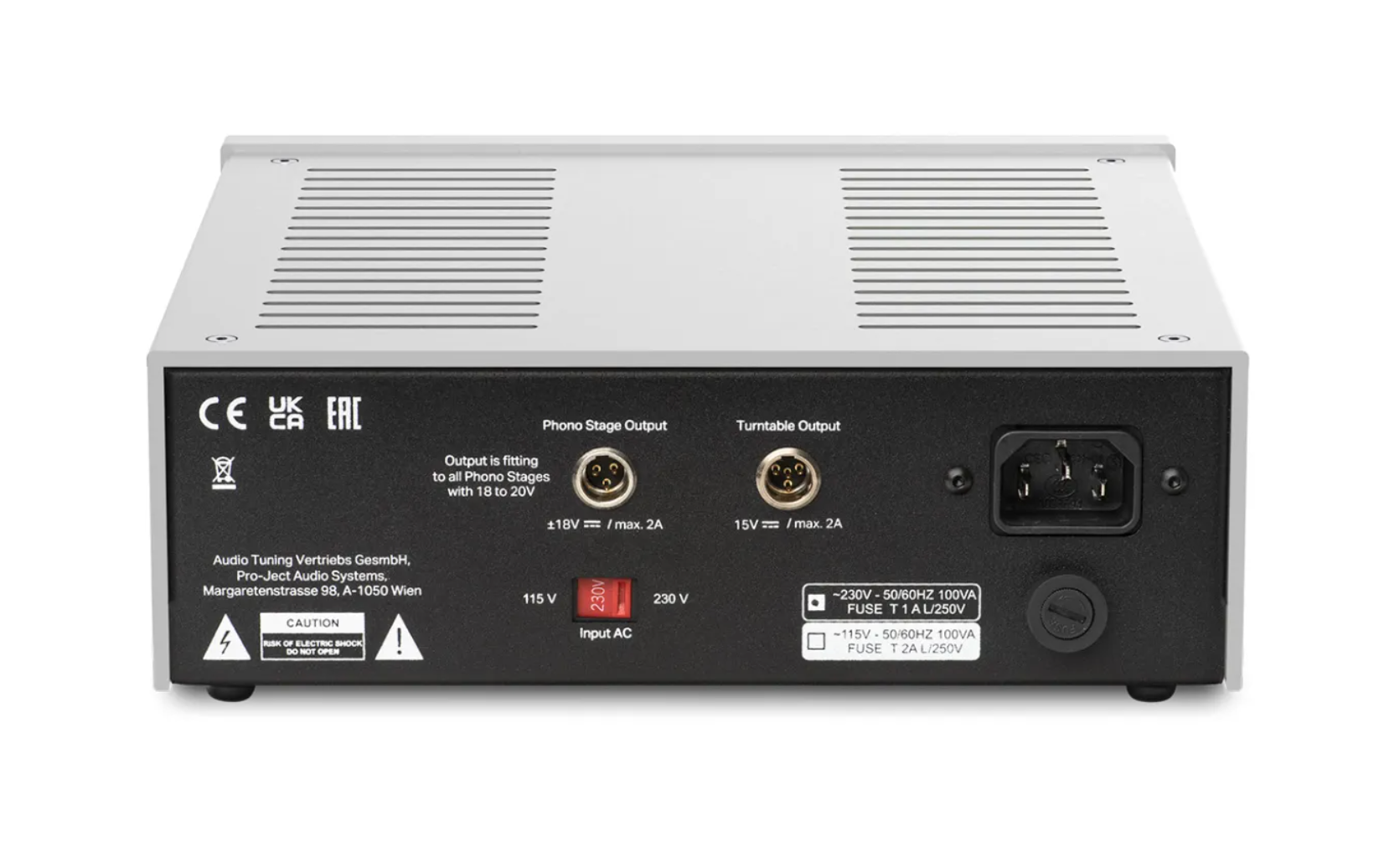

ProJect Power Box RS2 Phono Power Supply in Silver, back of unit

Technical Specifications

Input Voltage
AC 230V/50Hz IEC C15 connector (120V/60Hz US)

Turntable Output
15V / 2A (±0,5% ripple)

Phono Stage Output
±18V/2A (±0,5% ripple)

Filtration Capacity
10.000 μF

Dimensions (W x H x D)
206 x 71 x 209 mm

Weight
3.1 kg

Warranty
ProJect Audio turntables and electronics are covered by a 2 year warranty.

Speakers are covered by a 5 year warranty and Vacuum tubes used within components (such as the Tube Box S2) are covered for 90 days; all from date of purchase.

In The Box

  • Power Box RS2 Phono
  • 1x IEC power cable
  • 1x Power Box RS2 Phono > Phono Box RS Series cable
  • 1x Power Box RS2 Phono > Phono/Tube Box DS & S Series cable
  • 1x Power Box RS2 Phono > Turntable (15V DC) cable


*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.
