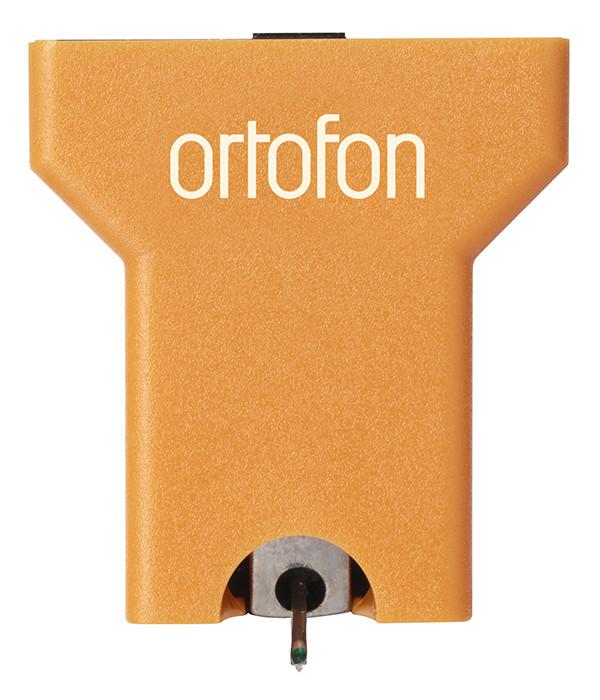

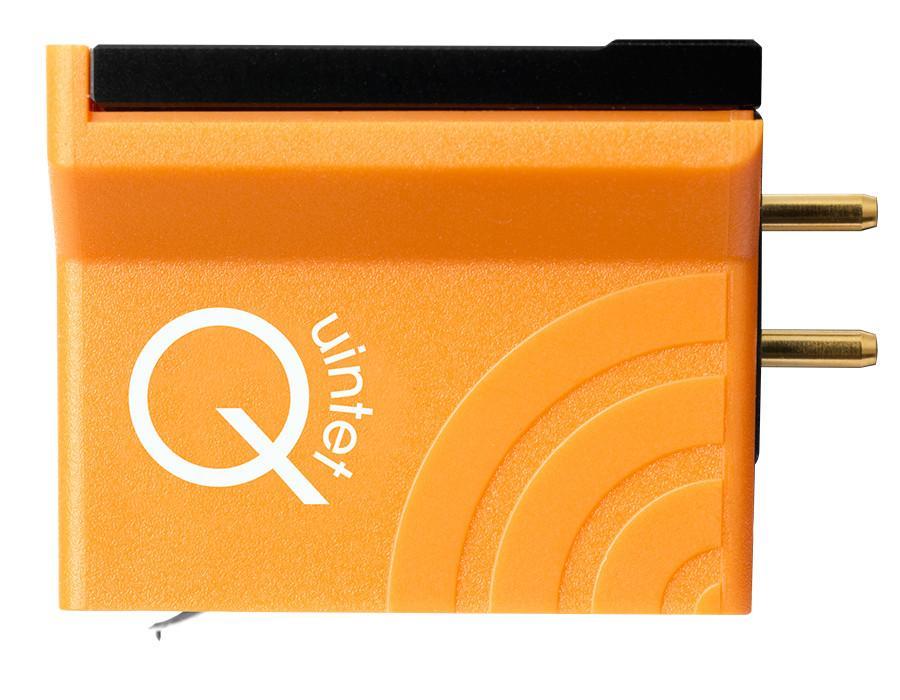

Ortofon Cartridges Ortofon Quintet Bronze Moving Coil Cartridge
Ortofon Cartridges Ortofon Quintet Bronze Moving Coil Cartridge
chevron_left
chevron_right

Ortofon Quintet Bronze Moving Coil Cartridge

Ortofon
Ortofon
$1,169.00
$1,299.00 $1,169.00

Speak with our team to confirm in-store availability.


Free Pick Up at Vinyl Revival Carlton North — (753-755 Nicholson Street, Carlton North)

Usually ready in 2-4 days —

Free delivery (Conditions may apply) — on orders over $500!
Secure checkout  with American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Ortofon Cartridges Ortofon Quintet Bronze Moving Coil Cartridge

Ortofon Quintet Bronze Moving Coil Cartridge

$1,169.00
$1,299.00 $1,169.00

Ortofon Quintet Bronze M Cartridge

The Quintet Bronze moves into the higher league of the Quintets.

The slim profile of its Nude Fine Line diamond stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.

The sound will be very evenhanded with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.

All types of music will be conveyed with the highest accuracy,precision,n and dynamics.

Technical Specifications

  • Output voltage at 1000 Hz, 5 cm/sec. - 0.3 mV
  • Channel balance at 1 kHz - < 1.2 dB
  • Channel separation at 1 kHz -> 23 dB
  • Channel separation at 15 kHz -> 15 dB
  • Frequency range at -3 dB - 20-25,000 Hz
  • Frequency response 20-20,000 Hz - +/-1.5 dB
  • Tracking ability at Hz at recommended tracking force (*) – 80 µm
  • Compliance, dynamic, lateral - 15 µm/mN
  • Stylus type - Nude Fine Line
  • Stylus tip radius – r/R 8/40 µm
  • Tracking force range - 2.1-2.5 g (21-25 mN)
  • Tracking force, recommended - 2.3 g (23 mN)
  • *) Typical value
  • Tracking angle - 20°
  • Internal impedance, DC resistance – 5 Ohm
  • Recommended load impedance – > 20 Ohm
  • Cartridge body material – ABS/Aluminium
  • Coil wire material - Pure 4-nines copper
  • Cartridge colour - Bronze
  • Cartridge weight - 9 grams

*This information has been obtained from the manufacturer's website. We advise that features, specifications & price are subject to change without notice.
