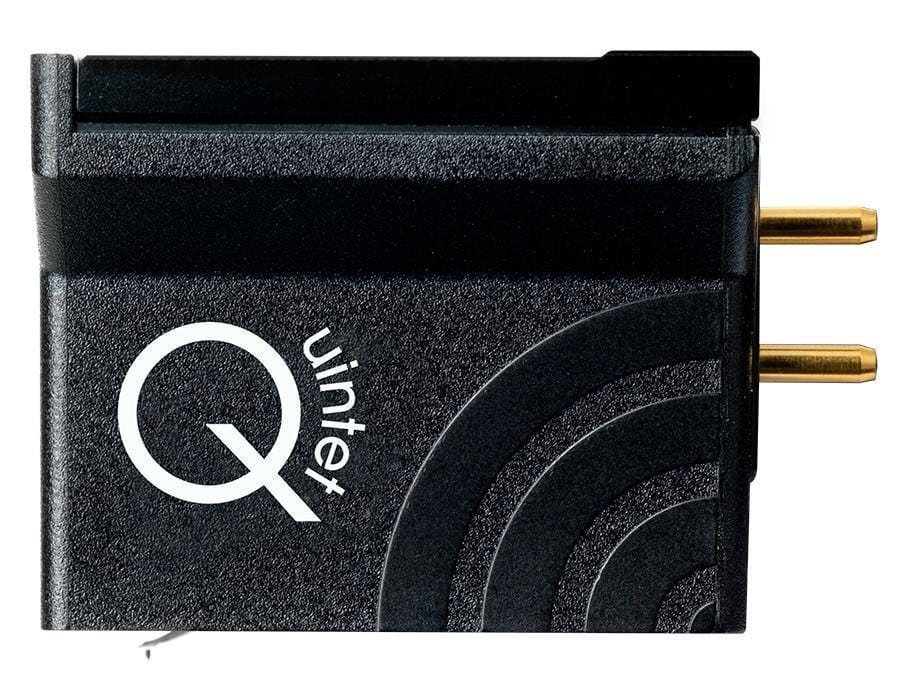

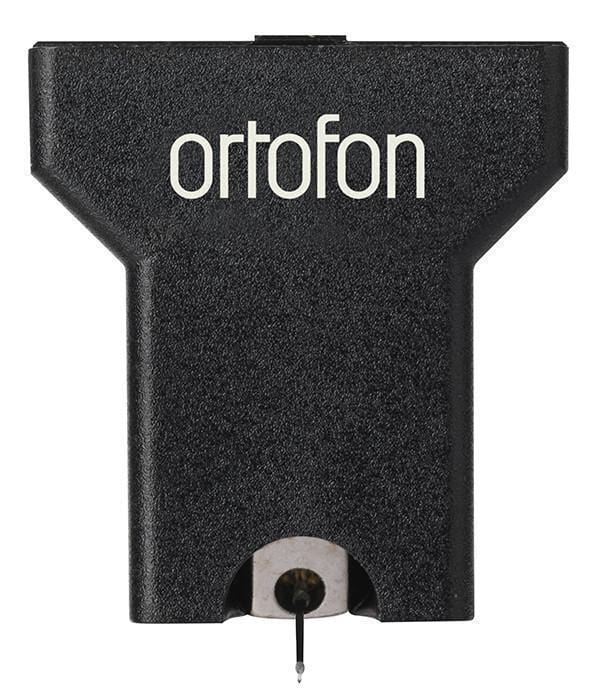

Ortofon Quintet Black S Moving Coil Cartridge

Ortofon
Ortofon
$1,499.00
$1,699.00 $1,499.00

Speak with our team to confirm in-store availability.


Free Pick Up at Vinyl Revival Carlton North — (753-755 Nicholson Street, Carlton North)

Usually ready in 2-4 days —

Free delivery (Conditions may apply) — on orders over $500!
Secure checkout  with American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Ortofon Cartridges Ortofon Quintet Black S Moving Coil Cartridge

Ortofon Quintet Black S Moving Coil Cartridge

$1,499.00
$1,699.00 $1,499.00

Ortofon Quintet Black S Phono Cartridge

The Quintet Black is the best example of Quintet’s overall excellence.

The Quintet Black is graced with a nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance boron cantilever.

The Shibata’s slim, highly polished profile allows an exceedingly wide contact area with the walls of the groove and ensures detailed and pure reproduction throughout the spectrum, including even the highest frequency groove information.

The Quintet Black will be unfettered by musical genre and will provide the closest approach within the Quintet series to Ortofon’s true accuracy in sound.

Product Features and Specifications

  • Output voltage at 1000 Hz, 5 cm/sec. - 0.3 mV
  • Channel balance at 1 kHz - < 1.0 dB
  • Channel separation at 1 kHz -> 23 dB
  • Channel separation at 15 kHz -> 15 dB
  • Frequency range at - 3 dB - 20 - 25,000 Hz
  • Frequency response 20-20,000 Hz - +/- 1.5 dB
  • Tracking ability at Hz at recommended tracking force (*) – 80 µm
  • Compliance, dynamic, lateral - 15 µm/mN
  • Stylus type – Nude Shibata on Sapphire cantilever
  • Stylus tip radius – r/R 6/50 µm
  • Tracking force range - 2.1-2.5 g (21-25 mN)
  • Tracking force, recommended - 2.3 g (23 mN)
  • *) Typical value
  • Tracking angle - 20°
  • Internal impedance, DC resistance – 5 Ohm
  • Recommended load impedance – > 20 Ohm
  • Cartridge body material – ABS/Aluminium
  • Coil wire material – Aucurum
  • Cartridge colour - Black
  • Cartridge weight - 9 g



*This information has been obtained from the manufacturer's website. We advise that features, specifications & price are subject to change without notice.

E&OE
