Ortofon Hi-Fi 5 S Replacement Stylus

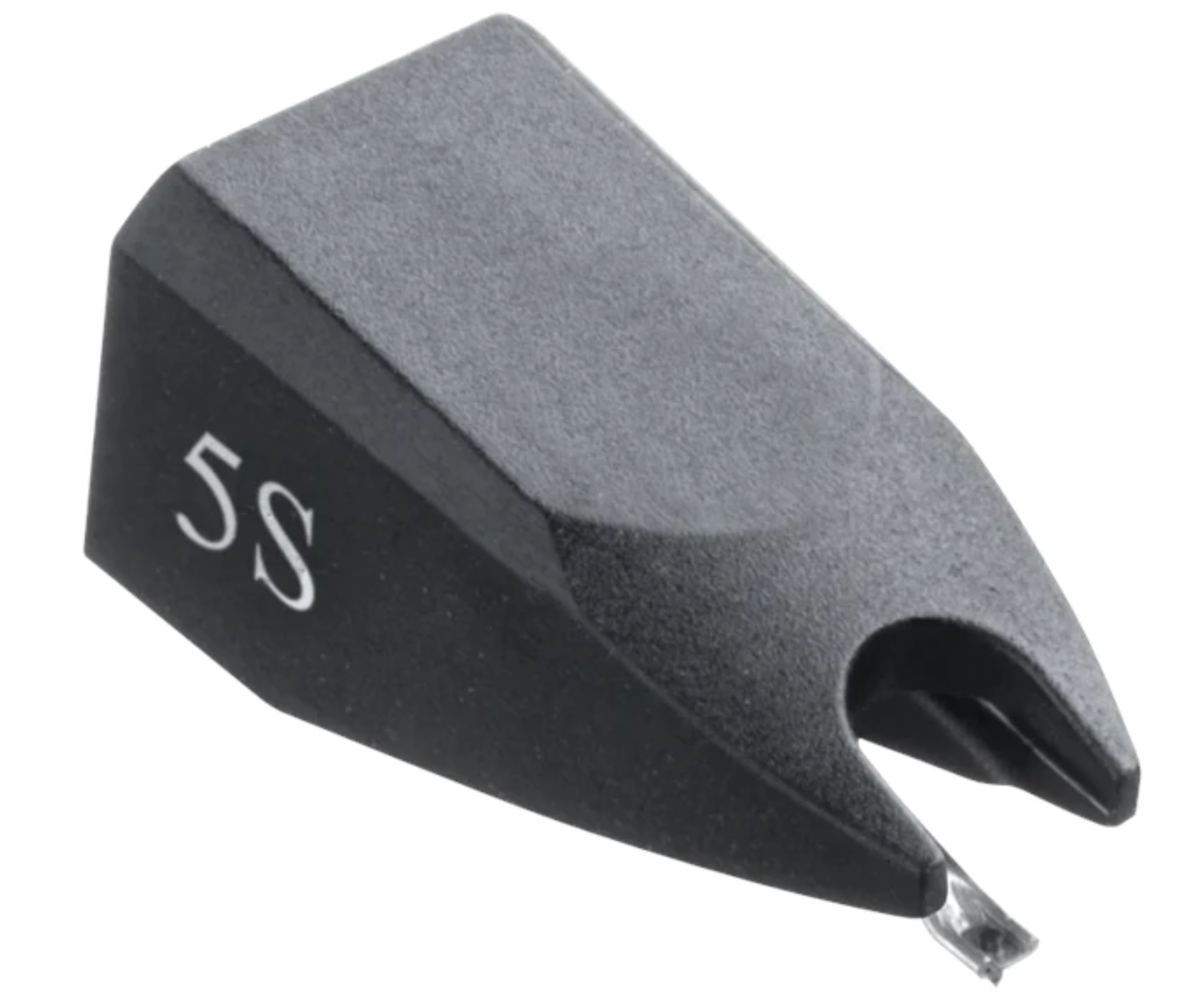

Meet the 5 S Replacement Stylus

The replacement stylus OM 5S is recommended for the OM 5S cartridge.

With a spherical stylus, the OM 5S is easy to align, and robust enough to deliver hours of listening pleasure.

Technical specifications

• Frequency range at -3dB - 20-20.000 Hz
• Frequency response - 20-22.000 Hz
• Tracking ability at 315Hz at recommended tracking force *) - 60 µm
• Compliance, dynamic, lateral - 20 µm/mN
• Stylus type - Spherical
• Stylus tip radius - R 18 µm
• Tracking force range - 1.5-2.0 g (15-20 mN)
• Tracking force, recommended - 1.75 g (17,5 mN)
• Tracking angle - 20°

*Reprint from Manufacturers website
