Ortofon Hi-Fi 5 E Replacement Stylus

Ortofon

or make 4 interest-free payments of $19.75 fortnightly with Afterpay More info


Collections: Ortofon, Replacement Styli

Type: Styli

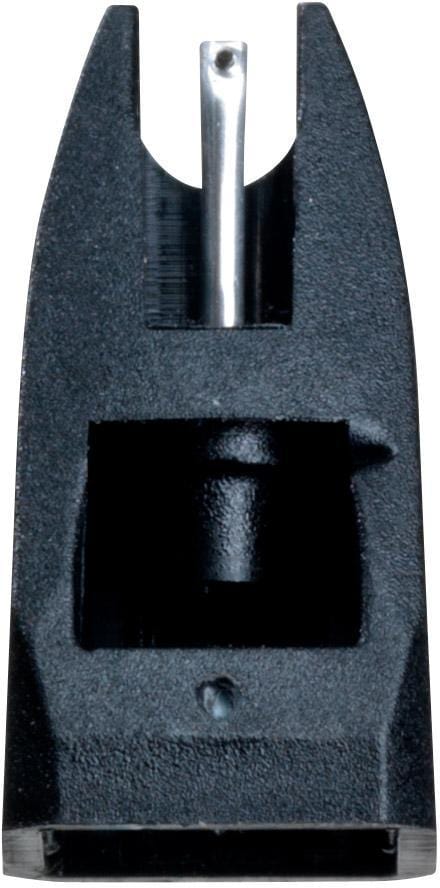

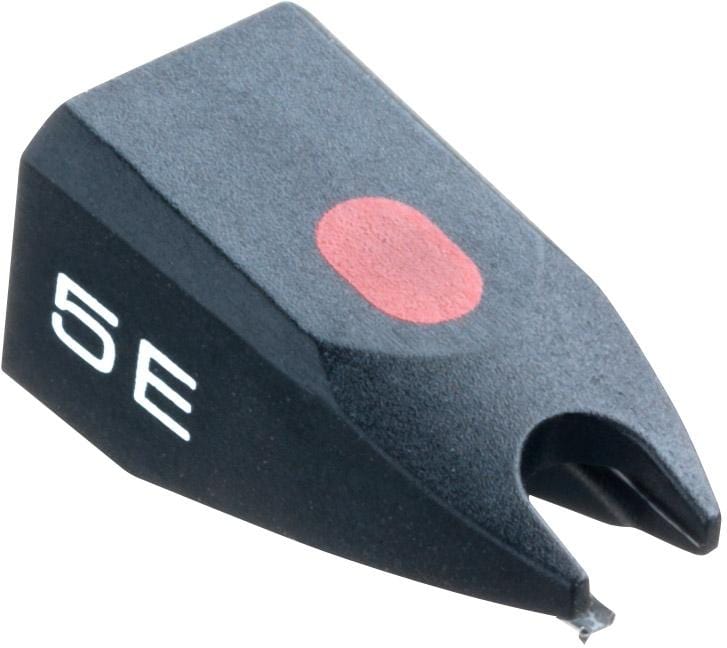

Ortofon Hi-Fi 5 E Replacement Stylus

Replacement stylus for Ortofon 5E series cartridges

Technical data |
---|---
Frequency range |

20-25,000 Hz

Frequency response |

20-25,000 Hz

Tracking ability at 315Hz at recommended tracking force | 65 µm
Compliance, dynamic, lateral | 20 µm/mN
Stylus type | Elliptical
Stylus tip radius | r/R 8/18 µm
Equivalent stylus tip mass | 0.5 mg
Tracking force range | 1.5-2.0 g (15-20 mN)
Tracking force (recommended) | 1.75 g (17.5 mN)
Tracking angle | 20°
Stylus colour | Black
Recommended for the following cartridges | OM 5E, OMP 5E, OMB 5E, OMT 5E

*reprint form manufacturers website
