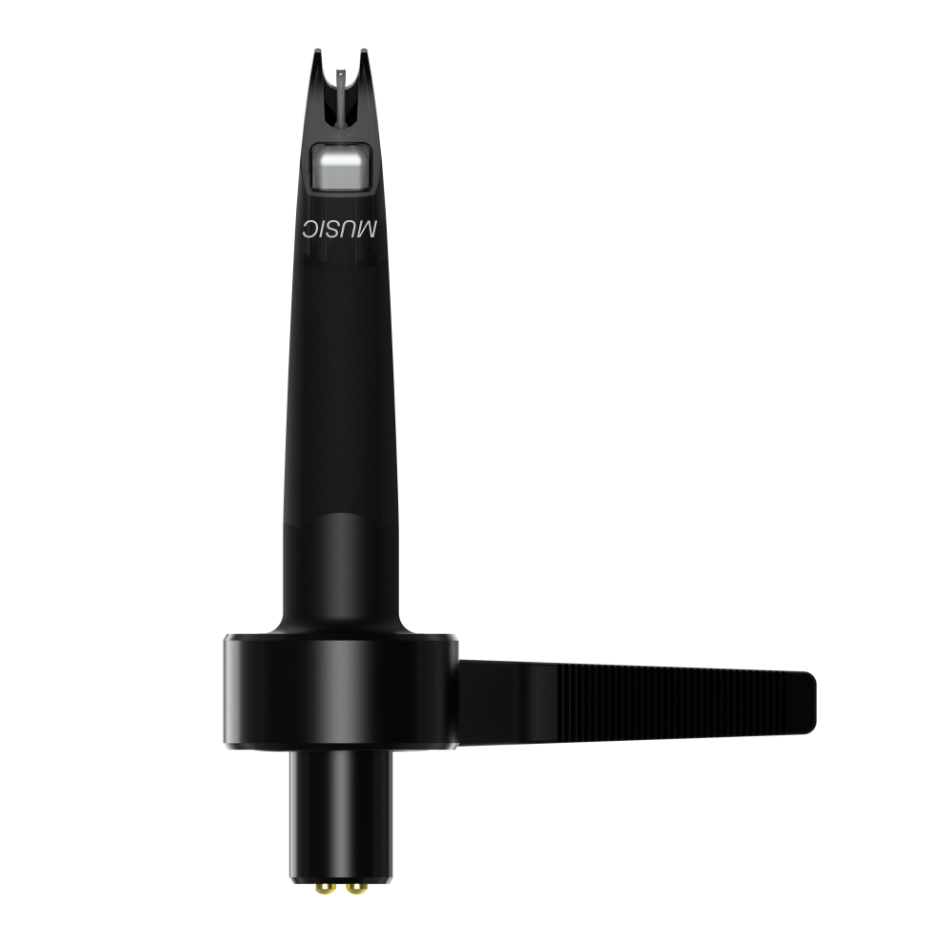

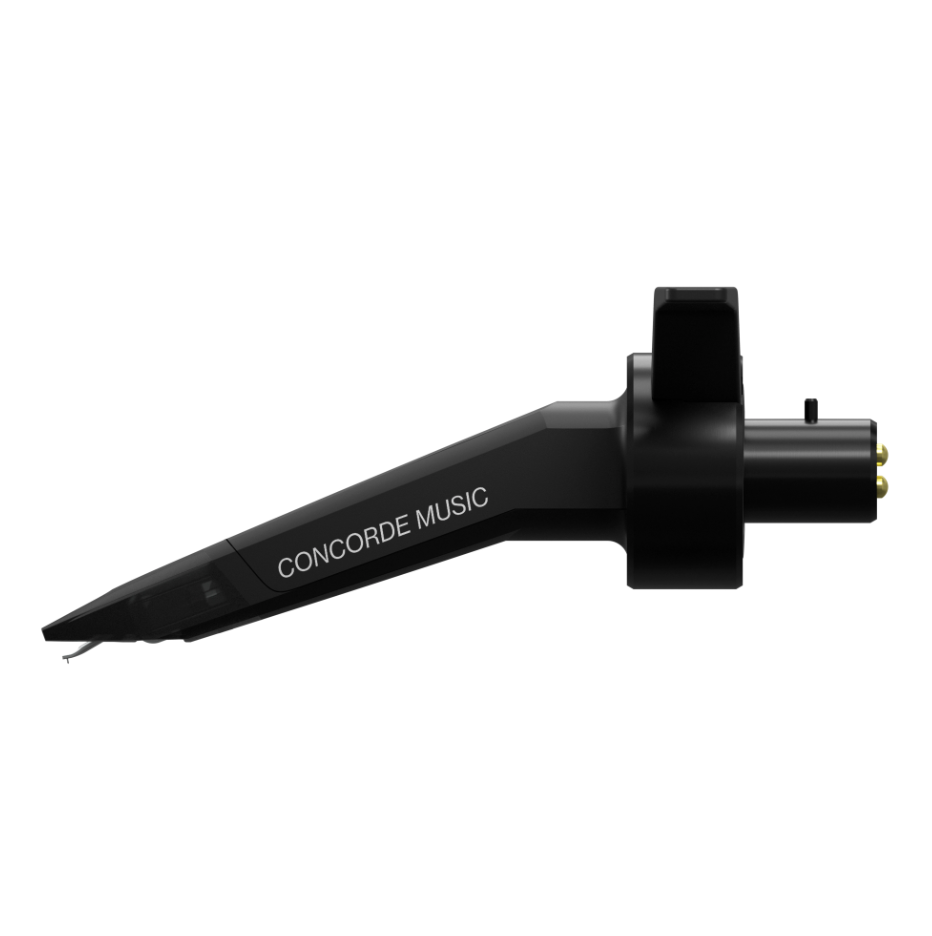

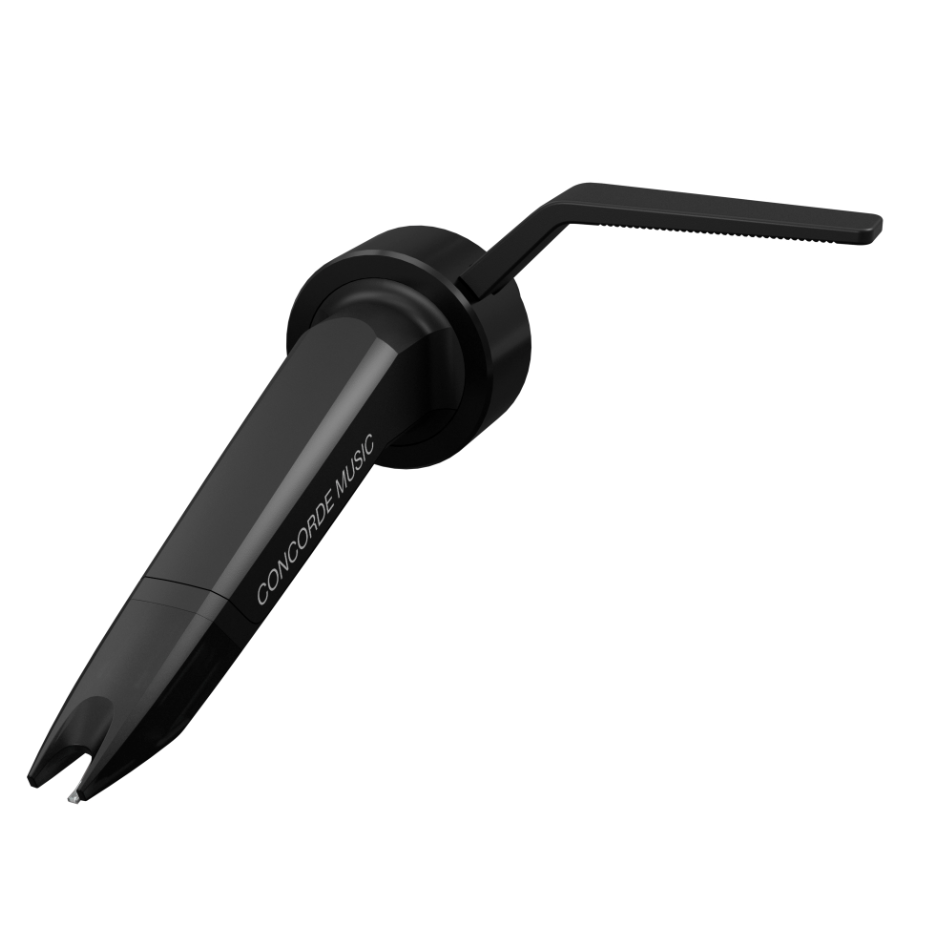

Ortofon Concorde Black Moving Magnet Cartridge

"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."
Introducing the Concorde Black Moving Magnet
Quality, Simplicity and Iconic Design brought to you by Ortofon Hi-Fi.
Building upon a rich legacy which began when Concorde Music launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio.
Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in the audio industry.
Developed by music lovers, for music lovers, the Concorde music cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.
Easy installation, Easy upgrades
Concorde Music cartridges seamlessly integrate with all turntables featuring a bayonet tonearm, ensuring easy and straightforward installation – no tools required, making it hassle-free and convenient for all users.
All Concorde Music styli are compatible with every Concorde Music cartridge. An upgrade path is possible throughout the entire series of Concorde Music cartridges, enabling upgrades from Concorde Music Red to Black LVB 250.
Concorde Music Black
Experience transparent and articulate sound quality with the Concorde Music Black.
The Concorde Music Black features a Nude Shibata stylus on Aluminium cantilever, offers an upgrade from the Concorde Music Bronze and can be upgraded with the Stylus Concorde Music Black LVB 250.
Technical Specifications
Channel balance at 1 kHz
1 dB
Output voltage at 1 kHz, 5cm/sec
6 mV
Channel separation at 1 kHz
26 dB
Frequency response 20 Hz - 20 kHz
+/- 2 dB
Tracking Ability at 315 Hz
80 µm
Compliance, dynamic, lateral
15 µm/mN
Cantilever material
Aluminium
Stylus type
Nude Shibata Diamond
Stylus tip radius
r/R 6/50 µm
Coil System
Quad-coils with split pole pins
Tracking force, recommended
1.8 grams
Tracking Angle
20°
Coil wire material
OFC
Cartridge colour
Black
Cartridge weight
18 grams
Recommended load resistance
47 kΩ
Recommended load capacitance
150-300 pF
*This information has been obtained from Manufacturers website. We advise that Price, Features and Specifications are subject change from Manufacturer without notice.
E&OE
