Ortofon Cadenza Mono Cartridge

Ortofon

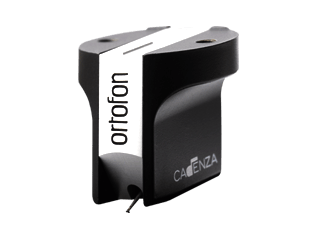

Ortofon Cadenza Mono - the true Mono cartridge

The Cadenza Mono model is made with a Nude Fine Line stylus and a cylindrical aluminium cantilever. The stylus radius is r/R 8/40 m. The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance. For easy use the pins are connected so you get the same signal from both pairs of connecting pins. Sharing internal build with the Cadenza Red and with optimized adjustments for mono playback the sound is relaxed, homogeneous and moderate.

Find your old records as well as new micro groove mono records and experience the Cadenza Mono!

Technical data
Output voltage at 1 kHz 5 cm/sec 0.45 mV
Frequency range at -3 dB 20 Hz - 50 kHz
Frequency response 20 Hz - 20 kHz +3/-1
Tracking ability at 315 Hz at recommended tracking force *) 70 μm
Compliance, dynamic, lateral 12 μm/mN
Stylus type Nude Fine Line on Alu cantilever
Stylus tip radius r/R 8/40
Tracking force range 2.2-2.7 g (22-27 mN)
Tracking force recommended 2.5 g (25 mN)
Tracking angle 20
Internal impedance, DC resistance 5 Ohm
Recommended load impedance 50-500 Ohm
Cartridge body material Stainless steel Aluminium
Cartridge colour Natural/Black
Cartridge weight 10.7 g



*reprint form manufacturers website
