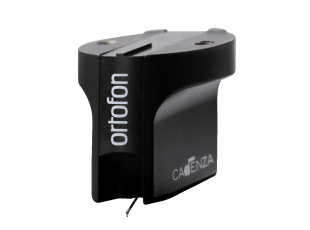

Ortofon Cadenza Black Cartridge
The Cadenza Black model is using a nude Shibata stylus with a boron cantilever.
The effective mass of the stylus/cantilever system is extremely low due to the use of a very thin boron rod. This material is extremely stiff and even more lightweight than aluminium.
It also uses the WRD (wide range damping system), controlling the high- and low-frequency damping separately.
Cadenza Black is optimised for amazing tonal neutrality, dynamics, and sound purity. It is high-performing in areas like detail, consistency, and sound staging.
Technical data |
|
| Output voltage at 1000 Hz, 5 cm/sec. | 0.3 mV |
| Channel balance at 1 kHz | |
| Channel separation at 1 kHz | > 27 dB |
| Channel separation at 15 kHz | > 20 dB |
| Frequency range at -3 dB | 20 - 60,000 Hz |
| Frequency response: 20 Hz - 20 kHz | +1.5/0 |
| Tracking ability at Hz at recommended tracking force (*). | 90 m |
| Compliance, dynamic, lateral | 16 mm N |
| Stylus type | Nude Shibata, Boron cantilever |
| Stylus tip radius | r/R 6/50 m |
| Tracking force range | 2.0-2.5 g (20-25 mN) |
| Tracking force, recommended | 2.3 g (23 mN) |
| Tracking angle | 20 |
| Internal impedance, DC resistance | 5 Ohm |
| Recommended load impedance | > 10 Ohm |
| Cartridge body material | Stainless steel Aluminium |
| Cartridge colour | Black/Black |
| Cartridge weight | 10.7 grammes |
