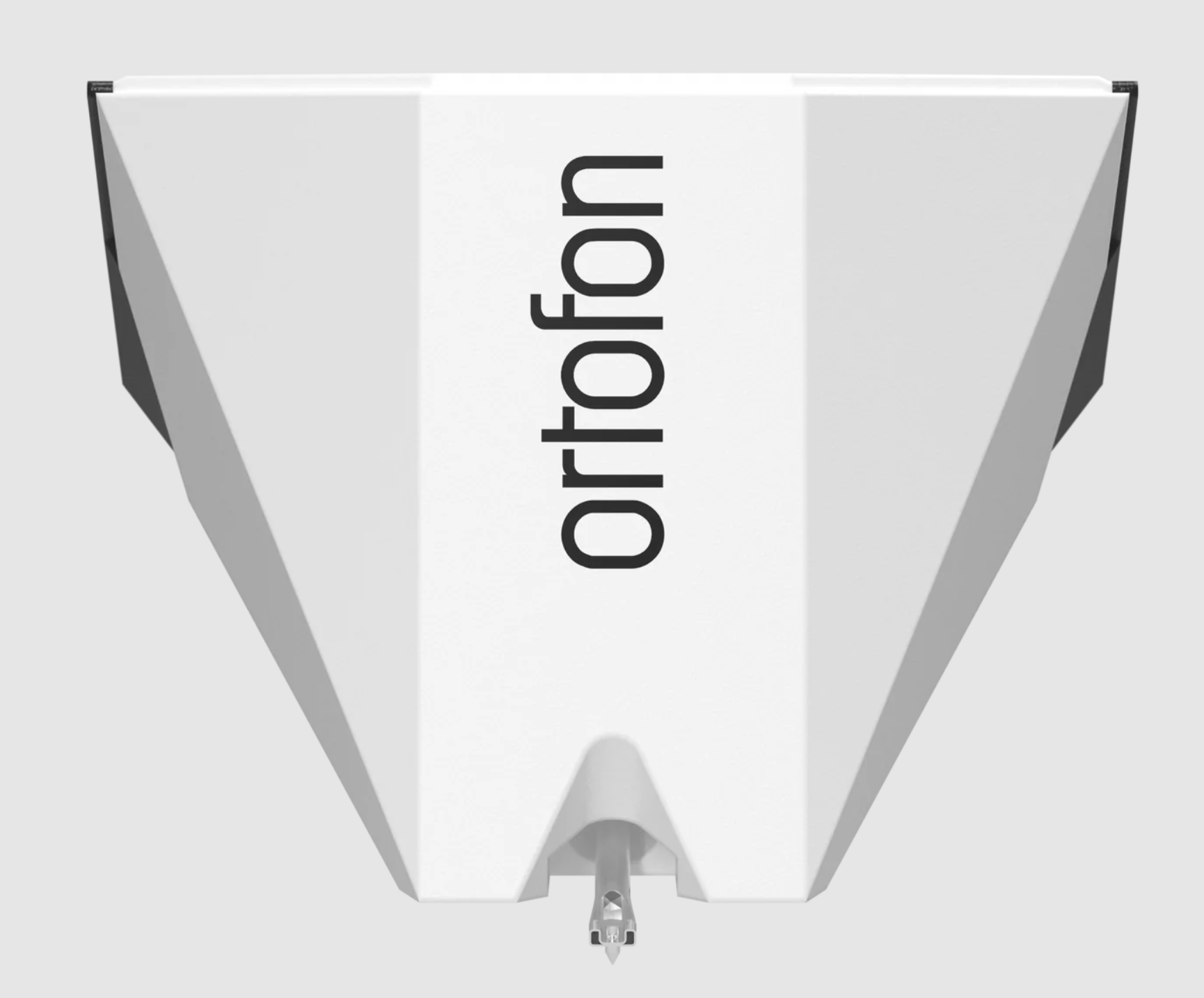

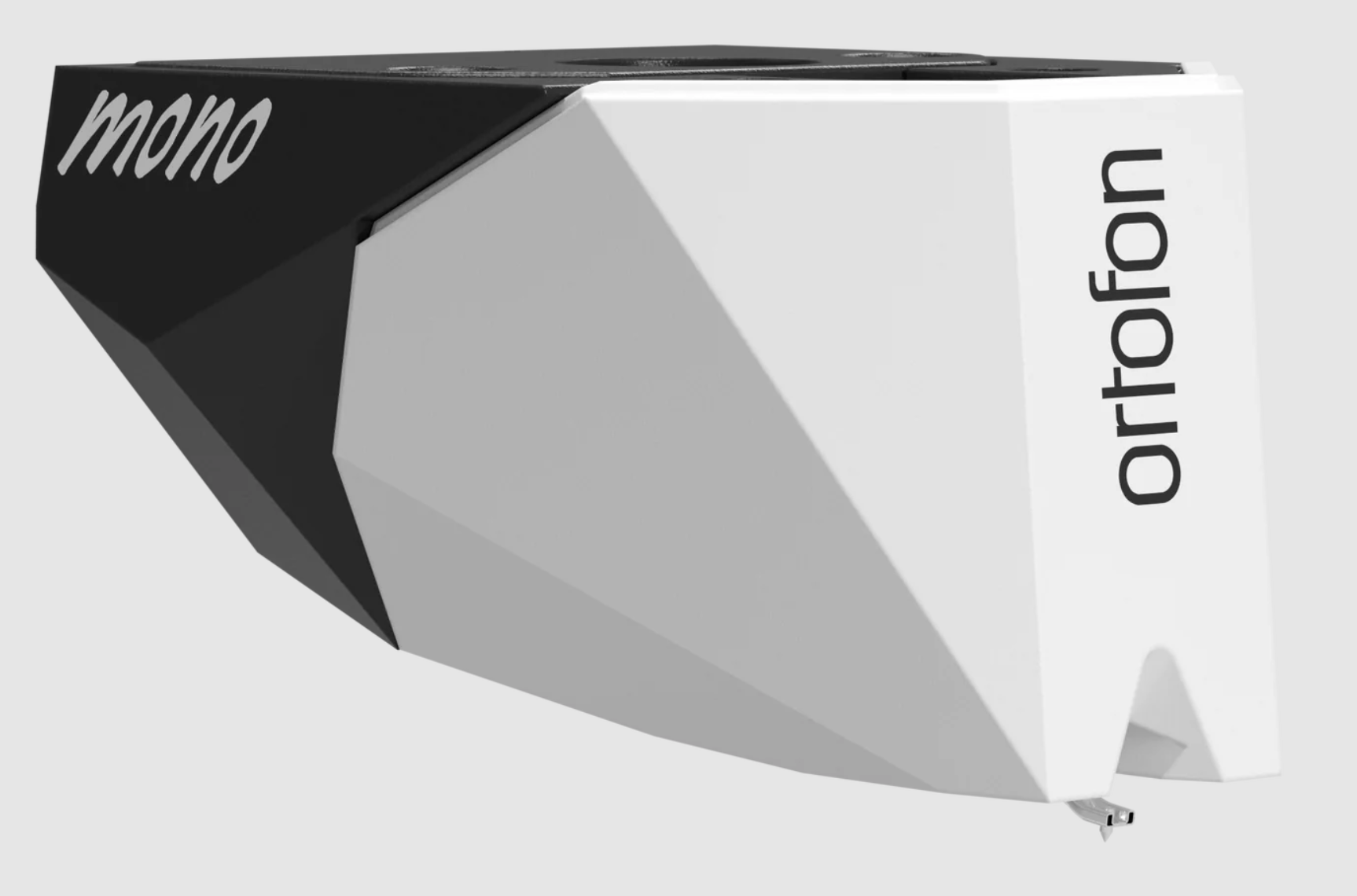

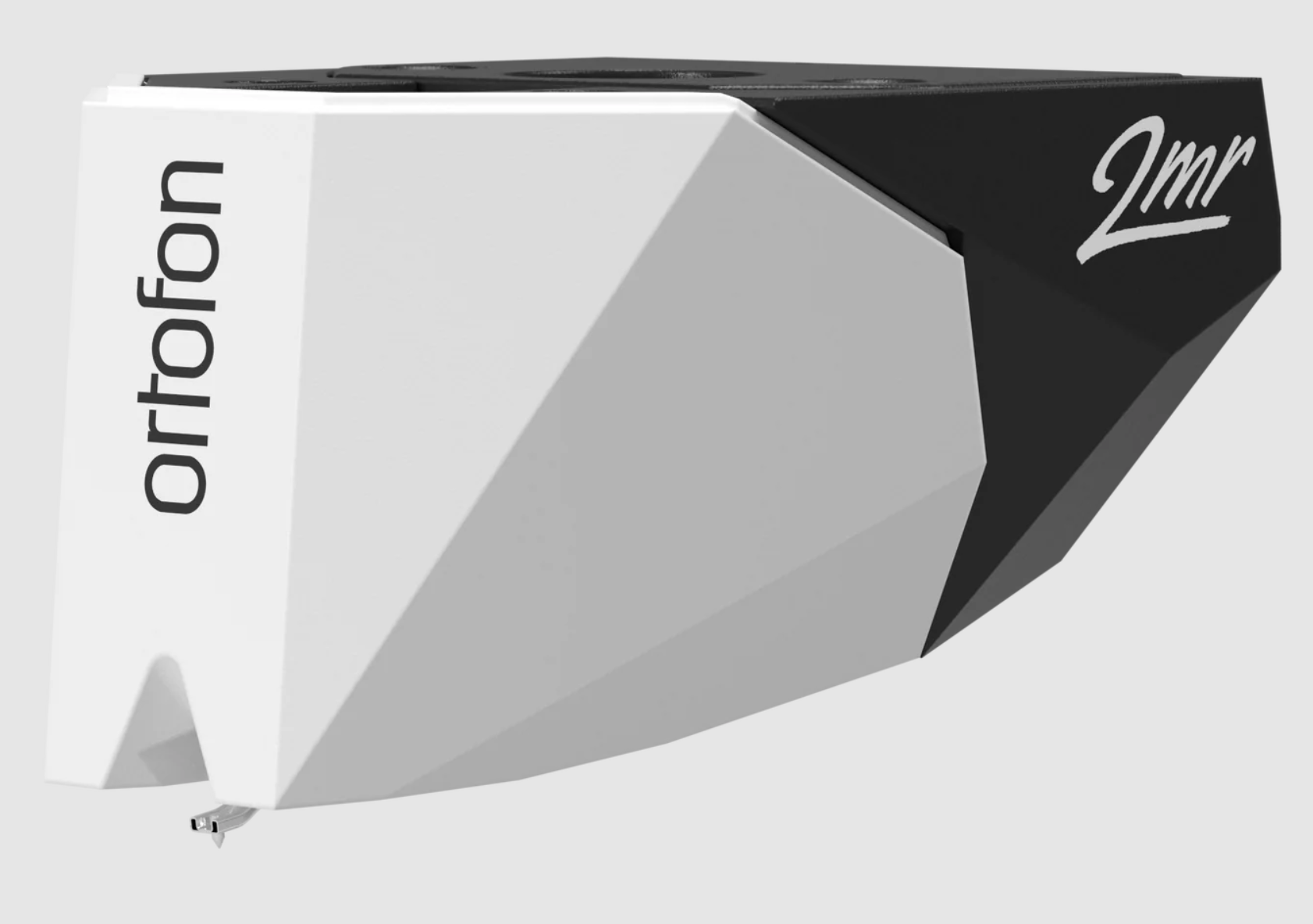

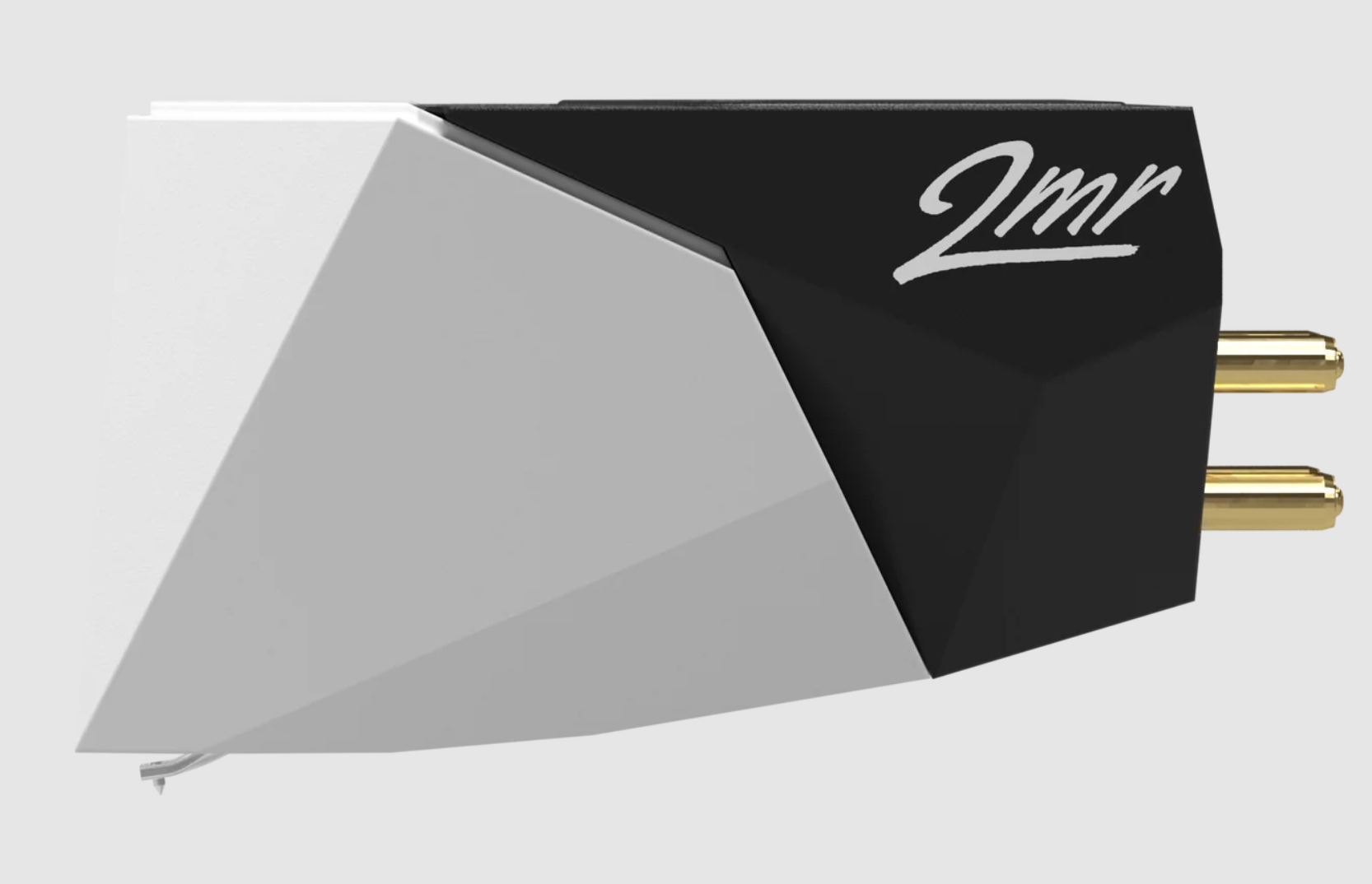

Ortofon 2MR Mono (suits Rega turntables) Cartridge

Name: Ortofon 2MR Mono (suits Rega turntables) Cartridge
Brand: Ortofon
SKU: ORT-2MRXXX-MM-CTG-MNO
Price: 655.0 AUD
Availability: InStock

Ortofon

$655.00

~~$729.00~~ $655.00

Product variants

Free Pick Up at Vinyl Revival Carlton North — (753-755 Nicholson Street, Carlton North)

Usually ready in 2-4 days —

Free delivery (Conditions may apply) — on orders over $500!

Secure checkout with

Ortofon 2MR Mono (suits Rega turntables) Cartridge

$655.00

~~$729.00~~ $655.00

Product variants

Introducing the 2MR Mono

For an optimised fit on low-profile turntables & perfectly suited to Rega turntables

Step into an Era of Authenticity with the 2MR Mono Cartridge, thoughtfully crafted with a stylus' tip that features an R 18µm Nude Spherical diamond. This is perfectly suited to the intricacies of playing mono microgroove LP vinyl records.

Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with the 2M Mono.

Stylus

Embark on an Elevated Mono Experience with the 2M Mono Cartridge. Designed to bring out the best in your mono microgroove LP vinyl records, it features a stylus tipped with an R 18µm Nude Spherical diamond.

This engineered feature is an optimal solution for playing mono microgroove LP vinyl records and is ideal for achieving exceptional playback quality and capturing the essence of vintage mono soundscapes.

Output

The 2MR Mono features a high-performance motor system with quad coils and Ortofon’s custom the split pole pins.

The 2MR Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Compatibility

The 2MR Mono 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.

Product Features

Newly developed low form factor cartridge housing within the famous 2M series:

Slimline cartridge body - Effectively eliminates the need for tonearm spacers, shims or modifications
100% compatibility with the 2M styli - All Ortofon 2M styli fits on all 2MR cartridge models
Standard half inch mounting - Quick and easy mounting on the tonearms with just two screws
A complete series ranging from Mono to Premium: 2MR Red to High-end: 2MR Black LVB 250

2MR Mono:

Nude Spherical R18μm diamond on an aluminium cantilever with a Premium Ortofon rubber damper
Quad coil motor system with four strapped copper coils and four split pole pins
Optimal for playing mono microgroove vinyl records.

Technical Specifications

Output Voltage at 1kHz, 5cm/sec/. - 4mV
Frequency Range at -3dB - 20Hz - 22kHz
Frequency Response 20Hz - 20kHz:+3 / -1dB
Tracking Ability at 315Hz - Typically 70μm
Compliance, Dynamic, Lateral - 18μm / mN
Stylus Type - Nude Spherical
Stylus Tip Radius - R:18μm
Tracking Force Range - 1.6 - 2.0g (16 - 20mN)
Recommended Tracking Force - 1.8g (18mN)
Tracking Angle - 20º
Internal Impedance / DC Resistance - 700Ω
Internal Inductance - 350mH
Recommended Load Resistance - 47kΩ
Recommended Load Capacitance - 150 - 300pF
Cartridge Colour Body / Stylus - Black / White
Cartridge Weight - 7.2g

*Reprint from manufacturers website.
