Ortofon 2MR Mono (suits Rega turntables) Cartridge

Ortofon 2MR Mono (suits Rega turntables) Cartridge

Regular price $494.00 AUD
Regular price $549.00 AUD Sale price $494.00 AUD
Sale Call For Availability
Tax included. Shipping calculated at checkout.
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 405 Brunswick St Fitzroy
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500

Ortofon 2MR Mono

For an optimised fit on low-profile turntables & perfectly suited to Rega turntables

Step into an Era of Authenticity with the 2MR Mono Cartridge, thoughtfully crafted with a stylus' tip that features an R 18µm Nude Spherical diamond.  This is perfectly suited to the intricacies of playing mono microgroove LP vinyl records.

Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with the 2M Mono.

Stylus

Embark on an Elevated Mono Experience with the 2M Mono Cartridge. Designed to bring out the best in your mono microgroove LP vinyl records, it features a stylus tipped with an R 18µm Nude Spherical diamond.

This engineered feature is an optimal solution for playing mono microgroove LP vinyl records and is ideal for achieving exceptional playback quality and capturing the essence of vintage mono soundscapes.

Output

The 2MR Mono features a high-performance motor system with quad coils and Ortofon’s custom the split pole pins.

The 2MR Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Compatibility

The 2MR Mono 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.

Product Features

Newly developed low form factor cartridge housing within the famous 2M series:

  • Slimline cartridge body - Effectively eliminates the need for tonearm spacers, shims or modifications
  • 100% compatibility with the 2M styli - All Ortofon 2M styli fits on all 2MR cartridge models

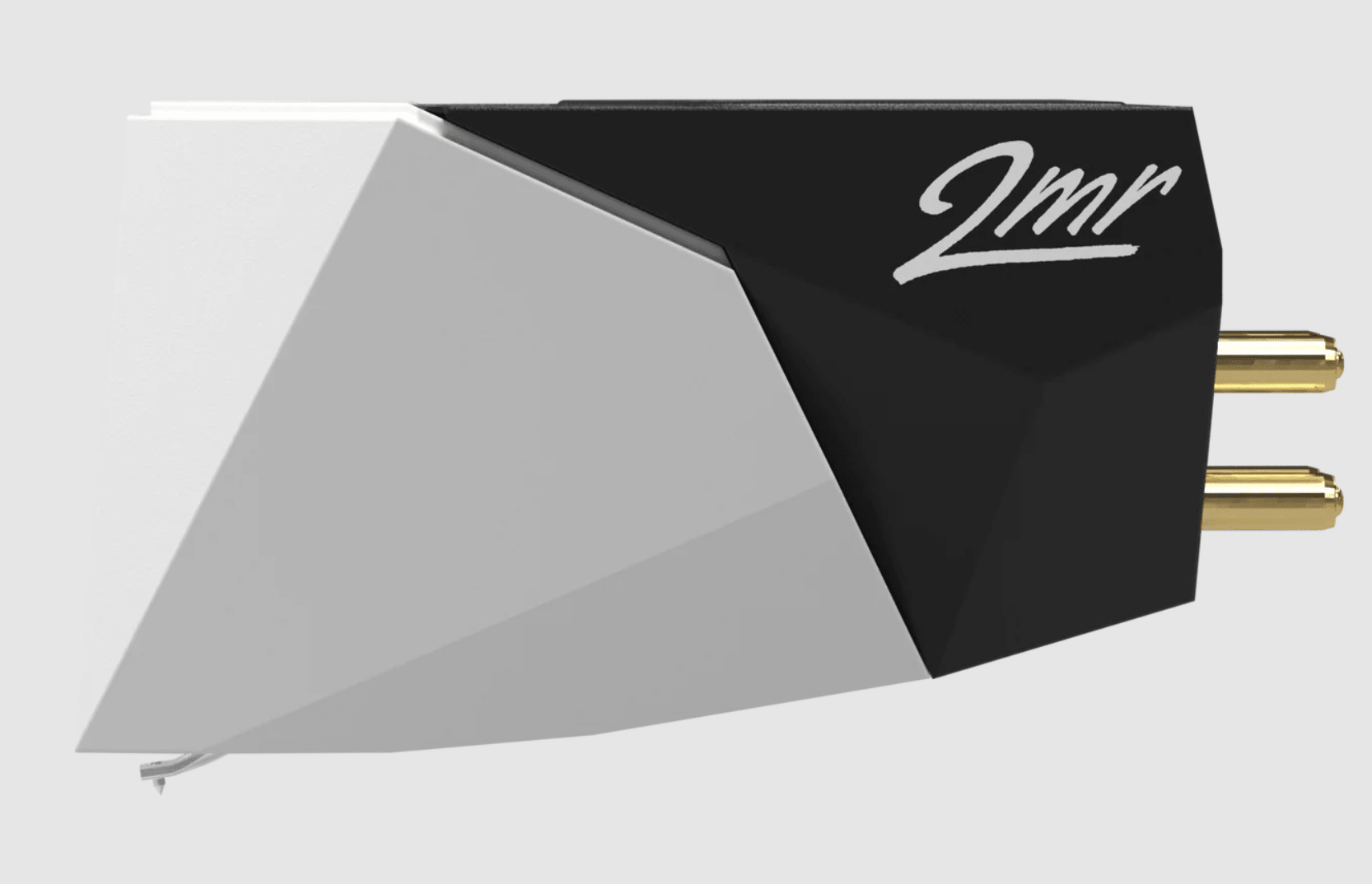

  • Standard half inch mounting - Quick and easy mounting on the tonearms with just two screws
  • A complete series ranging from Mono to Premium: 2MR Red to High-end: 2MR Black LVB 250

2MR Mono:

  • Nude Spherical R18μm diamond on an aluminium cantilever with a Premium Ortofon rubber damper
  • Quad coil motor system with four strapped copper coils and four split pole pins
  • Optimal for playing mono microgroove vinyl records.

Technical Specifications

  • Output Voltage at 1kHz, 5cm/sec/. - 4mV
  • Frequency Range at -3dB - 20Hz - 22kHz
  • Frequency Response 20Hz - 20kHz:+3 / -1dB
  • Tracking Ability at 315Hz - Typically 70μm
  • Compliance, Dynamic, Lateral - 18μm / mN
  • Stylus Type - Nude Spherical
  • Stylus Tip Radius - R:18μm
  • Tracking Force Range - 1.6 - 2.0g (16 - 20mN)
  • Recommended Tracking Force - 1.8g (18mN)
  • Tracking Angle - 20º
  • Internal Impedance / DC Resistance - 700Ω
  • Internal Inductance - 350mH
  • Recommended Load Resistance - 47kΩ
  • Recommended Load Capacitance - 150 - 300pF
  • Cartridge Colour Body / Stylus - Black / White
  • Cartridge Weight - 7.2g

*Reprint from manufacturers website.
