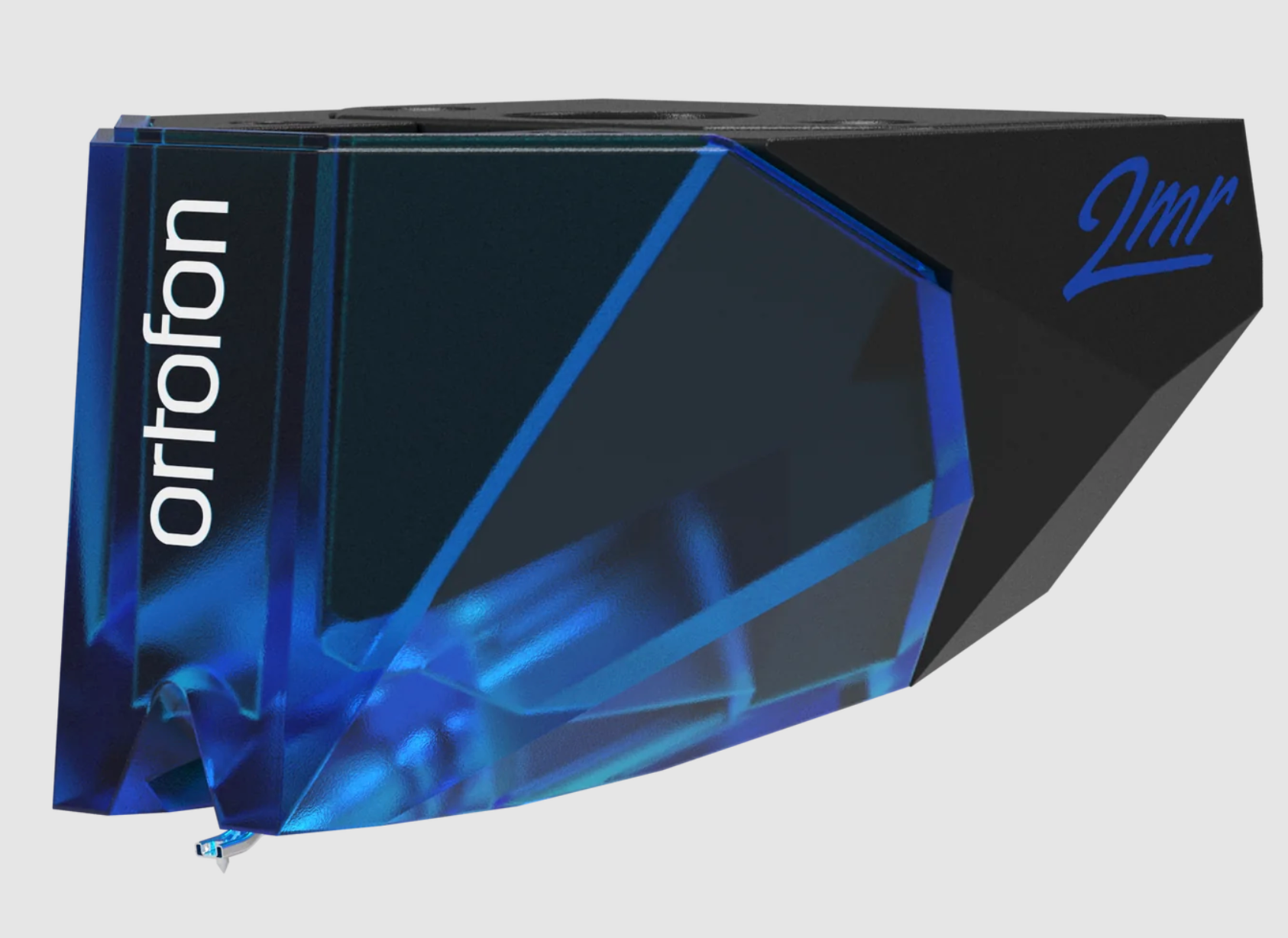

  • Ortogon 2MR blue Moving Magnet Cartridge. Right side

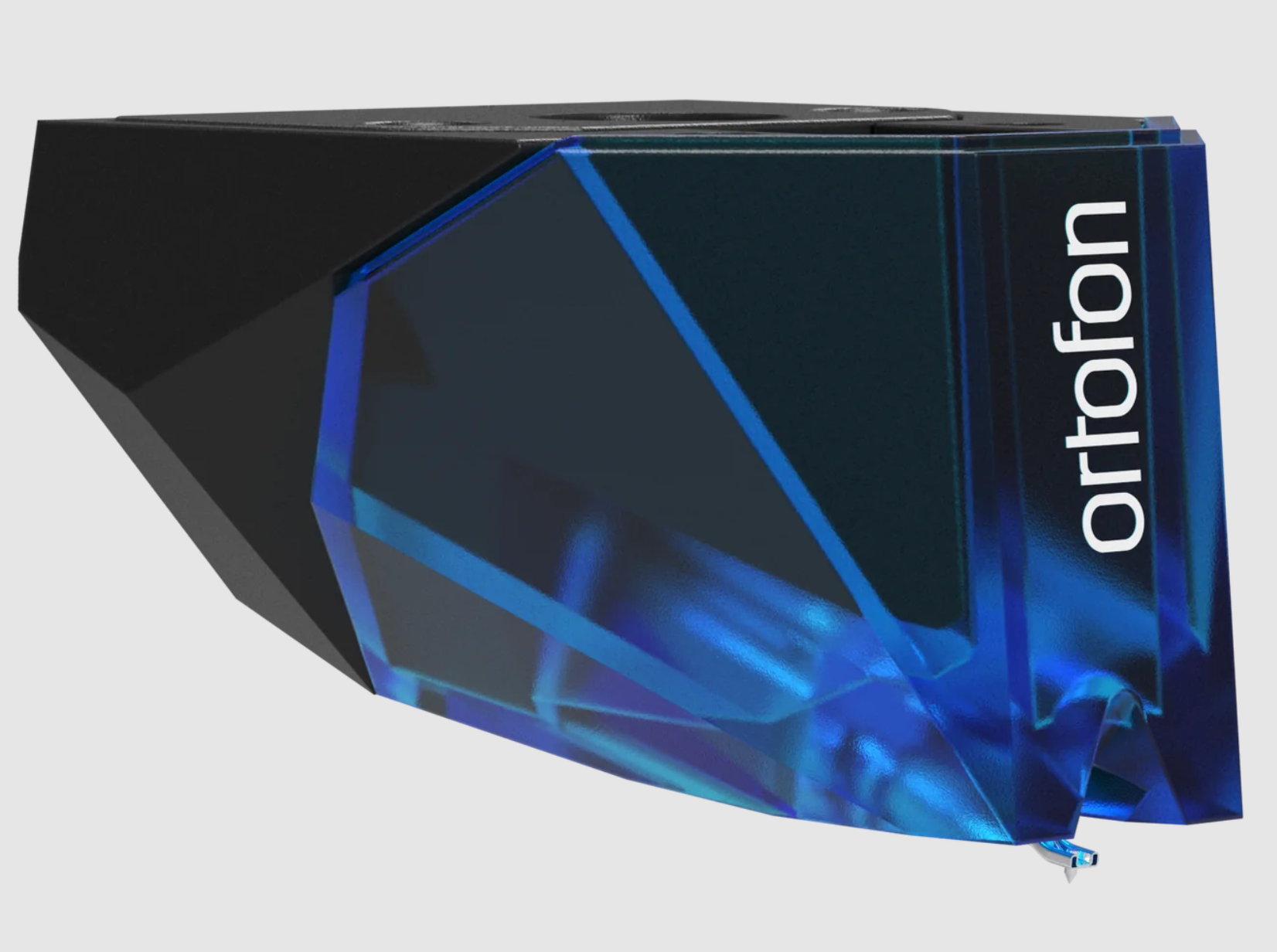

  • Ortogon 2MR blue Moving Magnet Cartridge - left side

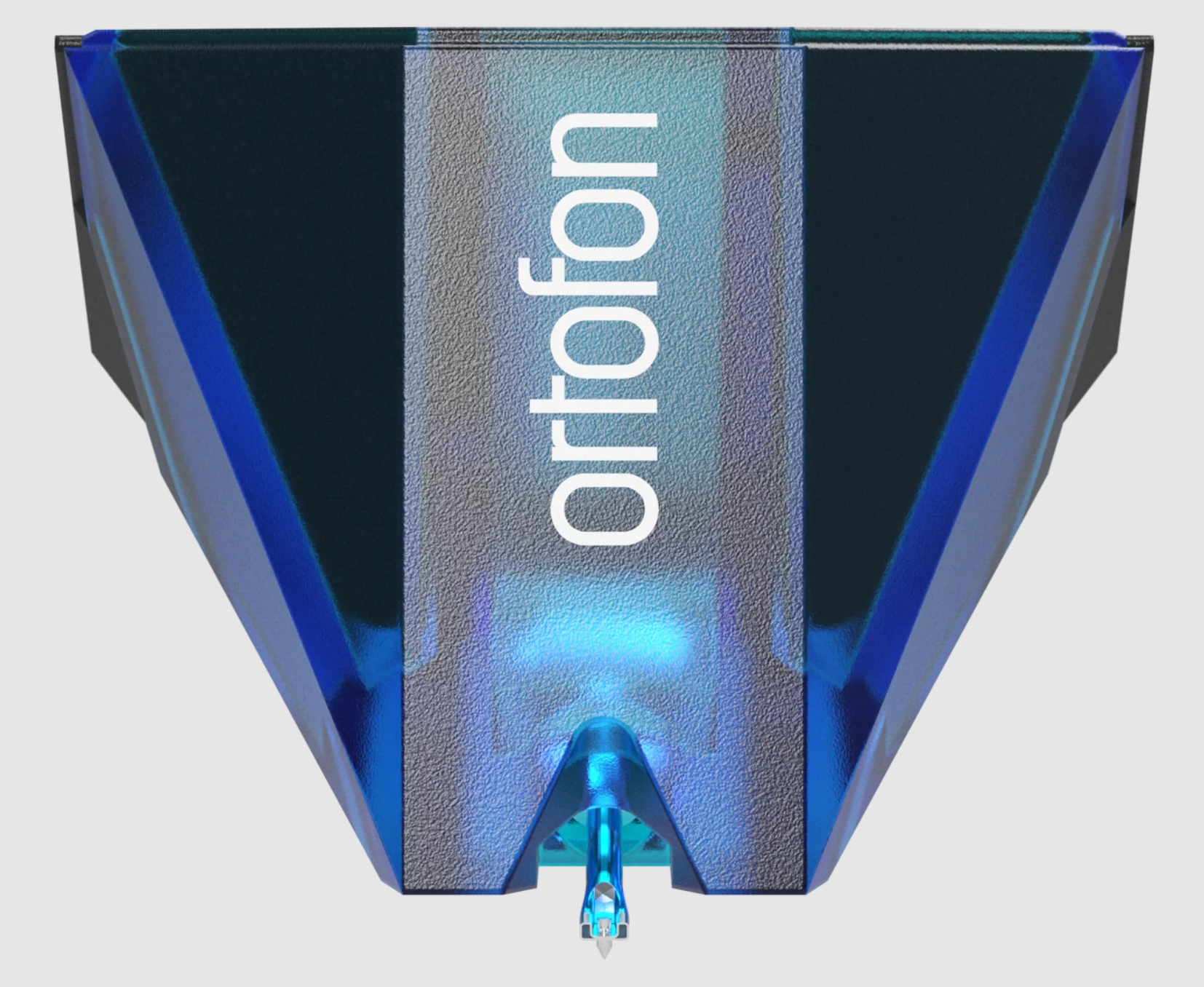

  • Ortogon 2MR blue Moving Magnet Cartridge
1 4

Ortofon 2MR Blue (suits Rega turntables) Cartridge

Ortofon 2MR Blue (suits Rega turntables) Cartridge

$296.00 AUD
$329.00 AUD $296.00 AUD
Sale Call For Availability
Tax included. Shipping calculated at checkout.
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 755 NICHOLSON ST CARLTON NORTH
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500

Ortofon 2MR Blue

For an optimised fit on low-profile turntables & perfectly suited to Rega turntables

The Ortofon 2MR series is designed with a newly developed cartridge housing for optimised fitting on low-profile turntables. With its ultra-slim 3mm height reduction, seamless integration is guaranteed. The cartridge's slimline body eliminates the need for spacers or modifications, ensuring quick, easy mounting with just two screws.

Experience unmatched compatibility with all 2M styli and revel in the high-performance motor system featuring quad coils and split pole pins, exclusive to genuine Ortofon cartridges


Accuracy level

The goal for any cartridge should be to reproduce the sound as close to the artists vision as possible, and the 2M blue takes you further on a journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Compatibility

The Ortofon 2MR series boasts a newly developed cartridge housing tailored for low-profile turntables. Its ultra-slim 3mm height reduction ensures seamless integration without the need for spacers or modifications, allowing for quick, easy mounting with just two screws.

Product Features

Newly developed low form factor cartridge housing within the famous 2M series:

  • Slimline cartridge body - Effectively eliminates the need for tonearm spacers, shims or modifications
  • 100% compatibility with the 2M styli - All Ortofon 2M styli fits on all 2MR cartridge models
  • Standard half inch mounting - Quick and easy mounting on the tonearms with just two screws
  • A complete series ranging from Mono to Premium: 2MR Red to High-end: 2MR Black LVB 250

2MR Blue:

  • Nude Shibata diamond on an aluminium cantilever with a premium Ortofon rubber damper
  • Quad coil motor system with four sliver-plated copper coils and four split pole pins
  • With 2MR Blue you get serious about vinyl

Technical Specifications

  • Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
  • Channel balance at 1 kHz - 1.5 dB
  • Channel separation at 1 kHz - 25 dB
  • Channel separation at 15 kHz - 15 dB
  • Frequency response - 20-20.000 Hz + 2 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force - 80 µm
  • Compliance, dynamic, lateral - 20 µm/mN
  • Stylus type - Nude Elliptical
  • Stylus tip radius - r/R 8/18 µm
  • Tracking force range - 1.6-2.0 g (16-20 mN)
  • Tracking force, recommended - 1.8 g (18 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 1.3 kOhm
  • Internal inductance - 700 mH
  • Recommended load resistance - 47 kOhm
  • Recommended load capacitance - 150-300 pF
  • Cartridge colour, body/stylus - Black/Blue
  • 2MR cartridge weight - 6 g
  • 2M and 2M Verso cartridges weight - 7.2 g
  • 2M Pre-mounted cartridge weight - 16.7 g

*Reprint from manufacturers website.
