Ortofon 2M Bronze Pre-Mounted on SH-4 Headshell

Ortofon 2M Bronze Pre-Mounted on SH-4 Headshell

Regular price $690.00 AUD
Regular price $769.00 AUD Sale price $690.00 AUD
Sale Call For Availability
Tax included. Shipping calculated at checkout.
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 755 NICHOLSON ST CARLTON NORTH
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500

Ortofon 2M Bronze Pre-mounted

The 2M Bronze is designed to give the music a whole new dimension of precision.

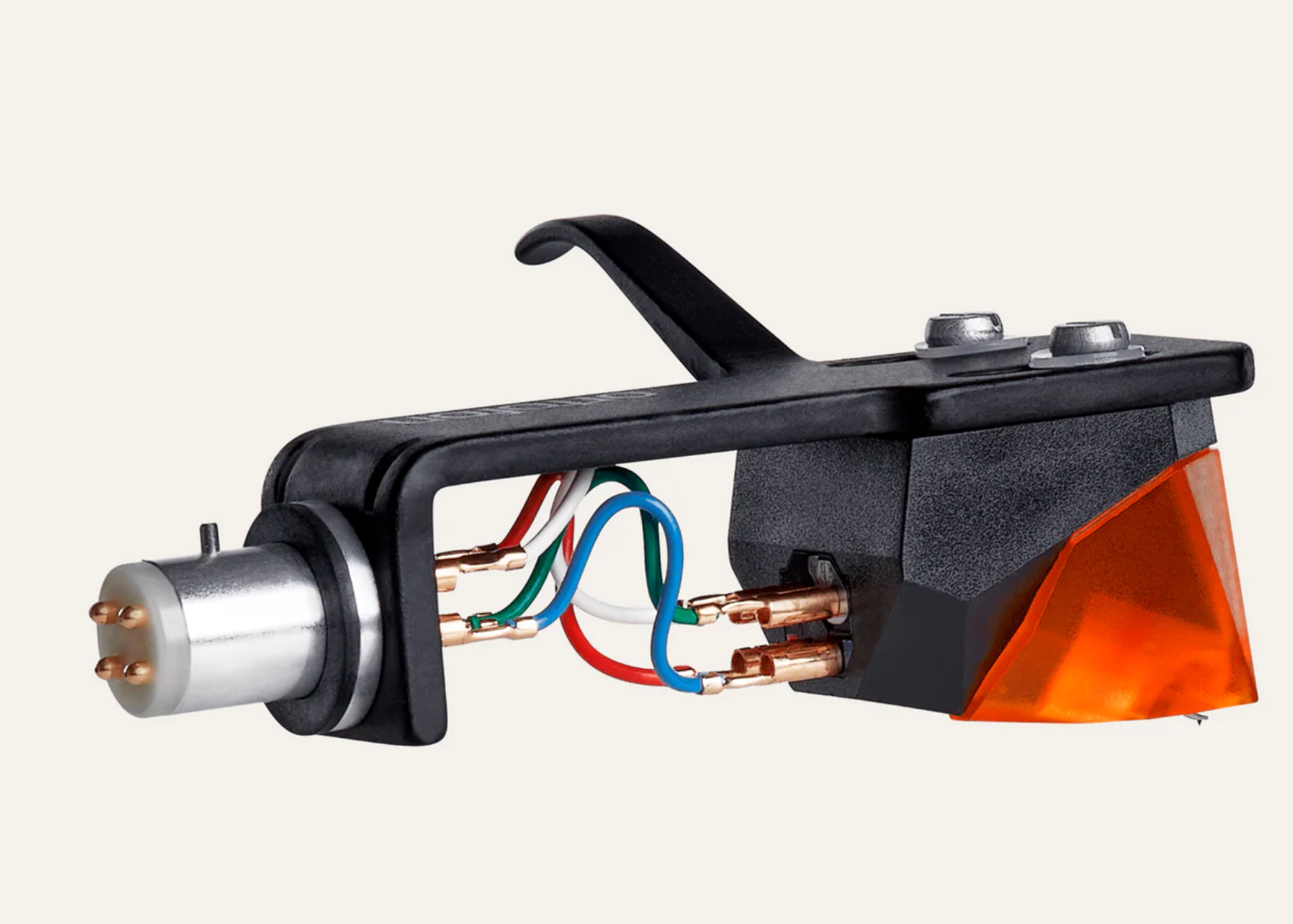

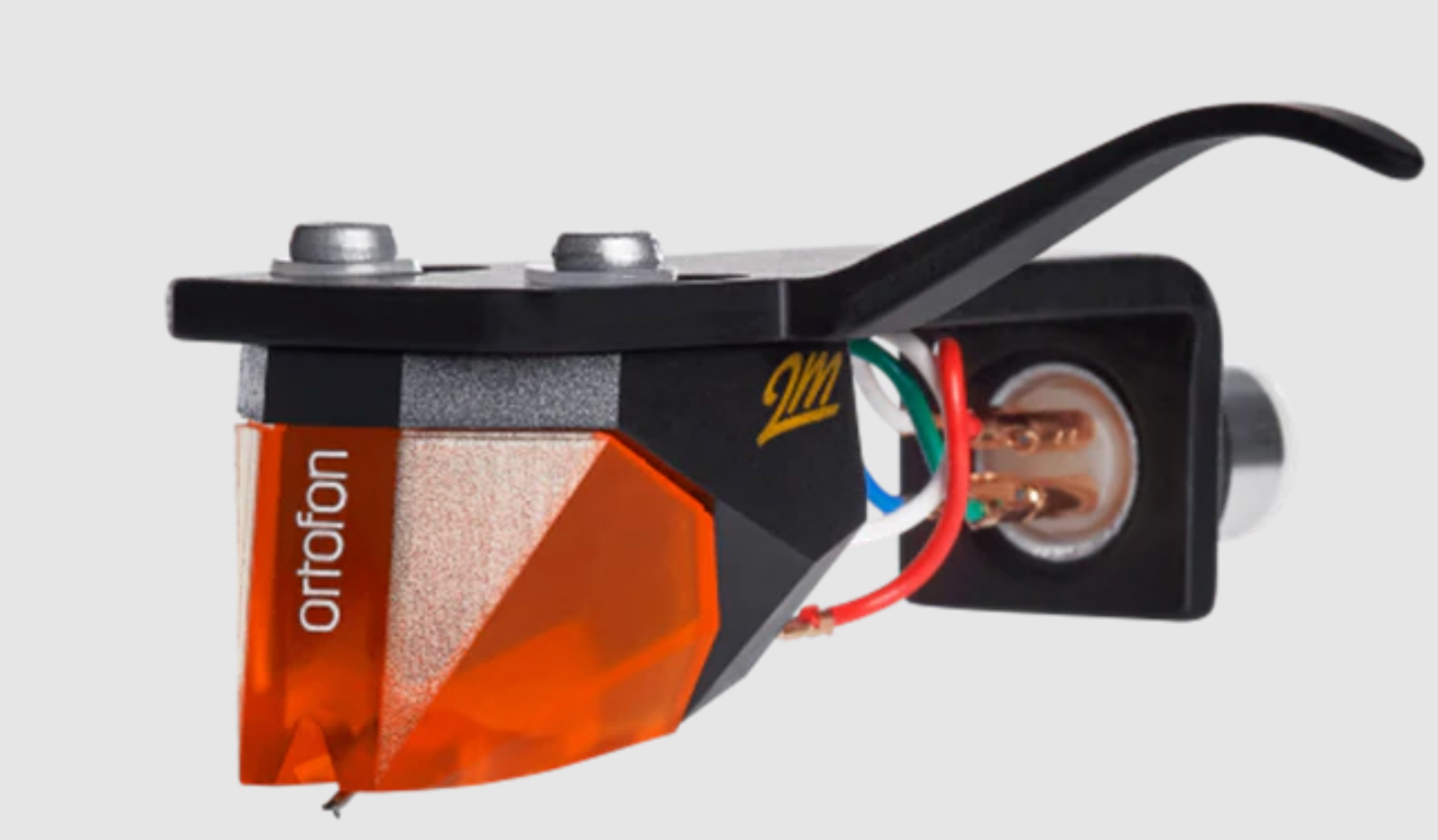

The 2M Bronze Pre-mounted is mounted on our classic SH-4 headshell. The sturdy, slim-designed SH-4 headshell offers strength and delicacy, complemented by an ergonomic, easy-to-lift finger grip. Simplify your setup while embracing quality.


Accuracy level

The 2M Bronze is designed to give the music a whole new dimension of precision. Listening to your records with this beauty is like hearing them for the first time and you get to fall in love with the songs all over. That is what hi-fi means to us, and that is what you get with the 2M Bronze.


Stylus

The 2M Bronze features a Nude Fine Line diamond particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information.

Split pole pin technology

The 2M Bronze uses a special engine with quad coils featuring Ortofon’s very own invention: split pole pins upgraded with a silver-plated copper wire.

The 2M Bronze Pre-mounted is designed for customers who wish direct and easy mounting and replacement on their S-shaped tonearm.

Product Features & Specifications

  • Output voltage at 1000 Hz, 5cm/sec. - 5 mV
  • Channel balance at 1 kHz - 1 dB
  • Channel separation at 1 kHz - 26 dB
  • Channel separation at 15 kHz - 15 dB
  • Frequency response - 20-20.000 + 2 / - 0 dB
  • Tracking ability at 315Hz at recommended tracking force - 80 µm
  • Compliance, dynamic, lateral - 22 µm/mN
  • Stylus type - Nude Fine Line
  • Stylus tip radius - r/R 8/40 µm
  • Tracking force range - 1.4-1.7 g (14-17 mN)
  • Tracking force, recommended - 1.5 g (15 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 1.2 kOhm
  • Internal inductance - 630 mH
  • Recommended load resistance - 47 kOhm
  • Recommended load capacitance - 150-300 pF
  • Cartridge colour, body/stylus - Black/Bronze
  • Cartridge weight - 7.2 g
  • Pre-mounted cartridge weight - 16.7 g

*Reprint from manufacturers website
