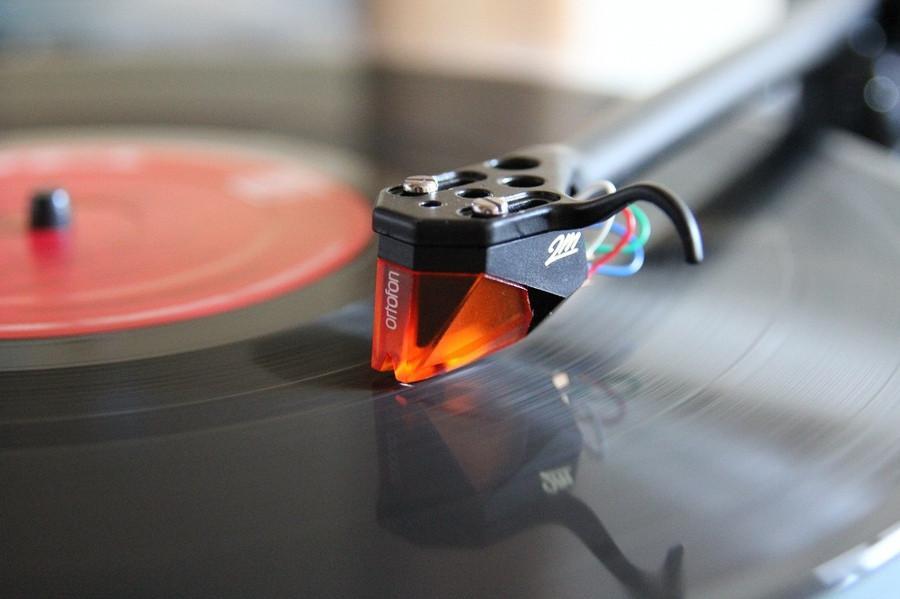

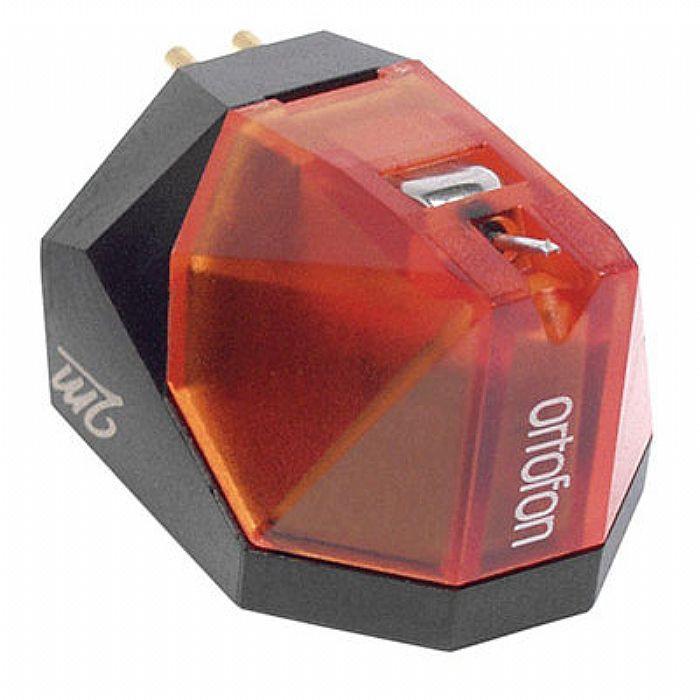

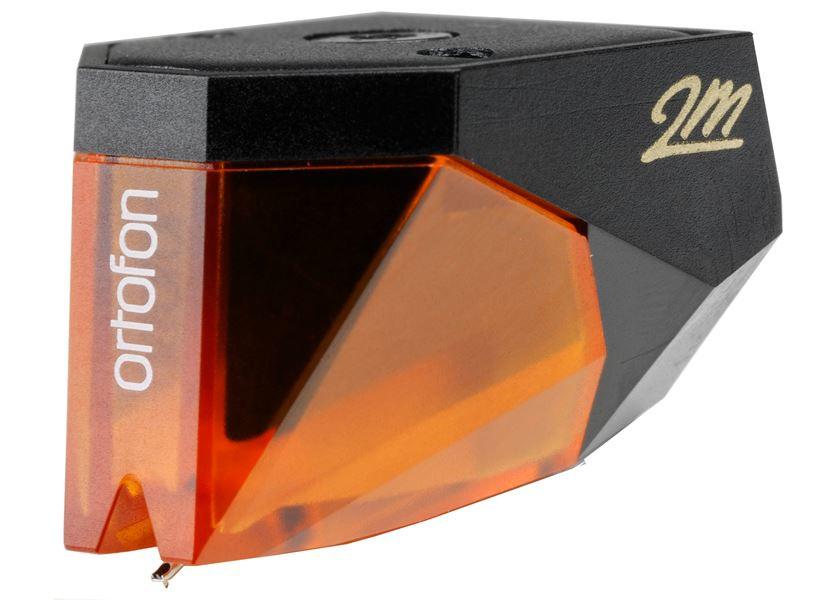

Ortofon 2M Bronze Cartridge

Ortofon

or make 4 interest-free payments of $136.25 fortnightly with Afterpay More info




2M are designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound. We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today.

The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

The 2M Bronze features a nude Fine Line diamond stylus, which is particularly suited for demanding applications.

The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.

The cartridge body used for the 2M Bronze is manufactured from a newly-developed Lexan DMX Piano Black, a revolutionary material which ensures high rigidity while eliminating unwanted resonances.

The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.



Technical data
Output voltage at 1000 Hz, 5cm/sec. 5 mV
Channel balance at 1 kHz 1 dB
Channel separation at 1 kHz 26 dB
Channel separation at 15 kHz 15 dB
Frequency range at - 3dB 20-29.000 Hz
Frequency response 20-20.000 + 2 / - 0 dB
Tracking ability at 315Hz at recommended tracking force 80 m
Compliance, dynamic, lateral 22 m/mN
Stylus type Nude Fine Line
Stylus tip radius r/R 8/40 m
Tracking force range 1,4-1,7g (14-17 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20
Internal impedance, DC resistance 1,2 kOhm
Internal inductance 630 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/Bronze
Cartridge weight 7,2 g
Replacement stylus unit 2M Bronze



*reprint form manufacturers website
