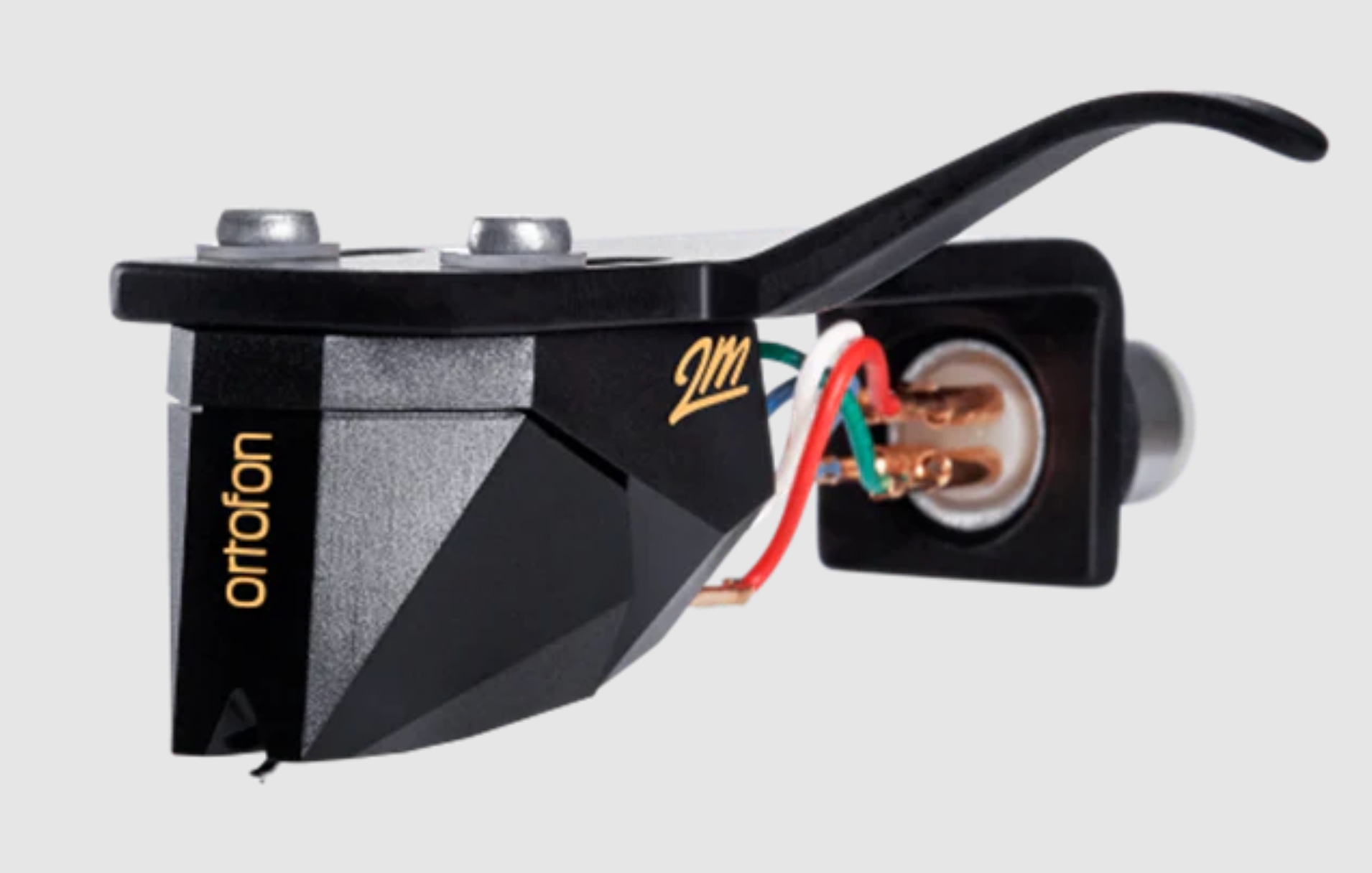

Ortofon 2M Black Pre-Mounted on SH-4 Headshell

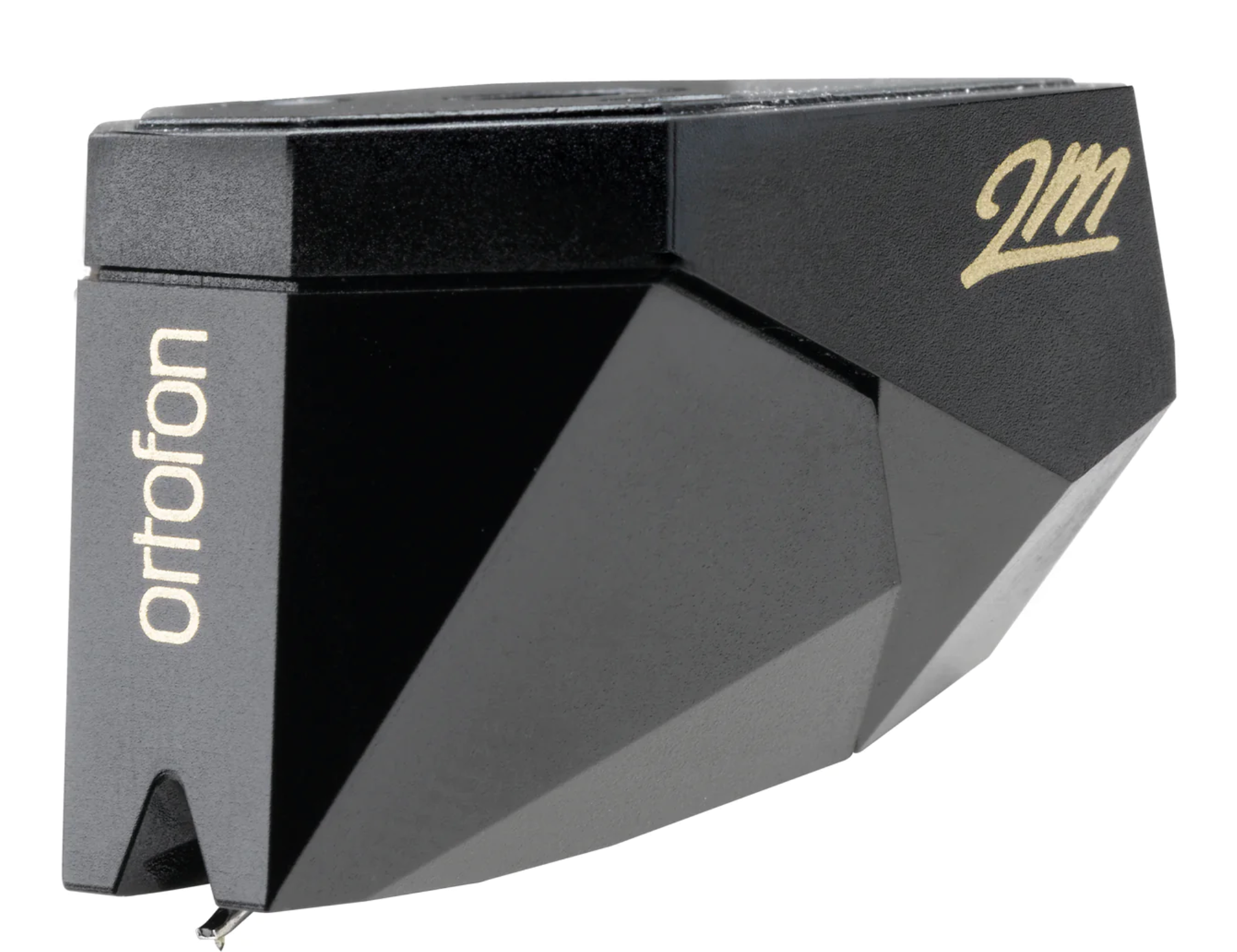

Ortofon 2M BlackCartridge

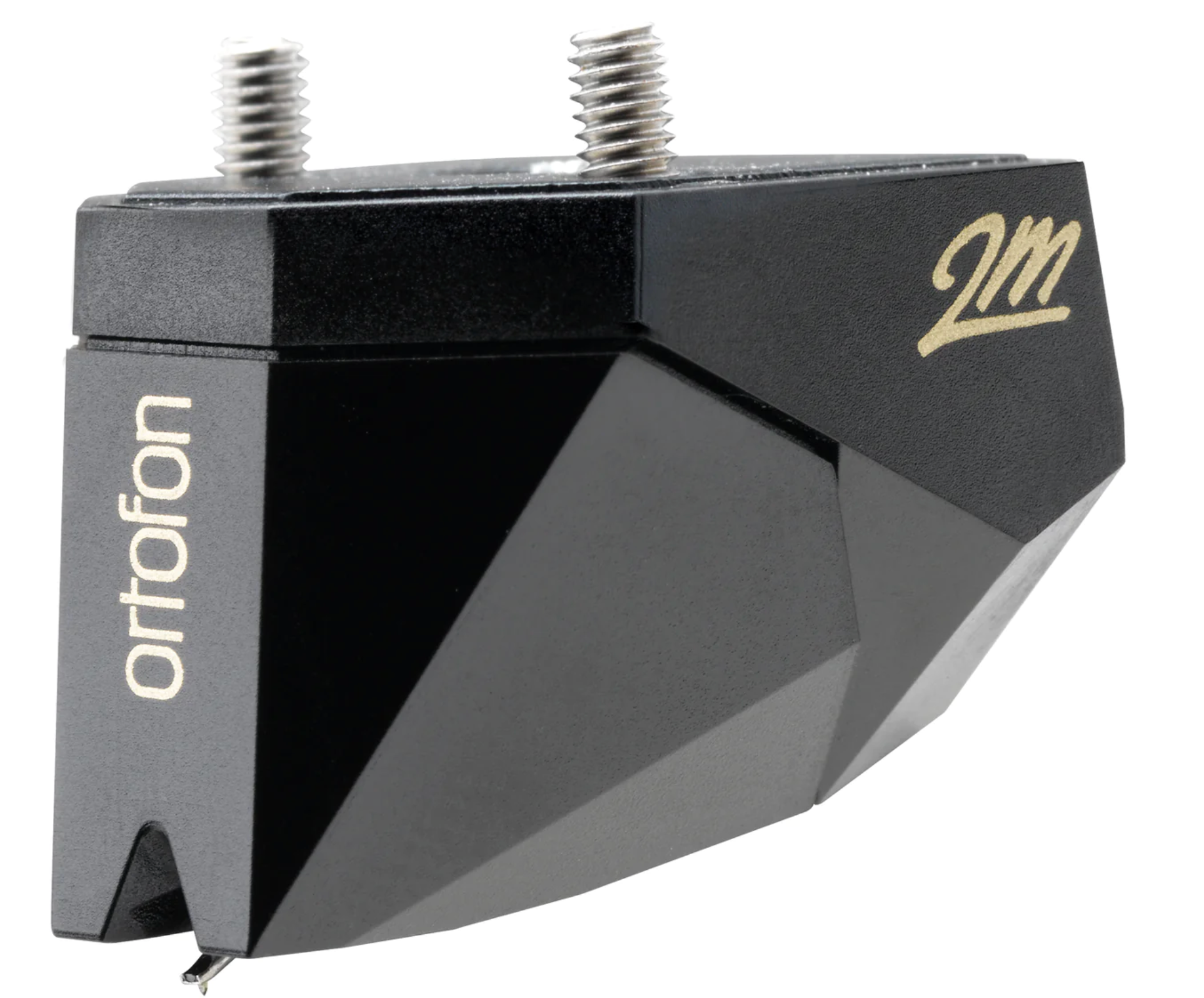

Ortofon 2M Black Cartridge with connectors visible
chevron_left
chevron_right

Ortofon 2M Black Pre-Mounted on SH-4 Headshell

Ortofon
Ortofon
$1,079.00
$1,199.00 $1,079.00
Free Pick Up at Vinyl Revival Carlton North — (753-755 Nicholson Street, Carlton North)

Usually ready in 2-4 days —

Free delivery (Conditions may apply) — on orders over $500!
Secure checkout  with American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Ortofon 2M Black Pre-Mounted on SH-4 Headshell

Ortofon 2M Black Pre-Mounted on SH-4 Headshell

$1,079.00
$1,199.00 $1,079.00

Ortofon 2M Black Pre-mounted

The 2M Black is the flagship of the series and it lives up to this with flying colours.

You can hear every little detail in the music from every part of the spectrum. Just the way the artist wanted you to. The 2M Black is mounted on our classic SH-4 headshell. The sturdy, slim-designed SH-4 headshell offers strength and delicacy, complemented by an ergonomic, easy-to-lift finger grip. Simplify your setup while embracing quality.

Accuracy level

With the 2M Black, you will not only hear the music, but you will sense the presence of the artist in the room while listening to your favourite records.

Stylus

The 2M Black is graced with a Shibata diamond that gives it contact with the groove like nothing else. The slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information.

Product Features & Specifications

  • Output voltage at 1000 Hz, 5cm/sec. - 5 mV
  • Channel balance at 1 kHz - 1 dB
  • Channel separation at 1 kHz - 26 dB
  • Channel separation at 15 kHz - 15 dB
  • Frequency response - 20-20.000 + 2 / - 0 dB
  • Tracking ability at 315Hz at recommended tracking force - 80 µm
  • Compliance, dynamic, lateral - 22 µm/mN
  • Stylus type - Nude Shibata
  • Stylus tip radius - r/R 6/50 µm
  • Tracking force range - 1.4-1.7 g (14-17 mN)
  • Tracking force, recommended - 1.5 g (15 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 1.2 kOhm
  • Internal inductance - 630 mH
  • Recommended load resistance - 47 kOhm
  • Recommended load capacitance - 150-300 pF
  • Cartridge colour, body/stylus - Black/Black
  • Cartridge weight - 7.2 g
  • Pre-mounted cartridge weight - 16.7 g

*Reprint from manufacturers website
