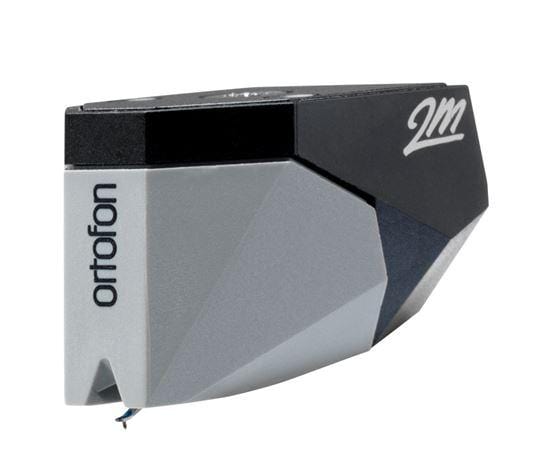

Ortofon 2M 78 Cartridge
or make 4 interest-free payments of $40.50 fortnightly with More info
The new Ortofon 2M 78 Series - the true MONO from Ortofon!
The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound.
The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.
The 2M series of cartridges feature Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.
We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.
The 2M 78 Series features:
- An improved engine, which provides a high level of sonic accuracy
- Spherical diamond that is perfect for playback of 78 rpm shellac records, which require a larger stylus profile
- 2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system
Technical data 2M 78 / 2M 78 Verso
|Output voltage at 1000 Hz, 5cm/sec.||4 mV|
|Channel balance at 1 kHz||-|
|Channel separation at 1 kHz||-|
|Channel separation at 15 kHz||-|
|Frequency range at - 3dB||20-20.000 Hz|
|Frequency response||20-20.000 Hz + 3 / - 1 dB|
|Tracking ability at 315Hz at recommended tracking force||70 m|
|Compliance, dynamic, lateral||18 m/mN|
|Stylus tip radius||R 65 m|
|Tracking force range||1,6-2,0g (16-20 mN)|
|Tracking force, recommended||1,8 g (18 mN)|
|Internal impedance, DC resistance||700 Ohm|
|Internal inductance||300 mH|
|Recommended load resistance||47 kOhm|
|Recommended load capacitance||150-300 pF|
|Cartridge colour, body/stylus||Black/Grey|
|Cartridge weight without screws||7,2 g|
|Replacement stylus unit||2M 78|
|Stylus protection guard||2M 78|
*reprint form manufacturers website
