Monitor Audio Platinum 3G In-Wall Speaker
The Epitome of Presicion Engineering and Design Elegance
Platinum In-Wall 3G is Monitor Audio’s flagship high-performance, architectural, in-wall speaker.
It has been designed for use in high-end audio and movie systems, where accurate, clear and lifelike sound is required, with the minimum of room intrusion but with maximum scale and sonic impact.

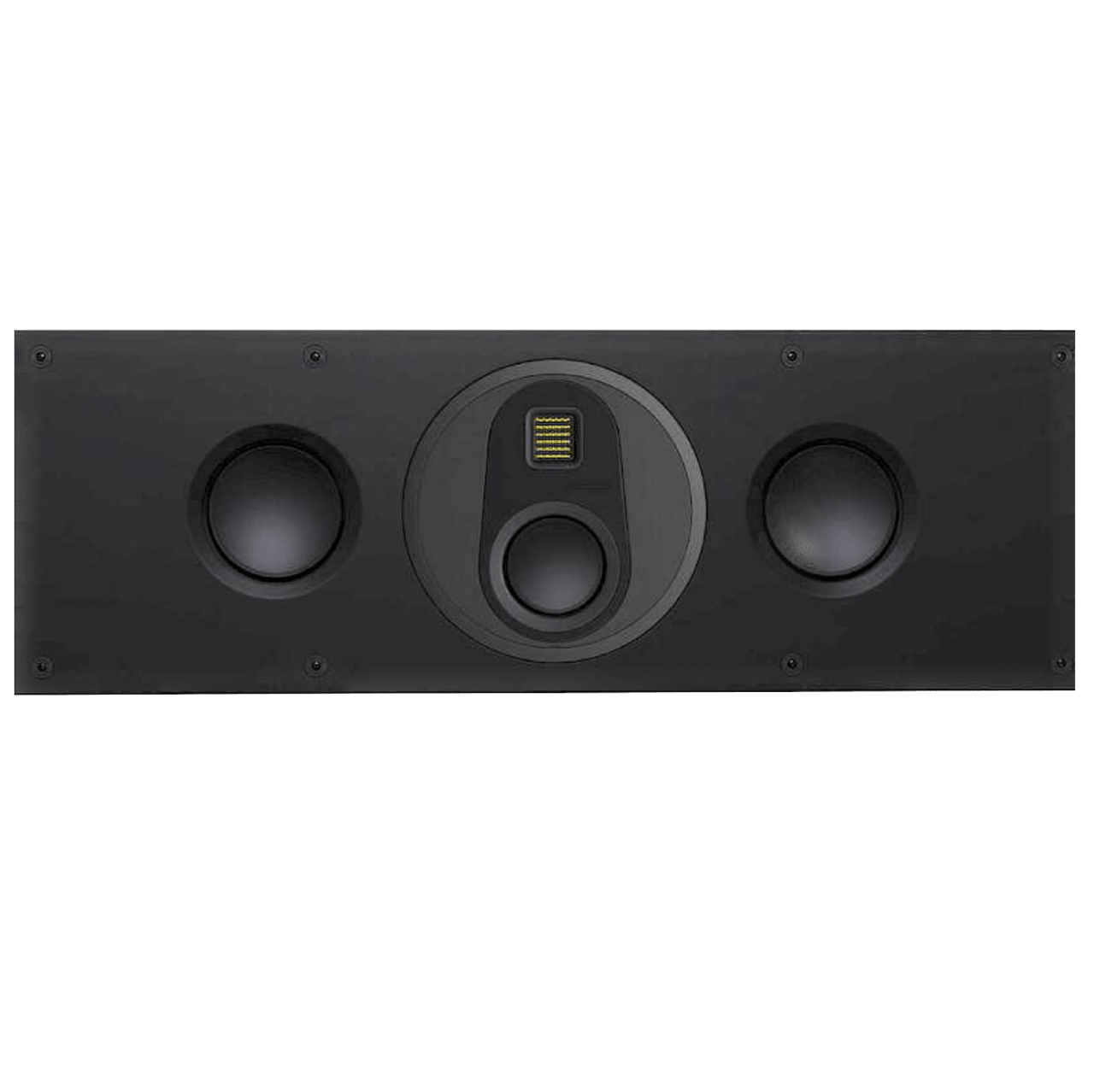

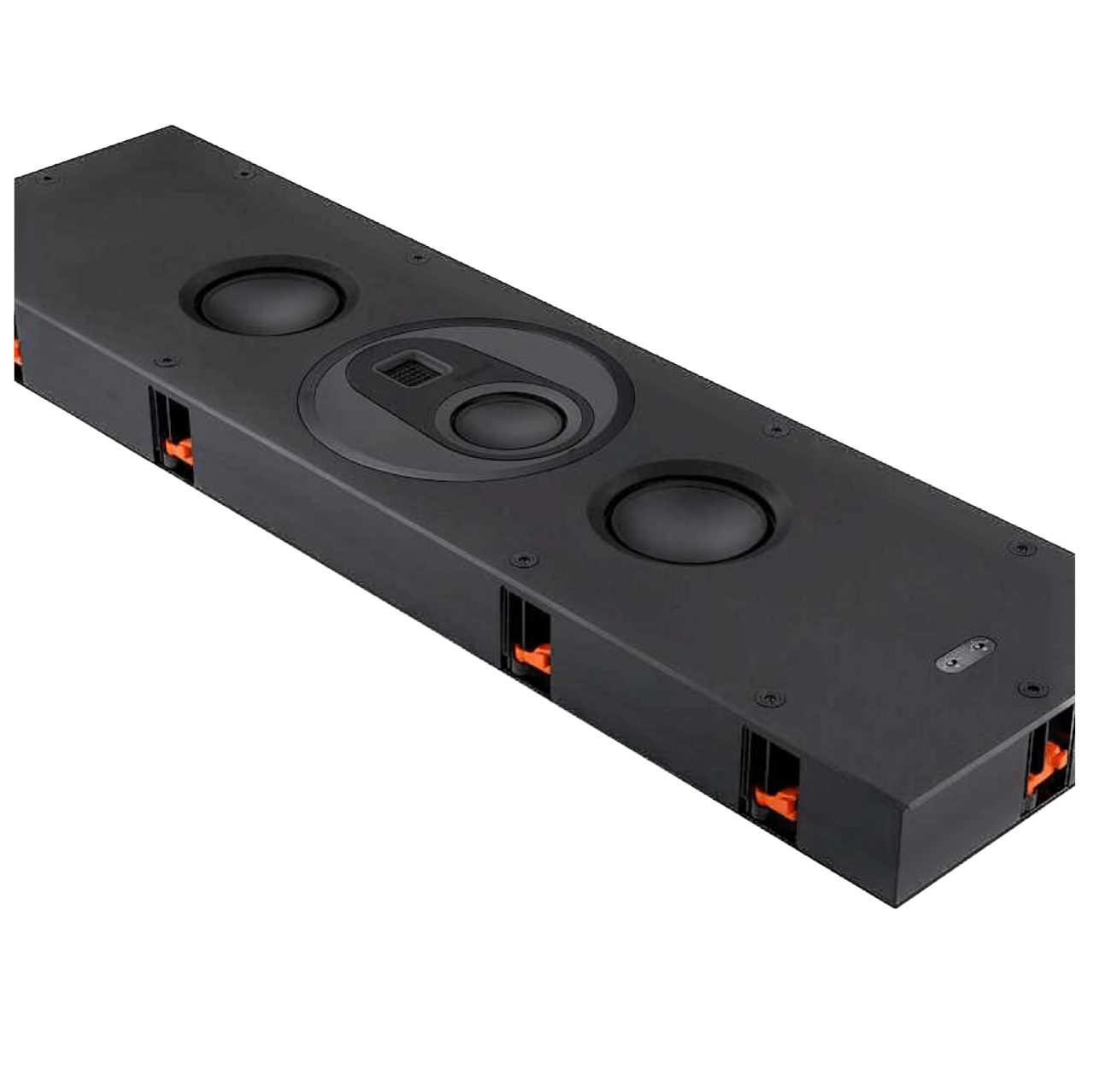

THe Platinum In-Wall 3G can be installed either vertically or horizontally, which means it can be used on any channel within a system and is ideal for LCR applications and for seamless tonal accuracy within a theatre system.
Platinum Series has always represented Monitor Audio’s engineering and design prowess and the 3rd generation is no exception. The UK-based design team worked closely with acoustic engineers to deliver an aesthetic that celebrates the high-performance components without overpowering its surroundings.
The cabinet design on Platinum Series 3G is all new. Beautifully detailed and expertly crafted, our industry-leading attention to detail and passion for quality ensures that each cabinet is elegant and refined on the eyes, while being engineered for total acoustic performance.
Constructed using laminated layers of MDF to form a curved and braced super rigid 18-21mm cabinet on the rear with a 36mm thick baffle precision machined to create a unique curved front profile. The cabinets are then embellished with etched inlays to highlight the craftsmanship, before 16 layers of lacquer are added on top to create a beautiful, luxury piano gloss finish. A pure satin matte finish is applied to models finished in white - a contemporary statement in any interior.
Platinum Series 3G builds on two generations of loudspeaker design, which has consistently evolved at each step. We have introduced a ground-up new MPD III transducer, developed for the ‘Concept 50’ speaker, which improves on every aspect, as well as improvements to the mid and bass driver cones called RDT III - a further significant development in driver technology.

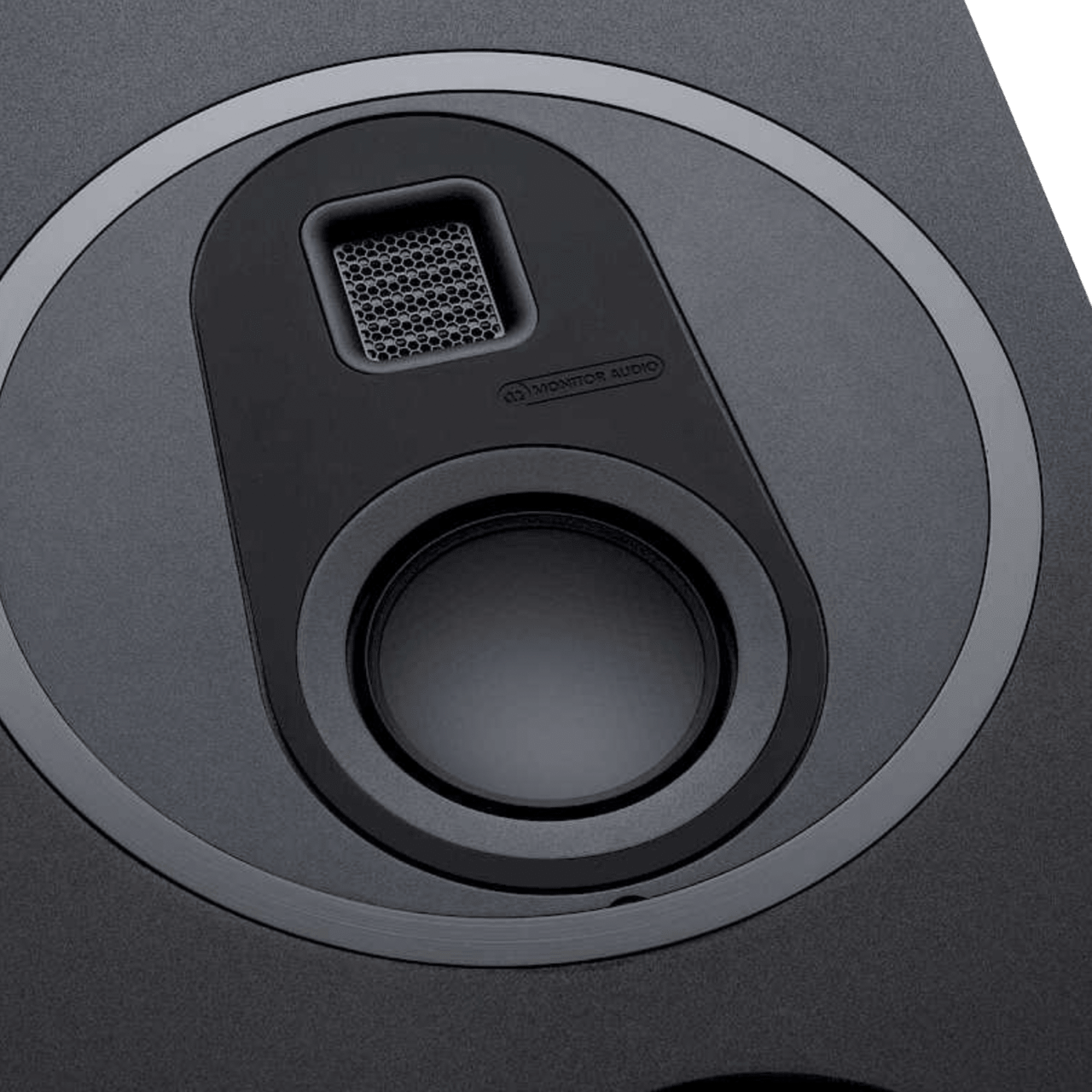

New MPD III high frequency transducer. The improvements help to reduce distortion and flatten the frequency response leading to a clear and consistent sound across all your music.
The Rigid Diaphragm Technology III (RDT III) cone has three new optimisations over its predecessor. Firstly, a new rear layer featuring two uniform layers of carbon fibre skin helps reduce cone breakup, as does an optimised rubber surround. Finally, an optimised cone edge treatment extends the passband of the drivers.
When combined, these innovations significantly increase the useable bandwidth, enabling improvements to the crossover and final response of the speaker. The result: Platinum 3G mid and bass drivers boast the lowest distortion of any Monitor Audio speaker in its history.
Platinum series has always represented Monitor Audio’s engineering and design prowess and the 3rd generation is no exception. Our UK based design team have worked closely with the acoustic team to deliver an aesthetic which celebrates the performance components without overpowering its surroundings.
The drivers on the Platinum Series 3G are held in place with individually cast aluminium frames, creating two layers of isolation between the driver chassis and the cabinet.
System Format
3-Way
Sensitivity (2.83 V @ 1 m)
88 dB (free-field)
Continuous Power Handling (RMS into 4 Ohms, Pink Noise with 6dB Crest Factor)
300 W
Port Tuning Frequency
N/A
Frequency Response (-6 dB)
41 – 60 kHz (Free Field)
27 – 60 kHz (in room)
Nominal Impedance
4 Ohms
Minimum Impedance
4.1 Ohms @ 1.6 kHz
Continuous Power Handling (RMS into 4 Ohms, Pink Noise with 6dB Crest Factor)
300 W
Recommended Amplifier Power (RMS into 4 Ohm, Music Signal)
150 - 600 W
Crossover Frequency
LF/MF: 825 Hz
MF/HF: 3 kHz
Sealed
Drive Unit Complement
2 x 6" RDT III bass driver
1 x 4" RDT III mid-range driver
1 x MPD III Tweeter
External Dimensions including Grille and Terminals (H x W x D)
1207 x 332 x 105.5 mm
Cut Out Dimensions (H x W x D)
1175 x 300 x 97.5 mm
Weight
27.7 kg
Warranty
Lifetime
*This information has been obtained from the manufacturer's website. We advise that features & specifications are subject to change without notice.
