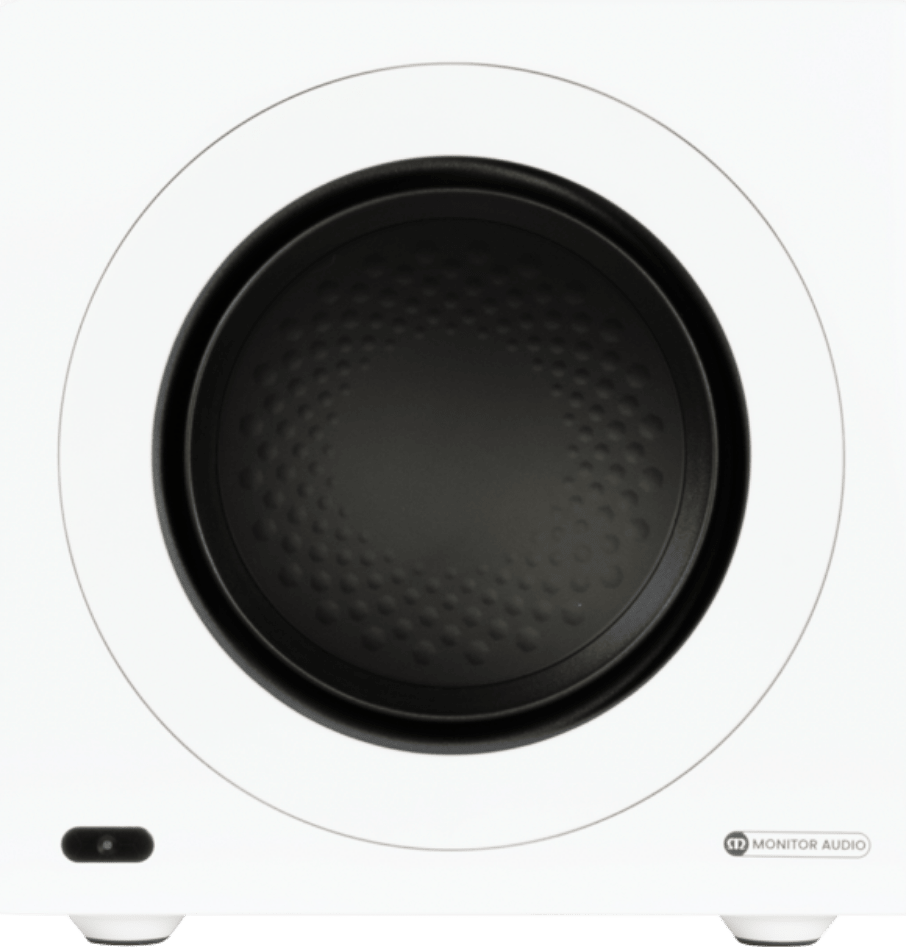

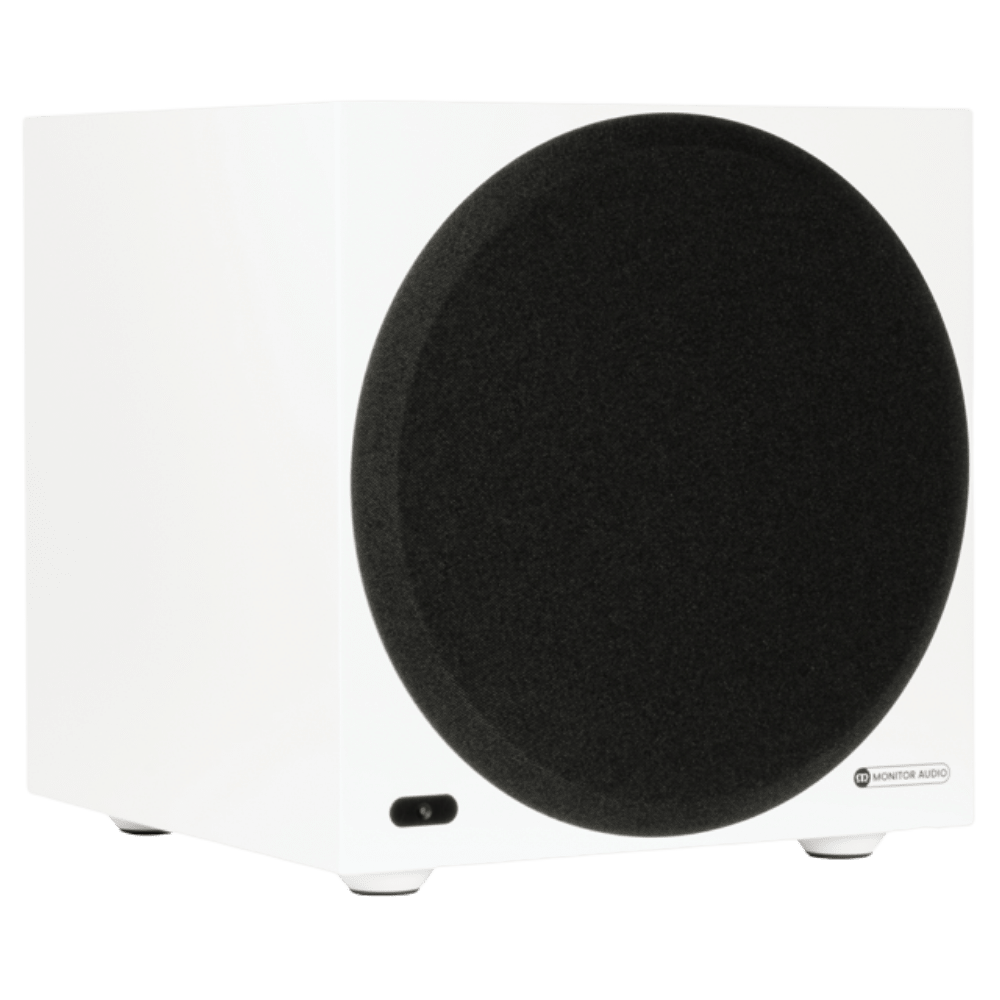

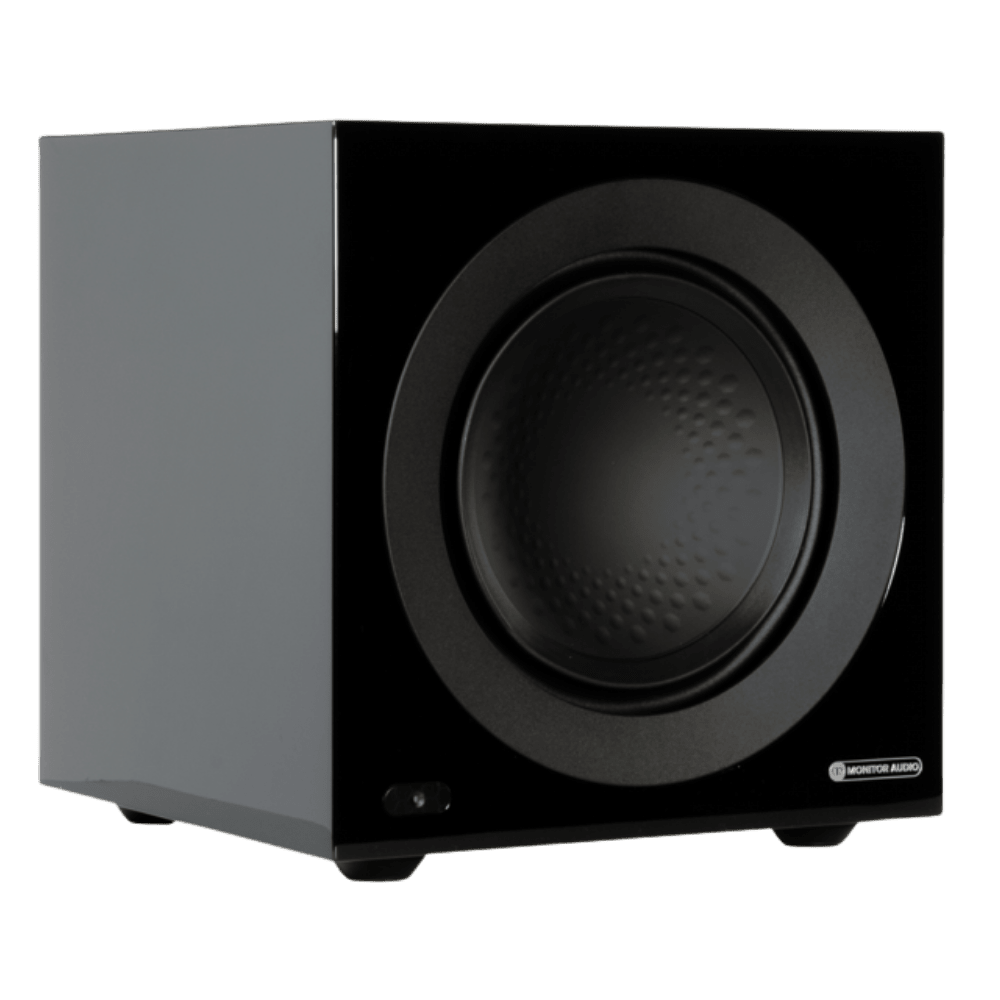

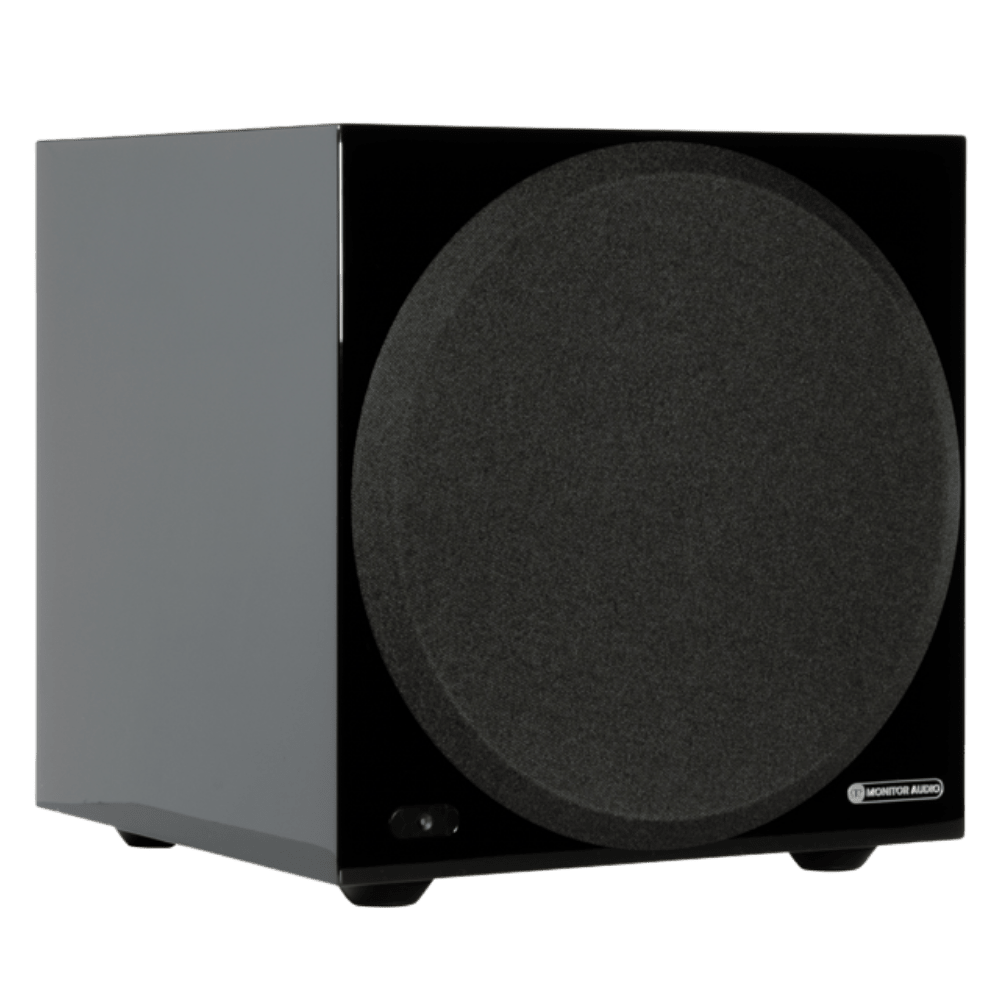

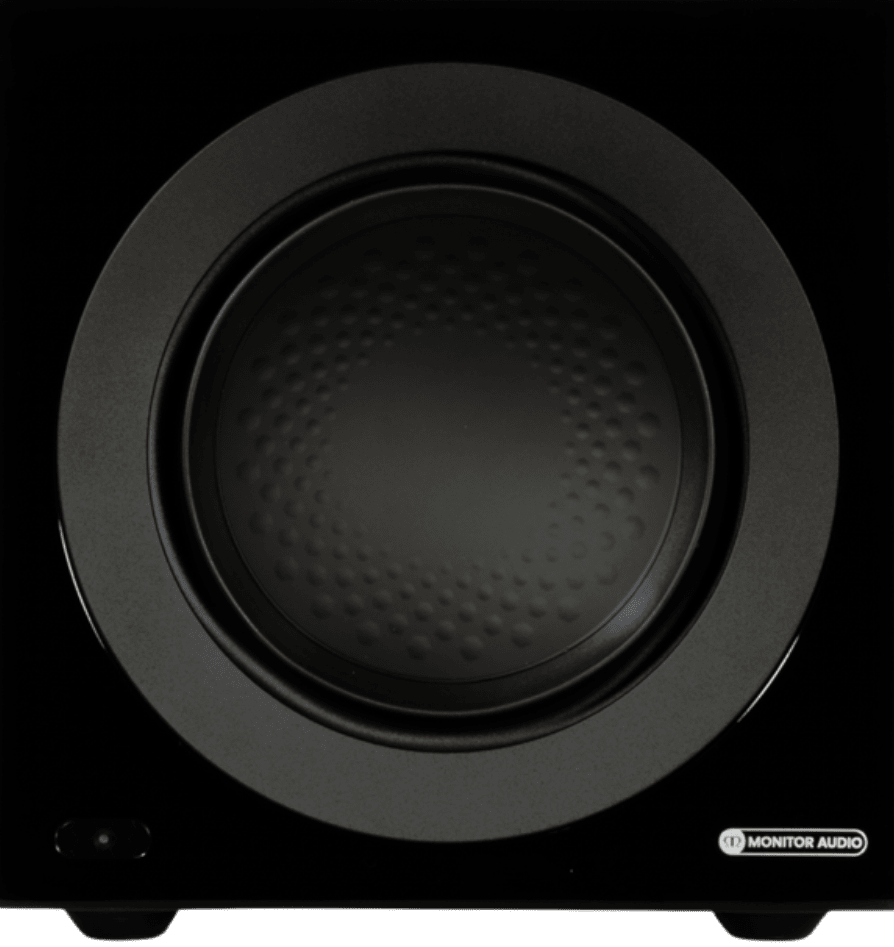

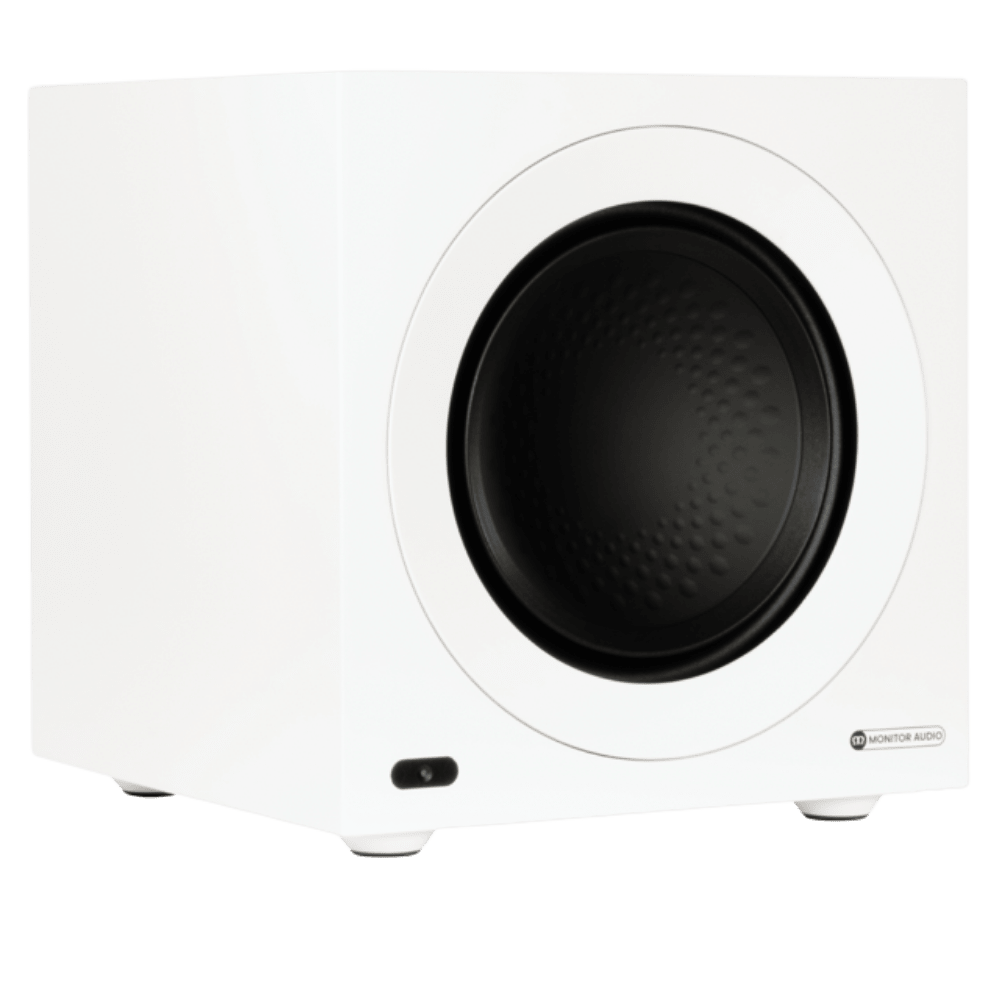

Monitor Audio Anthra W10 Subwoofer
Deep, controlled Bass. Simply.
Engineered to deliver deep, agile bass in small to mid-sized spaces, the Anthra W10 subwoofer features a 500 Watt Class-D amplifier driving a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W10 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

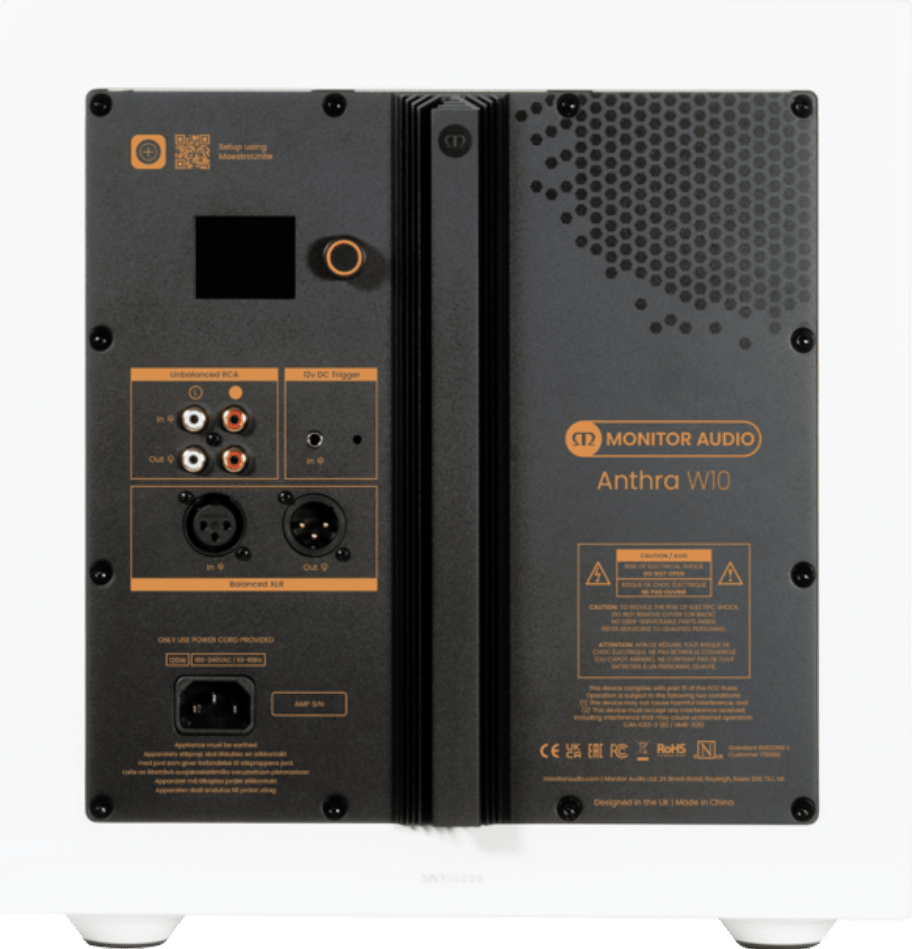

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.
The Monitor Audio Anthra Series is a premium range of high-performance subwoofers designed for both home cinema and high-fidelity music systems.
This stunning lineup includes the Anthra W10, W12, and W15 models, featuring powerful Class-D amplification, rigid C-CAM drivers with RST II technology and sealed cabinet designs engineered for deep, fast, and highly controlled bass response.
The series also incorporates advanced DSP tuning and the MaestroUnite app for intuitive setup and multi-subwoofer integration.
With a focus on musicality, precision, and clean low-frequency performance, the Anthra range is aimed at enthusiasts seeking reference-grade bass without sacrificing design or usability.
System Format
Active – Sealed Cabinet
Drive Unit Complement
1x 10" (254 mm) High Linear-Excusion Triple Suspension Driver
Amplifier Classification
High-Efficiency Class-D
Lower Frequency Limit
-6dB @17Hz
Upper Frequency Limit
(LPF Off) -6dB @400Hz
Driver Excursion (pk-pk)
50 mm
DSP
28 Bit 50 MIPS Configuratable through MaestroUnite
Analogue Digital Conversion
Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
Amplifier Output Power, 240Vac
Instantaneous: 500 W*
Continuous short-term: 425 W**
Amplifier Output Power, 120Vac
Instantaneous: 450 W
Continuous short-term: 390 W
LED UI Control
Brightness, On-Off
Phase Control
0-360 Degrees measured at LPF Crossover
Low Pass Filter
20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
Custom EQ
Configurable through MaestroUnite; 3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
Volume Level
Wide adjustable input gain to allow maximum output from a wide range of input signals
Inputs
Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)
Mono/LFE Balanced XLR
Outputs
Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input
Mains Input Voltage
Universal Mains, 85-265VAC
External Dimensions (without feet) (HxWxD)
321 x 321 x 321 mm
Power Consumption
120 W
Cabinet Construction
Braced 18 mm thick MDF with 36 mm front baffle
Grille
Cloth covered magnetically attached Grilles
Weight
20.06 kg (44 lb 1 oz)
Maximum RMS Output
Maximum RMS output for an instantaneous signal
Continuous Output Note
** Sinewave for 10 seconds
Warranty
5 years
*This information has been obtained from the manufacturer's website. We advise that features & specifications are subject to change without notice.
E&OE
