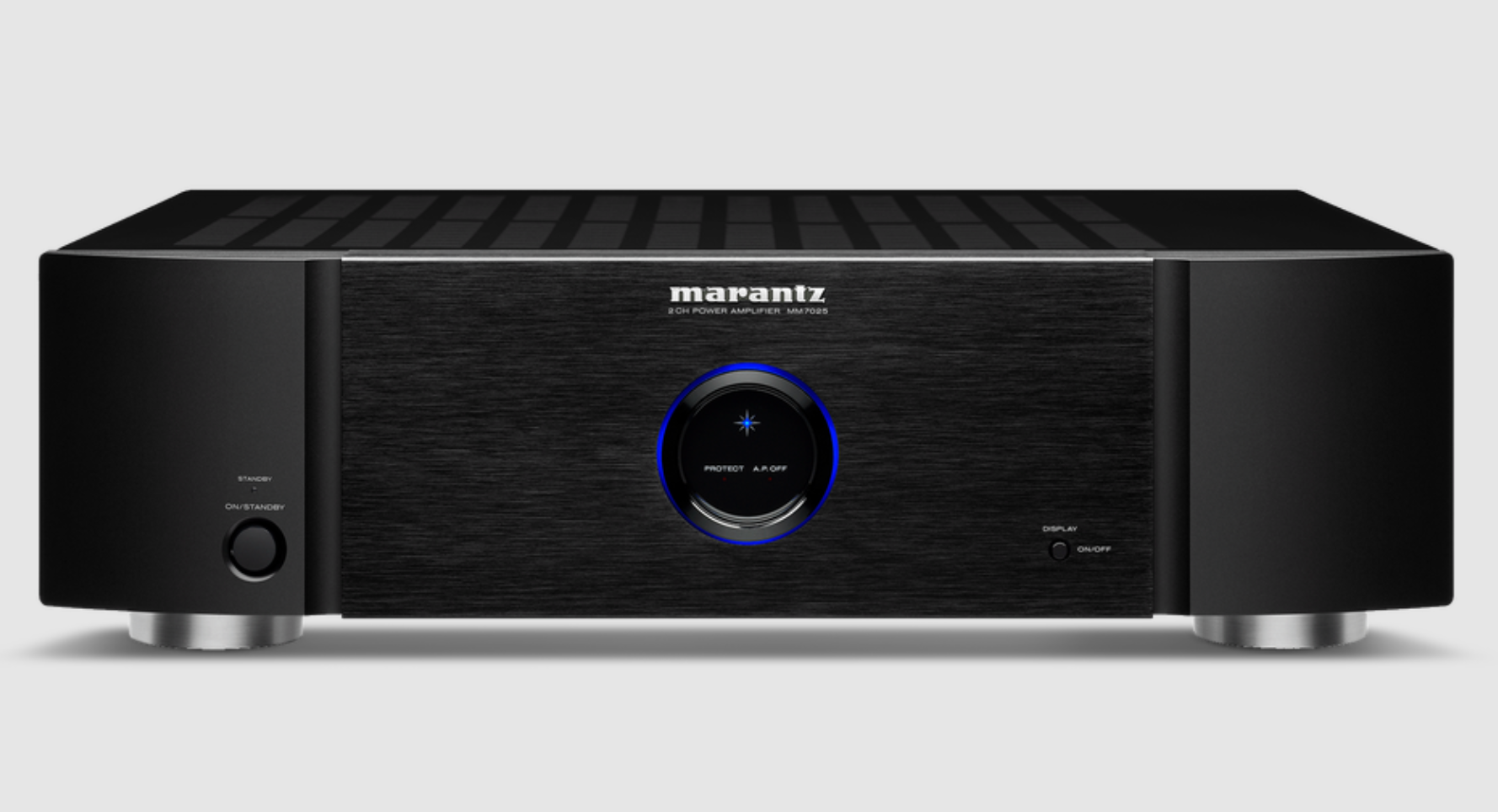

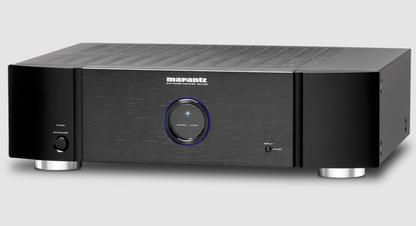

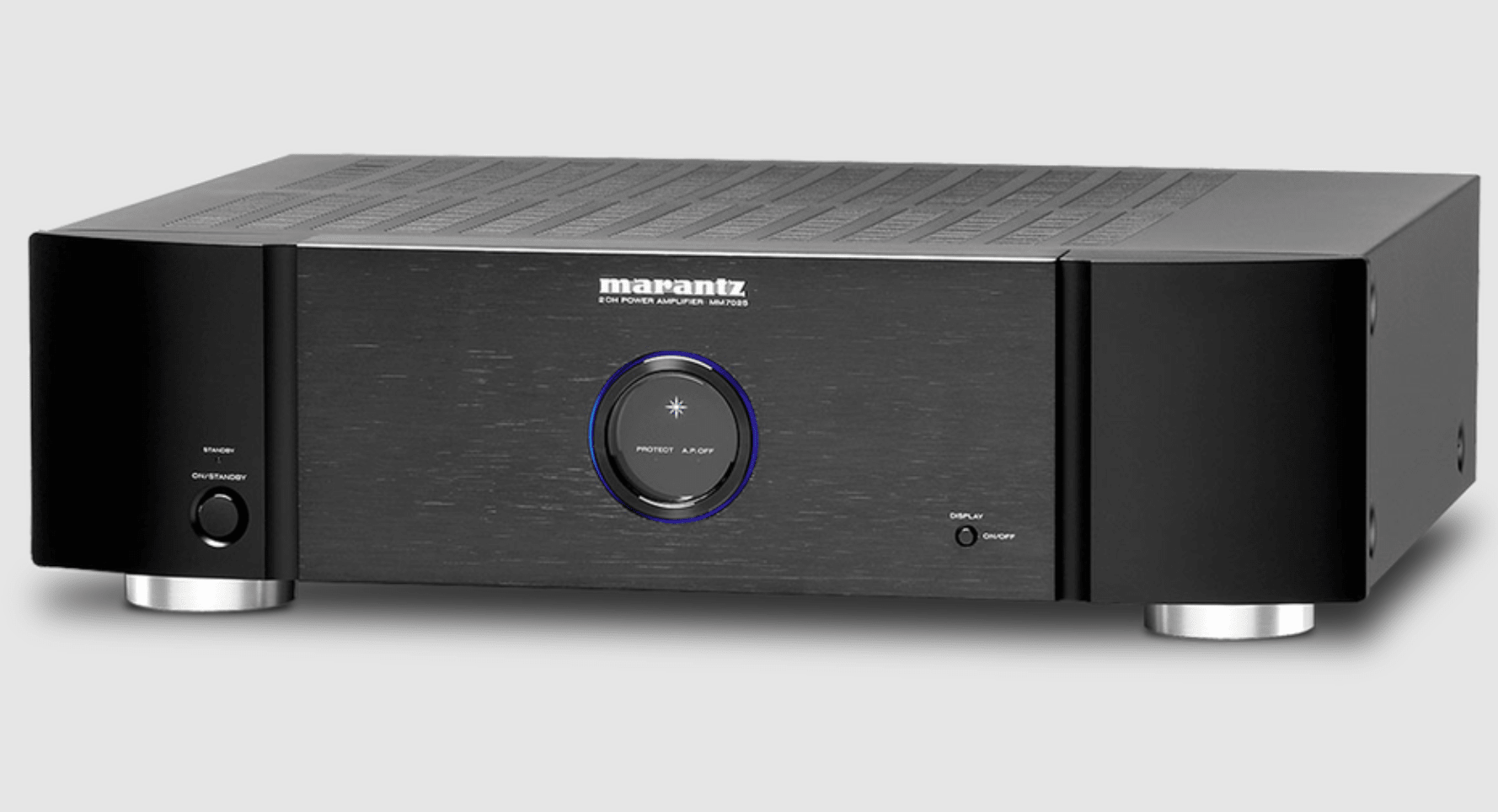

Meet the Marantz MM7025
2-CHANNEL POWER AMPLIFIER
The MM7025 is the ideal two-channel main amplifier with a whopping 140W RMS into 8 ohms per channel.
Use it in an AV setup to give your front channels an earth-moving boost or simply to make a sensational upgrade to an existing stereo system. And, because the technology is the same as that in the MM7055 and MM8003, using them in combination is fast, efficient and friendly. Its a great flexible customisation enabler. And, as with the big brother MM7055, it also includes a new stylish display, XLR inputs, DC triggers and Marantz bus.
Product Features
- 2 channel power amplifier
- Porthole Display with Blue Illumination Accent
- 140W/ch (8 ohms), 170W( 6 ohms) RMS Power (20Hz-20kHz)
- RCA and balanced XLR inputs
- “Current Feedback” Amplifier Output Stage
- Custom Sound Tuning
- Marantz Reference-Grade Filter Capacitors and High-Speed Output Transistors
- Gold Plated, High Grade Loudspeaker Terminals
- Flasher Input/DC Trigger In/Out /RC-5 Remote Control
Technical Specifications
Channels
2
Current Feedback Topology
Yes
Power Transformer
El
High-Grade Audio Components
Yes
Customised Components
Yes
Aluminium extrusion heatsink
Yes
Rated power output
140 W/ch, 8 Ω
(from 20 Hz to 20 kHz, two channels driven)
170 W/ch, 6 Ω
Maximum effective output power
210 W/ch, 6 Ω
Frequency Response
8Hz-100kHz
Total Harmonic Distortion
0.03%
Damping Factor
100dB
Input Sensitivity
High level - 1.2V/22kohm
Balanced High level -2.4V/30kohm
Signal to Noise Ratio
High level - 105dB
OTHER
Linear Drive Power Supply
Yes
Input Buffer Amp
All inputs

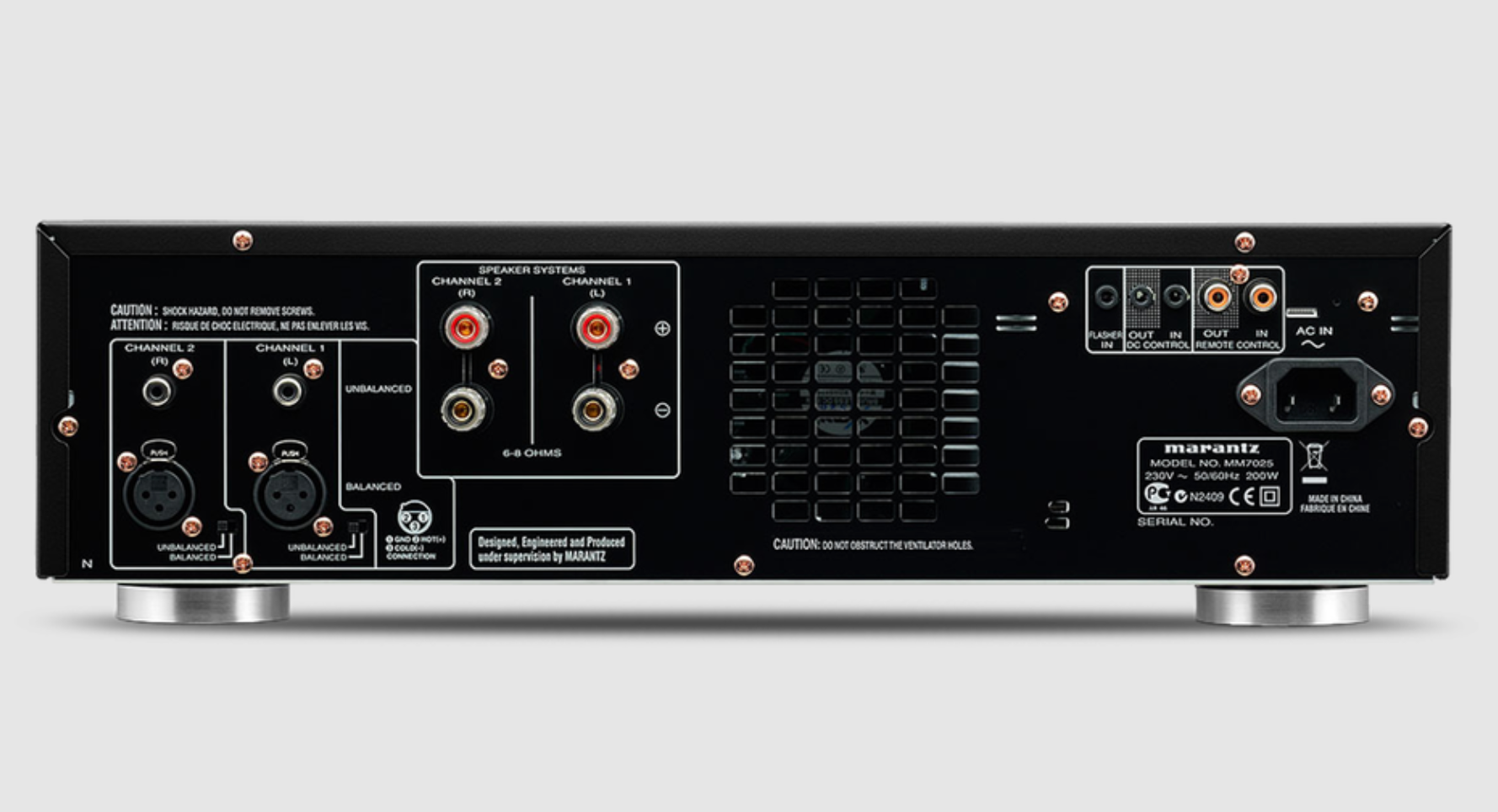

INPUTS/OUTPUTS
Balanced In/Out
2 / 0
Pre-Out/Main In
0 / 2
Power Amp Direct In
Yes
Speaker terminal
Screw
Number of terminals
2
Marantz remote bus
Yes
Remote power control (Trigger In/Out)
Yes
Flasher In
Yes
GENERAL
Colour
Black
Metal Front Panel
Yes
Power Consumption
220W
Standby Consumption
0.4W
Auto Power off
Yes
Detachable Power Cable
Yes
Maximum Dimensions (W x D x H)
440 x 350 x 126 mm
Weight
10.8kg
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.
E&OE
