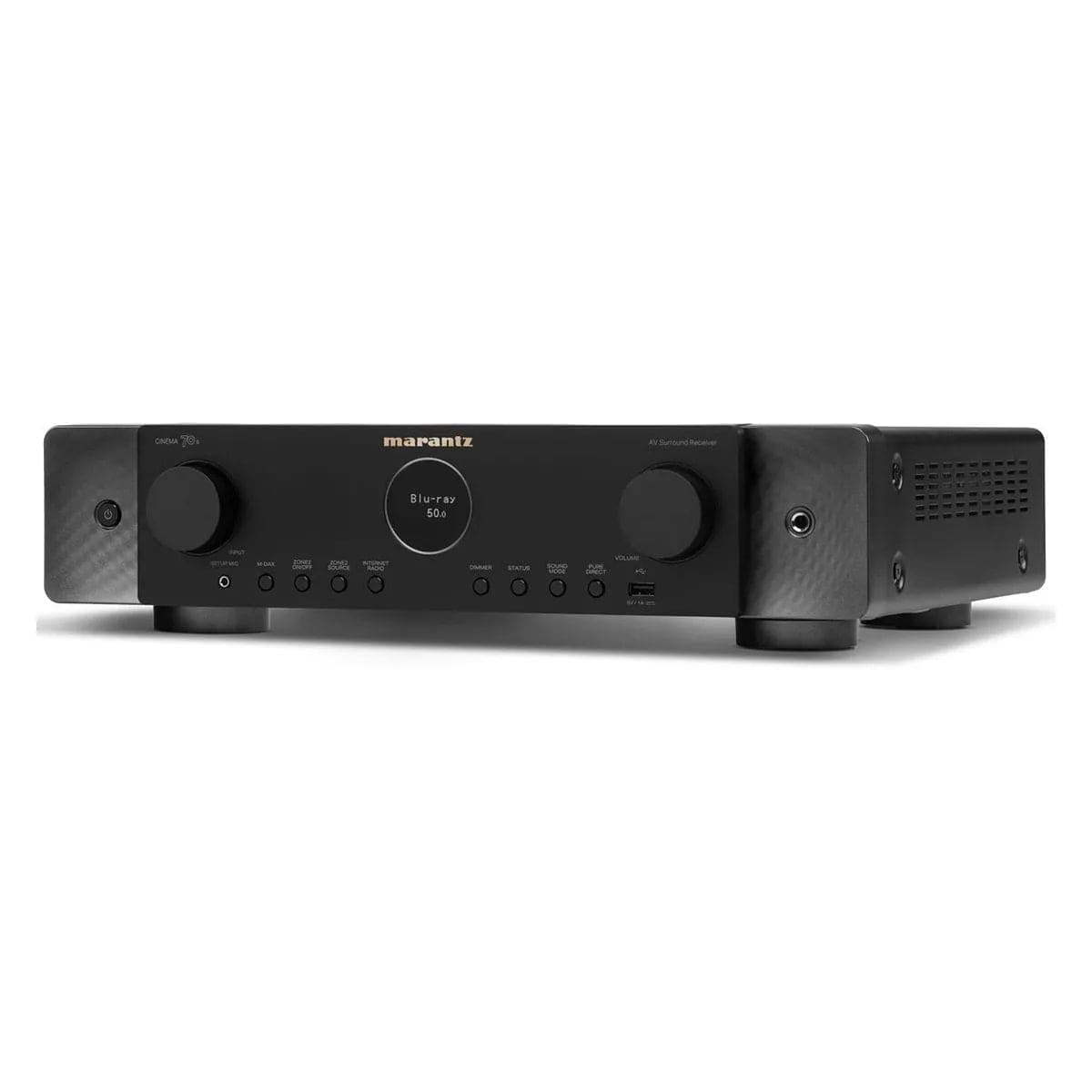

Marantz Cinema 70s Slimline 7.2 Channel AV Receiver

Marantz Cinema 70s Slimline 7.2 Channel AV Receiver

Slimline 7 Channel 50-Watts-Per-Channel AV Receiver

Slimline 7.2 channel 50-watts-per-channel amplification, Dolby Atmos, DTS:X and 8K Ultra HD, and HEOS streaming built-in. CINEMA 70s appears discreet yet remains a highly capable AV receiver.

Excellence Only Begins with Performance

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theatres.

Key Features

• Peerless performance: Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
• Leading technology: CINEMA 70s comes replete with the latest immersive audio formats, 8K video, room optimisation, streaming, and more technology to simplify and elevate your enjoyment.
• Exquisite slimline design: A modern expression of timeless design principles, CINEMA 70s features a highly compact slimline design, the iconic Marantz porthole, and symmetrical design.

Performance

The Marantz Sound Master meticulously tuned CINEMA 70s for amazing performance with careful parts selection to create the Most Musical Sound in your home.

Style

Excellence is heard and seen. CINEMA 70s slimline design is less than half the height of many receivers, but the design remains luxurious with every element carefully considered.

Customisability

Thoughtfully selected connectivity options and fine- tuning ability allow you to make CINEMA 70s your own.

Effortless

Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.

Technical Specifications

Power Amplifier

Number of Powered Channels
2

Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
75 W

Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
100 W

Discrete Power Amplifier
Yes

Amplifier Topology
Class A/B

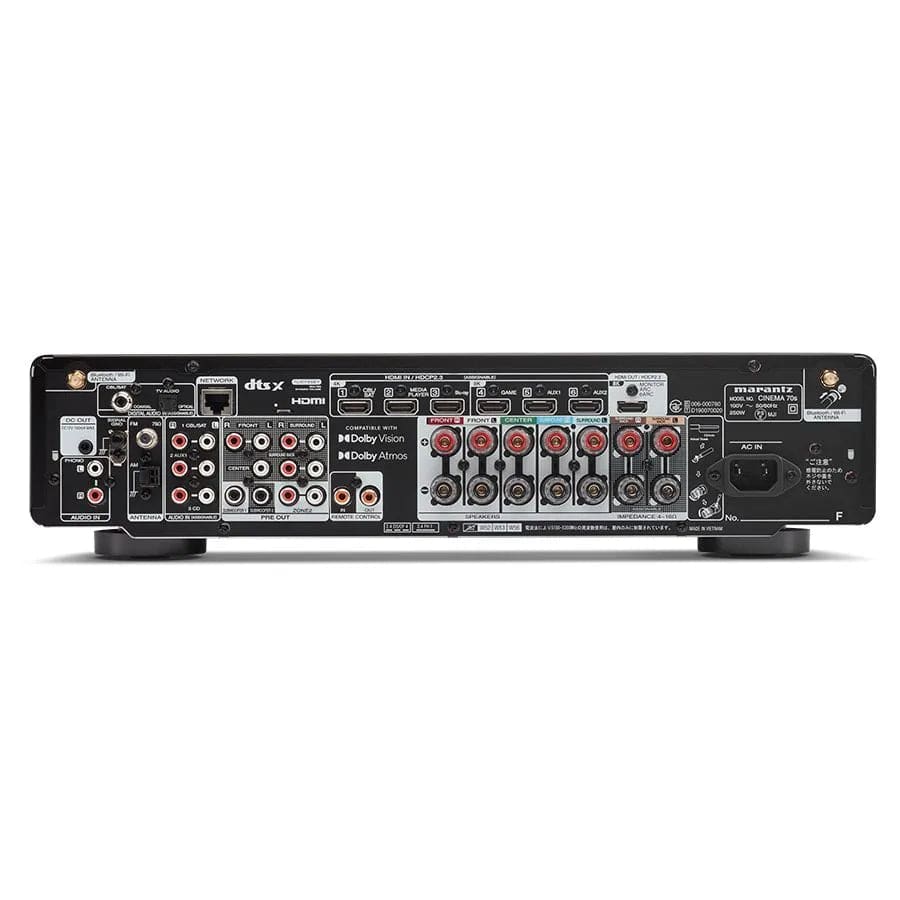

Inputs/Outputs

HDMI In / Out
6 / 1

Analog In / Fixed Level Out
3 in / out

Phono (MM) In
Yes

Digital In: Optical / Coaxial
1 / 1

Multi-Room Out: analog / digital
1 / 0

Multichannel Preamp Out
2.2

Subwoofer Out
2

Number of Speaker Terminals
4

Speaker A / B
Yes

USB Audio
USB A (Host)

DAB+/FM Tuner
Yes

Multichannel Surround Technologies

DTS
DTS-HD Master, DTS:X, DTS Neural:X, DTS Virtual:X

Dolby
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualisation, Dolby Atmos Music, Dolby Surround

Max Number of Processing (Preamp) Channels
7.2

HDMI

Total HDMI Inputs / No. Support 8K
6 / 3

HDCP 2.3 support
Yes

HDMI Outputs: Main / Zone
1 / 0

Analogue to HDMI Video Conversion
No

HDMI Upscaling
1080p/4K to 8K

Audio Return Channel
eARC

Video Dynamic Range
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR

ALLM (Auto Low Latency Mode) Pass-Through for Gaming
Yes

Variable Refresh Rate / Quick Frame Transport
Yes / Yes

HDMI Pass-Through in Standby Mode
Yes

CEC
Yes

DSD Audio over HDMI
No

Auto LipSync
Yes

Performance Technologies

Copper Plated Chassis
No

Toroidal Power Supply Transformer
No

Hyper Dynamic Amplifier Modules (HDAM)
No

Pure Direct Mode
Yes

Gold Plated RCA Terminals
No

Clock Jitter Reducer
No

Music File Support

Lossy Formats
MP3 / WMA / AAC

Lossless formats
FLAC HD 192/24 / WAV 192/24 / ALAC 192/31

DSD Audio
2.8 MHz / 5.6MHz

Gapless Playback
FLAC, WAV ,ALAC ,DSD

Compressed Audio Enhancer: MDAX2
Yes

Network Audio Sharing
Yes

Streaming Services

HEOS Multi-room and Streaming
Yes

AirPlay Audio Streaming
AirPlay2

Internet Radio
TuneIn

Spotify*
Spotify Connect - * availability of services might vary per region

Other Streaming Services *
Amazon Music HD/Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix - * availability of services might vary per region

Roon tested
Yes

Network Connectivity

Ethernet Ports
Yes

Bluetooth Re-transmit for Bluetooth headphones
Yes (with volume control)

Bluetooth
Yes

Wi-Fi
Yes

Smart Home Integration and Control

Voice Assistant Compatibility
Alexa / Google Voice Assistant / Apple HomePod

App for Smart Phones & Tablets (iOS & Android)
Marantz AVR App

HEOS Multi-Room Integrated
Yes

HEOS Link Compatibility: IR/ IP
Yes / Yes

Multi-Room zones
1

Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
2 Ch / 2Ch / Yes / Yes

Zone Audio Output: Speaker / Preout
No/Yes

HDMI Diagnostics
Yes

General

System Remote Control
RC-052SR

Power Consumption
210 W

Standby Consumption
0.2 W

CEC Standby Consumption
0.5 W

Network Standby Consumption
Less than 2.0 W

General

System Remote Control
RC-052SR

Power Consumption
210 W

Standby Consumption
0.2 W

CEC Standby Consumption
0.5 W

Network Standby Consumption
Less than 2.0 W

Dimensions - Antenna: Horizontal (W x D x H)
442 x 384 x 109 mm

Dimensions - Antenna: Vertical (W x D x H)
442 x 384 x 178 mm

Dimensions - No Antenna (W x D x H)
442 x 372 x 109 mm

Weight
8.7 kg

In the box

• Main unit
• remote control
• batteries
• DAB+/FM antenna
• wire labels
• quick start guide
• Audyssey microphone
• card board microphone stand
• 2 external detachable antenna
• AC cord



*This information has been obtained from Manufacturers website. We advice that Features & Specifications are subject change from Manufacturer without notice.

E&OE
