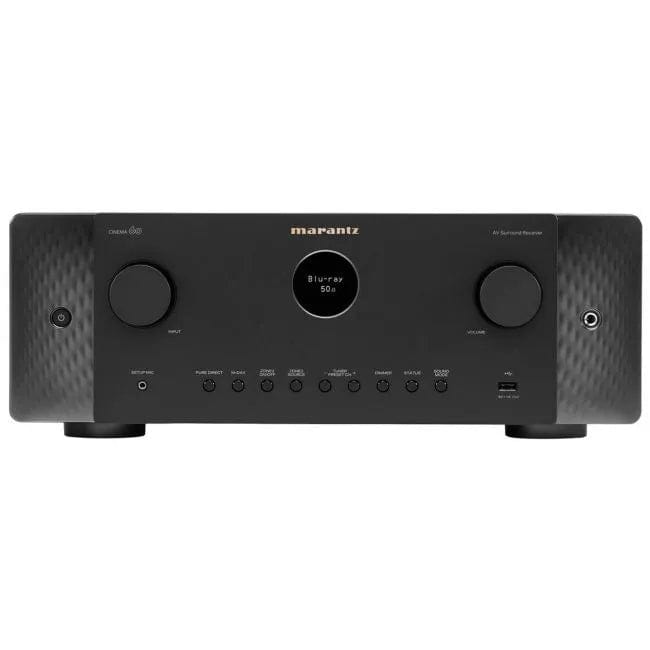

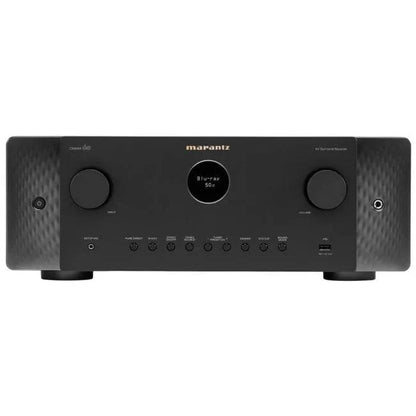

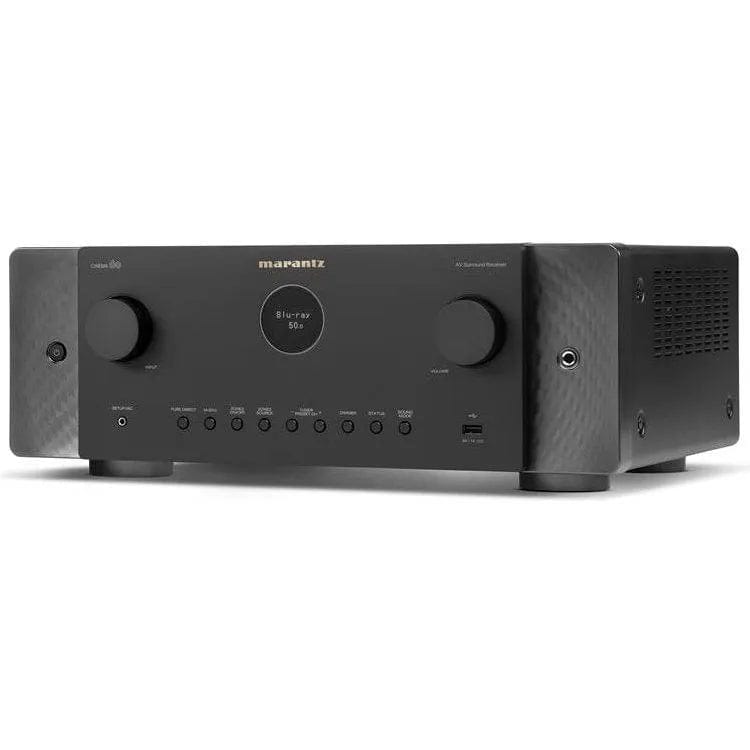

Meet the Cinema 60 7.2 Channel AV Receiver
Premium 7.2 Channel - 100 Watts Per Channel AV Receiver
High-performance 7.2 channel AV receiver with 100 watts per channel amplification, Dolby Atmos, DTS:X, 8K Ultra HD, and HEOS built-in streaming. CINEMA 60 is the new standard of foundational luxury home theatre.
Excellence Only Begins with Performance
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theatres.
Key Features
Peerless performance
Immersive spaciousness, warm and rich tone, and lifelike dynamics are legendary hallmarks of Marantz sound.
Technology leader
CINEMA 60 comes packed with the latest immersive audio formats, 8K video, room optimisation, streaming, and more technology to simplify and elevate your enjoyment.
Exquisite design
A modern expression of timeless design principles, CINEMA 60 includes our iconic porthole, symmetry, and visual cues representing legendary Marantz quality.
Performance
The Marantz Sound Master meticulously tuned CINEMA 60 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.
Style
Excellence is heard and seen. CINEMA 60 features architectural design that can be featured or remain discreet in any luxurious environment.
Customisability
Thoughtfully selected connectivity options, flexible speaker arrangements, and fine-tuning ability allow you to make CINEMA 60 your own.
Effortless
Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.
Technical Specifications
Power Amplifier
Number of Powered Channels
7
Power Output (8 Ohm, 20 Hz - 20 kHz, 0.08% THD, 2 Ch Driven)
100 W
Power Output (6 Ohm, 1 kHz, 0.7% THD, 2 Ch Driven)
140 W
Power Output (6 Ohm, 1 kHz, 10% THD, 1 Ch Driven)
200 W
70% Guarantee
Yes
Discrete Power Amplifier
Yes
Amplifier Topology
Class A/B
Current Feedback Topology
Yes
Bi-Amp Drive
Assignable
Multichannel Surround Technologies
DTS
DTS-HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualisation, Dolby Atmos Music, Dolby Surround
Max Number of Processing (Preamp) Channels
7.1

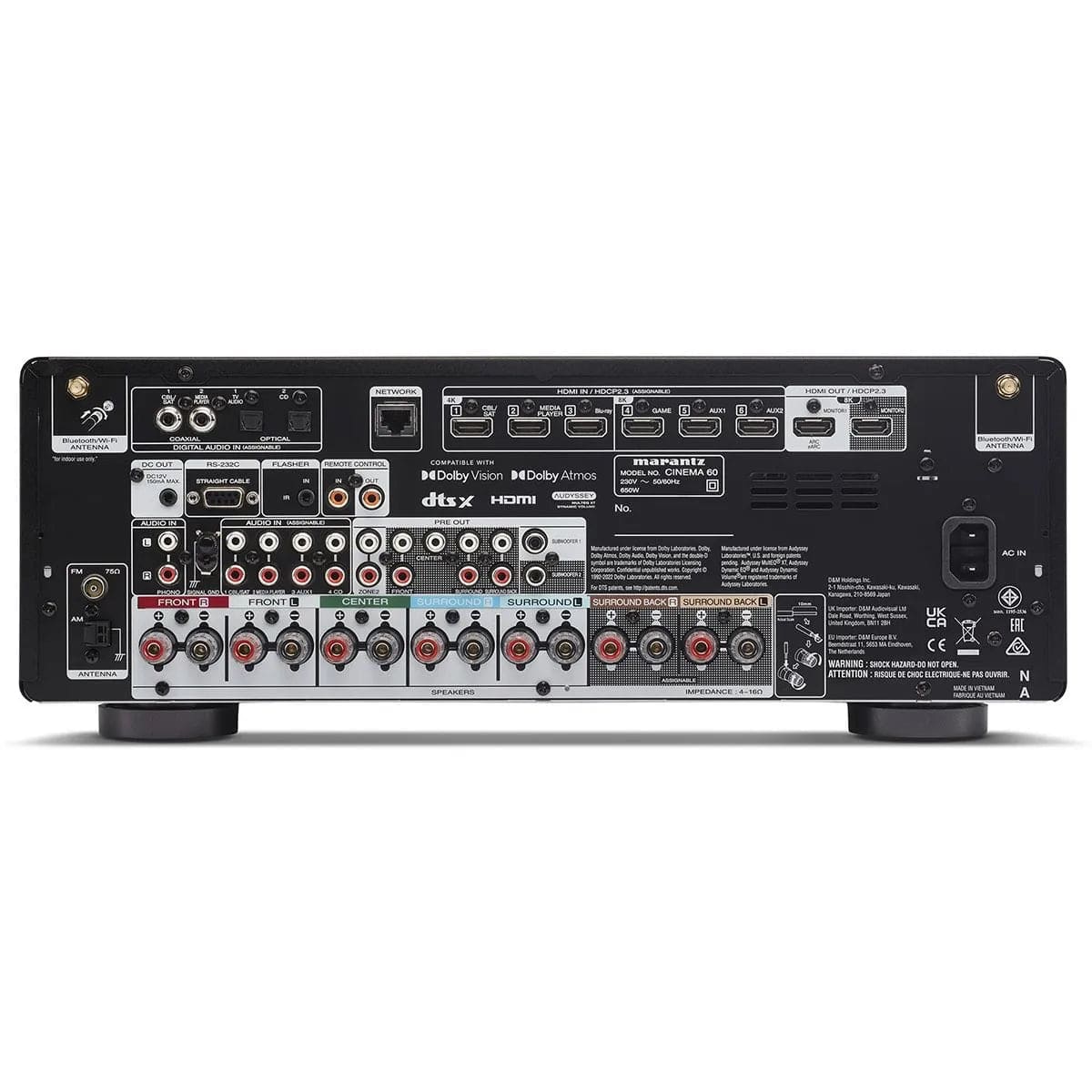

Inputs / Outputs
Composite In / Out
0 / 0
Component In / Out
0 / 0
HDMI In / Out
6 / 2
Multi-Room Video Out via HDMI
No
Analogue In / Fixed Level Out
4 in / 0 out
Phono (MM) In
Yes
Digital In: Optical / Coaxial
2 / 2
Multi-Room Out: Analogue / Digital
1 / 0
Multichannel Pre-Out
7.2
Subwoofer Out
2
7.1 Multichannel Input
No
Number of Speaker Terminals
7
Speaker A / B
Assignable
Multi-Room Speaker Terminal
Assignable
Front Inputs
USB-A
USB Audio / Made for iPod / Made for iPhone
Yes / No / No
FM Tuner with RDS
Yes
HDMI
Total HDMI Inputs / No. Support 8K
6 / 3
HDCP 2.3 support
Yes
HDMI Outputs: Main / Zone
2 / 0
Analogue to HDMI Video Conversion
No
HDMI Upscaling
1080P/4K to 8K
Max resolution @ frame rate
8K/60Hz, 4K/120Hz
Audio Return Channel
ARC, eARC
Video Dynamic Range
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-Through for Gaming
Yes
Variable Refresh Rate / Quick Frame Transport
Yes / Yes
HDMI Pass-Through in Standby Mode
Yes
CEC
Yes
DSD Audio over HDMI
No
Auto LipSync
Yes
Performance Technologies
Copper Plated Chassis
No
Toroidal Power Supply Transformer
No
Hyper Dynamic Amplifier Modules (HDAM)
Yes
Pure Direct Mode
Yes
Gold Plated RCA Terminals
No
Clock Jitter Reducer
No
Acoustic Room Correction
Audyssey
MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume
Yes / Yes
Audyssey LFC
No
Dirac Live Support
No
Variable Cross Over
Yes
Optimised Bass Redirection
Yes
Bass Sync
No
Music File Support
Lossy Formats
MP3, WMA, AAC
Lossless Formats
FLAC HD 192/24, WAV 192/24, ALAC 192/24
DSD Audio
2.8 MHz / 5.6 MHz
Gapless Playback
FLAC, WAV, ALAC, DSD
Compressed Audio Enhancer: MDAX2
Yes
Network Audio Sharing
Yes
Streaming Services
HEOS Multi-Room and Streaming
Yes
AirPlay Audio Streaming
AirPlay 2
Internet Radio
TuneIn
Spotify
Spotify Connect
Pandora
No
SiriusXM
Yes
Other Streaming Services
Amazon Music HD, Amazon Music, TIDAL, Deezer, Napster, Soundcloud, Mood Mix
Roon Tested
Yes
Network Connectivity
Ethernet Ports
Yes
Wi-Fi
Yes
Bluetooth
Yes
Bluetooth Re-Transmit for Bluetooth Headphones
Yes
Smart Home Integration and Control
Voice Assistant Compatibility
Alexa, Google Voice Assistant, Apple HomePod
App for Smart Phones & Tablets (iOS & Android)
Marantz AVR Remote App, HEOS
HEOS Multi-Room Integrated
Yes
HEOS Link Compatibility: IR / IP
Yes / Yes
Multi-Room Zones
2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue
Yes (2 Ch) / Yes (2 Ch) / Yes / Yes
Zone Audio Output: Speaker / Preout
Yes / Yes
Zone HDMI Output from HDMI Source
No
Control Connectivity
IP Control, RS232 Control, Web Control, App Control
IR Flasher In
Yes
Marantz Remote Bus
Yes
DC Trigger Output
1
HDMI Diagnostics
Yes
Others
Front Display
Port Hole OLED
GUI Languages
3
Setup Assistant
Yes
Smart Select on Remote
Yes
Firmware Update by Network / USB
Yes / Yes
ECO Mode
Yes
Auto Power off
Yes
Sleep / Timer
Yes
General
Metal Front Panel
No
System Remote Control
RC-049SR
Power Consumption
650 W
Power Consumption No-Sound (ECO On/Off)
45 W / 75 W
Standby Consumption
0.2 W
CEC Standby Consumption
0.5 W
Network Standby Consumption
Less Than 2.0 W
Dimensions W x D x H
Antenna Horizontal - 442 x 354 x 165 mm
Antenna Vertical - 442 x 354 x 235 mm
No Antenna - 442 x 343 x 165 mm
Weight
10.9 kg
In The Box
- Main Unit
- Remote Control
- Batteries
- AM/FM Antennas
- Wire Labels
- Quick Start Guide
- Audyssey Microphone
- Cardboard Microphone Stand
- 2 External Detachable Antennas
- AC Cord
