Marantz Cinema 40 9.4 Channel AV Receiver

Marantz Cinema 40 9.4 Channel AV Receiver

Premium 9.4 Channel - 125-Watts-Per-Channel AV Receiver

Premium 9.2 channel 125-watts-per-channel amplification, Dolby Atmos, DTS:X Auro 3D, and 8K Ultra HD plus HEOS® built-in streaming. CINEMA 40 is a statement piece and reference level A/V Receiver.

Excellence Only Begins with Performance

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theatres.

Key Features

• Peerless performance: Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound.
• Technology leader: CINEMA 40 comes complete with the latest immersive audio formats, 8K video, room optimisation, streaming, and more technology to simplify and elevate your enjoyment.
• Exquisite design: A modern expression of timeless design principles, CINEMA 40 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

Performance

The Marantz Sound Master meticulously tuned CINEMA 40 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

Style

Excellence is heard and seen. CINEMA 40 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.

Customisability

Thoughtfully curated connectivity options and fine-tuning ability allow you to make CINEMA 40 your own.

Effortless

Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.

Technical Specifications

Power Amplifier

Number of Powered Channels
9

Power Output (8 Ohm, 20 Hz - 20 kHz, 0.08% THD, 2 Ch Driven)
125 W

Power Output (6 Ohm, 1 kHz, 0.7% THD, 2 Ch Driven)
165 W

Power Output (6 Ohm, 1 kHz, 10% THD, 1 Ch Driven)
235 W

70% Guarantee
Yes

Discrete Power Amplifier
Yes

Amplifier Topology
Class A/B

Current Feedback Topology
Yes

Multichannel Surround Technologies

DTS
DTS-HD Master, DTS:X, DTS Neural:X, DTS Virtual:X

Dolby
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualisation, Dolby Atmos Music, Dolby Surround

Other
IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG-H, Audyssey DSX, Multichannel Stereo

Max Number of Processing (Preamp) Channels
11.4

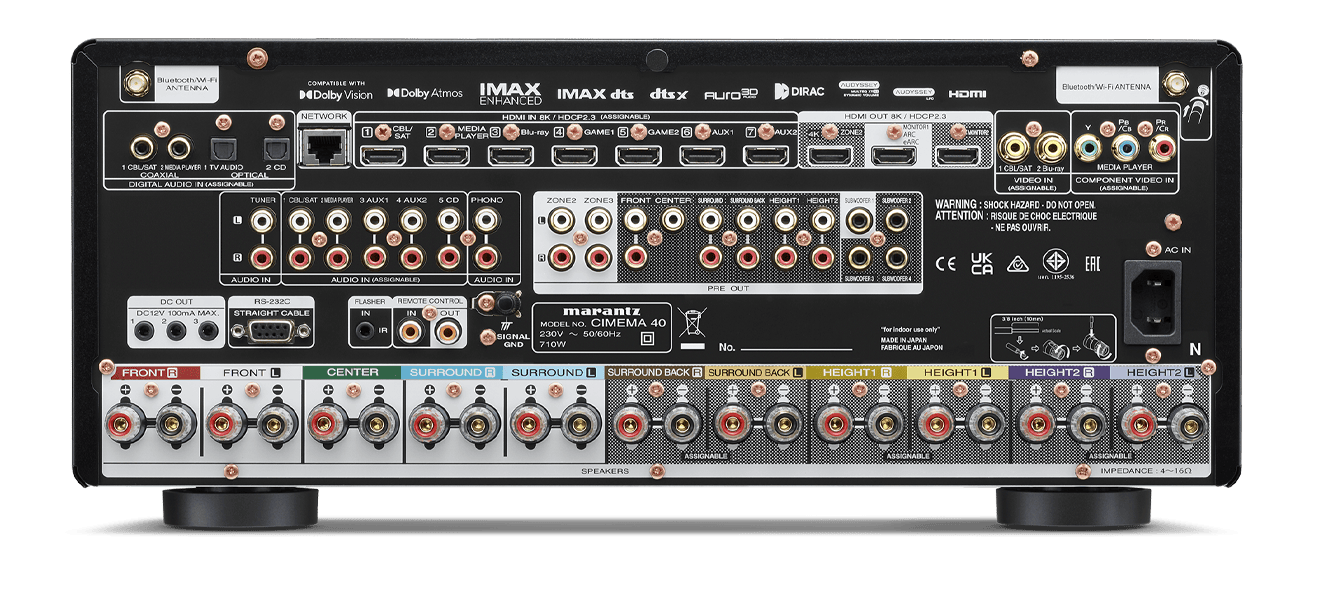

Inputs / Outputs

Composite In / Out
2 / 0

Component In / Out
1 / 0

HDMI In / Out
7 / 3

Multi-Room Video Out via HDMI
Yes

Analogue In / Fixed Level Out
6 / 0

Phono (MM) In
Yes

Digital In: Optical / Coaxial
2 / 2

Multi-Room Out: Analogue / Digital
2 / 0

Multichannel Pre-Out
11.4

Subwoofer Out
4 (Independent)

7.1 Multichannel Input
Yes

Number of Speaker Terminals
11

Speaker A / B
Assignable

Bi-Amp Drive
Assignable

Multi-Room Speaker Terminal
Assignable

Front Inputs
USB-A

USB Audio / Made for iPod / Made for iPhone
Yes / No / No

FM Tuner with RDS
No

DAB+ tuner
No

HDMI

Total HDMI Inputs / No. Support 8K
7 / 7

HDCP 2.3 support
Yes

HDMI Outputs: Main / Zone
2 / 1

Analogue to HDMI Video Conversion
Yes

HDMI Upscaling
1080p/4K to 8K

Max Resolution & Framerate
8K @ 60 Hz, 4K @ 120 Hz

Audio Return Channel
eARC

Video Dynamic Range
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR

ALLM (Auto Low Latency Mode) Pass-Through for Gaming
Yes

Variable Refresh Rate / Quick Frame Transport
Yes / Yes

HDMI Pass-Through in Standby Mode
Yes

CEC
Yes

DSD Audio over HDMI
Yes

Auto LipSync
Yes

Performance Technologies

Copper Plated Chassis
No

Toroidal Power Supply Transformer
No

Hyper Dynamic Amplifier Modules (HDAM)
Yes

Pure Direct Mode
Yes

Gold Plated RCA Terminals
Yes

Clock Jitter Reducer
Yes

Acoustic Room Correction

Audyssey
MultEQ XT32

Audyssey Dynamic EQ / Dynamic Volume
Yes / Yes

Audyssey LFC
Yes

Dirac Live Support
Yes

Variable Cross Over
Yes

Optimised Bass Redirection
Yes

Bass Sync
Yes

Music File Support

Lossy Formats
MP3, WMA, AAC

Lossless Formats
FLAC HD 192/24, WAV 192/24, ALAC 192/31

DSD Audio
2.8 MHz / 5.6 MHz

Gapless Playback
FLAC, WAV, ALAC, DSD

Compressed Audio Enhancer: MDAX2
Yes

Network Audio Sharing
Yes

Streaming Services

HEOS Multi-Room and Streaming
Yes

AirPlay Audio Streaming
AirPlay 2

Internet Radio
TuneIn

Spotify
Spotify Connect

Pandora
Yes

SiriusXM
Yes

Other Streaming Services
Amazon Music HD, Amazon Music, TIDAL, Deezer, Napster, Soundcloud, Mood Mix

Roon Tested
Yes

Network Connectivity

Ethernet Ports
Yes

Wi-Fi
Yes

Bluetooth
Yes

Bluetooth Re-Transmit for Bluetooth Headphones
Yes

Smart Home Integration and Control

Voice Assistant Compatibility
Alexa, Google Voice Assistant, Apple HomePod

App for Smart Phones & Tablets (iOS & Android)
Marantz AVR App

HEOS Multi-Room Integrated
Yes

HEOS Link Compatibility: IR / IP
Yes / Yes

Multi-Room Zones
3

Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue
Yes (2 Ch) / Yes (2 Ch) / Yes / Yes

Zone Audio Output: Speaker / Preout
Yes / Yes

Zone HDMI Output from HDMI Source
Yes

Control Connectivity
IP Control, RS232 Control, Web Control, App Control

IR Flasher In
Yes

Marantz Remote Bus
Yes

DC Trigger Output
3

HDMI Diagnostics
Yes

Other

Front Display
2 Line FLD + Port Hole OLED

GUI Languages
9

Setup Assistant
Yes

Smart Select on Remote
Yes

Firmware Update by Network / USB
Yes / Yes

ECO Mode
Yes

Auto Power off
Yes

Sleep / Timer
Yes

System Remote Control
RC-048SR

Power Consumption
710 W

Power Consumption No-Sound (ECO On/Off)
65 W / 110 W

Standby Consumption
0.2 W

CEC Standby Consumption
0.5 W

Network Standby Consumption
Less Than 2.0 W

Dimensions - Antenna: Horizontal (W x D x H)
440 x 414 x 185 mm

Dimensions - Antenna: Vertical (W x D x H)
440 x 414 x 254 mm

Dimensions - No Antenna (W x D x H)
440 x 401 x 185 mm

Weight
15.1 kg

In The Box

• Main Unit
• Remote Control
• Batteries
• Wire Labels
• Quick Start Guide
• Audyssey Microphone
• Microphone Stand
• 2 External Detachable Antennas
• AC Cord


*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.

E&OE
