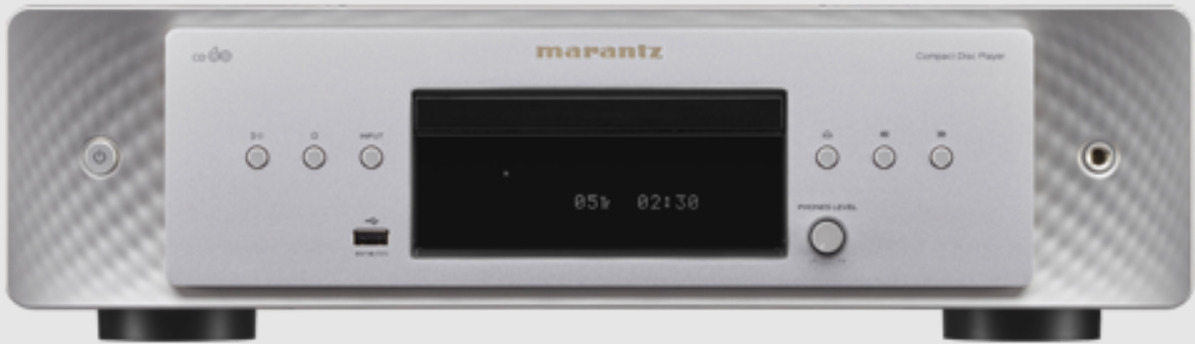

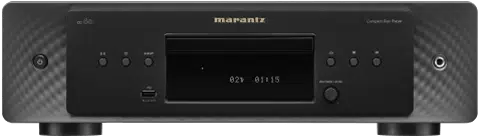

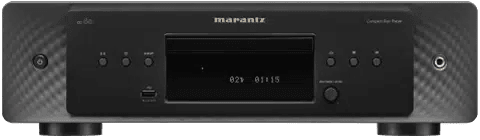

Marantz CD60 CD Player
Rich, Warm, and Spacious Sound
Expertly tuned by the legendary Marantz Sound Master for The Most Musical Sound. CD 60 is the CD player your cherished collection deserves
In the CD 60, the proprietary HDAM circuit has been further optimised from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound.
The CD 60 power supply uses high speed, high-current Schottky barrier diodes, higher value current storage capacitors and improved voltage regulators compared to predecessor models in this class. Oversize capacitors in the power supply improve current stability and reduced noise during highly demanding listening sessions.
Plays Hi-Res Audio USB SourcesThe CD 60 can play back MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24bit), and DSD (up to 5.6- MHz) files from a connected USB storage device.
| Unit (W x H x D mm) | 442 x 129 x 396 |
| Net weight | 7.5kg |
| Packaging Dimensions (W x H x D mm) | 525×249×511 |
| Panel Colour | Available Colours: Silver/Gold and Marantz Black |
| Front (Centre) Panel | Aluminium |
| Frequency response | USB DSD: 2Hz - 50kHz (-3dB) USB PCM: 2Hz - 50kHz (-1.5dB) CD: 2Hz - 20kHz |
| Total Harmonic Distortion | USB DSD: 0.0006% USB PCM 24bit: 0.0005% CD: 0.0015% |
| Signal to Noise Ratio | USB DSD: 110dB USB PCM 24bit: 118dB CD: 118dB |
| Dynamic Range | USB DSD: 110dB USB PCM 24bit: 118dB CD: 101dB |
| Line Output Level | 2.2Vrms |
| Headphone Output Level | 28mW / 32 ohms |
| Power Consumption | 38W |
| at Standby | 0.3W |
| HDAM | New HDAM + HDAM-SA2 |
| Power Transformer | EI |
| Headphone Amp | High slew rate op-amp + HDAM-SA2 |
| H/P Amp Gain Setting | Yes (Low / Mid / High) |
| Digital Filter | Filter 1, 2 Selectable |
| CD Compatibility | CD / CD-R/RW / WMA / MP3 / AAC |
| Data Disc Compatibility | DSD / WAV / ALAC |
| Fixed Analog Output (RCA) | 1 (Gold Plated) |
| Optical input / output (Maximum Support) | 0 / 1 |
| Coaxial input / output (Maximum Support) | 0 / 1 |
| Headphone Output | 1 |
| Remote Control Bus Terminal | Yes (RC-5 In / Out) w/ External / Internal Select Switch |
| Flasher Input | Yes (U ver) |
| USB A | 1 (Front) Mass Storage Class 5V/1A |
| Support format | FAT 16/32 |
| USB-A: FLAC / WAV / AIFF / ALAC / DSD | Yes / Yes / Yes / Yes |
| DSD Native Playback | Yes |
| USB Firmware Update | Yes |
| Remote Controller | System Remote (Amp and CD Player Control) |
| Unit control (Button) | POWER, Play/Pause, Stop, Input, Open/Close, Fwd, Rev |
| Unit control (Knob) | 1 Phones Level |
| Dimmer for Front Display | Bright / Dim / Dark / Off |
| Control with App via Network Player (Use Remote Control Bus) | Yes |
| Last Function Memory | Yes |
| Timer Play (Need external audio timer) | Yes On/Off selectable in Menu |
| Auto Standby Mode | Yes |
| Other | Stereo RCA Cable x1 Remote connector cable x1 |
| Accessory Box | Yes |
| Battery | Yes (AAA x2) |
| Power Cord | Yes |
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.
E&OE
