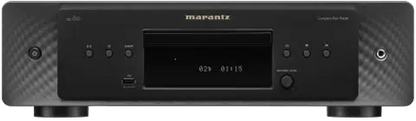

Marantz CD60 CD Player
Marantz CD60 CD Player
Couldn't load pickup availability
AFTER PAY
ZIP PAY
LAY BUY
- 405 Brunswick St Fitzroy
- Full Aussie Manufact. Warranty
- Free Shipping over $500
Marantz CD60 CD Player
Rich, Warm, and Spacious Sound
Expertly tuned by the legendary Marantz Sound Master for The Most Musical Sound. CD 60 is the CD player your cherished collection deserves
Optimised HDAM Circuit
In the CD 60, the proprietary HDAM circuit has been further optimised from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound.
High-Current Power Supply
The CD 60 power supply uses high speed, high-current Schottky barrier diodes, higher value current storage capacitors and improved voltage regulators compared to predecessor models in this class. Oversize capacitors in the power supply improve current stability and reduced noise during highly demanding listening sessions.
Plays Hi-Res Audio USB Sources
The CD 60 can play back MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24bit), and DSD (up to 5.6- MHz) files from a connected USB storage device.
Technical Specifications
General
| Unit (W x H x D mm) | 442 x 129 x 396 |
| Net weight | 7.5kg |
| Packaging Dimensions (W x H x D mm) | 525×249×511 |
| Panel Color | Available Colors: Silver/Gold and Marantz Black |
| Front (Centre) Panel | Aluminium |
Specifications
| Frequency response | USB DSD: 2Hz - 50kHz (-3dB) USB PCM: 2Hz - 50kHz (-1.5dB) CD: 2Hz - 20kHz |
| Total Harmonic Distortion | USB DSD: 0.0006% USB PCM 24bit: 0.0005% CD: 0.0015% |
| Signal to Noise Ratio | USB DSD: 110dB USB PCM 24bit: 118dB CD: 118dB |
| Dynamic Range | USB DSD: 110dB USB PCM 24bit: 118dB CD: 101dB |
| Line Output Level | 2.2Vrms |
| Headphone Output Level | 28mW / 32 ohms |
| Power Consumption | 38W |
| at Standby | 0.3W |
Audio Feature
| HDAM | New HDAM + HDAM-SA2 |
| Power Transformer | EI |
| Headphone Amp | High slew rate op-amp + HDAM-SA2 |
| H/P Amp Gain Setting | Yes (Low / Mid / High) |
| Digital Filter | Filter 1, 2 Selectable |
Connectivity / Playback Capability
| CD Compatibility | CD / CD-R/RW / WMA / MP3 / AAC |
| Data Disc Compatibility | DSD / WAV / ALAC |
| Fixed Analog Output (RCA) | 1 (Gold Plated) |
| Optical input / output (Maximum Support) | 0 / 1 |
| Coaxial input / output (Maximum Support) | 0 / 1 |
| Headphone Output | 1 |
| Remote Control Bus Terminal | Yes (RC-5 In / Out) w/ External / Internal Select Switch |
| Flasher Input | Yes (U ver) |
| USB A | 1 (Front) Mass Storage Class 5V/1A |
| Support format | FAT 16/32 |
| USB-A: FLAC / WAV / AIFF / ALAC / DSD | Yes / Yes / Yes / Yes |
| DSD Native Playback | Yes |
| USB Firmware Update | Yes |
Easy to use
| Remote Controller | System Remote (Amp and CD Player Control) |
| Unit control (Button) | POWER, Play/Pause, Stop, Input, Open/Close, Fwd, Rev |
| Unit control (Knob) | 1 Phones Level |
| Dimmer for Front Display | Bright / Dim / Dark / Off |
| Control with App via Network Player (Use Remote Control Bus) | Yes |
| Last Function Memory | Yes |
| Timer Play (Need external audio timer) | Yes On/Off selectable in Menu |
| Auto Standby Mode | Yes |
| Other | Stereo RCA Cable x1 Remote connector cable x1 |
| Accessory Box | Yes |
| Battery | Yes (AAA x2) |
| Power Cord | Yes |
