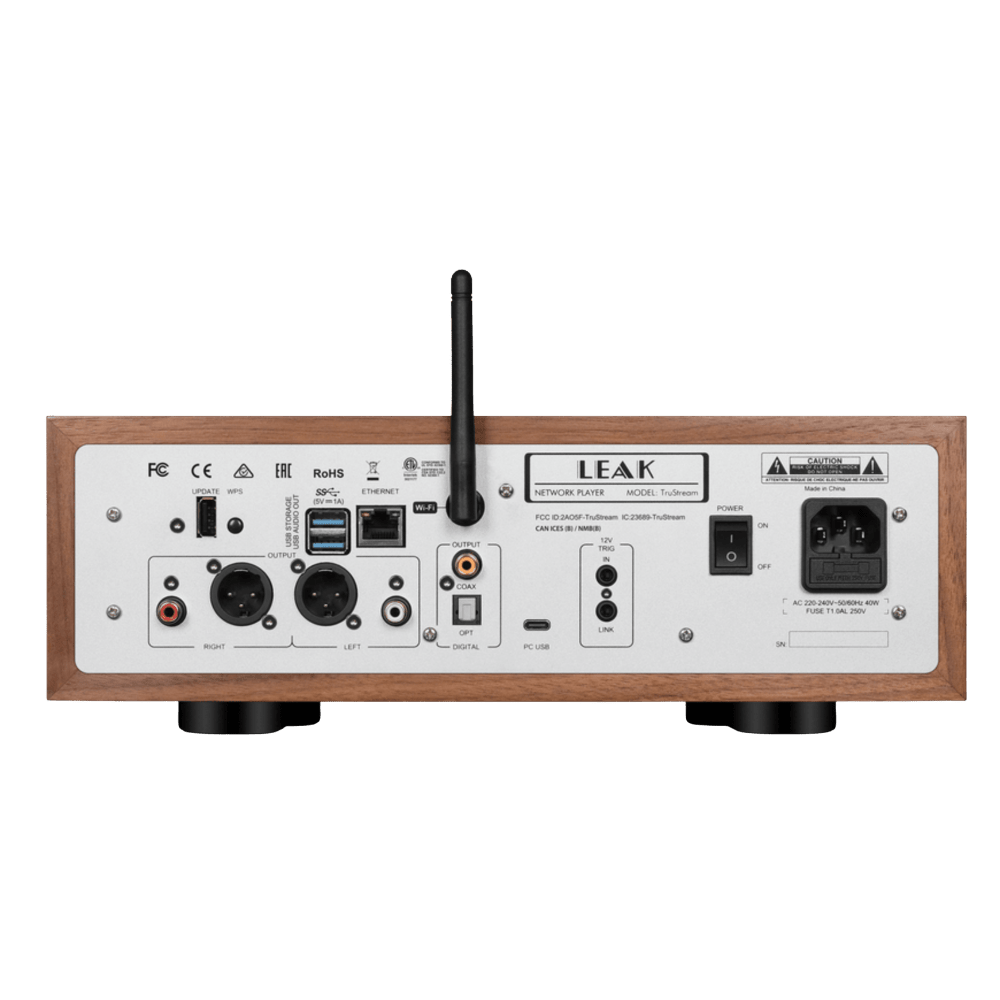

Inputs
1 × PC USB (USB Type-C)
1 × Ethernet 10/100/1000Base-T Ethernet
1 × USB-A for MCU Update
2 × USB-A for USB Storage
Outputs
1 × RCA (Pair) Analogue Outputs
1 × XLR (Pair) Analogue Outputs
1 × Optical Digital Output
1 × Coaxial Digital Output
2 × USB-A for USB Audio Out
1 × Headphone Output
Supported File Formats
DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF, CUE, APE
Compressed (Lossy) Audio: MP3, WMA, AAC, OGG
Sampling Frequency
PCM: 44.1kHz–768kHz (705.6kHz / 768kHz Fixed-Point Supported via App Streaming)
DSD: DSD64, DSD128, DSD256 (DoP), DSD512 (PC USB)
Digital Section
Digital Output Level
500 ±50mVpp
Output Impedance
75Ω
Frequency Response
-0.01dB (20Hz–20kHz, Ref. 1kHz)
Maximum Sampling Frequency
192kHz / 24-bit
Digital Outputs
1 × Coaxial
1 × Optical
USB Audio Out
D/A Converter Section
Variable Output Voltage (0dBFS, 1kHz)
0–2.05Vrms (RCA)
0–4.1Vrms (XLR)
DAC
ESS Sabre ES9038Q2M
Frequency Response
±0.5dB (20Hz–20kHz, Ref. 1kHz)
Total Harmonic Distortion (THD)
<0.001% (1kHz @ 2.05Vrms)
Maximum Sampling Frequency
768kHz / 32-bit
Signal-to-Noise Ratio (A-Weighted)
116dB (RCA)
120dB (XLR)
Output Impedance
120Ω (RCA)
56Ω (XLR)
Headphone Amplifier
Total Harmonic Distortion (THD)
<0.01% (1kHz, 50mW)
Output Impedance
2.35Ω
Load Impedance
20–600Ω
General
Standby Power Consumption
<0.5W
Net Weight
6.5kg
Dimensions (W × H × D)
330 × 118 × 278mm
Finish
Walnut
Power Requirements (Depending on Region)
220–240V, 50/60Hz
100–120V, 50/60Hz
