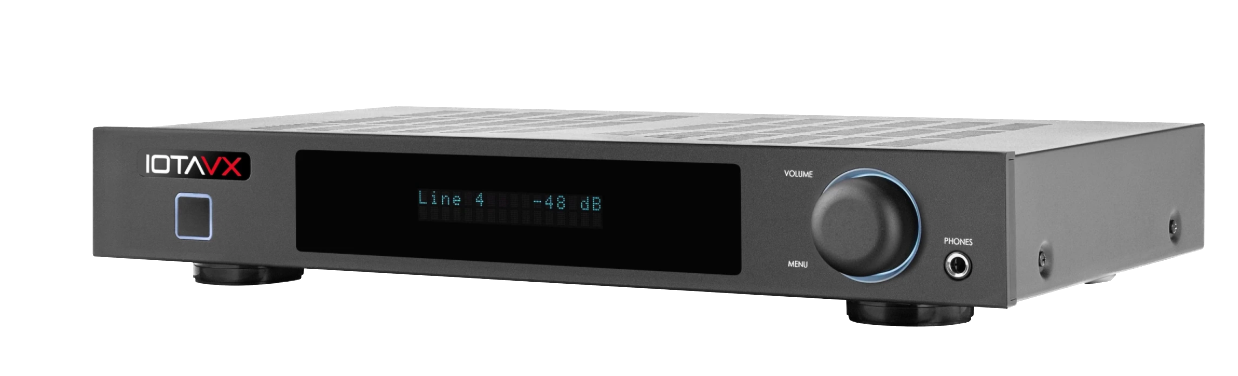

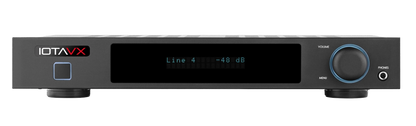

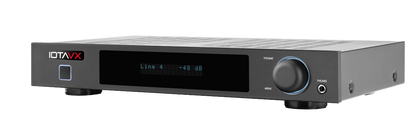

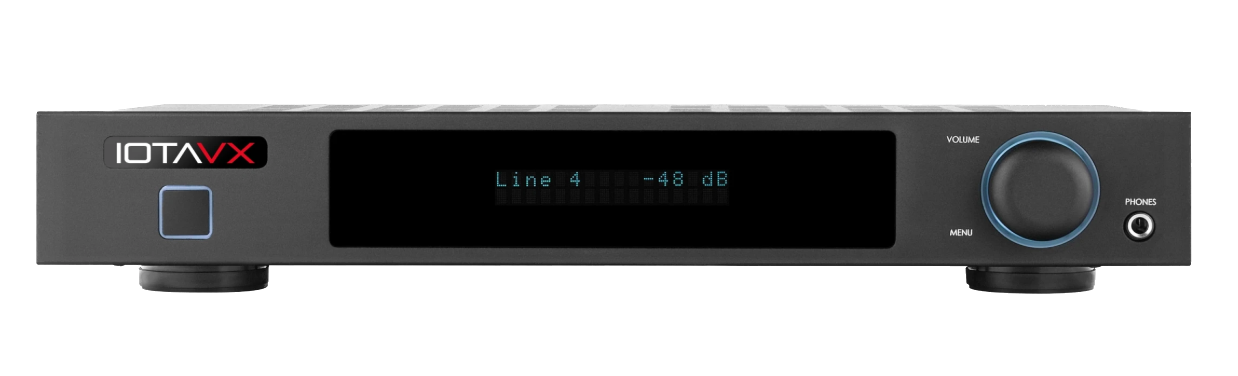

IOTA VX SA3 Stereo Integrated Amplifier

Meet the Iota VX SA3

Quality without Compromise

• Stereo integrated amplifier
• 90W (4Ω, 2 Channels)
• Bridgeable
• Digital- /analogue inputs
• Phono input
• Toroidal transformer

There are countless stereo integrated amplifiers available on the market. In all price ranges, expansive or compact, the equipment is puristic or luxurious. The offer is almost impossible to survey. So why should you take a closer look at the IOTAVX SA3?

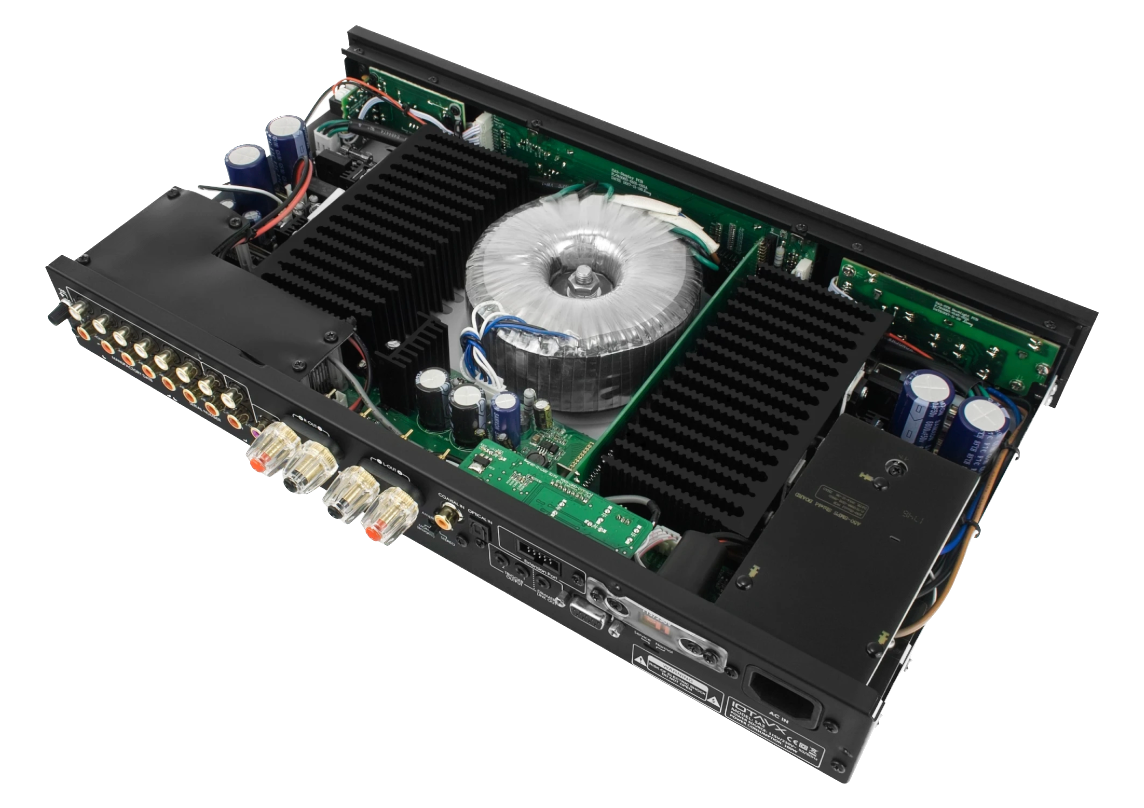

Quite simply: It should be difficult to find a comparable technical quality for the internal structure and the assemblies used with other manufacturers in this price range. This high quality is still combined with a flat, cleanly processed and chic housing. The SA3 takes up little space, and despite its high performance, it integrates perfectly into practically any living space.

With 90 watts per channel (at 4 ohms), the IOTAVX SA3 provides enough power for the operation of loudspeakers that have only average efficiency. At the same time, it is not difficult to use the integrated amplifier in the larger listening room without restrictions.

The built-in Class AB amplifier works with a high degree of efficiency, moreover it is impulse-true and low in distortion. The high quality components in the prepress ensure the shortest possible signal paths and a high acoustic purity. D / A converters from the well-known Wolfson brand ensure very precise conversion of digital signals into analog ones.

The equipment of the SA3 is also impressive. A Phono MM preamplifier, tone control for bass and treble range, five cinch inputs as well as an optical plus a coaxial digital input - everything the stereo fan needs is on board.

A Bluetooth dongle is optionally available. In addition, the SA3 can be combined with the IOTAVX stereo power amplifier PA3 thanks to the appropriate connection options - then a whopping 180 watts per channel are available.

Tone Control

The SA3 integrated amplifier has a tone control, which enables an optimal adaptation of the sound to your listening room and your taste. Both the bass and the treble can be raised or lowered by up to 10 dB in 1 dB steps. In addition, the balance between the left and right loudspeaker can also be adjusted, here also in 10 steps to the left and 10 steps to the right.

IOTAVX Bluetooth Connectivity

In addition to the digital and analog connection options, music can be streamed directly to the SA3 by using the optional Bluetooth receiver module, from a smartphone or another Bluetooth-enabled device. This module is plugged directly into the extension port on the back of the SA3 and supports the latest Bluetooth AptX HD audio standard.

Quality Promise

The IOTAVX SA3 not only sounds fantastic, it's manufactured it with a heavy steel housing and high-quality components, ensuring that you can enjoy your IOTAVX SA3 for a long time.

Technical Specifications

Type
Stereo Integrated Amplifier

Power Outputs (RMS)
45 W (8Ω, 2 Channels)
90 W (8Ω, 1 Channel bridged)
90 W (4Ω, 2 Channels)
180 W (4Ω, 1 Channel bridged)

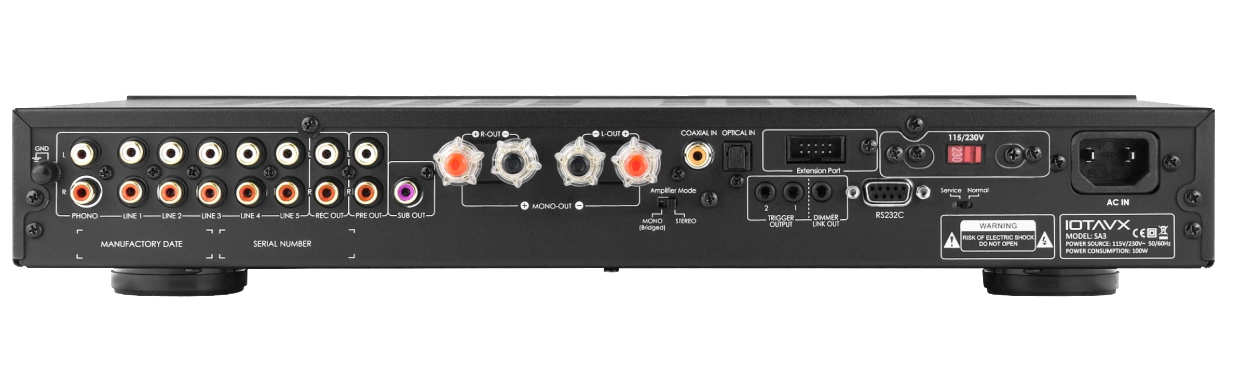

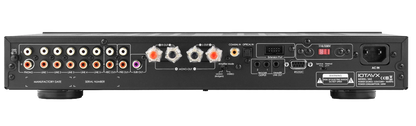

Audio Inputs
5 x RCA (Input sensitivity 200mV), 1x S/PDIF coaxial,
1 x Toslink optical, 1x Bluetooth (IOTAVX Bluetooth Adapter notwendig),
1 x Phono (MM) (Input sensitivity 2.5mV)

Audio Outputs
Loudspeaker Output
1x Sub Out
1x Pre Out
1x Headphone Out

Additional In- and Outputs
1x RS-232 Input
2x Trigger Output
1x Dimmer Control (10 Steps)

Distortion (THD+N)
=0.005% (80% Power Output, 1 kHz)

SNR
>105 dB (32 W, A-Weighting)

Frequency Response (+/-3dB)
10 Hz - 100 kHz

Power Supply
115 VAC or 230 VAC, @ 50/60 Hz

Standby Consumption
<0.5 W

Dimensions including feet (W x H x D)
435 x 70 x 240 mm

Weight
6.5 kg

Warranty
2 years

*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change without notice.

E&OE
